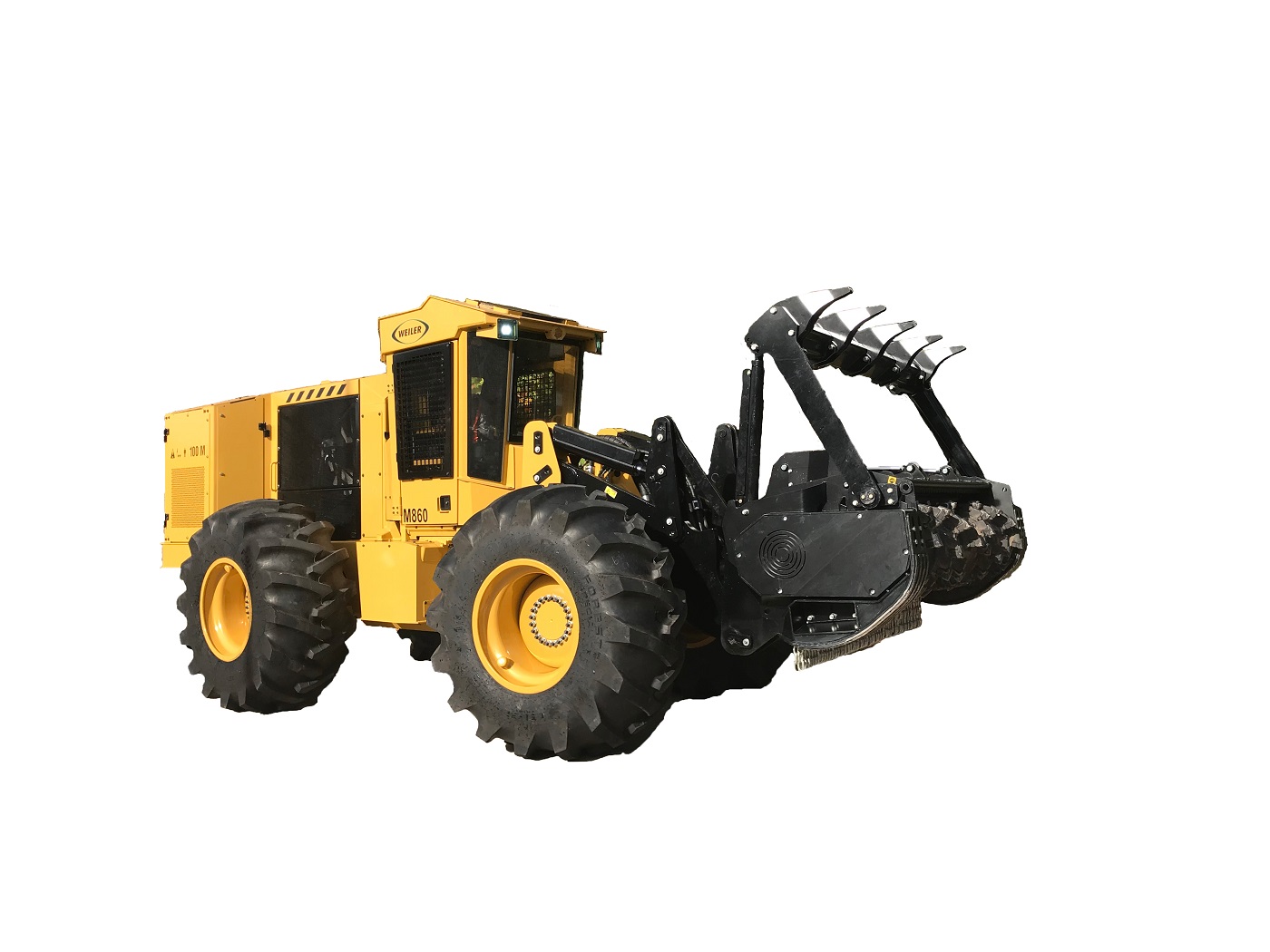

M 860 Mulcher
M 860
M 860 Mulcher
| Description | Specification |
|---|---|
| Engine Model | Cat® C9.3B Tier 4 Final |
| Gross Power | 375 hp (280 kW) |
| Engine Speed | 1880 rpm |
| Weight | 38,450 lb (17 740 kg) |
| Fuel Capacity | 130.5 gal (494 L) |
| DEF Capacity | 11.8 gal (44.7 L) |
| Hydraulic Tank Capacity | 30.4 gal (115 L) |
| Wheelbase | 125.0" (3175 mm) |
| Ground Clearance | 24.7” (627 mm) |
| Transport Width | 9’ 11” (3.03 m) |
| Transport Length | 29’ 11” (9.12 m) |
| Travel Speed (low) | 0-5.2 mph (0-8.4 km/h) |
| Travel Speed (high) | 0-12.3 mph (0-19.8 km/h) |
| Cutting Path - 624 | 8' 0" (2.44 m) |
| Cutting Path - 825 | 8’ 4” (2.54 m) |
| Max Single Cut Diameter - 624 | 8.0" (203 mm) |
| Max Single Cut Diameter - 825 | 16.0" (406 mm) |
| Max Mowing Diameter - 624 | 4.0" (102 mm) |
| Max Mulching Diameter - 825 | 16.0” (406 mm) |
| Base configuration includes 30.5L-32 26PR Tires, winch ready, and 825 mulching head. |
