Stationary Knuckleboom Loaders

Designed for greater operator comfort and increased productivity

The Weiler stationary mount loaders offered by Toromont Cat have been built to cater to a variety of mill yard needs. The two different models are available with onboard or remote power. Stationary mount loaders are completely pre-wired, tested, and ready for on-site electric hookups, including installation kits with the required.

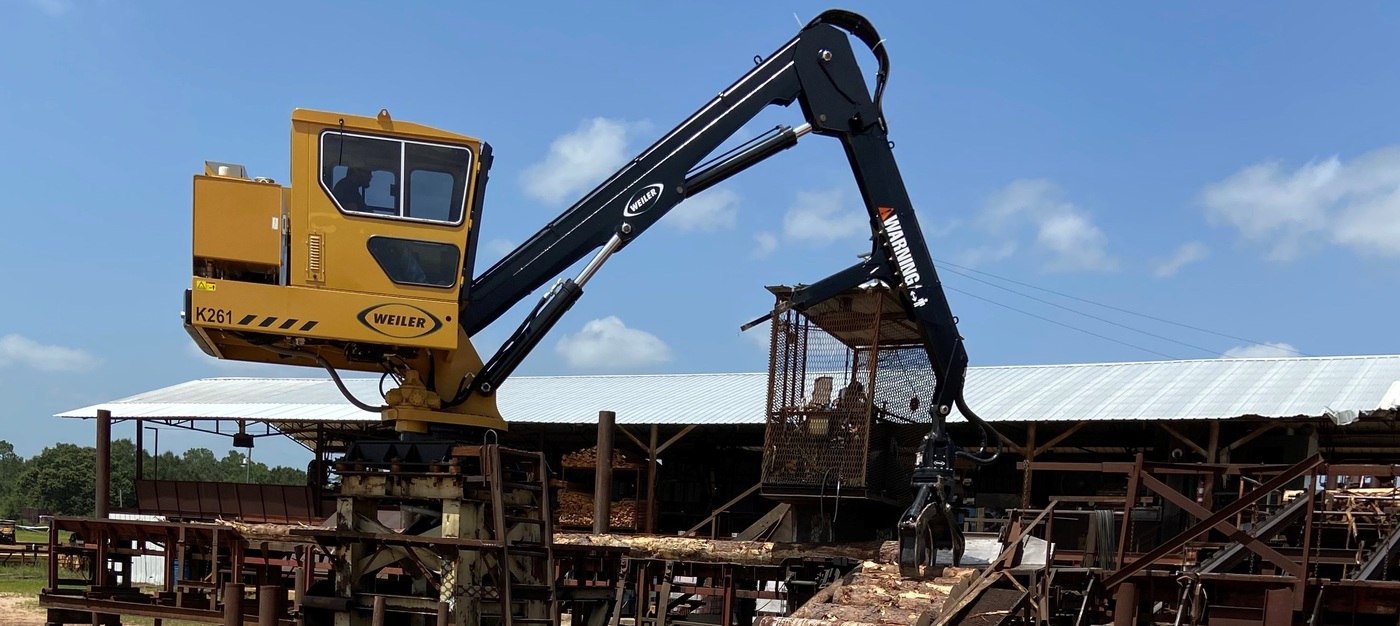

K 261

Gross Power
75 hp (56 kW)

System Pressure
2200 psi (152 bar)

Swing Speed
8 rpm 8 rpm

View Product

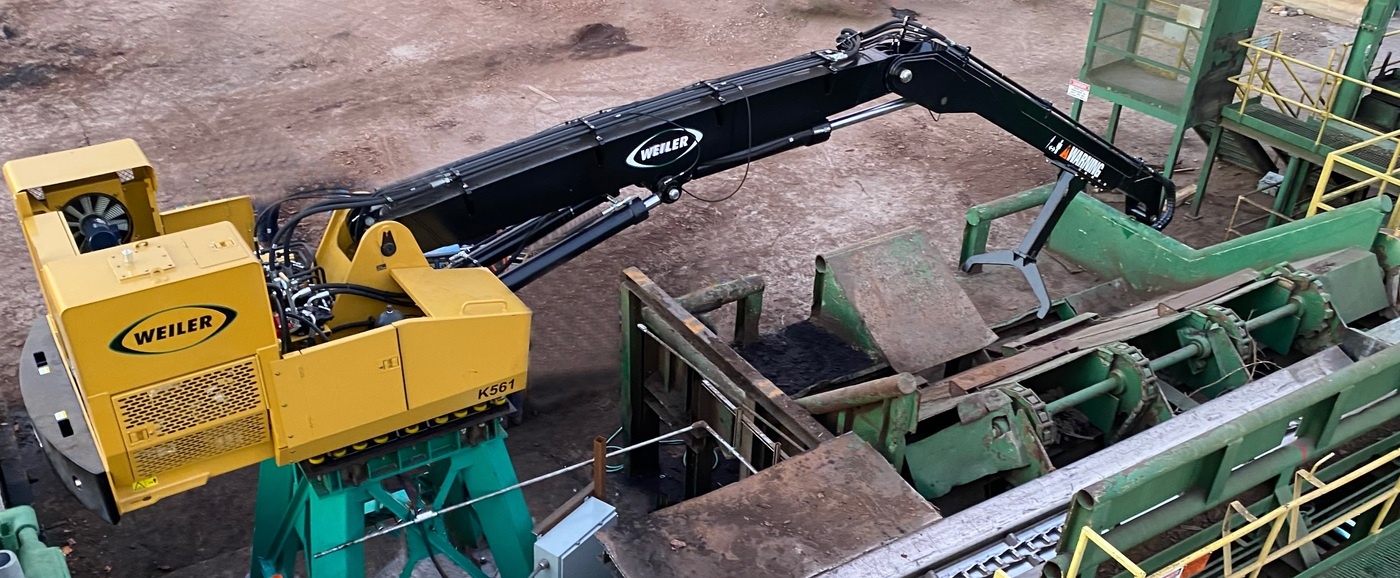

K 561

Gross Power
100 hp (75 kW)

System Pressure
2500 psi (172 bar)

Swing Speed
7 rpm 7 rpm

View Product

PILOT CONTROLS

The optional right side mounted cab features a large, fully adjustable suspension seat with lumbar support, fold-up armrests with hydraulic pilot joystick controls, and a rocker swing pedal for ease of operation and increased performance. On board electric power unit is standard.

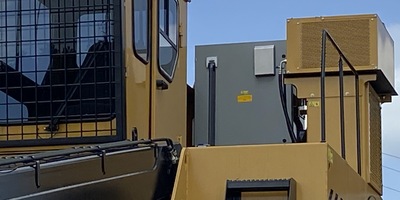

ON BOARD POWER UNIT

The on board electric power supply and hydraulics allow for continuous or noncontinuous rotation. This configuration also provides a space saving installation as all components are mounted on the loader with only the elctrical harnesses routed up the mounting structure.

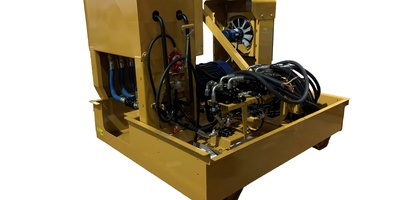

REMOTE POWER UNIT

Remote electric power supply and hydraulics are placed on the ground for easier service access to the electric motor, hydraulic pumps and hydraulic valve. Hydraulic hoses are routed up the mounting structure through the center of the loader. Available in limited rotation only.

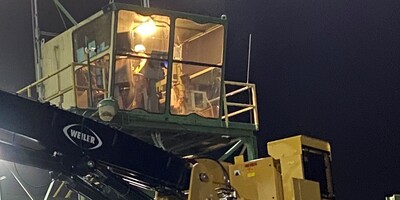

REMOTE CONTROL OPERATION

Loaders with optional remote controls are designed with electric over hydraulic (EHC) joysticks with proportional controllers that enable the loader to be operated from a remote location. Specially designed multiconductor cables ensure reliable signal continuity.

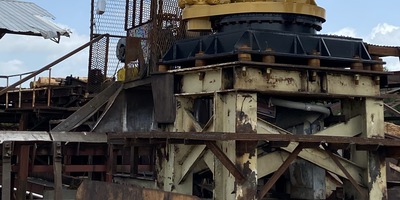

RESILIENT PAD MOUNTING

The Resilient Pad Mounting System includes a set of special rubber isolators on each mounting fastener that absorbs stress in two directions. An additional hydraulic accumulator is built into the main boom cylinder circuit to further absorb peak-load shocks.

BOOM LENGTH OPTIONS

Heavy-duty boom options range from 25’ (7.6 m) to 30’ (9.1 m) for handling short wood as well as fixed and live heel options for handling tree length stems.
