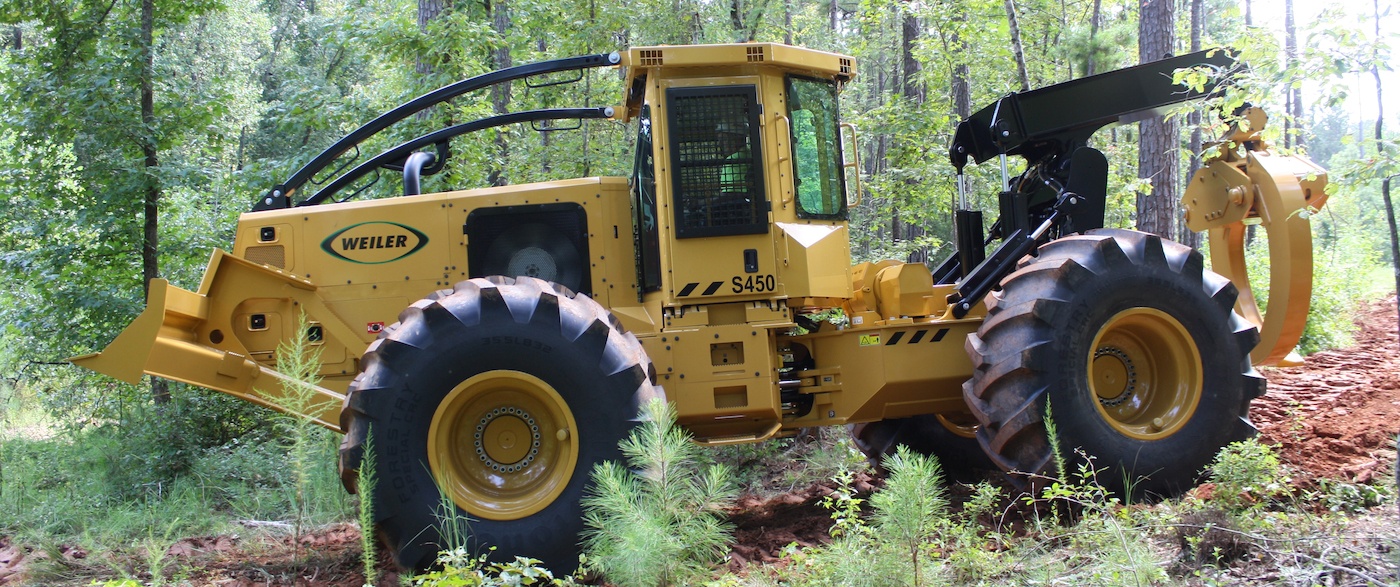

S 450 Wheel Skidder

S 450

Description	Specification
Engine Model (US & Canada)	Cat® 7.1 Tier 4 Final
Engine Model (Outside US & Canada)	Cat® 7.1 Tier 3
Gross Power	250 hp (186 kW)
Engine Speed	2200 rpm
Fuel Capacity	99.8 gal (378 L)
DEF Capacity (US & Canada)	5.0 gal (19 L)
Wheelbase	155.1” (3940 mm)
Weight (US & Canada)	48,333 lb (21 923 kg)
Weight (Outside US & Canada)	47,833 lb (21 697 kg)
Transport Width	12’ 2” (3.70 m)
Transport Height	11’ 4” (3.45 m)
Transport Length	29’ 0” (8.83 m)
Ground Clearance	24.1” (612 m)
HD Box Grapple Capacity	19.0 ft² (1.77 m²)
HD Box Grapple Opening	135.0” (3429 mm)
Biomass Grapple Capacity	20.8 ft² (1.93 m²)
Biomass Grapple Opening	150.0” (3810 mm)
Base configuration includes DF Grapple, 35.5L-32 24PR Tires, Fenders, Winch, Water Tank and Wide Blade. Weight deduct 1,508 lb (684 kg) for 30.5L-32 tires, 963 lb (437 kg) for 30.5L-32 2X Ring tires. Height and ground clearance deduct 2.4” (61 mm) for 30.5L-32 tires.
