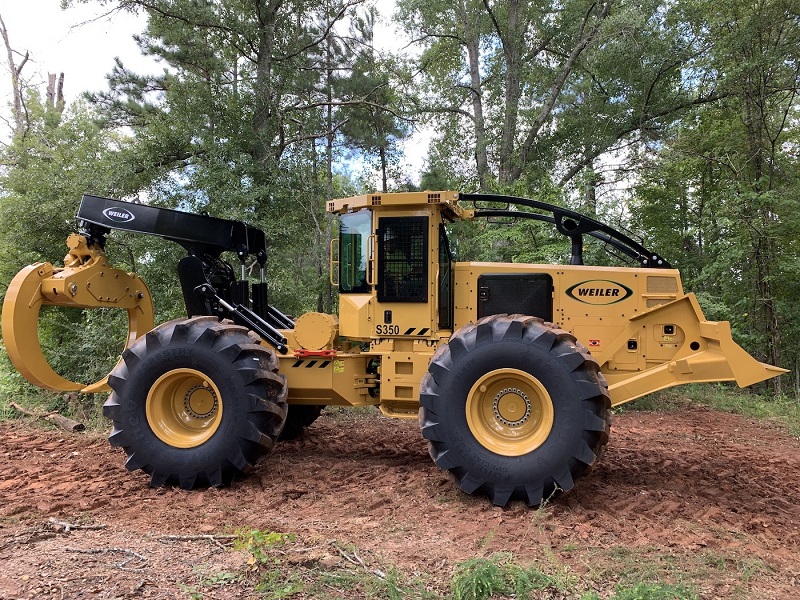

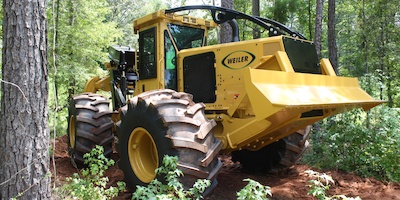

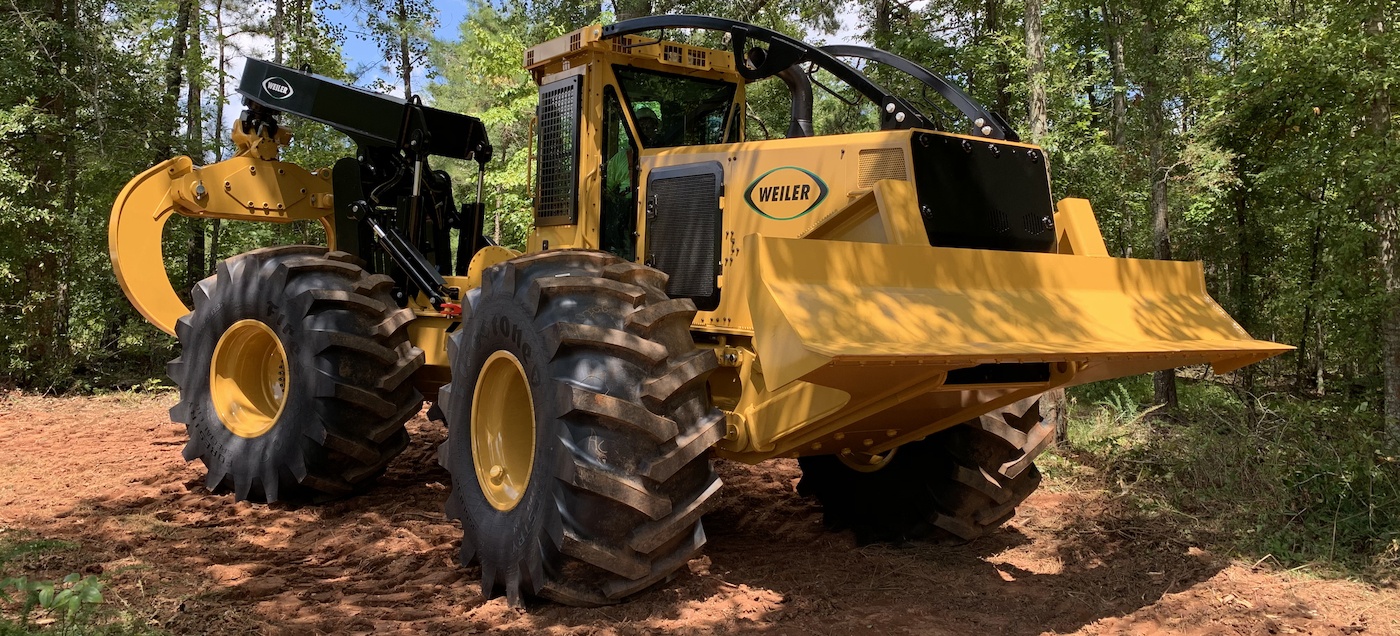

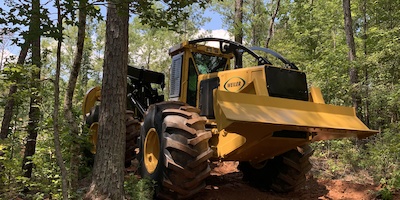

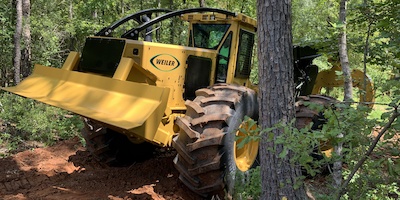

S 350 Wheel Skidder

S 350

Description	Specification
Engine Model (US & Canada)	Cat® 7.1 Tier 4 Final
Engine Model (Outside US & Canada)	Cat® 7.1 Tier 3
Gross Power	225 hp (168 kW)
Engine Speed	2200 rpm
Fuel Capacity	99.8 gal (378 L)
DEF Capacity (US & Canada)	5.0 gal (19 L)
Wheelbase	149.4” (3796 mm)
Weight (US & Canada)	45,888 lb (20 814 kg)
Weight (Outside US & Canada)	45,358 lb (20 574 kg)
Transport Width	10’ 7” (3.21 m)
Transport Height	11’ 1” (3.39 m)
Transport Length	27’ 10” (8.47 m)
Ground Clearance	21.7” (550 m)
HD Box Grapple Capacity	16.6 ft² (1.54 m²)
HD Box Grapple Opening	127.0” (3226 mm)
Biomass Grapple Capacity	18.0 ft² (1.67 m²)
Biomass Grapple Opening	145.0” (3683 mm)
Base configuration includes DF Grapple, 30.5L-32 26PR NOAW Tires, Fenders, Winch, Water Tank and Wide Blade. Weight add 545 lb (247 kg) for 30.5L-32 2X Ring tires, 1,508 lb (684 kg) for 35.5L-32 tires. Height and ground clearance add 2.4” (61 mm) for 35.5L-32 tires.
