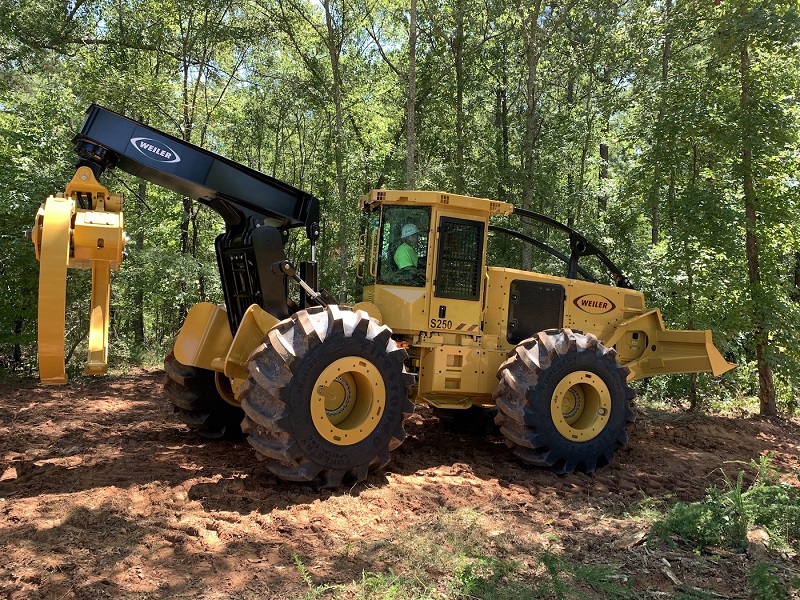

S 250 Wheel Skidder

S 250

Description	Specification
Engine Model (US & Canada)	Cat® 7.1 Tier 4 Final
Engine Model (Outside US & Canada)	Cat® 7.1 Tier 3
Gross Power	203 hp (151 kW)
Engine Speed	2200 rpm
Fuel Capacity	83.2 gal (315 L)
DEF Capacity (US & Canada)	5.0 gal (19 L)
Wheelbase	143.8” (3652 mm)
Weight (US & Canada)	45,357 lb (20 573 kg)
Weight (Outside US & Canada)	44,857 lb (20 346 kg)
Transport Width	10’ 7” (3.21 m)
Transport Height	11’ 1” (3.39 m)
Transport Length	27’ 4” (8.32 m)
Ground Clearance	21.7” (550 m)
HD Box Grapple Capacity	14.4 ft² (1.34 m²)
HD Box Grapple Opening	126.2” (3205 mm)
Biomass Grapple Capacity	15.7 ft² (1.46 m²)
Biomass Grapple Opening	136.3” (3462 mm)
Base configuration includes DF Grapple, 30.5L-32 26PR NOAW Tires, Fenders, Winch, Water Tank and Wide Blade. Weight add 545 lb (247 kg) for 30.5L-32 2X Ring tires, 1,508 lb (684 kg) for 35.5L-32 tires. Height and ground clearance add 2.4” (61 mm) for 35.5L-32 tires.
