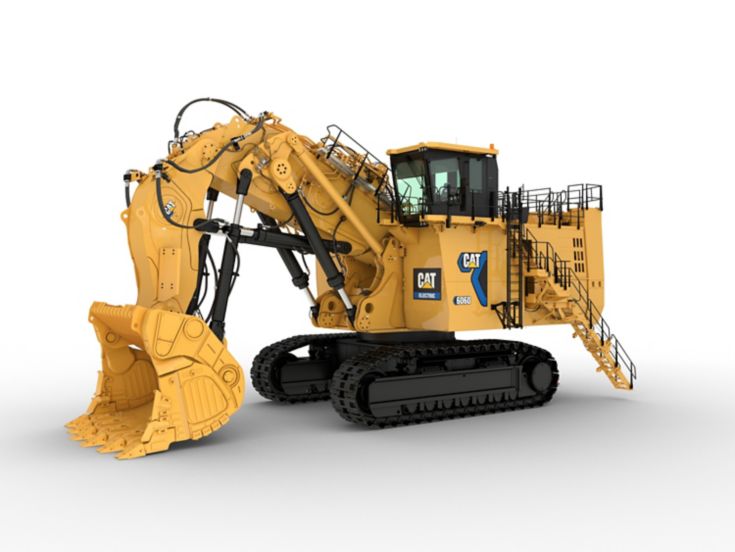

Hydraulic Mining Shovels 6060 Electric

Proven success in nearly every surface mining application across the globe substantiates the durability of Cat® hydraulic shovels. Our equipment is engineered to endure the most difficult digging environments and the harshest conditions to afford our customers the greatest productivity. Simply stated, Cat hydraulic shovels are built to last.
Download product brochure #1
Download product brochure #2
Download product brochure #3
Download product brochure #4
Download product brochure #5
Download product brochure #6

Hydraulic Mining Shovels 6060 Electric

Proven success in nearly every surface mining application across the globe substantiates the durability of Cat® hydraulic shovels. Our equipment is engineered to endure the most difficult digging environments and the harshest conditions to afford our customers the greatest productivity. Simply stated, Cat hydraulic shovels are built to last.
Download product brochure #1
Download product brochure #2
Download product brochure #3
Download product brochure #4
Download product brochure #5
Download product brochure #6
1-866-720-3001
Request a Quote
Find a dealer near you
Units: USMetric

Backhoe Attachment (BH) - Digging Forces

Stick Digging Force - ISO 295740 lb 1316 kN
Bucket Digging Force - ISO 274840 lb 1223 kN
Units: USMetric

Backhoe Attachment (BH) - Working Range

Maximum Digging Height 52.83 ft 16.1 m
Maximum Digging Reach 62.33 ft 19 m
Maximum Digging Depth 29.17 ft 8.9 m
Units: USMetric

Digging Forces

Maximum Crowd Force 494410 lb 2200 kN
Maximum Breakout Force 388780 lb 1730 kN
Units: USMetric

Electric Motors

Type 2 × Squirrel cage induction motor
Voltage 6.0 / 6.6 / 7.2 V
Rated Current IN 6.0 kV / 235 A
Frequency 50 Hz / 60 Hz
Speed 1,500 min-1/50Hz
Maximum Starting Current 6.0 kV / 480 A
Units: USMetric

General

Output (nominal rated) 2 x 1000 kW
Bucket Payload 67 ton (US) 61 t
Operating Weight 639.2 ton (US) 580 t
Units: USMetric

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps 4 x 488 L/min (4 x 129 gal/min)
Components 4 cooling fans
Diameter - Fan 46 in 1170 mm
Features (2) Fan speed and flow of oil to the coolers are thermostatically controlled
Features (1) Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Units: USMetric

Hydraulic System

Main Pumps 8 variable flow axial piston pumps
Main Pumps - Maximum Total Oil Flow 8 x 650 L/min (8 x 172 gal/min)
Main Pumps - Maximum Pressure - Attachment 4640 psi 320 bar
Main Pumps - Maximum Pressure - Travel 5220 psi 360 bar
Swing Pump 4 reversible swash plate pumps
Swing Pump - Maximum Flow - Swing 4 x 352 bar (4 x 93 psi)
Swing Pump - Maximum Pressure - Swing 5076 psi 350 bar
Units: USMetric

Low Voltage Electrical System

Control System Voltage 24 V 24 V
Batteries in Series Installation 2 × 210 Ah – 12 V each
Cab Heating Voltage 230 V 230 V
Power Take Off 1 × single phase (10 A, 230 V, 2.23 kW) 1 × three phase (4 A, 400 V, 2.8 kW)
Units: USMetric

Operating Weights

Note Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.
Standard Track Pads – Face Shovel 55 in 1400 mm
Operating Weight – Face Shovel 1278430 lb 580000 kg
Ground Pressure – Face Shovel 37.3 psi 25.7 N/cm²
Payload – Face Shovel 134482 lb 61000 lb
Standard Track Pads – Backhoe 55 in 1400 mm
Operating Weight – Backhoe 1278430 lb 581700 kg
Ground Pressure – Backhoe 37.4 psi 25.8 N/cm²
Payload – Backhoe 143300 lb 65000 kg
Units: USMetric

Operator's Cab

Operator's Eye Level - Approximately 24.91 ft 7.6 m
Internal Dimensions of Cab - Length 7.33 ft 2230 mm
Internal Dimensions of Cab - Width 5.33 ft 1625 mm
Internal Dimensions of Cab - Height 6.75 ft 2070 mm
Components (5) Operator Protective Guard (Top Guard) (ISO 10262:1998 Level II)
Units: USMetric

Service Refill Capacities

Hydraulic Tank 1876 gal (US) 7100 l
Hydraulic System - Including Tank 2483 gal (US) 9400 l
Pump Transmission Gearbox including Cooling Circuit 2 x 103 L (2 x 27.2 gal)
Pump Pre-Chambers at Pump Transmission Gearbox 2 x 14 L (2 x 3.7 gal)
Swing Drive 4 x 38 L (4 x 10.0 gal)
Travel Gearbox Planetary 2 x 120 L (2 x 31.7 gal)
Travel Gearbox Spur Gear 2 x 19 L (2 x 5.0 gal)
Travel Gearbox Brake Chambers 4 x 0.5 L (2 x 0.13 gal)
Grease Tank 710 L (188 gal)
Units: USMetric

Standard Bucket Capacity

Face Shovel (heaped 2:1) 44.5 yd³ 34 m³
Backhoe (heaped 1:1) 44.5 yd³ 34 m³
Units: USMetric

Swing System

Swing Drive 4 compact planetary transmissions with axial piston motors
Parking Brakes Wet multiple-disc brake, spring-loaded/hydraulically released
Maximum Swing Speed 3.8 r/min 3.8 r/min
Swing Ring Triple-race roller bearing with sealed internal gearing
Features (1) Closed-loop swing circuit with torque control
Units: USMetric

Undercarriage

Travel Speed - 1st Stage - Maximum 0.68 mile/h 1.1 km/h
Travel Speed - 2nd Stage - Maximum 0.99 mile/h 1.6 km/h
Maximum Tractive Force 661160 lb 2942 kN
Gradeability - Travel Drives - Maximum 38.8 % 38.8 %
Track Pads - Each Side 42
Bottom Rollers - Each Side 7
Support Rollers - Each Side 2 plus a skid plate in between
Travel Drives - Each Side 1 planetary transmission with 2 two-stage axial piston motors
Parking Brake Wet multiple disc brake, spring loaded/hydraulically released
Units: USMetric

Working Ranges

Maximum Digging Height 51.17 ft 15.6 m
Maximum Digging Reach 54.17 ft 16.5 m
Maximum Digging Depth 9.17 ft 2.8 m
SAFETY

  • Excellent visibility thanks to cab position that provides clear view to the digging and loading areas, floor window that provides a view to the tracks, LED lighting and  standard Vision 360 camera monitoring system.
    •
  • Emergency egress ladder with a self-closing door located in direct proximity to the cab.
    •
  • Safer access with 45-degree powered access stairway that features emergency lowering via a nitrogen accumulator, which ensures it remains operational even when the machine shuts off.
    •
  • Safer electrical and/or mechanical maintenance thanks to lockable battery isolation switch.
    •
  • Safer service with improved sealing between motors and hydraulic pumps, improved routing and separation of hydraulic lines and electric cables.
OPERATOR CAB

  • Improved operator comfort with Cat Next Gen heated and cooled seat and integrated joysticks.
    •
  • First-in-class and patented 3-seat design, including elevated full-size trainer’s seat and laptop work desk.
    •
  • New and improved air conditioning system.
    •
  • Reduced noise and better temperature control thanks to superior insulation.
    •
  • Productivity-boosting Operator Assist – Enhanced Motion Control, which reduces fatigue and helps inexperienced operators more confidently load material.
RELIABILITY & DURABILITY

  • Improved structures, including increased weight, strengthened superstructure and increased thickness in several locations.
    •
  • 33% longer service life for new and enlarged slew ring.
    •
  • New undercarriage with long-life components, frame and electronics.
    •
  • New crawler frame and Cat undercarriage with HD rollers, HD idlers, HD track, and track tensioning.
    •
  • High-performance Cat hoses can work more than 10,000 hours without a single leak.
    •
  • Proven, validated Cat electronics, with cutting-edge connectivity features and integrated Cat MineStar™ health offerings.
    •
  • Independent Oil Cooling system that protects and extends the life of hydraulic components by keeping oil at optimal temperature.
PRODUCTIVITY & PERFORMANCE

  • Up to 5% greater efficiency through Hydraulic Optimization, which dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure that each hydraulic function requires.
    •
  • Faster boom movement by using float valves instead of pumps to lower the boom.
    •
  • Faster cycle times and improved energy efficiency delivered by closed-loop swing system, which also generates less heat.
    •
  • Greater operator control thanks to five circuit hydraulics that allow for two cylinder motions, two travel motions, and swing to be controlled simultaneously.
    •
  • Easier and faster face shovel operation with unique TriPower face shovel design, which generates superior mechanical leverage and control.
    •
  • Increased productivity and greater uptime with twin motors, which enable up to 65% of full production with a single motor.
BUCKETS & GET

  • Buckets and ground engaging tools (GET) designed to maximize durability and productivity and ideally matched to your shovel and application.
    •
  • Integrated to work as part of a machine system — helping you achieve high productivity and the lowest cost per ton.
    •
  • Variety of sizes and material densities for the ideal match to your shovel and application.
    •
  • Deliver optimal payload when combined with Cat GET and wear components.
    •
  • Wear packages that protect your investment, including special liner material and lip shroud, wing shrouds and heel shrouds.
CONNECTIVITY & TECHNOLOGY

  • Greater connectivity with improved Product Link™ Elite system, which increases the availability of data provided by the 6060.
    •
  • Additional performance and reliability advantages through integration of proven and validated Cat electronics.
    •
  • Intuitive, informative onboard electronics that help operators be more productive.
    •
  • Enhanced diagnostic capabilities and troubleshooting functions with factory-installed Monitoring and Diagnostic System.
    •
  • Connectivity features and the integration of Cat MineStar™ Health offerings enable a proactive approach to maintenance.
SERVICEABILITY

  • Ground-level service station provides easy access to everyday functions like hydraulic oil, slew gearbox oil, pump gearbox oil and grease. The service station also features an emergency shutoff and Cat battery charging connector.
    •
  • More room in the service compartment, plus easy access to slew gearboxes, rotary distributor, oil cooler and more.
    •
  • Clear arrangement of components on the superstructure for easy access and serviceability.
    •
  • Hose assemblies that can be built locally using all Cat material.
    •
  • Access to Cat Electronic Technician, which helps dealer service personnel more easily diagnose and prevent issues.
SUSTAINABILITY

  • Twin electric motors use power efficiently and produce zero direct carbon emissions.
    •
  • Less heat and improved efficiency with the closed-loop swing circuit.
    •
  • Reduced owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
    •
  • Preservation of raw materials, energy conservation and reduced emissions through the Cat Reman program, which returns end-of-life components to like-new condition.
High Voltage Electrical System
Pressurized high voltage switch cabinet: – Load break switch – Main, motor, and transformer fuses – Voltage and current transformers – Vacuum contactors for motor control – Ground fault detection – Auxiliary transformer
Safety and Security
Emergency stop switches: 2 in cab, 5 in power module, 1 at ground-level service station, 1 pull rope accessible from ground level
Miscellaneous
ISO or ANSI decals
Hydraulics
Hydraulic Optimization
Low Voltage Electrical System
2 batteries
Undercarriage
HD tracks with cast double-grouser track pads
Automatic Lubrication System
Rectangular grease container (fill via service arm)
Operator Environment
Dual hydraulically driven HVAC system
Front Attachment
Service access holes from both sides in boom and stick (FS and BH)
Service and Maintenance
Hydraulic oil exchange interval – 10,000 hours
Cat Technology
Cat Payload
