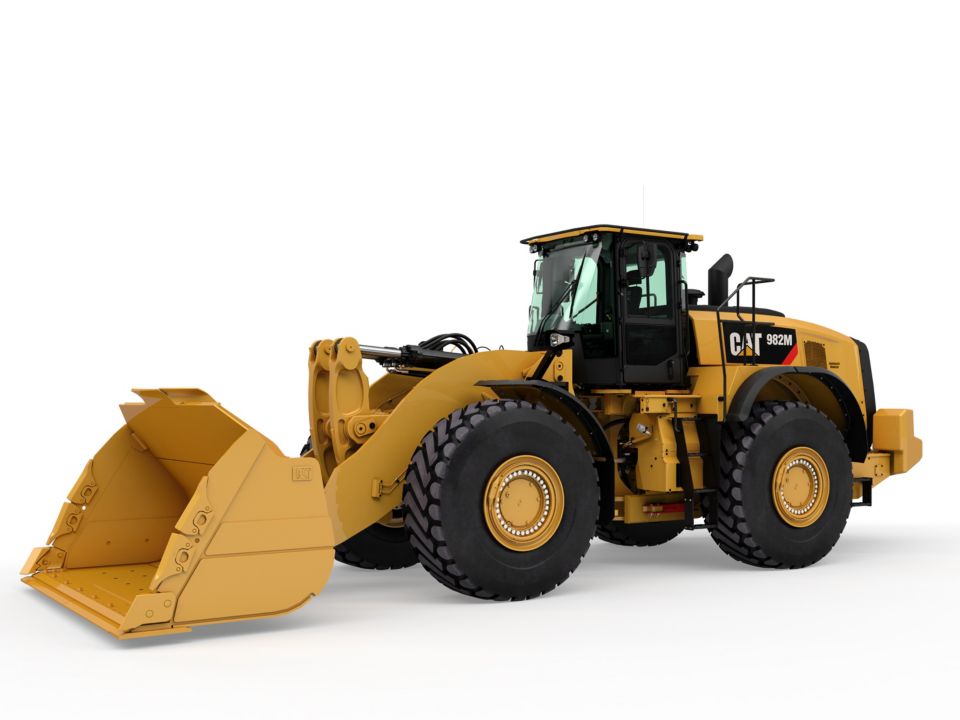

982M

Get in touch

Cat® medium wheel loaders are an essential tool for any construction, quarry, aggregate, industrial or waste jobsite. For more than 60 years, they've been built to withstand tough conditions and tasks like bank loading, material handling, truck loading, hopper feeding, and stockpiling. Medium wheel loaders are compatible with Caterpillar work tools like the Cat Performance Series Buckets. Together these can improve material retention, reduce dig times, and enhance fill factors. Additionally, advanced technologies such as Cat Payload, Cat Detect, and Cat Command drive to improve site safety, manage payload, and operate machines remotely in hazardous environments.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Bucket Capacities

Bucket Range

4.6-12.0 m³ (6.0-15.75 yd³)
{"Name":"Bucket Range","SpecificationId":null,"TextValue":"4.6-12.0 m³ (6.0-15.75 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Bucket Capacities","SortOrder":"99"}

Buckets

Bucket Capacities

4.6-12.0 m³ (6.0-15.75 yd³)
{"Name":"Bucket Capacities","SpecificationId":null,"TextValue":"4.6-12.0 m³ (6.0-15.75 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Buckets","SortOrder":"3"}

Dimensions - Standard Lift

Hinge Pin Height at Maximum Lift

15.5 ft 4743 mm
{"Name":"Hinge Pin Height at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15.5","MetricUnit":"mm","MetricValue":"4743","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Lift Arm Clearance at Maximum Lift

12.67 ft 3884 mm
{"Name":"Lift Arm Clearance at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.67","MetricUnit":"mm","MetricValue":"3884","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Rack Back - Carry Height

48 degrees
{"Name":"Rack Back - Carry Height","SpecificationId":null,"TextValue":"48 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Height - Top of ROPS

12.5 ft 3786 mm
{"Name":"Height - Top of ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3786","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Height - Top of Exhaust Pipe

12.25 ft 3719 mm
{"Name":"Height - Top of Exhaust Pipe","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.25","MetricUnit":"mm","MetricValue":"3719","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Overall Length - Without Bucket

28.17 ft 8584 mm
{"Name":"Overall Length - Without Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"28.17","MetricUnit":"mm","MetricValue":"8584","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Wheel Base

12.5 ft 3800 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3800","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Ground Clearance

1.33 ft 426 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.33","MetricUnit":"mm","MetricValue":"426","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Hinge Pin Height at Carry

2.67 ft 790 mm
{"Name":"Hinge Pin Height at Carry","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.67","MetricUnit":"mm","MetricValue":"790","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Maximum Width over Tires

11.5 ft 3499 mm
{"Name":"Maximum Width over Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"11.5","MetricUnit":"mm","MetricValue":"3499","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Height - Top of Hood

10.17 ft 3083 mm
{"Name":"Height - Top of Hood","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.17","MetricUnit":"mm","MetricValue":"3083","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Centerline of Rear Axle to Edge of Counterweight

8.92 ft 2716 mm
{"Name":"Centerline of Rear Axle to Edge of Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.92","MetricUnit":"mm","MetricValue":"2716","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Tread Width

8.33 ft 2540 mm
{"Name":"Tread Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.33","MetricUnit":"mm","MetricValue":"2540","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Rack Back at Ground

42 degrees
{"Name":"Rack Back at Ground","SpecificationId":null,"TextValue":"42 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Rack Back - Maximum Lift

57 degrees
{"Name":"Rack Back - Maximum Lift","SpecificationId":null,"TextValue":"57 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Centerline of Rear Axle to Hitch

6.25 ft 1900 mm
{"Name":"Centerline of Rear Axle to Hitch","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.25","MetricUnit":"mm","MetricValue":"1900","Type":"measurement","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}
Note

All dimensions are approximate and based on Bridgestone 875/65R29 VLTS L4 radial tires.
{"Name":"Note","SpecificationId":null,"TextValue":"All dimensions are approximate and based on Bridgestone 875/65R29 VLTS L4 radial tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Lift","SortOrder":"99"}

Engine

Net Power - ISO 9249

398 hp 297 kW
{"Name":"Net Power - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"398","MetricUnit":"kW","MetricValue":"297","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Emissions

Tier 4/Stage IV
{"Name":"Emissions","SpecificationId":null,"TextValue":"Tier 4/Stage IV","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"5"}
Engine Model

Cat C13
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat C13","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Power - 1,700 rpm - SAE J1995

436 hp 325 kW
{"Name":"Maximum Power - 1,700 rpm - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"436","MetricUnit":"kW","MetricValue":"325","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement

763 in³ 12.5 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"763","MetricUnit":"l","MetricValue":"12.5","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Power - 1,700 rpm - SAE J1349 - Metric

404 hp 297 kW
{"Name":"Maximum Net Power - 1,700 rpm - SAE J1349 - Metric","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"404","MetricUnit":"kW","MetricValue":"297","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Power - 1,700 rpm - ISO 14396 - Metric

436 hp 321 kW
{"Name":"Maximum Power - 1,700 rpm - ISO 14396 - Metric","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"436","MetricUnit":"kW","MetricValue":"321","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Power - 1,700 rpm - SAE J1995 - Metric

442 hp 325 kW
{"Name":"Maximum Power - 1,700 rpm - SAE J1995 - Metric","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"442","MetricUnit":"kW","MetricValue":"325","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Peak Gross Torque - 1,200 rpm - SAE J1995

1627 ft·lbf 2206 N·m
{"Name":"Peak Gross Torque - 1,200 rpm - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"1627","MetricUnit":"N·m","MetricValue":"2206","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Peak Gross Torque - 1,200 rpm - ISO 14396

1609 ft·lbf 2182 N·m
{"Name":"Peak Gross Torque - 1,200 rpm - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"1609","MetricUnit":"N·m","MetricValue":"2182","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Power - 1,700 rpm - SAE J1349

398 hp 297 kW
{"Name":"Maximum Net Power - 1,700 rpm - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"398","MetricUnit":"kW","MetricValue":"297","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Power - 1,700 rpm - ISO 9249 - Metric

404 hp 297 kW
{"Name":"Maximum Net Power - 1,700 rpm - ISO 9249 - Metric","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"404","MetricUnit":"kW","MetricValue":"297","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.
{"Name":"Note","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Torque - 1,100 rpm

1518 ft·lbf 2058 N·m
{"Name":"Maximum Net Torque - 1,100 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft·lbf","EnglishValue":"1518","MetricUnit":"N·m","MetricValue":"2058","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Power - 1,700 rpm - ISO 14396

430 hp 321 kW
{"Name":"Maximum Power - 1,700 rpm - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"430","MetricUnit":"kW","MetricValue":"321","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Maximum Net Power - 1,700 rpm - ISO 9249

398 hp 297 kW
{"Name":"Maximum Net Power - 1,700 rpm - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"398","MetricUnit":"kW","MetricValue":"297","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}

Engine - Tier 4 Final/Stage IV

Emissions

Tier 4/Stage IV
{"Name":"Emissions","SpecificationId":null,"TextValue":"Tier 4/Stage IV","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine - Tier 4 Final/Stage IV","SortOrder":"1000"}

Hydraulic System

Implement System - Maximum Operating Pressure

4975 psi 34300 kPa
{"Name":"Implement System - Maximum Operating Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4975","MetricUnit":"kPa","MetricValue":"34300","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Implement System - Maximum Pump Output at 2,250 rpm

119 gpm 449 L/min
{"Name":"Implement System - Maximum Pump Output at 2,250 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"119","MetricUnit":"L/min","MetricValue":"449","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Cycle Time - Total

10.1 s 10.1 s
{"Name":"Hydraulic Cycle Time - Total","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"10.1","MetricUnit":"s","MetricValue":"10.1","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Operating Specifications

Static Tipping Load - Full 40° Turn - With Tire Deflection

46473 lb 21080 kg
{"Name":"Static Tipping Load - Full 40° Turn - With Tire Deflection","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"46473","MetricUnit":"kg","MetricValue":"21080","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Breakout Force

58450 lbf 260 kN
{"Name":"Breakout Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"lbf","EnglishValue":"58450","MetricUnit":"kN","MetricValue":"260","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Static Tipping Load - Full 40° Turn - No Tire Deflection

49368 lb 22393 kg
{"Name":"Static Tipping Load - Full 40° Turn - No Tire Deflection","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"49368","MetricUnit":"kg","MetricValue":"22393","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Note (1)

For a machine configuration as defined under "Weight."
{"Name":"Note (1)","SpecificationId":null,"TextValue":"For a machine configuration as defined under \"Weight.\"","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Note (2)

Full compliance to ISO 143971:2007 Sections 1 thru 6.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Full compliance to ISO 143971:2007 Sections 1 thru 6.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"99"}

Service Refill Capacities

Differential - Final Drives - Front

24.3 gal (US) 92 l
{"Name":"Differential - Final Drives - Front","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"24.3","MetricUnit":"l","MetricValue":"92","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Differential - Final Drives - Rear

24.3 gal (US) 92 l
{"Name":"Differential - Final Drives - Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"24.3","MetricUnit":"l","MetricValue":"92","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System

14 gal (US) 53 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"14","MetricUnit":"l","MetricValue":"53","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Crankcase

9.8 gal (US) 37 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9.8","MetricUnit":"l","MetricValue":"37","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

48 gal (US) 180 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"48","MetricUnit":"l","MetricValue":"180","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Fuel Tank

112.5 gal (US) 426 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"112.5","MetricUnit":"l","MetricValue":"426","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Transmission

20.3 gal (US) 77 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"20.3","MetricUnit":"l","MetricValue":"77","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
DEF Tank

5.5 gal (US) 21 l
{"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5.5","MetricUnit":"l","MetricValue":"21","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Sound

With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)

112 dB(A) 112 dB(A)
{"Name":"With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"112","MetricUnit":"dB(A)","MetricValue":"112","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)

78 dB(A)*
{"Name":"With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)","SpecificationId":null,"TextValue":"78 dB(A)*","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}
Note (1)

*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Distance of 15 m (49.2 ft), moving forward in second gear ratio.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**

72 dB(A) 72 dB(A)
{"Name":"With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**

109 LWA***
{"Name":"With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**","SpecificationId":null,"TextValue":"109 LWA***","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)

72 dB(A) 72 dB(A)
{"Name":"With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}
Note (2)

**For machines in European Union countries and in countries that adopt the "EU Directives."
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**For machines in European Union countries and in countries that adopt the \"EU Directives.\"","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}
Note (3)

***European Union Directive "2000/14/EC" as amended by "2005/88/EC."
{"Name":"Note (3)","SpecificationId":null,"TextValue":"***European Union Directive \"2000/14/EC\" as amended by \"2005/88/EC.\"","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}

Transmission

Reverse - 1

4.3 mile/h 7 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"4.3","MetricUnit":"km/h","MetricValue":"7","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward - 1

3.9 mile/h 6.2 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.9","MetricUnit":"km/h","MetricValue":"6.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward - 3

13.1 mile/h 21.1 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"13.1","MetricUnit":"km/h","MetricValue":"21.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Reverse - 2

8.5 mile/h 13.6 km/h
{"Name":"Reverse - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8.5","MetricUnit":"km/h","MetricValue":"13.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Reverse - 3

15 mile/h 24.1 km/h
{"Name":"Reverse - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"15","MetricUnit":"km/h","MetricValue":"24.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward - 4

23.3 mile/h 37.5 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"23.3","MetricUnit":"km/h","MetricValue":"37.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Forward - 2

7.4 mile/h 11.9 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.4","MetricUnit":"km/h","MetricValue":"11.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Reverse - 4

24.5 mile/h 39.5 km/h
{"Name":"Reverse - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"24.5","MetricUnit":"km/h","MetricValue":"39.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"99"}
Note

Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 914 mm (36 in) roll radius.
{"Name":"Note","SpecificationId":null,"TextValue":"Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 914 mm (36 in) roll radius.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"99"}

Weights

Operating Weight

78402 lb 35563 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"78402","MetricUnit":"kg","MetricValue":"35563","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Note

Weight based on a machine configuration with Bridgestone 875/65R29 VLTS L4 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, open differential axles, secondary steering, sound suppression, and a 6.1 m³ (8.0 yd³) GP bucket with BOCE.
{"Name":"Note","SpecificationId":null,"TextValue":"Weight based on a machine configuration with Bridgestone 875/65R29 VLTS L4 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, open differential axles, secondary steering, sound suppression, and a 6.1 m³ (8.0 yd³) GP bucket with BOCE.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

RELIABILITY YOU CAN COUNT ON

Cat C13 engine offers increased power density with a combination of proven electronic fuel and air systems.
Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump (Tier 4 Final and Stage V).
Features an electric fuel priming pump and a fuel/water separator.
Thorough component design and machine validation processes result in unmatched reliability and uptime.

LONG TERM VALUE AND DURABILITY

Increased power, heavy duty transmission, low-profile tires and advanced axle and final drives.
Heavy-duty transmission and axles handle extreme applications.
Automatic planetary powershift (4F/4R) transmission features durable, long-lasting components.
Full-flow hydraulic filtration system with additional loop filtration improves hydraulic system strength and component life.
With upgraded frames and heavier counterweight, the two-piece structural frame absorbs more impact.

BUILT TO PERFORM

Increased engine power resulting in improved machine performance and response.
Lock-up clutch transmission, matching the engine power to increase fuel efficiency while delivering optimal performance.
Easy-to-load performance series buckets improve material retention and reduce dig times, significantly improving productivity and fuel efficiency.
Automatic idle engine shutdown system significantly reduces idle time, overall operating hours, and fuel consumption.
Equipped with longer standard lift arms and a higher hinge point height for rail car capability.
Includes optimized high lift linkage, higher B-Pin height, and upgraded valves and cylinders.

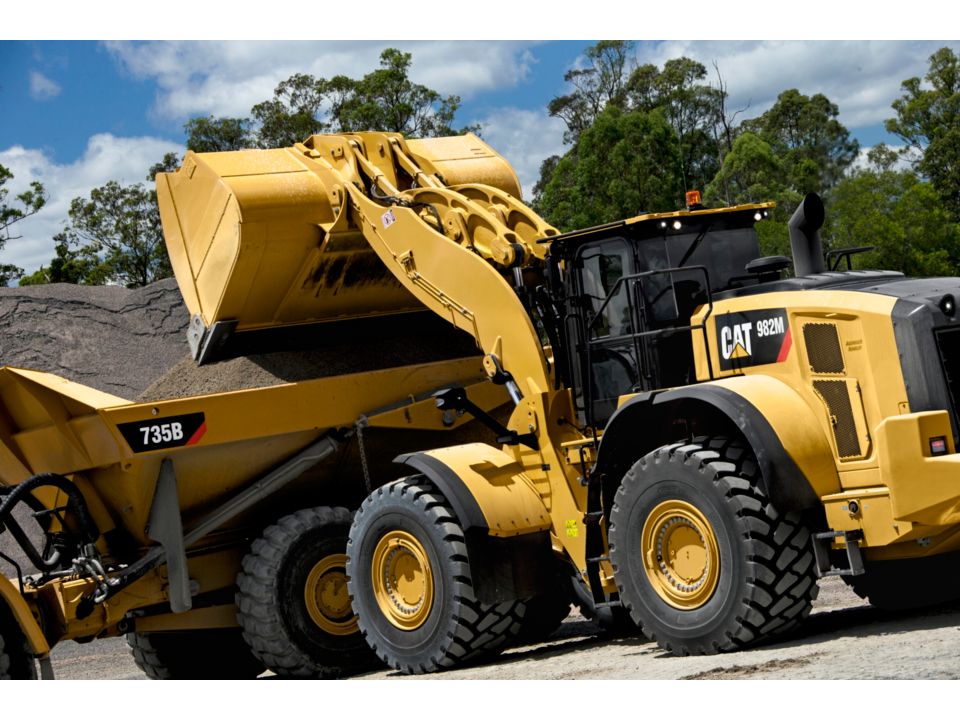

Great 2-pass match for larger on-highway trucks, bank excavation, and face loading in well shot rock loading applications.

DO MORE WITH LESS FUEL

Deep system integration results in lower fuel consumption.
Significantly more fuel efficient than both the H and K Series loaders.
Power dense engine burns less fuel by providing power and torque when needed.
The HEUI™ fuel system boosts performance and reduces soot.
Standard productive economy mode delivers more fuel savings with minimal productivity impact.
New split-flow oil system (transmission) uses multi-viscosity oil to improve fuel economy.

DESIGNED FOR OPERATORS

The next generation easily adjustable seat with updated styling and a revolutionary suspension system. It comes in three trim levels and can be equipped with a 4-point harness.
Sound-suppression, seals, and damping cab mounts decrease noise and vibration for a quieter work environment.
The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy.
Smart ergonomic controls are easy to use, intuitive, anduser-friendly.
Touchscreen multi-function color display keeps operators focused.
The next generation of ride control works as a shock absorber, improving ride quality over rough terrain.
Inclined steps and convenient grab handles ease accessibility to the operating space.
Extended windows enhance visibility while convex and spot mirrors extend the driver’s view on the sides and rear.

SAFELY HOME EVERY DAY

Cab access with wide door, optional remote door opening, and stair-like steps add solid stability.
Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
Computerized monitoring system includes several warning indicators.
Rear vision camera enhances visibility behind the machine, helping you work safely and confidently.
Optional rear object detection radar system warns you of an object in critical zone while going in reverse, enhancing job site safety.

SAVE ON SERVICE AND MAINTENANCE

Extended service intervals including -

Engine oil and engine oil filter change interval up to 1000 hours (Tier 4 Final and Stage V)
Hydraulic filter change interval up to 1000 hours
Transmission oil change interval up to 2000 hours

One-piece tilting hood makes cab access fast and easy.
Electrical service centers enhance convenience and accessibility.
Buckets and components can be changed without leaving the cab, allowing the machine to quickly move from task to task.
A full range of bucket sizes and types provides an exciting new option in this size class.
Access to fuel fill and daily maintenance points means lessservicing time is required.
Remote flash support.
Longer tire life with on-the-go traction aids.
Optional integrated Cat autolube system provides full lube system monitoring and diagnostic test visibility.

TECHNOLOGY THAT GETS WORK DONE

Developed to monitor, manage, and enhance your job site operations.
Payload provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.
Detect enhances awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the job site.
Link wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business. Gain valuable insight into how your machine or fleet is performing allowing you to make timely, fact-based decisions that can boost job site efficiency and productivity.
Optional Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.

* Not legal for trade.

PURPOSE BUILT SPECIALTY MODELS

INDUSTRIAL & WASTE

Engineered for work in Transfer Stations, Recycling Depots, Scrap Yards and Demolition Sites.
Factory installed guarding improves uptime; guards protectaxle seals, steering cylinders, crankcase, front frame, powertrain, tilt cylinders, lower cab and rear box. Package includes reinforced service centers, heavy duty cable steps, lift cylinder baffles, narrow front fenders, and steel rear fender deflectors.
Factory installed options available are solid tires, rear machine guard, rubber mounted cab glass, engine precleaner, powered and filtered cab precleaner and variable pitch cooling fan.
Cat Waste Buckets available separately are Load & Carry, Tamp & Clamp, Dozing, and Grapple can be fitted with steel or rubber cutting edge.

FORESTRY

Designed for efficiency and productivity log and chip handling in paper, pellet and saw mills.

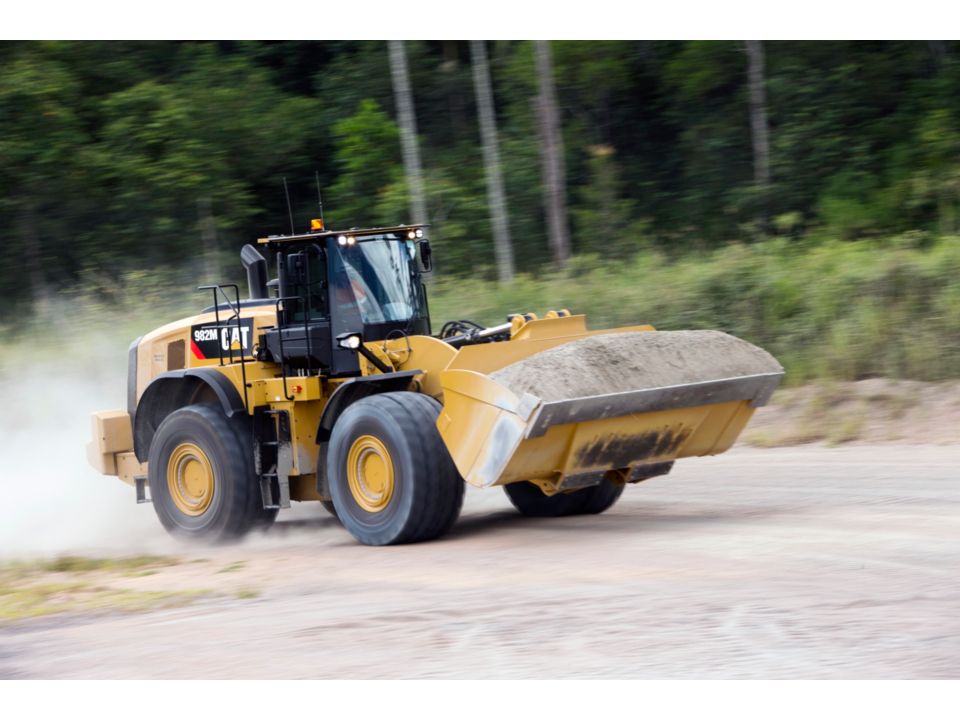

The 982M Logger can 2 Pass unload trucks with two bunks or two trailers.
Forestry package includes logger counterweight and larger tilt cylinders to maintain stability carrying heavy loads, increase machine capacity 41% over 980M Logger.
Package also includes logger rear frame and Extreme Service Transmission.
Factory options available are 3rd function hydraulics to operate top or high dump bucket, front windshield guard, variable pitch fan, high debriscooler cores, engine precleaner, axle oil coolers and premium LED lighting package.
Work Tools available separately are Sorting Grapple, Millyard, and Logging Forks and Light Material High Dump and Chip Buckets.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OTHER STANDARD EQUIPMENT

One-piece tilting hood with side and rear doors

POWER TRAIN

Engine, Cat C13 meets Stage IV emission standards

OPERATOR ENVIRONMENT

Cab, pressurized and sound suppressed (ROPS/FOPS)

COMPUTERIZED MONITORING SYSTEM

With following gauges: Speedometer/tachometer; Digital gear range indicator; Diesel Exhaust Fluid (DEF) level; Temperature: engine coolant, hydraulic oil, transmission oil; Fuel level

ELECTRICAL AND LIGHTING

Batteries (2), maintenance free 1,400 CCA

CAT CONNECT TECHNOLOGIES

Link technologies: Product Link

LINKAGE

Linkage, Z-bar, cast crosstube/tilt levers

HYDRAULICS

Hydraulic system, load sensing

FLUIDS

Premixed extended life coolant with freeze protection to -34° C

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3

Product Brochure #4

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

982M

RELIABILITY YOU CAN COUNT ON

LONG TERM VALUE AND DURABILITY

BUILT TO PERFORM

DO MORE WITH LESS FUEL

DESIGNED FOR OPERATORS

SAFELY HOME EVERY DAY

SAVE ON SERVICE AND MAINTENANCE

TECHNOLOGY THAT GETS WORK DONE

PURPOSE BUILT SPECIALTY MODELS

NOTE

OTHER STANDARD EQUIPMENT

POWER TRAIN

OPERATOR ENVIRONMENT

COMPUTERIZED MONITORING SYSTEM

ELECTRICAL AND LIGHTING

CAT CONNECT TECHNOLOGIES

LINKAGE

HYDRAULICS

FLUIDS

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
