Giving you the option to choose the drive system best suited for your operation, the Cat 6040/6040 FS can be equipped with either two diesel engines for greater mobility, or an electric drive for better efficiency.

Delivering durable, reliable power that will keep your primary loading tool producing, the C32 has proven its ability to perform in harsh mining conditions. Offering low operating costs, and supported 24/7 by your local Cat dealer, the C32 will help you achieve your production and profitability targets.

Providing a lower cost-per-ton alternative to diesel powered hydraulic mining shovels, our electric drive option maintains the ruggedness you need and offers superior availability since no refueling and less service is required. The 6040 AC/6040 AC FS is the ideal solution for operations that do not require a great deal of mobility and value a low cost-per-ton model.

You will realize enhanced safety, greater uptime, more productivity, and better serviceability as a result of our twin engine concept.

The ability to move your shovel to a safe area for repair, away from high walls, blast zones, or other safety hazards, is still possible with the use of a single engine.

65% of full production can still be achieved with the use of a single engine. This is due to the shovel's continued ability to exert maximum digging forces, to lower the front attachment without requiring engine power (i.e., pressure-free), and to recuperate energy via its closed-loop swing circuit.

Troubleshooting is greatly simplified and expedited with the ability to compare one engine versus the other.

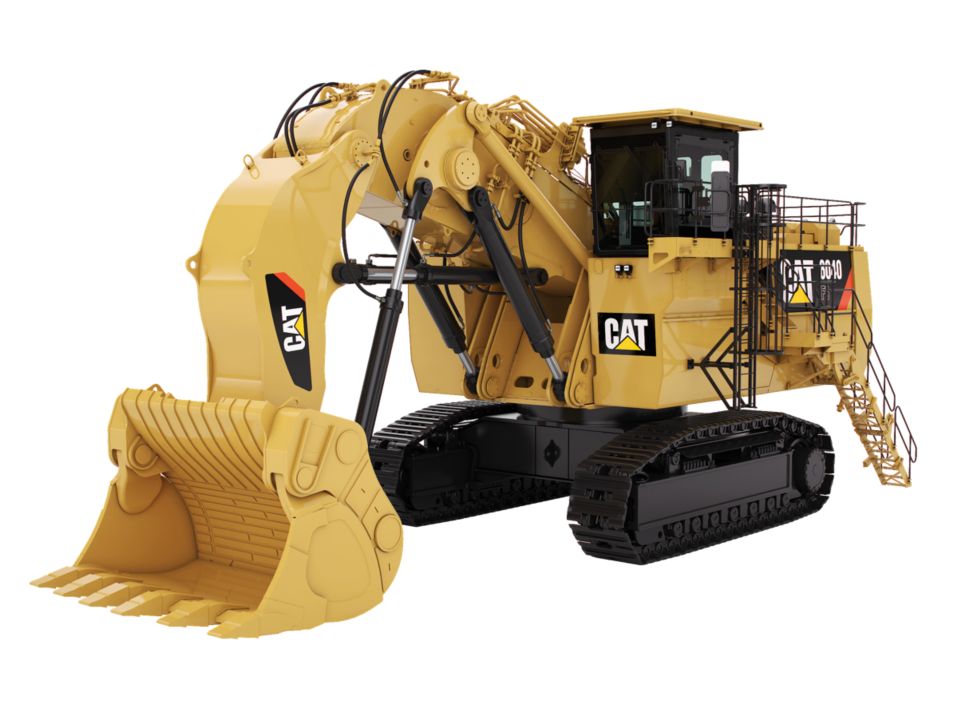

You will experience safer, easier and faster front shovel operation with TriPower, a system proven on over a thousand Cat hydraulic mining shovels worldwide. Generating superior mechanical leverage and control, our FS configured hydraulic mining shovels utilize a unique boom design that employs rotatable triangular rockers. This design facilitates quicker cycle times, increased effective lifting force, constant boom momentum, automatic constant bucket angle, and automatic roll-back limiter.

- Faster lifting speeds are achieved, because the design enables the use of smaller-diameter boom cylinders.

- Design transfers digging forces into the superstructure, creating supporting boom momentum in addition to momentum that is generated hydraulically.

- Allows smaller boom cylinders for higher lifting speed. - Keeps lifting speed constant. - Enables the shovel to lift a single load along the entire digging distance. - No retracting of stick cylinders is required, ensuring that all hydraulic pumps are supplying the boom-up function.

- Material spillage is avoided during boom lifting, because the filled bucket automatically maintains a constant bucket angle. - On conventional kinematics the operator has to control manually the bucket position during lifting which cut in half the available oil flow for the boom cylinders.

- Preventing material spillage back on to the operator's cab and machine superstructure, our system ensures that the bucket is always in a safe position, without operator control/manipulation, when it is at maximum height. - The boom cylinder continues to receive maximum oil flow, because the operator does not need to activate the bucket cylinder.

Ensuring neat organization for safe operation, easy inspection, and fast service, and reducing the number of hoses needed, the main valve block is located on top of the boom.

Faster cycle times are realized, because float valves are used to lower the boom instead of engaging pumps. This facilitates faster boom movements and allows other operating functions to occur simultaneously, such as bucket curl and stick in/out.

Your operators will experience greater control with our five circuit hydraulics, allowing for two cylinder motions, two travel motions, and swing to be controlled simultaneously.

Providing a more efficient means of cooling, particularly in demanding applications, our unique independent oil cooling system will extend the life of your hydraulic mining shovel's components.

Our system is independent of return oil, achieving efficiency through the utilization of dedicated pumps that provide cooling capacity as needed, whether the engine is idling or under load. That means optimum oil temperature is being maintained, even while your operator waits for the next truck to load. Competitive hydraulic mining shovels only provide cooling when the machine is working and the engine is under load. Additional efficiency is achieved via our thermostatically controlled radiator fan speed. The fans do not run until oil temperature exceeds a temperature of 50° C (122° F), saving energy.

The highly efficient oil cooling system ensures that the oil temperature is only 25° C to 30° C (45° F to 54° F) higher than the ambient temperature. Thus the hydraulic oil working temperature remains within the optimal operating viscosity range of 50° C to 70° C (122° F to 158° F).

Delivering optimal performance, our pump managing system continuously evaluates actual engine and hydraulic operating values against set values, and adjusts pump output accordingly. This results in efficient use of the engine for greater productivity. Pump managing system advantages include:

• Best possible utilization of engine output and engine overload avoidance via electronic load limit regulation
• Less energy consumption and less thermal load on hydraulic oil with zero oil flow regulation for main pumps
• Less fuel consumption and lower noise emission via automatic RPM reduction
• Reduced component wear and lower noise emission with automatic oil flow reduction for closing/opening of bucket clam
• Protection of components with automatic oil flow reduction if hydraulic and/or engine coolant temperature exceed set maximum
• Improved operator control response via on-demand pump flow

Delivering faster cycle times and improved energy efficiency, while also generating less heat, our closed-loop swing circuit provides distinct advantages over competitive machines utilizing open-circuit swing systems.

Kinetic energy captured during the swing motion is fed back into the system during deceleration, providing more power to drive the main and auxiliary pumps. Energy is saved during deceleration, because braking occurs via counteracting controls, as opposed to throttles used in open circuit swing systems.

Energy is saved during acceleration via torque control, providing a pressure balance valve that controls the swing pump against pressure in the closed-loop swing circuit, ensuring that only the minimum necessary oil flow is utilized at any given time.

Faster boom lift motion during swing is achieved with our closed-loop swing system, increasing overall productivity.

We understand that the most important factor in your hydraulic shovel's effectiveness is the performance of its operator. To help make their workday as productive as possible, we've incorporated safety and comfort features into the 6040/6040 FS operator's cab.

Help your team meet productivity and performance standards with our intuitive, informative on-board electronics.

The system relays actuating signals from the joysticks, delivering fast and precise machine reactions that reduce operator fatigue.

Uptime is increased as a result of simplified troubleshooting and advanced diagnostic capabilities.

Easier setting of servo control characteristics allow operators to adjust to their preference.

No hydraulic lines are present in the cab or the cab module, ensuring a clean arrangement with less noise emission.

Streamlined system requires only one type of controller for each function (i.e., left side drive train, right side drive train, servo, and auxiliary) reducing the number of required controllers in the system and associated replacement stock.

Engine works in optimal range of performance during the entire digging cycle, reducing fuel burn.

Reduced hydraulic pulsation lessens stress imposed on the engine and hydraulic components.

Less vibration and more even machine movement via reduced pressure peaks.

The Parts book, Technical handbook, and Operating handbook, as well as hydraulic and electric schematics, are available in electronic format.

Aimed at enhancing the productivity and profitability of your hydraulic mining shovel, we currently offer a combination of Cat MineStar System offerings and Cat hydraulic mining shovel technology solutions.

Helping you achieve your goals for enhanced mine site safety, improved efficiency, reduced operating costs, and greater profitability, the Cat MineStar System provides the most comprehensive suite of mining technology products in the industry. It consists of a number of configurable capability sets - Fleet, Terrain, Detect, Health, and Command - that allow you to scale the system to your mine site needs. Cat MineStar System helps you manage everything from material tracking to sophisticated real-time fleet management, machine health systems, autonomous equipment, and more. The Cat 6040/6040 FS is currently able to utilize three of the Cat MineStar System capability sets:

• Fleet Fleet provides real-time machine tracking, assignment and productivity management, providing a comprehensive overview of all your asset operations from anywhere in the world.
• Terrain Terrain enables high-precision management of drilling, dragline, grading and loading operations through the use of guidance technology. It increases machine productivity and provides you real-time feedback for improved efficiency.
• Detect

Detect provides equipment operators with enhanced awareness for increased site safety, using a combination of radars, an in-cab display, and multiple cameras. The remaining Cat MineStar System capability sets are currently under development for the Cat hydraulic mining shovel product line.

Enhancing diagnostic capabilities and providing detailed troubleshooting functions, our Board Control System uses sensors throughout the machine to monitor operating data, record faults, and notify the operator audibly and visually. This promotes the earliest possible detection of faults and allows for timely maintenance planning and assistance for speedy repair.

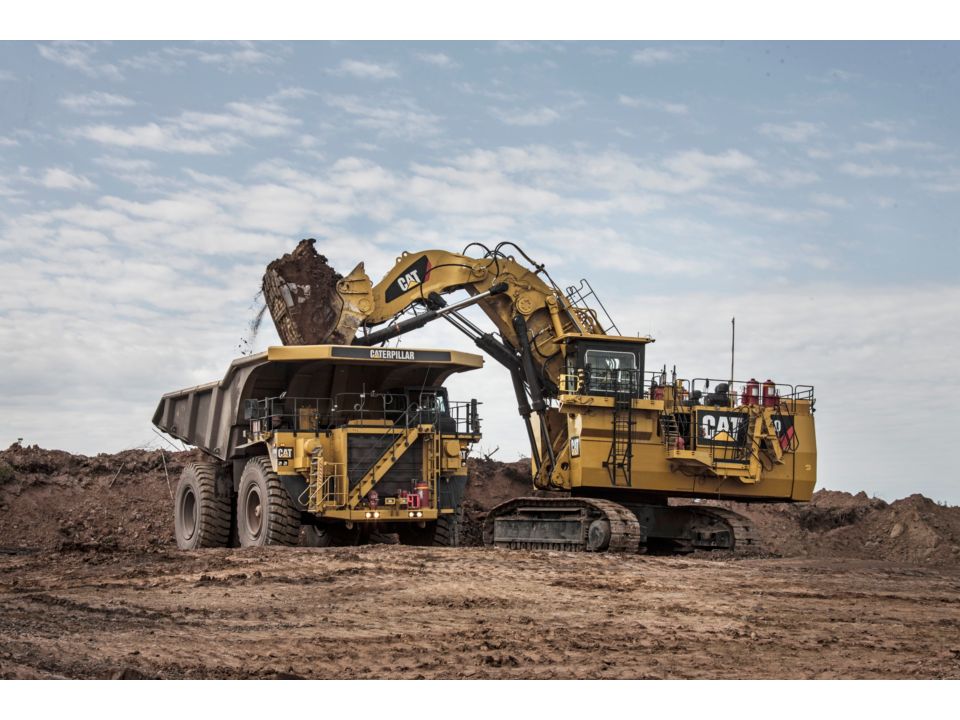

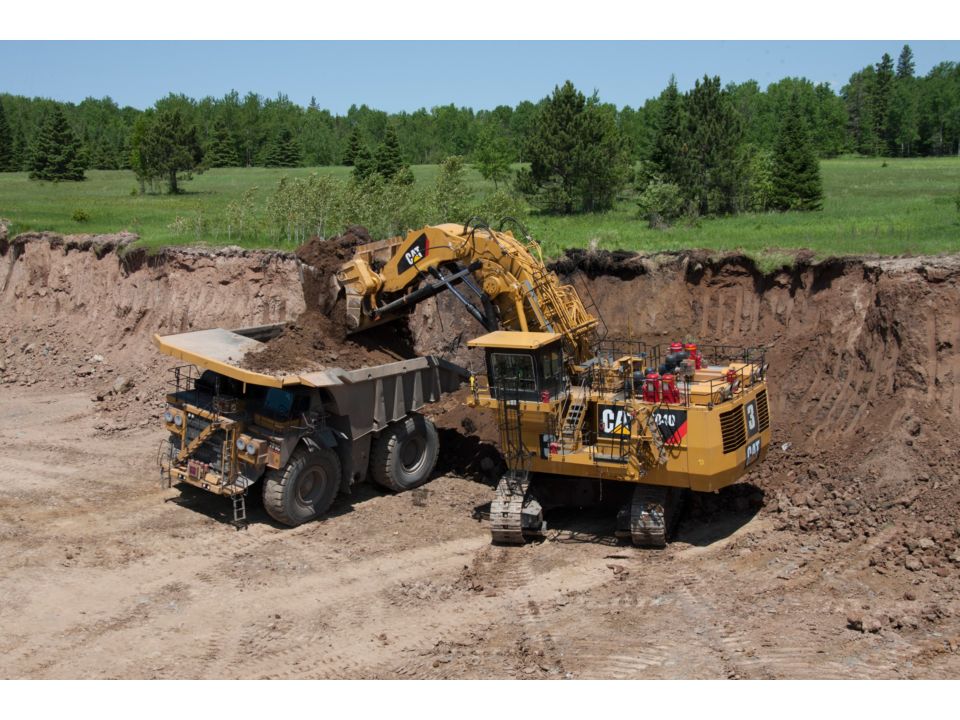

For full truck payloads with minimum loading time, an efficient loading/hauling system begins with an optimized equipment match. Cat hydraulic mining shovels are matched with Cat mining trucks to maximize volume of material moved at the lowest operating cost per ton.

To extend service life and ensure that your shovel keeps producing, our front shovel attachment structures are designed for durability and dependability. Extended performance in the harsh mining conditions you face daily is accomplished through selection of high-strength steels and rugged castings, joined and thermally stress-relieved, to help you achieve your productivity targets.

Extending component life and ultimately improving machine uptime, our swing system includes a triple-race swing roller bearing with internal gearing connected to an automatic lubrication system. For added reliability, all lube lines are located inside the roller bearing for maximum protection.

Easier maintenance is afforded by the free accessibility of swing gears and rotary distributor.
