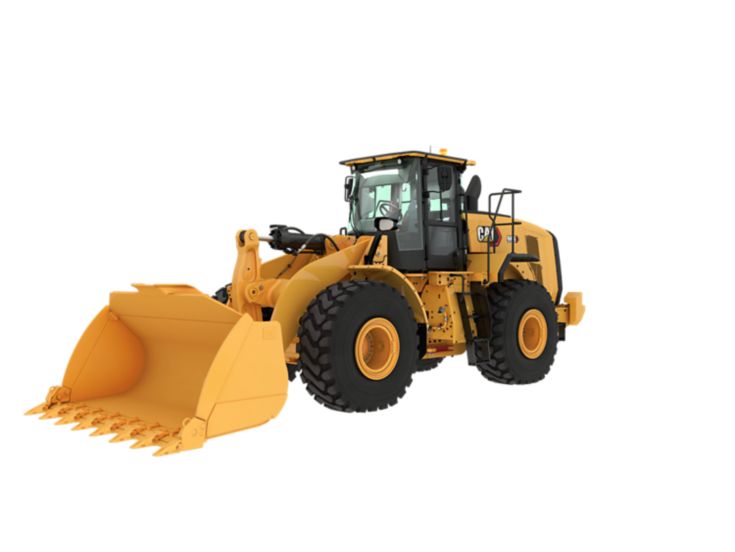

Medium Wheel Loaders 966

Cat® medium wheel loaders are an essential tool for any construction, quarry, aggregate, industrial or waste jobsite. For more than 60 years, they've been built to withstand tough conditions and tasks like bank loading, material handling, truck loading, hopper feeding, and stockpiling. Medium wheel loaders are compatible with Caterpillar work tools like the Cat Performance Series Buckets. Together these can improve material retention, reduce dig times, and enhance fill factors. Additionally, advanced technologies such as Cat Payload, Cat Detect, and Cat Command drive to improve site safety, manage payload, and operate machines remotely in hazardous environments.

Images
360° VIEW

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

Medium Wheel Loaders 966

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

1-866-720-3001

Request a Quote

Find a dealer near you

Units: US Metric

Air Conditioning System

Specification	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons). - If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons).

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons). - If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons).

Units: US Metric

Dimensions - High Lift

Specification	Value
Height - Top of Hood	9.42 ft 2850 mm
Height - Top of ROPS	11.83 ft 3593 mm
Ground Clearance	1.33 ft 424 mm
Wheel Base	11.67 ft 3550 mm
Overall Length - Without Bucket	26.5 ft 8069 mm
Hinge Pin Height at Carry Height	2.5 ft 782 mm
Hinge Pin Height at Maximum Lift	15.75 ft 4804 mm
Lift Arm Clearance at Maximum Lift	13.67 ft 4183 mm
Rack Back - Maximum Lift	71 ° 71 °
Rack Back - Carry Height	49 ° 49 °
Width over Tires (Loaded)	9.92 ft 3012 mm
Tread Width	7.25 ft 2230 mm
Note	All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires.
Rack Back - Maximum Lift	71 degrees
Rack Back - Carry Height	49 degrees
Rack Back at Ground	37 degrees

Units: US Metric

Dimensions - Standard Lift

Specification	Value
Height - Top of Hood	9.42 ft 2850 mm
Height - Top of ROPS	11.83 ft 3593 mm
Ground Clearance	1.33 ft 424 mm
Wheel Base	11.67 ft 3550 mm
Overall Length - Without Bucket	24.33 ft 7399 mm
Hinge Pin Height at Carry Height	2 ft 635 mm
Hinge Pin Height at Maximum Lift	13.92 ft 4245 mm
Lift Arm Clearance at Maximum Lift	12.08 ft 3687 mm
Rack Back - Maximum Lift	62 ° 62 °
Rack Back - Carry Height	50 ° 50 °
Width over Tires (Loaded)	9.92 ft 3012 mm
Tread Width	7.25 ft 2230 mm
Note	All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires.
Rack Back - Maximum Lift	62 degrees
Rack Back - Carry Height	50 degrees
Rack Back at Ground	39 degrees

Units: US Metric

Engine

Specification	Value
Engine Power - 1,600 rpm ISO 14396:2002	321 hp 239 kW
Engine Power - 1,600 rpm ISO 14396:2002	325 hp (metric)
Engine Model	Cat® C9.3B
Gross Power - 1,600 rpm SAE J1995:2014	325 hp 242 kW
Gross Power - 1,600 rpm SAE J1995:2014	329 hp (metric)
Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011	302 hp 222 kW
Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011	302 hp (metric)
Engine Torque - 1,200 rpm ISO 14396:2002	1313 lbf·ft 1781 N·m
Gross Torque - 1,200 rpm SAE J1995:2014	1327 lbf·ft 1799 N·m
Net Torque - 1,200 rpm ISO 9249:2007, SAE J1349:2011	1255 lbf·ft 1702 N·m
Displacement	567.5 in³ 9.3 l
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV and Japan 2014 emission standards.
Biodiesel Capability	Up to B20¹
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuelsup to: 20% biodiesel FAME (fatty acid methyl ester) 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Gross Torque @ 1,200 rpm – SAE J1995:2014	1327 lb/ft 1799 N·m
Engine Torque @ 1,200 rpm – ISO 14396:2002	1313 lb/ft 1781 N·m
Note (3)	Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Displacement	9.3 L

Units: US Metric

Hydraulic System

Specification	Value
Implement System - Maximum Pump Output at 2,275 rpm	99 gpm 373 L/min
Implement System - Maximum Operating Pressure	4496 psi 31000 kPa
Hydraulic Cycle Time - Total	10.1 s 10.1 s
Hydraulic Cycle Time - Total	10.1 seconds

Units: US Metric

Operating Specifications

Specification	Value
Static Tipping Load - Full 37° Turn	32727 lb 14849 kg
Static Tipping Load - Full 37° Turn - No Tire Deflection	35224 lb 15981 kg
Breakout Force	38999 lbf 174 kN
Note	For a machine configuration as defined under “Weight.”
Note (1)	Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Units: US Metric

Service Refill Capacities

Specification	Value
Fuel Tank	80.1 gal (US) 303 l
DEF Tank	6.9 gal (US) 26 l
Cooling System	17.4 gal (US) 66 l
Crankcase	6.1 gal (US) 23 l
Transmission	15.5 gal (US) 58.5 l
Differential - Final Drives - Front	15.1 gal (US) 57 l
Hydraulic Tank	30.1 gal (US) 114 l

Units: US Metric

Sound

Specification	Value
Operator Sound Pressure Level - ISO 6396:2008	70 dB(A) 70 dB(A)
Exterior Sound Power Level - ISO 6395:2008	109 dB(A) 109 dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹	69 dB(A) 69 dB(A)
Exterior Sound Power Level - ISO 6395:2008²	108 dB(A) 108 dB(A)
Note (1)	¹Including countries that adopt the EU and UK Directives.
Note (2)	²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
With Cooling Fan Speed at Maximum Value - Note	Distance of 15 m (49.2 ft), moving forward in second gear ratio.

Units: US Metric

Transmission

Specification	Value
Forward - 1	4.2 mile/h 6.7 km/h
Forward - 2	8.4 mile/h 13.5 km/h
Forward - 3	15 mile/h 24.2 km/h
Forward - 4	24.5 mile/h 39.5 km/h
Reverse - 1	4.5 mile/h 7.3 km/h
Reverse - 2	9.2 mile/h 14.8 km/h
Reverse - 3	16.5 mile/h 26.6 km/h
Reverse - 4	24.5 mile/h 39.5 km/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius.

Units: US Metric

Weights

Specification	Value
Operating Weight	51124 lb 23196 kg
Note	Weight based on a machine configuration with Z-bar linkage, Bridgestone 26.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 4.2 m³ (5.5 yd³) general purpose bucket with BOCE.

Latest Features

Cat Detect vision systems help improve visibility, increase operator awareness and support safer operation.
Rear and surround vision systems provide enhanced visibility around the machine, including the articulation area.
Collision mitigation technologies help detect people and objects, provide collision alerts and support automatic braking.
Collision Warning helps operators identify potential hazards behind the machine before they become incidents.
People Detection highlights individuals behind the machine to improve awareness and support safer operation.
Motion Inhibit helps prevent unintended machine movement when a rear collision risk is detected.
Automatic Emergency Braking helps stop the machine when a potential collision is detected and operator action is not taken.
VisionLink™ provides visibility into safety events and trends to support proactive fleet management.
Cat Advanced Payload helps improve loading accuracy, productivity and material management.
Single Life Cutting Edge GET helps reduce maintenance, minimize downtime and maximize uptime.
Auto Set Tires simplifies tire management and helps optimize machine performance and tire life.
Onboard QR code access puts operator training and machine information at your fingertips.

Comfort That Keeps You Productive

Adjustable seating and spacious cab design support operator comfort.
Left footrest improves stability on rough ground.
Automatic climate control helps maintain a comfortable cab temperature.
Intuitive touchscreen display simplifies machine operation.
Onboard QR code provide immediate access to operator training and machine information.
Noise and vibration reduction help minimize operator fatigue.
Electro-hydraulic steering delivers precise control and improved comfort.
Ride Control enhances ride quality and machine stability on rough terrain.

Performance You Can Count On

Load consistently with Autodig and Auto Set Tires.
Reduce wear and simplify setup with Auto Set Tires.
Lower maintenance costs with Single Life Cutting Edge GET.
Save fuel with a lock-up clutch powershift transmission.
Optimize machine settings with Application Profiles.
Reduce fuel consumption with automatic idle shutdown.
Maintain traction with automatic differential lock.
Change work tools quickly with the Fusion™ Quick Coupler.
Optional Aggregate Handler configuration provides added payload capacity for loose aggregates.

Technology That Moves More Material

Cat Detect – Enhance visibility and operator awareness.
Collision Mitigation – Detect potential hazards and support operator response.
Cat Payload* - Improve payload accuracy and loading efficiency.
Visionlink™ - Turn fleet and jobsite data into actionable insights.
Autodig – Automate loading for consistent bucket fill.
Auto Set Tires – Simplify setup and reduce tire wear.
Cat Advanced Payload – Manage material, load targets and productivity.
Cat Payload for Trade** – Connect approved scale data to business processes.

*Not legal for trade.
**Available in Europe and Australia. Country certifications vary. Contact your Cat dealer for more information.

Safety Built In

Cat Detect Collision Warning with Motion Inhibit helps operators identify potential hazards and improve jobsite awareness.
People Detection provides alerts when people are detected behind the machine.
Motion Inhibit helps prevent reverse movement when a potential hazard is detected.
Cat Command enables remote machine operation in select applications.
Rear vision camera enhances visibility behind the machine.
Available 4-point seat belt improves operator comfort and support throughout the shift.
Wide cab entry, remote door opening and inclined steps help improve machine access.
A floor-to-ceiling windshield, large mirrors and rear vision camera provide excellent visibility around the machine.
Machine alerts help keep operators informed.
Monitored seat belt system supports operator awareness.
Available Multiview Vision provides 360o machine visibility.
Available Cat Detect radar helps monitor the work area.
Available lighting supports access and inspection in low-light conditions.

Built For Maximum Uptime

Cat® C9.3B engine delivers the power and performance needed for demanding loading applications.
Integrated emissions technologies help maintain performance while meeting emissions requirements.
Simplified fuel system components support reliable operation and easy serviceability.
Engineered and tested for long-term durability in tough working environments.
Designed to maximize uptime and help lower operating costs.

Less Time Servicing. More Tim Working.

Long service intervals help maximize uptime and lower maintenance costs.
Tire Pressure Monitoring supports machine performance and tire life.
Maintenance reminders help reduce unplanned downtime.
Ground-level service points simplify routine maintenance.
Remote Troubleshoot helps identify issues faster.
Remote Flash updates machine software remotely.
Visionlink™ helps monitor machine health, maintenance, utilization, and fleet performance.
Integrated Autolube helps extend component life and reduce service time.
One-piece hood design provides quick service access.

Power Through Demanding Work

Heavy-duty drivetrain components help deliver long-term durability.
Proven transmission design supports reliable performance.
Advanced hydraulic filtration helps extend component life.
Next generation hydraulics improve response and operating efficiency.

Configured For The Job

Factory-built configurations help optimize performance, durability and machine life for demanding work environments, including:

Waste and Industrial configurations include added protection and reinforcement for transfer stations, recycling facilities, scrap yards, and demolition sites.
Forestry configurations support productive log and chip handling with increased lift and tilt capability.
Block Handler configurations deliver the strength and stability required for block quarry applications.
Tunneling packages add protection and performance for underground operations.
Corrosion Resistant packages help protect critical machine components in corrosive environments.

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Cab, pressurized, sound suppression

POWERTRAIN

Cat® C9.3B engine

ELECTRICAL

Starting and charging system, 24V

HYDRAULICS

Implement system, load sensing with variable displacement piston pump

LINKAGE

Standard lift, Z-bar
