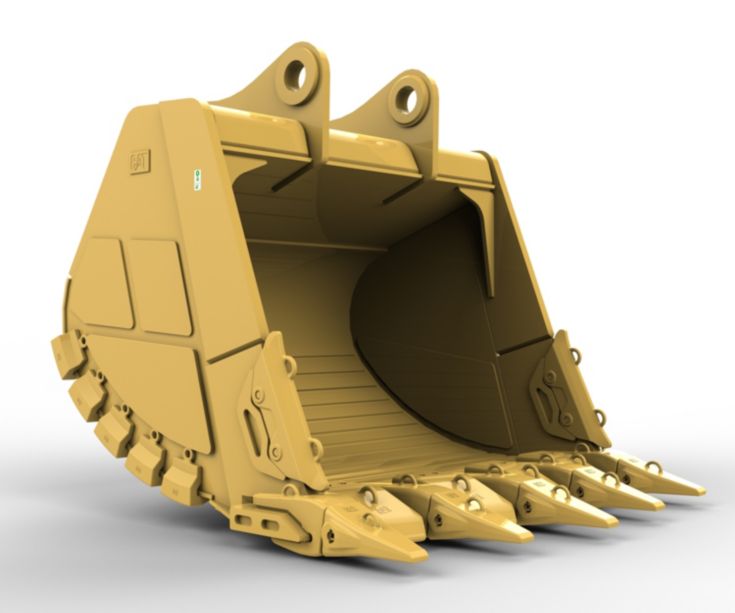

Extreme Duty Bucket 7.4m (9.7)yd Extreme Duty

Cat Extreme Duty buckets have the Extreme Duty wear package, shown here in gray, it gives complete guarding with hardened plates on the interior and exterior of the bucket. Additionally the XD buckets come standard with CapSure cutting edge segments and side bar protectors.

Images

Extreme Duty Bucket 7.4m (9.7)yd Extreme Duty

Cat Extreme Duty buckets have the Extreme Duty wear package, shown here in gray, it gives complete guarding with hardened plates on the interior and exterior of the bucket. Additionally the XD buckets come standard with CapSure cutting edge segments and side bar protectors.

1-800-268-1965

Request a Quote

Find a dealer near you

Units: US Metric

Specification	Value
Material Density	3034 lb/yd³ 1.8 t/m³
Outer Width	106 in 2682 mm
Inner Width	90 in 2294 mm
Weight	19039 lb 8636 kg
Liner Package	Extreme Duty
Capacity	9.7 yd³ 7.4 m³

Productivity and Versatility

A full line of buckets is matched perfectly for the 6015B machine with buckets made for materials ranging from coal to heavy rock.

Efficient

Pass matched to Cat and Unit Rig Trucks for an efficient system at your site.

Hammerless GET

6015B buckets are fully supported by Cat with a variety of C70 hammerless GET options.

Fully rebuildable

Cat Severe Duty buckets have our Severe Duty wear package with replaceable internal and external wear bars available as a kit or individually. Full lip shrouds are included with the bucket.
