| Engine Model (US & Canada) |
Cat® C9.3 Tier 4 Final |
| Engine Model (Outside US & Canada) |
Cat® C9.3 Tier 3 |
| Gross Power |
298 hp (222 kW) |
| Engine Displacement |
568 in³ (9.3 L) |
| Weight w/out Head (US & Canada) |
79,221 lb (35 934 kg) |
| Weight w/out Head (Outside US & Canada) |
78,471 lb (35 594 kg) |
| Maximum Flow |
322 gpm (1220 L/min) |
| Max. Reach (w/ 201 saw) |
26’ 10” (8.19 m) |
| Lift at Max. Reach (no head) |
13,918 lb (6313 kg) |
| Tractive Effort |
81,229 lbf (36 845 kgf) |

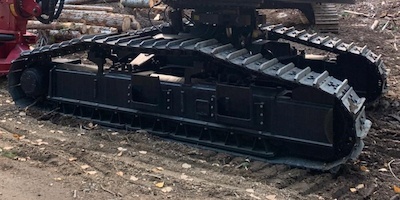

| Undercarriage Size |
336 HD HEX |
| Undercarriage Pitch |
8.5” (216 mm) |
| Ground Clearance |
35” (881 mm) |
| Track Gauge |
114” (2883 mm) |
| Track Length |
191” (4856 mm) |
| Leveling System Capability |
21° Forward, 11° Side-to-Side |
| Fuel Tank Capacity |
216 gal (819 L) |
| Engine Oil Capacity |
10.6 gal (40 L) |
| Hydraulic System Capacity |
79.8 gal (302 L) |
| Transport Width |
11’ 11” (3.62 m) |
| Height |
12’ 11” (3.94 m) |
| Length (boom ext., w/201 saw) |
34’ 1” (10.39 m) |
| Length (boom tuck., no head) |
25’ 7” (7.81 m) |
| Base configuration includes standard feller buncher boom and stick, roller frames in the wide position, and 28” (710 mm) single grouser shoes. |
|
