New Equipment

We supply the best heavy equipment so you can build a better business!

Toromont Cat is the trusted dealership in Canada for authentic Caterpillar heavy equipment. We have a wide selection of Cat equipment that includes over 300 machines and 1,200 specialized product attachments for projects in a variety of industries such as construction, mining and forestry. With our extensive product line and first-class customer service, we aim to be your first choice when looking for new heavy equipment.

Caterpillar equipment is recognized and respected globally for its reliability and durability, and at Toromont Cat, we proudly maintain all of our new construction equipment to the highest standards so that it exceeds your expectations on the job site. Whether you’re looking for wheel loaders, excavators, dozers or articulated trucks, you can count on us to help you complete your projects with cost-effective and technologically advanced solutions.

When you choose to buy new heavy equipment with us, you will always be provided with quality machines and superior after-sales support.

If you’re currently working on a project that requires new heavy equipment, call us today!

To see all of our new heavy equipment currently for sale, click on the images below:

1-800-268-1965

Request a Quote

Wheel Material Handlers MH3024F

Cat material handlers. They are made for industrial, recycling, and millyard applications requiring large lifting capacities and working envelopes. Their low operating costs and high production help ensure your success.

Download product brochure #1

Download product brochure #2

Wheel Material Handlers MH3024F

Download product brochure #1

Download product brochure #2

1-800-268-1965

Request a Quote

Find a dealer near you

Units: US Metric

Engine

Specification	Value
Engine Model	Cat C7.1
Emissions	Tier 4 Final/Stage IV
Displacement	427.8 in³ 7.01 l
Maximum Gross - ISO 14396	129.4 kW (174 hp [176 hp/PS*])
Maximum Net Power - SAE J1349/ISO 9249	126 kW (169 hp [171 hp/PS*])
Maximum Torque - 1,400 rpm	612 ft·lbf 830 N·m
Bore	4.1 in 105 mm
Note	*Metric values.
Stroke	5.3 in 135 mm
Cylinders	6 in-line

Units: US Metric

Hydraulic System - Maximum Flow

Specification	Value
Swing Mechanism	28.5 gpm 108 L/min
Auxiliary Circuit - Medium Pressure	13 gpm 49 L/min
Auxiliary Circuit - High Pressure	66 gpm 250 L/min
Implement/Travel Circuit	76 gpm 288 L/min

Units: US Metric

Hydraulic System - Maximum Pressure

Specification	Value
Implement Circuit - Normal/Heavy Lift	35 000/37 000 kPa (5,076/5,366 psi)
Auxiliary Circuit - Medium Pressure	3046 psi 21000 kPa
Auxiliary Circuit - High Pressure	5076 psi 35000 kPa
Travel Circuit	5076 psi 35000 kPa
Swing Mechanism	4496 psi 31000 kPa

Units: US Metric

Maximum Dimensions - Approximate

Specification	Value
Maximum Shipping Width	9.83 ft 2990 mm
Maximum Shipping Height	11.92 ft 3620 mm

Units: US Metric

Service Refill Capabilities

Specification	Value
Fuel Tank	87 gal (US) 330 l
Diesel Exhaust Fluid Tank	9.1 gal (US) 34.5 l
Hydraulic Tank Capacity	40.4 gal (US) 153 l
Cooling System	12.3 gal (US) 46.9 l
Hydraulic System Capacity	66.8 gal (US) 253 l

Units: US Metric

Swing Mechanism

Specification	Value
Swing Speed	8.5 r/min 8.5 r/min
Maximum Swing Torque	39828 ft·lbf 54 kN·m

Units: US Metric

Transmission

Specification	Value
Maximum Travel Speed	16 mile/h 25 km/h
Creeper Speed - 2nd Gear	6.2 mile/h 10 km/h
Maximum Travel Speed - 2nd Gear	16 mile/h 25 km/h
Maximum Gradeability (23 500 kg/51,809 lb)	65%

Units: US Metric

Undercarriage

Specification	Value
Axle Clearance - All MH Undercarriages	12.8 in 325 mm
Oscillation Axle Angle	±5 degrees

Units: US Metric

Weights

Specification	Value
Operating Weight	22 950-24 165 kg (50,596-53,242 lb)
With MH Boom (6400 mm/20'1") - MH 2.99 m/9'6" Undercarriage and Straight Stick	53275 lb 24165 kg
With MH Boom (6400 mm/20'1") - MH 2.75 m/9'0" Undercarriage and Straight Stick	53055 lb 24065 kg
With MH Boom (6400 mm/20'1") - MH 2.99 m/9'6" Undercarriage and Drop Nose Stick	52382 lb 23760 kg
With VA Boom - MH 2.75 m/9'0" Undercarriage and 2800 mm/9'2" Digging Stick	52481 lb 23805 kg
Key Components - MH Blade	1555 lb 705 kg
With One-Piece Boom - MH 2.75 m/9'0" Undercarriage and Industrial Stick	50597 lb 22950 kg
Key Components - Straight Stick 4200 mm/13'9"	2899 lb 1315 kg
With MH Boom (6400 mm/20'1") - MH 2.75 m/9'0" Undercarriage and Drop Nose Stick	52162 lb 23660 kg
Key Components - Drop Nose Stick 4900 mm/16'1"	1951 lb 885 kg
Note	Operating weight is with solid tires, 4200 kg (9,260 lb) counterweight, MH 2.75 m (9'0") undercarriage, full fuel tank, operator and work tool (1400 kg/3,086 lb). Weight varies depending on configuration.

Units: US Metric

Working Ranges - Without Work Tool: MH Boom (6.40 m/20'1)

Specification	Value
Maximum Height	39 ft 12065 mm
Maximum Height	37.75 ft 11520 mm
Maximum Depth	7.17 ft 2185 mm
Maximum Depth	4.83 ft 1485 mm
Maximum Reach	36.08 ft 11005 mm
Maximum Reach	33.92 ft 10345 mm

Units: US Metric

Working Ranges - without Work Tool: One-Piece Boom; Stick Length (3300 mm/10'10)

Specification	Value
Maximum Reach	27.75 ft 8470 mm
Maximum Height	24.25 ft 7555 mm
Maximum Depth	17.17 ft 5245 mm

Units: US Metric

Working Ranges - without Work Tool: VA Boom; Stick Length (2800 mm/9'2)

Specification	Value
Maximum Reach	26.92 ft 8200 mm
Maximum Height	28.58 ft 8715 mm
Maximum Depth	15.67 ft 4795 mm

PERFORMANCE AND PRODUCTIVITY

Powerful and efficient Cat® C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
Dedicated swing pump allows faster and smoother combined movements.
Efficient hydraulic system provides precision and speed, while preserving fuel consumption.
Stability and increased lifting capacities over the rear thanks to the new 2.75 m (9'0") symmetric undercarriage.

PERFORMANCE WITH LESS FUEL

Fuel consumption reduced up to 10%*, with no impact on your productivity to lower operating costs.
Built-in fuel savers eliminate waste thanks to auto engine speed control, engine idle shutdown and enhanced eco mode.
High cooling efficiency axial fan keeps operating temperatures and costs low.

* Versus previous D MH Series.

BUILT-IN SAFETY FEATURES

Blue Angel certified with low vibrations and sound levels.
Options for specific applications – thicker high impact and impact resistant windshields fulfill respectively the EN356 P8B and P5A standards. The advanced cab filtration system almost completely eliminates dust entry and air contamination.

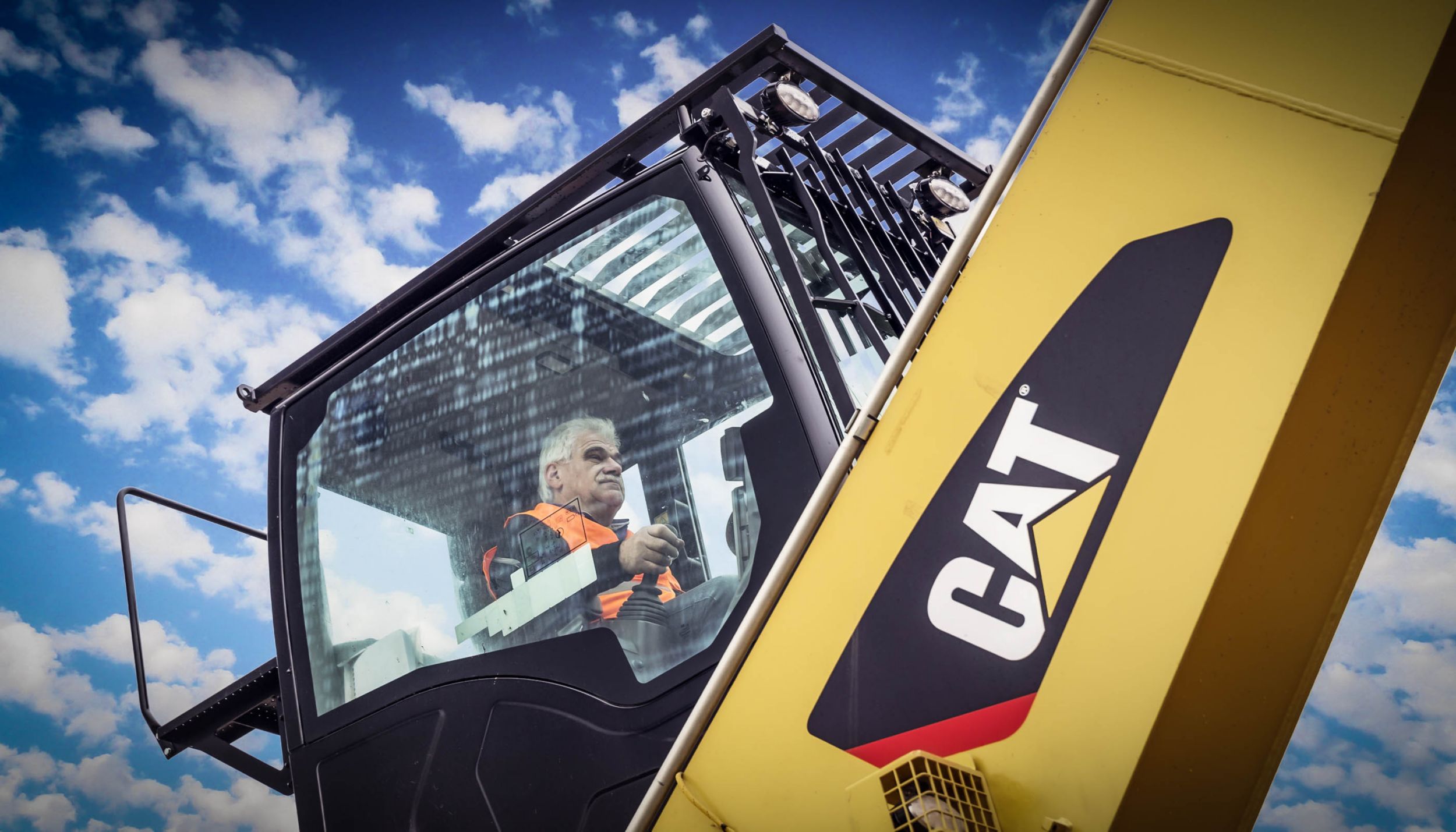

Great visibility – large glass areas, LED lights for all working lights and cameras, with both displays split on the same screen.
Direct access to the cab is possible when not aligned with the upper frame thanks to new steps on the front and rear of the undercarriage.

DESIGNED FOR OPERATORS

Enjoy integrated technologies – they act transparently. Features like the Auto Brake and Axle Lock or Automatic Travel lock remove some of the tasks you had to do.
Smart technologies – they help boost your productivity while making operation easier; try the optional SmartBoom™ or joystick steering.

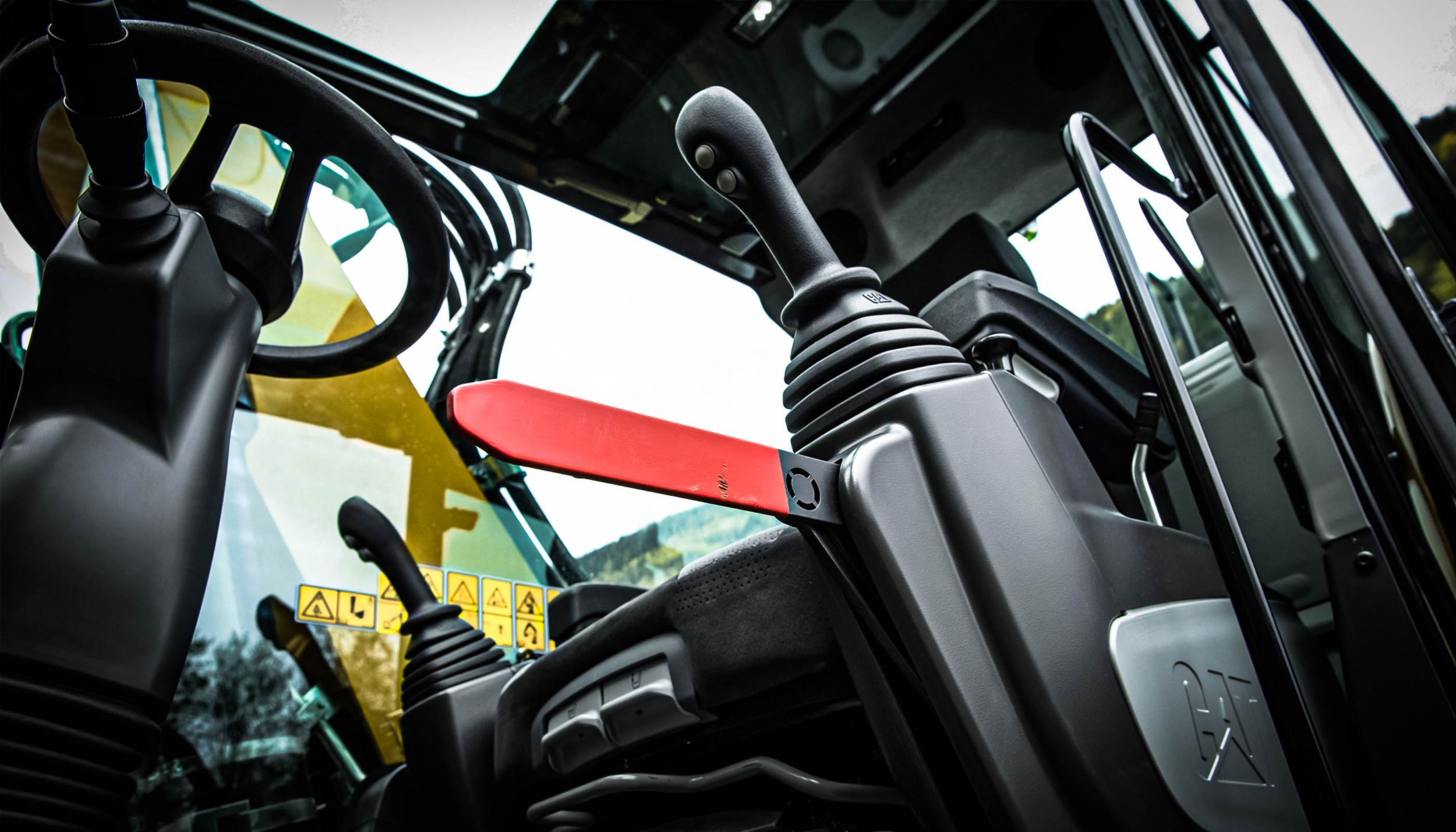

Our cabs are unique – it's a cab just for you where everything can be adjusted, from the seat to the work tools controls assignment on joysticks and pedal.

LOWER MAINTENANCE COSTS

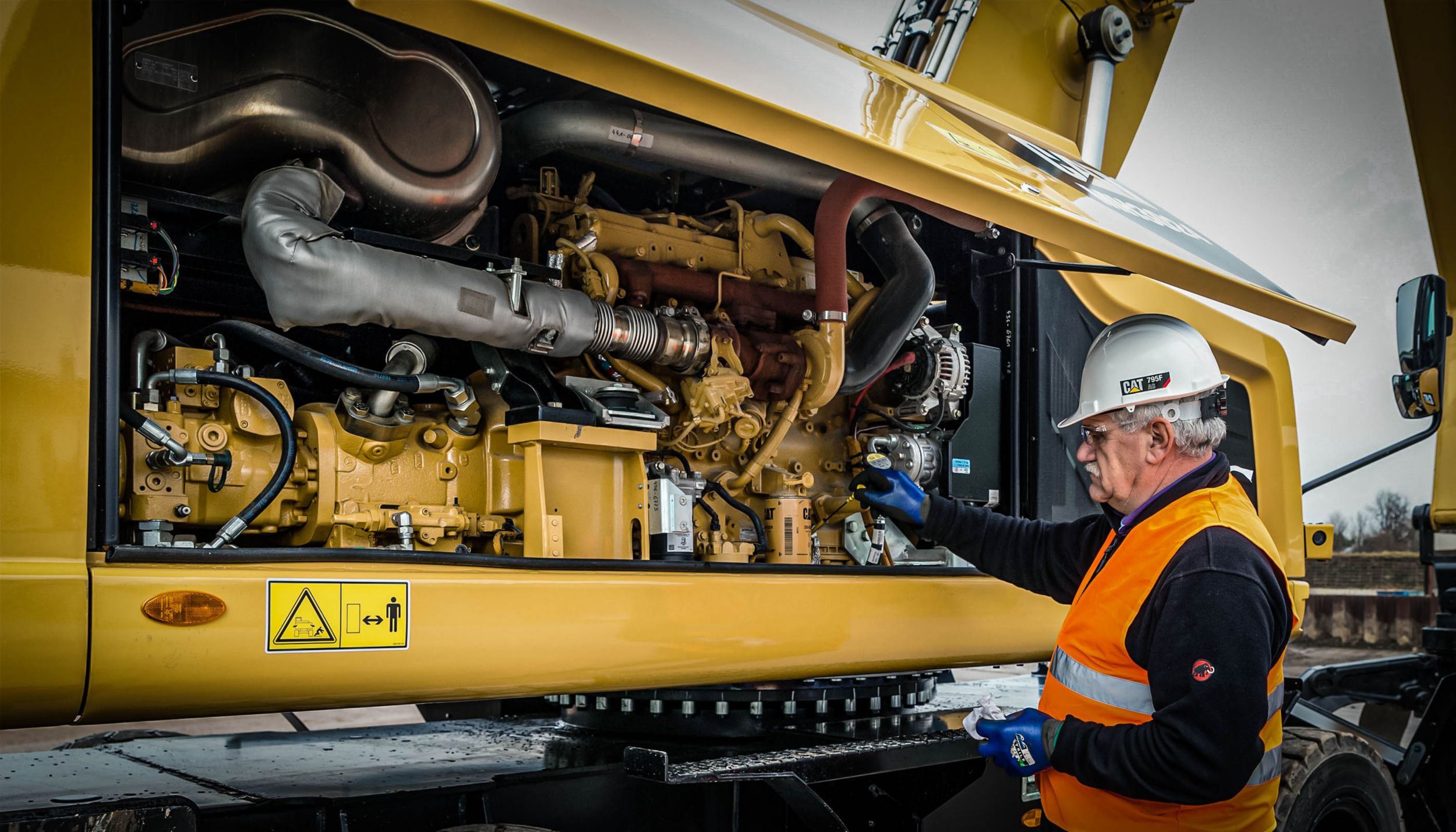

Ground level access for routine maintenance items like fuel and engine oil filters or fluid taps.
Reduced maintenance – automatic features like electric lift pump and lubrication system along with long greasing intervals.

EXPAND YOUR CAPABILITIES

Various configurations – A wide choice of front linkage lengths including digging, straight and drop nose sticks with a reach up to 10.8 m (35'7") at ground level.
Increase your efficiency with the front push blade to clear the ground from materials commonly encountered in industrial applications.

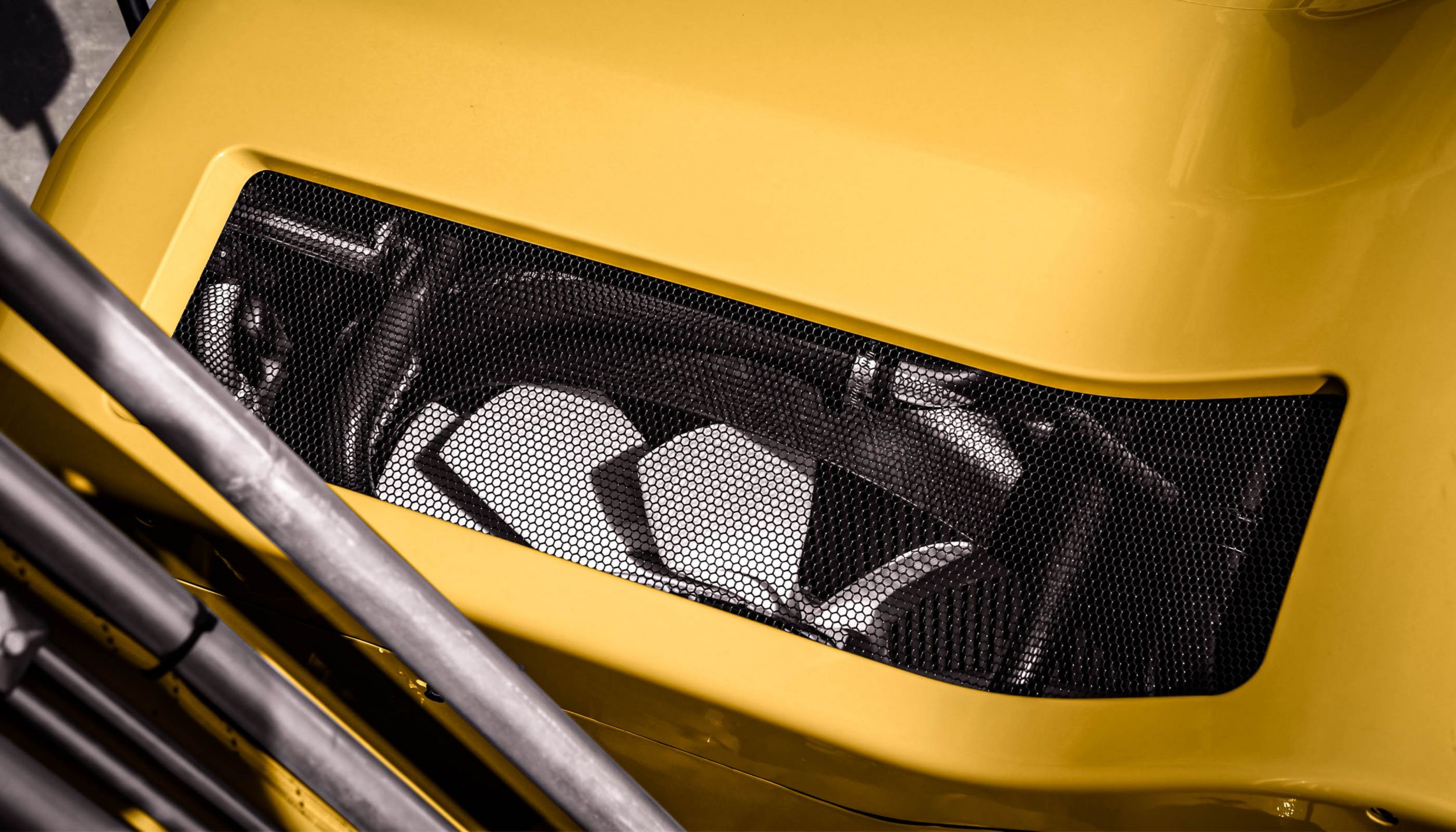

Various Waste Handling (WH) Packages options – the “fine mesh” package protects the cooling hood from dust and includes an engine air precleaner. The adjustable reversing fan and vibrating grill of the WH package add more protection.

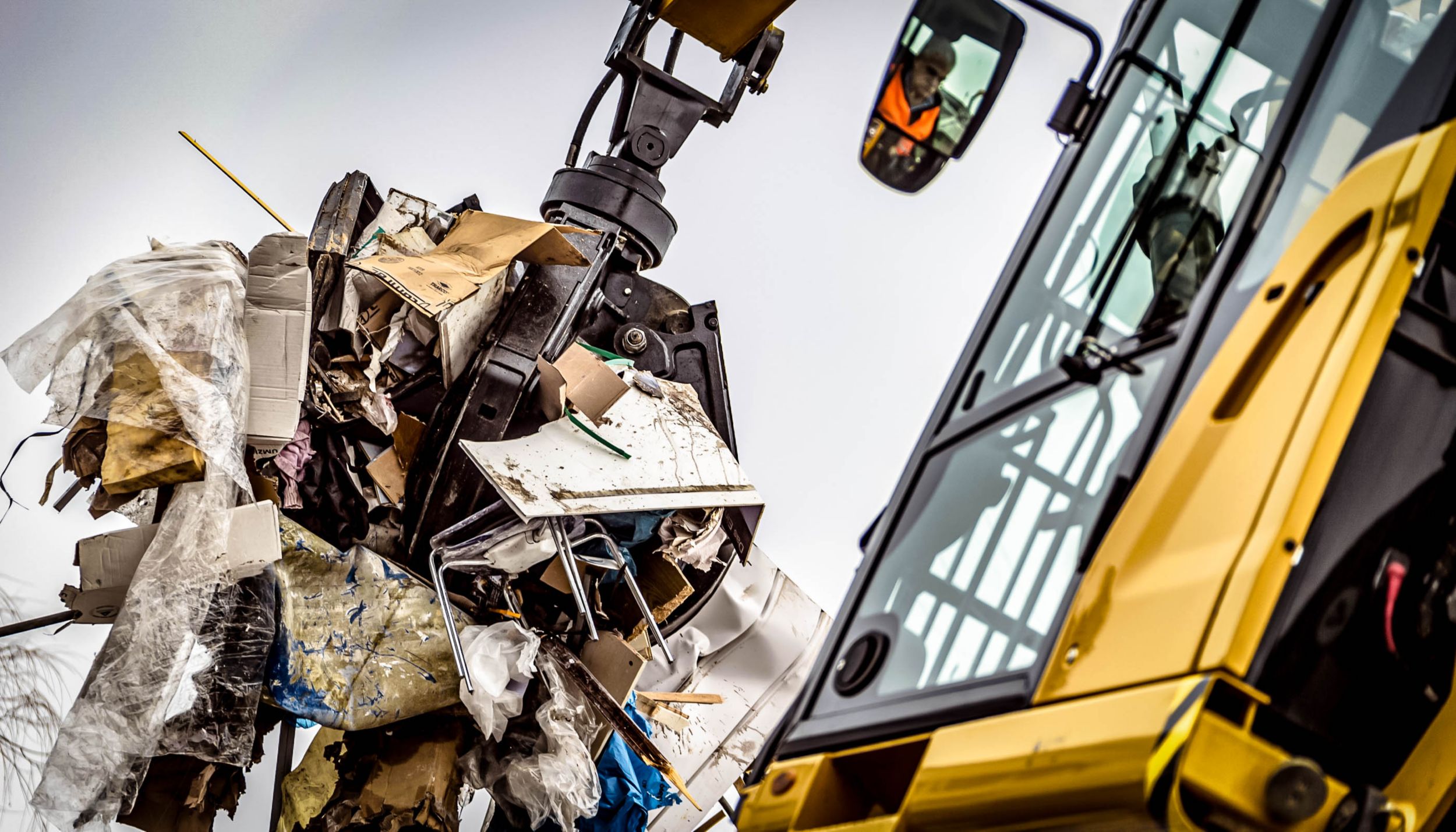

Various attachments to tackle all kinds of jobs, from various grapple types to the 15 kW Cat generator.

TECHNOLOGY THAT PUSHES PROFITS

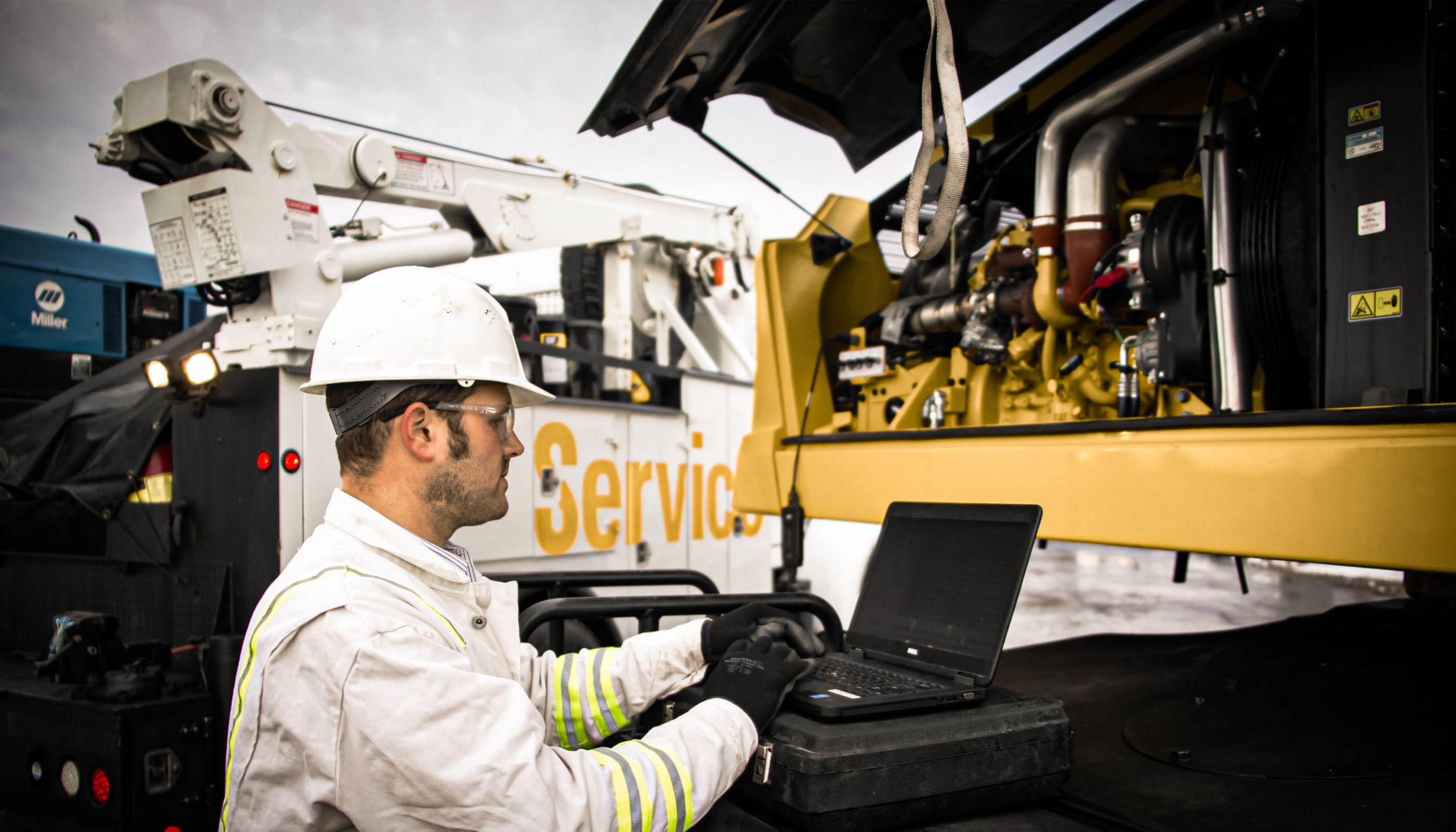

Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes.

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Electrical

Alternator, 115A

Engine

Cat C7.1 engine meets Stage IV emission standards

Hydraulics

Adjustable hydraulic sensitivity

Operator Station

Additional color monitor for cameras, split-screen display for both cameras' view

Undercarriage

Automatic brake and axle lock
