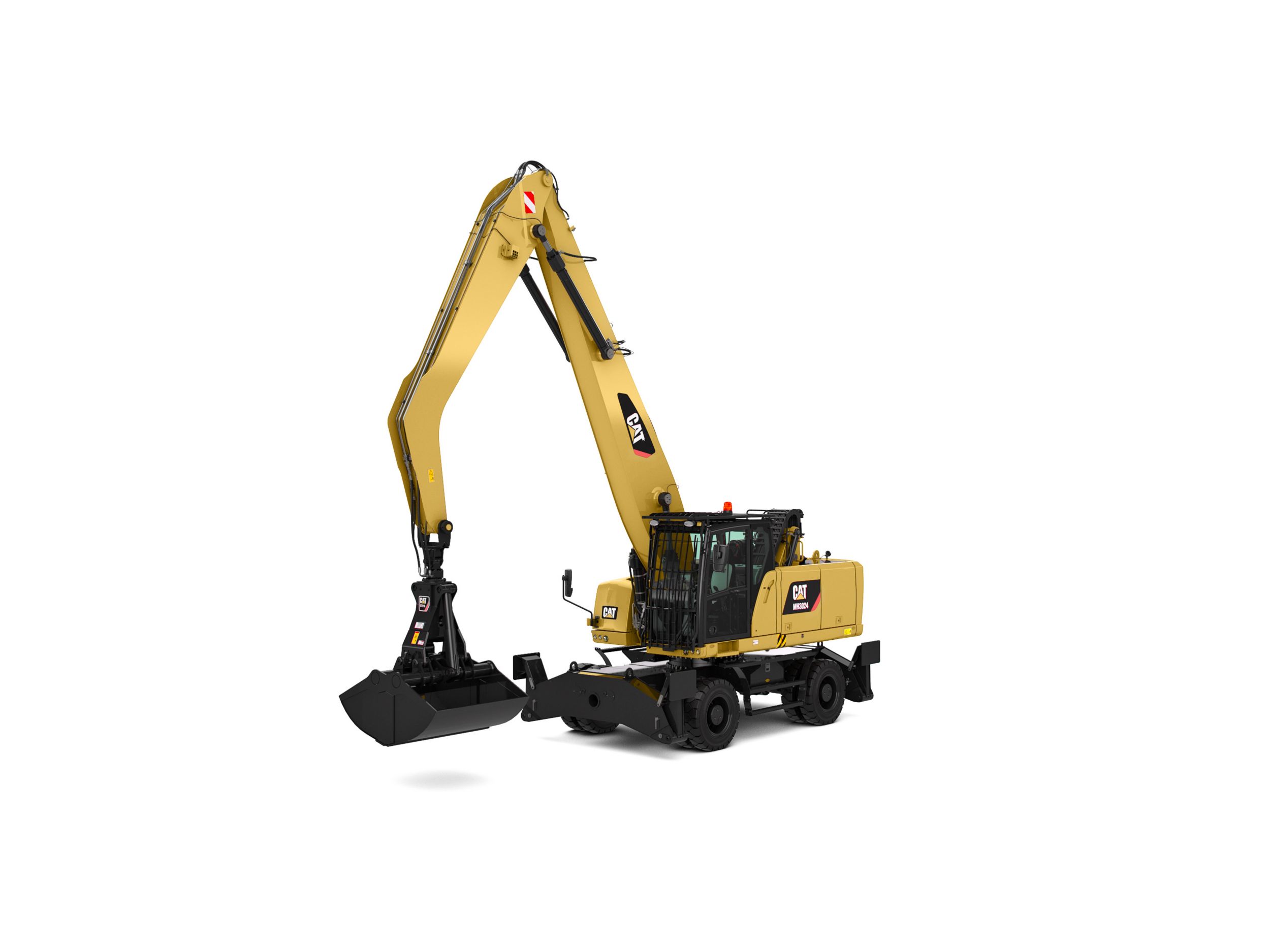

Wheel Material Handlers MH3024 (2017)

Cat material handlers. They are made for industrial, recycling, and millyard applications requiring large lifting capacities and working envelopes. Their low operating costs and high production help ensure your success.

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

Download product brochure #5

Wheel Material Handlers MH3024 (2017)

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

Download product brochure #5

1-800-268-1965

Request a Quote

Find a dealer near you

Units: US Metric

Engine

Specification	Value
Engine Model	Cat C7.1 ACERT
Emissions	Tier 4 Final/Stage IV
Displacement	427.8 in³ 7.01 l
Maximum Gross - ISO 14396	129.4 kW (174 hp [176 hp/PS*])
Maximum Net Power - SAE J1349/ISO 9249	126 kW (169 hp [171 hp/PS*])
Stroke	5.3 in 135 mm
Maximum Torque - 1,400 rpm	612 ft·lbf 830 N·m
Cylinders	6 in-line
Bore	4.1 in 105 mm
Note	*Metric values.

Units: US Metric

Hydraulic System - Maximum Flow

Specification	Value
Implement/Travel Circuit	95 gpm 359 L/min
Auxiliary Circuit - Medium Pressure	13 gpm 49 L/min
Swing Mechanism	31.1 gpm 118 L/min
Auxiliary Circuit - High Pressure	66 gpm 250 L/min

Units: US Metric

Hydraulic System - Maximum Pressure

Specification	Value
Implement Circuit - Normal	5076 psi 35000 kPa
Travel Circuit	5076 psi 35000 kPa
Implement Circuit - Heavy Lift	5366 psi 37000 kPa
Swing Mechanism	4496 psi 31000 kPa
Auxiliary Circuit - Medium Pressure	3046 psi 21000 kPa

Units: US Metric

Maximum Dimensions - Approximate

Specification	Value
Maximum Shipping Height*	11.08 ft 3635 mm
Maximum Shipping Width	9.83 ft 2990 mm
Note	*5900 mm (19'4") stick needs to be detached for transportation.

Units: US Metric

Moteur

Specification	Value
With MH Boom (6800 mm/22'4") - Standard Undercarriage and Straight Stick	55601 lb 25220 kg

Units: US Metric

Poids

Specification	Value
With MH Boom (6800 mm/22'4") - MH Undercarriage and Drop Nose Stick	56813 lb 25770 kg
With MH Boom (6800 mm/22'4") - MH Undercarriage and Straight Stick	57651 lb 26150 kg

Units: US Metric

Service Refill Capabilities

Specification	Value
Hydraulic Tank Capacity	52.8 gal (US) 200 l
Diesel Exhaust Fluid Tank	9.1 gal (US) 34.5 l
Hydraulic System Capacity	93 gal (US) 352 l
Fuel Tank	111 gal (US) 420 l
Cooling System	12.3 gal (US) 46.9 l

Units: US Metric

Swing Mechanism

Specification	Value
Swing Speed	9 r/min 9 r/min
Maximum Swing Torque	43516 ft·lbf 59 ft·lbf

Units: US Metric

Transmission

Specification	Value
Maximum Travel Speed	16 mile/h 25 km/h
Creeper Speed - 2nd Gear	7.5 mile/h 12 km/h
Maximum Travel Speed - 2nd Gear	16 mile/h 25 km/h
Maximum Gradeability (25 000 kg/55,115 lb)	60%

Units: US Metric

Undercarriage

Specification	Value
Axle Clearance - MH Undercarriage	12.8 in 325 mm
Oscillation Axle Angle	±5 degrees

Units: US Metric

Weights

Specification	Value
Operating Weight	22 330-27 000 kg (49,229-59,525 lb)
MH Push Blade	1488 lb 675 kg
Sticks - Straight (4800 mm)	2789 lb 1265 kg
Sticks - Drop Nose (5900 mm)	2381 lb 1080 kg
Counterweights - Optional	11464 lb 5200 kg
Counterweights - Standard	9039 lb 4100 kg
Note	*Operating weight is with solid tires, optional counterweight, MH undercarriage, fuel tank, operator and work tool, 1400 kg (3,086 lb). Weight varies depending on configuration.
Sticks - Drop Nose (4900 mm)	1896 lb 860 kg

Units: US Metric

Working Ranges - Without Work Tool: MH Boom (6800 mm/22'4)

Specification	Value
Maximum Reach	40.92 ft 12485 mm
Maximum Depth	9.58 ft 2925 mm
Maximum Height	43.67 ft 13300 mm

Performance

Powerful and efficient – Cat® C7.1 ACERT™ engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
Dedicated swing pump – allows faster and smoother combined movements.
Refined hydraulic system – provides increased precision and speed, while preserving fuel consumption.

Efficiency

Fuel consumption – reduced up to 10%*, with no impact on your productivity to lower operating costs.
Built-in fuel savers – eliminate waste thanks to Auto Engine Speed Control, Engine Idle Shutdown and enhanced Eco Mode.
High cooling efficiency – axial fan keeps operating temperatures and costs low.

*Versus previous D MH Series.

Safety

Blue Angel certified – with low vibrations and sound levels.
Options for specific applications – Thicker high impact and impact resistant windshields fulfill respectively the EN356 P8B and P5A standards. A cab pre-filtration package reduces dust entry and air contamination.
Great visibility – Large glass areas, LED lights for all working lights and cameras, with both displays split on the same screen.

Ease of Operation

Enjoy integrated technologies – They act transparently. Features like the Auto Brake and Axle Lock or Automatic Travel lock remove some of the tasks you had to do.
Smart technologies – They help boost your productivity while making operation easier: try the optional SmartBoom™ or Joystick steering.
Our cabs are unique –It's a cab just for you where everything can be adjusted, from the seat to the work tools controls assignment on joysticks and pedal.

Maintenance

Ground level access – for routine maintenance items like fuel and engine oil filters or fluid taps.
Reduced maintenance –Automatic features like electric lift pump and lubrication system along with long greasing intervals.

Versatility

Various configurations – from excavators' flexible offering to MH dedicated solutions. MH Boom, straight or drop nose stick and various undercarriages, including front push blade to meet your needs.
Various Waste Handling (WH) Packages options – The “fine mesh” package protects the cooling hood from dust and includes an engine air pre-cleaner. The adjustable reversing fan and vibrating grill of the WH package add more protection.
Various attachments – to tackle all kinds of jobs, from various grapple types to the 15 kW Cat Generator.

Cat Connect Technology

Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time and events, and diagnostic codes.
