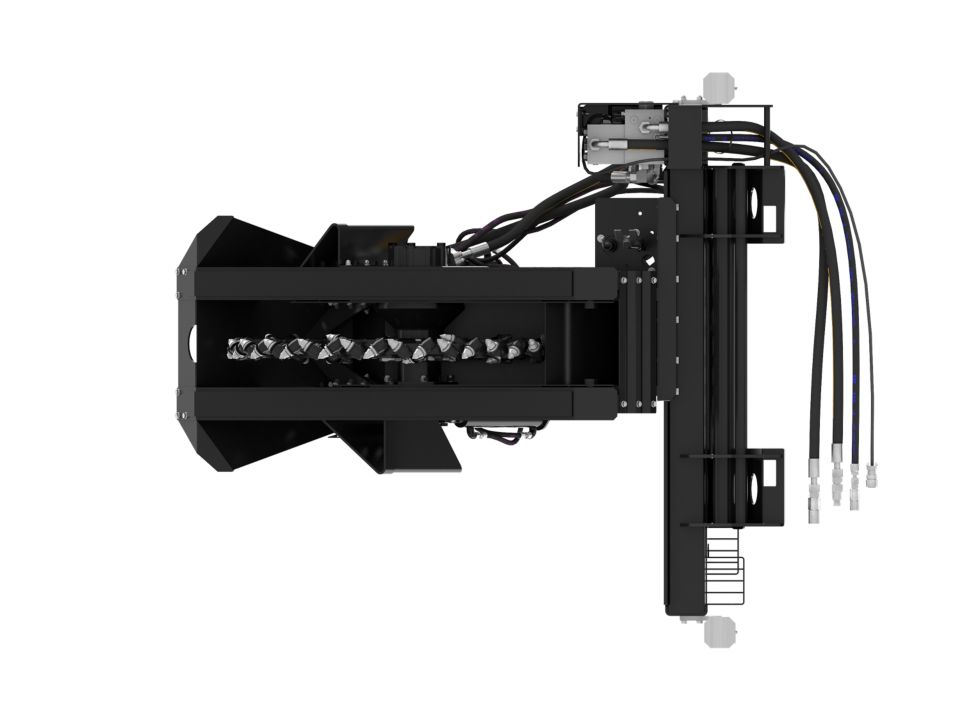

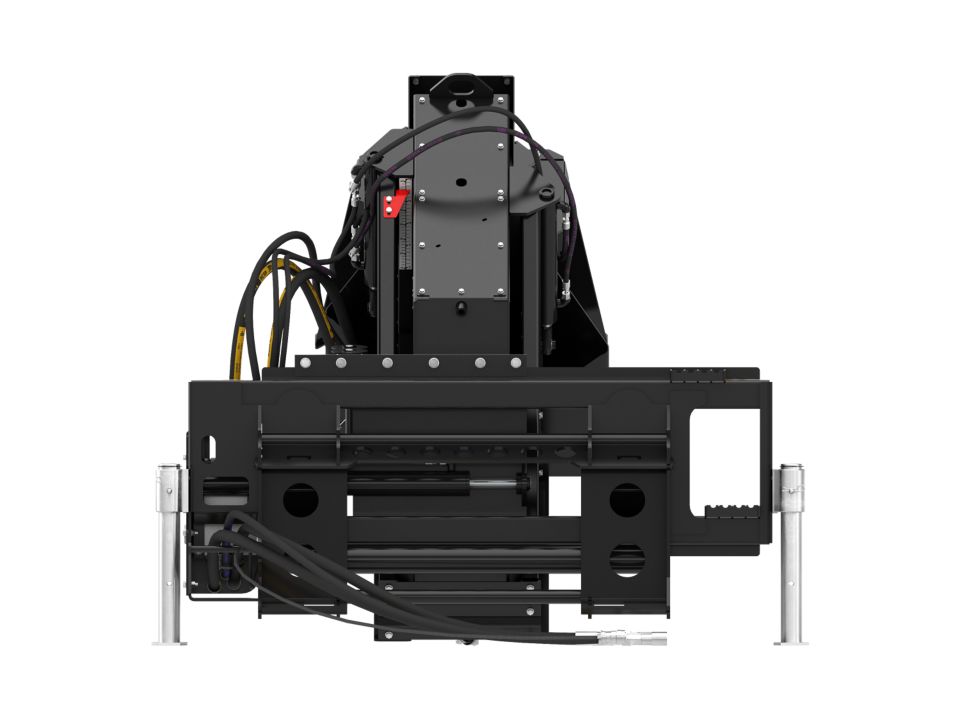

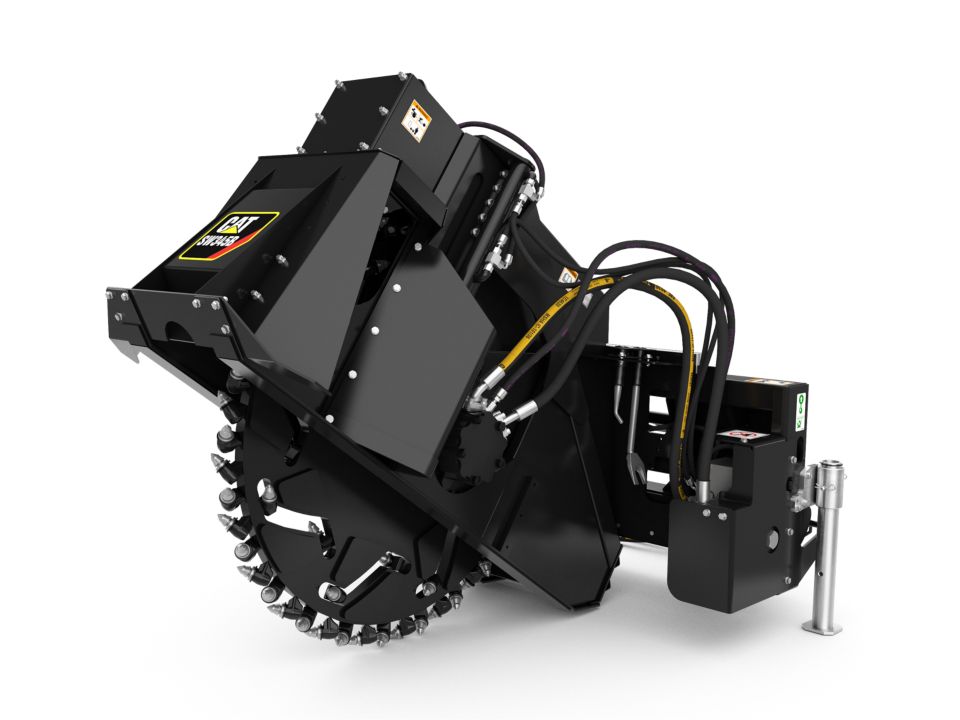

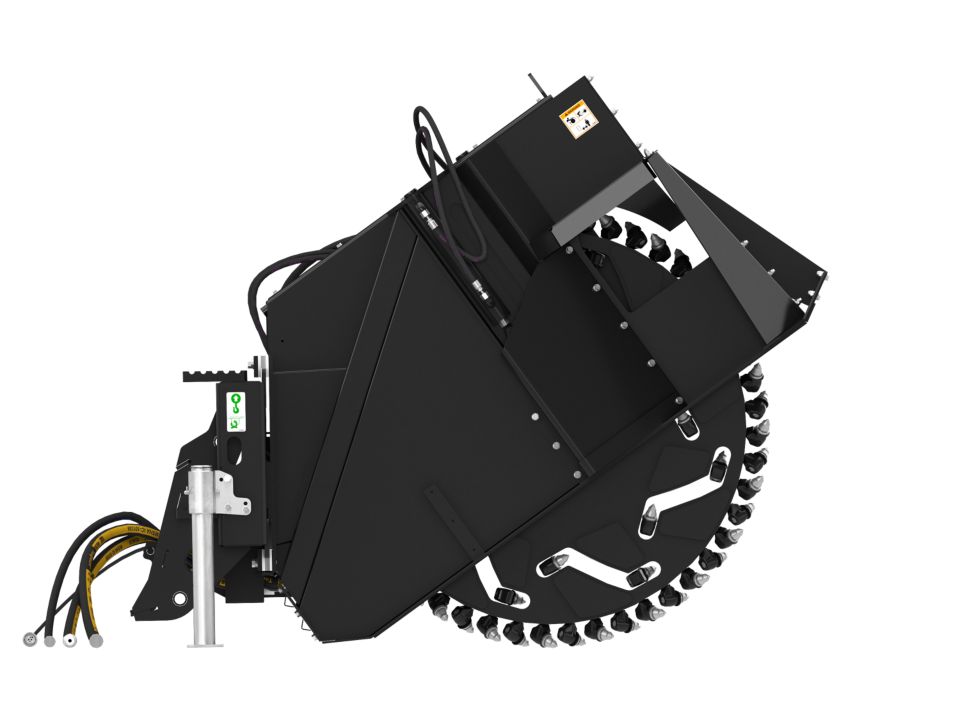

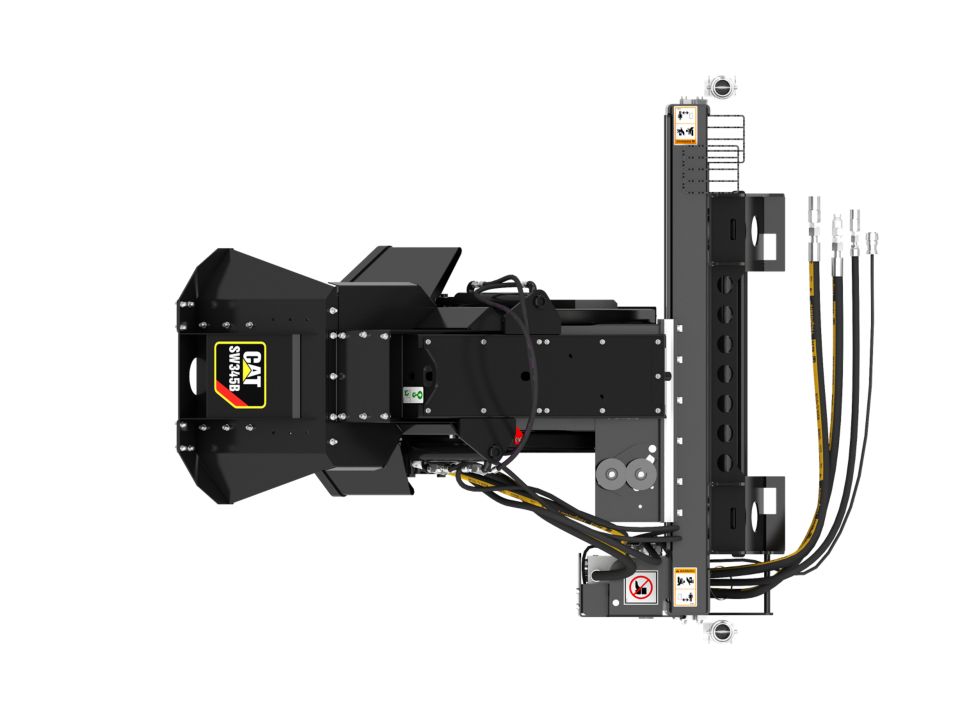

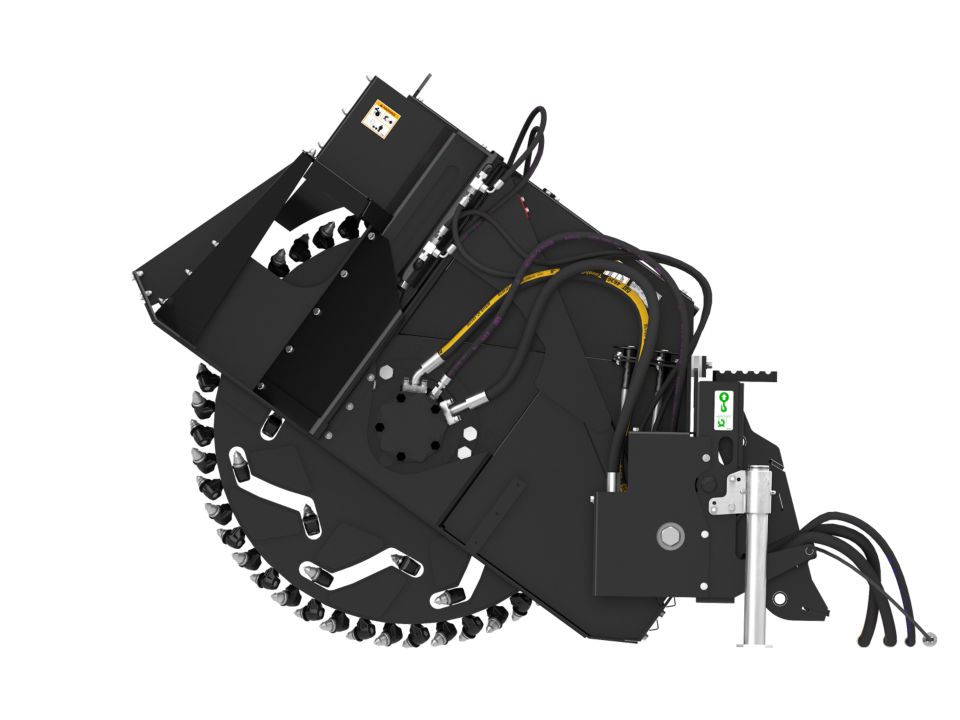

SW345B, 76 mm (3 in)

Get in touch

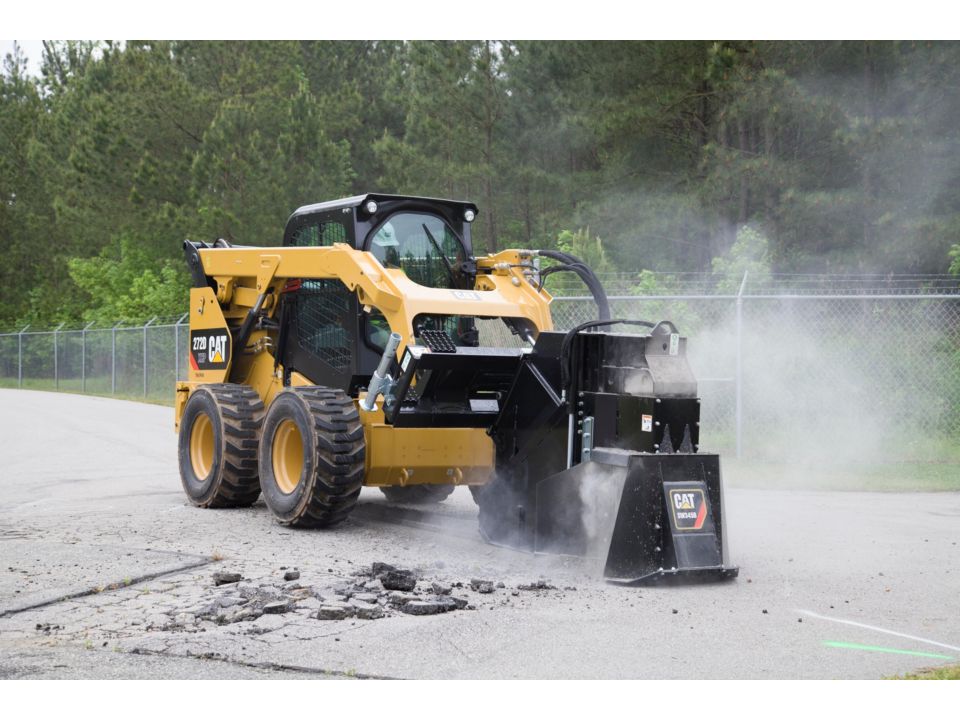

Cat® Wheel Saws are designed for high performance trench cutting on a variety of hard or compact surfaces such as asphalt, reinforced concrete, and rocky or frozen ground.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Maximum Cutting Depth

17.7 in 450 mm
{"Name":"Maximum Cutting Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.7","MetricUnit":"mm","MetricValue":"450","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Wheel Width

3.1 in 80 mm
{"Name":"Wheel Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.1","MetricUnit":"mm","MetricValue":"80","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

2548.5 lb 1156 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2548.5","MetricUnit":"kg","MetricValue":"1156","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Overall Width

72.8 in 1850 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72.8","MetricUnit":"mm","MetricValue":"1850","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Overall Height

57.3 in 1455 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"57.3","MetricUnit":"mm","MetricValue":"1455","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Length

85.2 in 2165 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"85.2","MetricUnit":"mm","MetricValue":"2165","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Required Hydraulics

High Flow XPS
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"High Flow XPS","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

125 L/min (33 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"125 L/min (33 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Pressure

280 bar (4061 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"280 bar (4061 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Motor Displacement

85.7 in³/rev 1404 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³/rev","EnglishValue":"85.7","MetricUnit":"cm³/rev","MetricValue":"1404","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Wheel Torque at Maximum Pressure

4605.3 lb/ft 6244 N·m
{"Name":"Wheel Torque at Maximum Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"4605.3","MetricUnit":"N·m","MetricValue":"6244","Type":"measurement","SpecificationGroup":null,"SortOrder":"11"}
Wheel Speed at Maximum Flow

89 rpm
{"Name":"Wheel Speed at Maximum Flow","SpecificationId":null,"TextValue":"89 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Bit Speed at Maximum Flow

1145 ft/min 349 m/min
{"Name":"Bit Speed at Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft/min","EnglishValue":"1145","MetricUnit":"m/min","MetricValue":"349","Type":"measurement","SpecificationGroup":null,"SortOrder":"13"}
Conical Bits - Per Wheel

64
{"Name":"Conical Bits - Per Wheel","SpecificationId":null,"TextValue":"64","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"14"}
Standard Bit Type

Concrete
{"Name":"Standard Bit Type","SpecificationId":null,"TextValue":"Concrete","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"15"}
Optional Bit Type

All Purpose
{"Name":"Optional Bit Type","SpecificationId":null,"TextValue":"All Purpose","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"16"}
Side Shift Travel

21.7 in 550 mm
{"Name":"Side Shift Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21.7","MetricUnit":"mm","MetricValue":"550","Type":"measurement","SpecificationGroup":null,"SortOrder":"17"}
Trench Cleaning Device

No
{"Name":"Trench Cleaning Device","SpecificationId":null,"TextValue":"No","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"18"}
Drive Method

Piston motor/Planetary
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Piston motor/Planetary","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"19"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"20"}

Benefits

Application

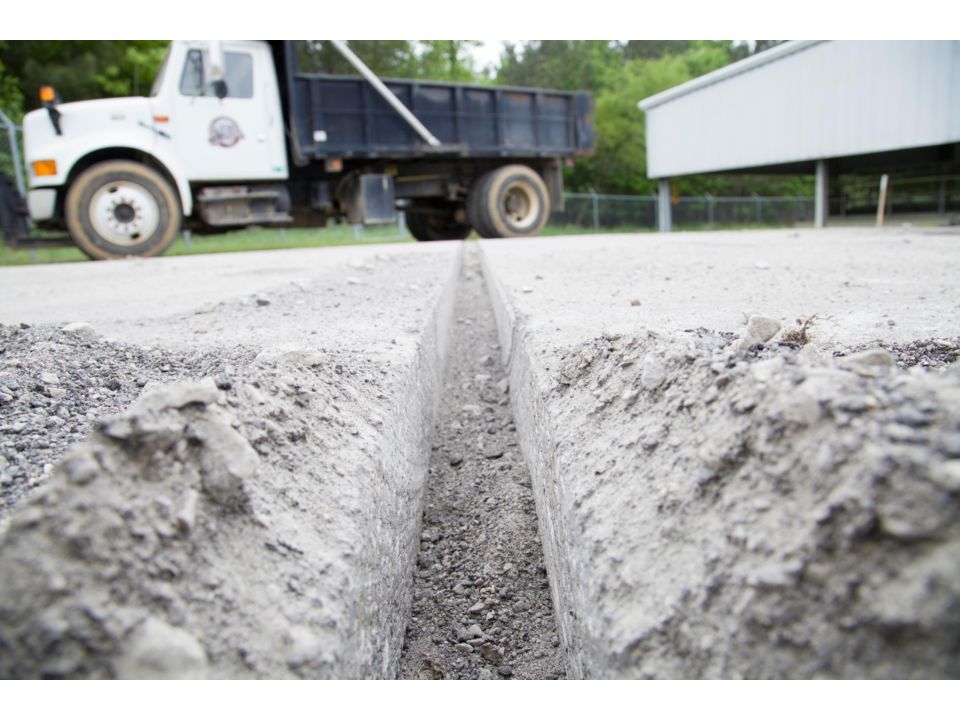

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Direct Drive System

Direct drive system features a hydraulic piston pump motor to ensure maximum cutting rate and wheel torque for optimal production performance and efficiency.

Hydraulic Side-Shift and Depth Control

Hydraulic side-shift and depth control is standard on all models and is controlled from the operator's compartment. Hydraulic side-shift allows wheel positioning from center to the far right of center. This allows for cutting close to curbs, walls and other obstructions, and minimizes need to reposition the machine.

Trench Cleaning Device

The trench cleaning device is hydraulically operated from the operator's compartment. The blade can be controlled up and down to remove spoil and ensure a clean trench.

Deflector Plates

Deflector plates remove spoil from the machine's path for smooth operation. Spoil can be discharged left, right, or on both sides of the wheel saw with installation of included blanking plates.

Max Pro Pressure Gauge

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on XHP models.

Bits

Concrete bits are standard on all models. Optional all purpose conical bits are available for all Cat Wheel Saws for tarmac and asphalt applications. Extreme life bits are available for extreme duty Cat Wheel Saw applications.

Self Standing

Self standing frame design improves connection and parking.

Optional Guide Bar

Optional guide bar allows operator to position wheel saw for a straight cut and aids in visibility.
