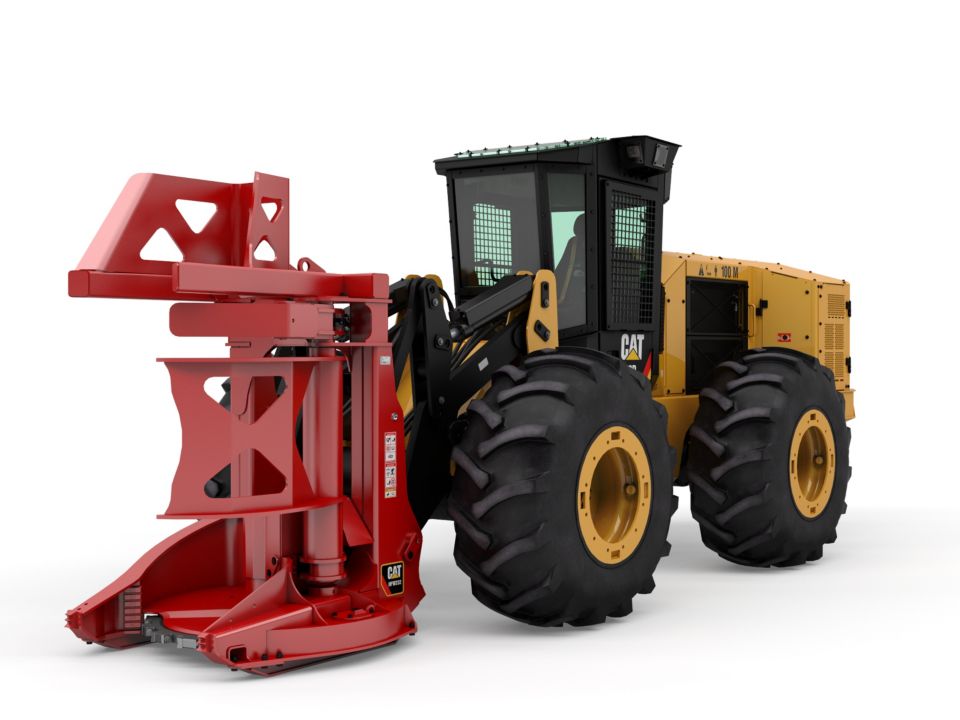

563D

563D

Cat Wheel Feller Bunchers maneuver easily in dense forest and have the durability to stand up to the demands of a high production operation.
(416) 667-5511 Request a Quote
Book a Demo
Explore my deals
Specifications
Dimensions
  • Wheel Base
    110 in 2794 mm
    {"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"110","MetricUnit":"mm","MetricValue":"2794","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"2"}
Engine
  • Engine Power
    203 hp 152 kW
    {"Name":"Engine Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"203","MetricUnit":"kW","MetricValue":"152","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Specifications
  • Overall Width - 30.5L × 32 NOAW
    117.3 in 2980 mm
    {"Name":"Overall Width - 30.5L × 32 NOAW","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"117.3","MetricUnit":"mm","MetricValue":"2980","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Length - Length - With HFW222 SC Felling Saw
    295.6 in 7509 mm
    {"Name":"Overall Length - Length - With HFW222 SC Felling Saw","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"295.6","MetricUnit":"mm","MetricValue":"7509","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Wheel Base
    110 in 2794 mm
    {"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"110","MetricUnit":"mm","MetricValue":"2794","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Engine Model
    C7.1 ACERT
    {"Name":"Engine Model","SpecificationId":null,"TextValue":"C7.1 ACERT","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Note
    *Add 780 kg (1,720 lb) for 30.5L-32 tires, 1161 kg (2,560 lb) for 30.5L-32 2X ring tires, 780 kg (1,720 lb) for 67-34 tires.
    {"Name":"Note","SpecificationId":null,"TextValue":"*Add 780 kg (1,720 lb) for 30.5L-32 tires, 1161 kg (2,560 lb) for 30.5L-32 2X ring tires, 780 kg (1,720 lb) for 67-34 tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Width - 28L × 26 NOAW
    110 in 2793 mm
    {"Name":"Overall Width - 28L × 26 NOAW","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"110","MetricUnit":"mm","MetricValue":"2793","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Length - Length - With HFW221 Felling Saw
    297.1 in 7546 mm
    {"Name":"Overall Length - Length - With HFW221 Felling Saw","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"297.1","MetricUnit":"mm","MetricValue":"7546","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Width - 30.5L × 32 Dual Inner
    116.8 in 2966 mm
    {"Name":"Overall Width - 30.5L × 32 Dual Inner","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"116.8","MetricUnit":"mm","MetricValue":"2966","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Weight - With 28L-26 Tires, Less Attachment*
    32643 lb 14807 kg
    {"Name":"Weight - With 28L-26 Tires, Less Attachment*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"32643","MetricUnit":"kg","MetricValue":"14807","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Length - Length - With HFW232 High Capacity Saw
    303.7 in 7713 mm
    {"Name":"Overall Length - Length - With HFW232 High Capacity Saw","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"303.7","MetricUnit":"mm","MetricValue":"7713","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Width - 67 × 34
    126.9 in 3222 mm
    {"Name":"Overall Width - 67 × 34","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"126.9","MetricUnit":"mm","MetricValue":"3222","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Hydrostatic Pump - Variable Displacement Piston Pump
    242 L/min @ 37 370 kPa (64 gal/min @ 5,420 psi)
    {"Name":"Hydrostatic Pump - Variable Displacement Piston Pump","SpecificationId":null,"TextValue":"242 L/min @ 37 370 kPa (64 gal/min @ 5,420 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Fuel Capacity
    81 gal (US) 306 l
    {"Name":"Fuel Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"81","MetricUnit":"l","MetricValue":"306","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Width - 28L × 26
    115 in 2920 mm
    {"Name":"Overall Width - 28L × 26","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"115","MetricUnit":"mm","MetricValue":"2920","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Primary Hydraulic Pump - Variable Displacement Piston Pump
    155 L/min @ 27 579 kPa (41 gal/min @ 4,000 psi)
    {"Name":"Primary Hydraulic Pump - Variable Displacement Piston Pump","SpecificationId":null,"TextValue":"155 L/min @ 27 579 kPa (41 gal/min @ 4,000 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Overall Width - 30.5L × 32
    123.6 in 3140 mm
    {"Name":"Overall Width - 30.5L × 32","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"123.6","MetricUnit":"mm","MetricValue":"3140","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Attachment Pump - Variable Displacement Piston Pump
    155 L/min @ 27 579 kPa (41 gal/min @ 4,000 psi)
    {"Name":"Attachment Pump - Variable Displacement Piston Pump","SpecificationId":null,"TextValue":"155 L/min @ 27 579 kPa (41 gal/min @ 4,000 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Engine Speed
    1880 r/min 1880 r/min
    {"Name":"Engine Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1880","MetricUnit":"r/min","MetricValue":"1880","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
  • Gross Power
    203 hp 152 kW
    {"Name":"Gross Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"203","MetricUnit":"kW","MetricValue":"152","Type":"measurement","SpecificationGroup":"Specifications","SortOrder":"99"}
Weights
  • Operating Weight - Without Attachment
    32643 lb 14807 kg
    {"Name":"Operating Weight - Without Attachment","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"32643","MetricUnit":"kg","MetricValue":"14807","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"3"}
Wheel Feller Buncher Attachments - HFW221
  • Maximum Single Cut
    22.7 in 576 mm
    {"Name":"Maximum Single Cut","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22.7","MetricUnit":"mm","MetricValue":"576","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW221","SortOrder":"99"}
  • Width
    63.6 in 1615 mm
    {"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"63.6","MetricUnit":"mm","MetricValue":"1615","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW221","SortOrder":"99"}
  • Height
    119 in 3023 mm
    {"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"119","MetricUnit":"mm","MetricValue":"3023","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW221","SortOrder":"99"}
  • Accumulation Area
    5.1 ft² 0.47 m²
    {"Name":"Accumulation Area","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft²","EnglishValue":"5.1","MetricUnit":"m²","MetricValue":"0.47","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW221","SortOrder":"99"}
  • Weight
    7100 lb 3220 kg
    {"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7100","MetricUnit":"kg","MetricValue":"3220","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW221","SortOrder":"99"}
  • Directional Felling Capacity
    N/A
    {"Name":"Directional Felling Capacity","SpecificationId":null,"TextValue":"N/A","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW221","SortOrder":"99"}
Wheel Feller Buncher Attachments - HFW222 SC
  • Accumulation Area
    4 ft² 0.37 m²
    {"Name":"Accumulation Area","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft²","EnglishValue":"4","MetricUnit":"m²","MetricValue":"0.37","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW222 SC","SortOrder":"99"}
  • Maximum Single Cut
    22 in 560 mm
    {"Name":"Maximum Single Cut","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22","MetricUnit":"mm","MetricValue":"560","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW222 SC","SortOrder":"99"}
  • Directional Felling Capacity
    30 in 762 mm
    {"Name":"Directional Felling Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30","MetricUnit":"mm","MetricValue":"762","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW222 SC","SortOrder":"99"}
  • Width
    68 in 1727 mm
    {"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"68","MetricUnit":"mm","MetricValue":"1727","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW222 SC","SortOrder":"99"}
  • Height
    95 in 2413 mm
    {"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"95","MetricUnit":"mm","MetricValue":"2413","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW222 SC","SortOrder":"99"}
  • Weight
    6554 lb 2973 kg
    {"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6554","MetricUnit":"kg","MetricValue":"2973","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW222 SC","SortOrder":"99"}
Wheel Feller Buncher Attachments - HFW232
  • Weight
    6277 lb 2847 kg
    {"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6277","MetricUnit":"kg","MetricValue":"2847","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW232","SortOrder":"99"}
  • Height
    108.8 in 2763 mm
    {"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"108.8","MetricUnit":"mm","MetricValue":"2763","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW232","SortOrder":"99"}
  • Directional Felling Capacity
    N/A
    {"Name":"Directional Felling Capacity","SpecificationId":null,"TextValue":"N/A","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW232","SortOrder":"99"}
  • Width
    68.3 in 1734 mm
    {"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"68.3","MetricUnit":"mm","MetricValue":"1734","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW232","SortOrder":"99"}
  • Accumulation Area
    8.6 ft² 0.8 m²
    {"Name":"Accumulation Area","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft²","EnglishValue":"8.6","MetricUnit":"m²","MetricValue":"0.8","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW232","SortOrder":"99"}
  • Maximum Single Cut
    22.6 in 573 mm
    {"Name":"Maximum Single Cut","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22.6","MetricUnit":"mm","MetricValue":"573","Type":"measurement","SpecificationGroup":"Wheel Feller Buncher Attachments - HFW232","SortOrder":"99"}
Benefits

Performance

  • Cat® C7.1 ACERT™ engine provides maximum power and response while minimizing total fluid consumption
  • Patented Power Direct Plus system has been enhanced providing greater travel power and saw recovery
  • Patented transverse mounted engine and low center of gravity provide rock solid stability allowing market leading cut and carry capability
  • Shortest wheelbases in the market combined with leading stability provides superior application versatility
  • Leading hydraulic multi functioning improves productivity allowing operators to lift and close the arms simultaneously

Efficiency

  • Lower engine speed minimizes fuel consumption
  • High capacity cross flow cooling system only pulls in cool external air to maximize efficiency
  • Oversized, on demand reversing fan spins only as fast as needed to optimize fuel efficiency
  • Greater cut and carry capability to build larger, easy to reach bundles improving skidder efficiency
  • Standard rear view camera improves operator efficiency

Comfort

  • Cat Comfort seat provides greater support reducing fatigue while providing more leg room near the joystick controls for more comfortable operation
  • Smooth hydraulic controls and superior balance provide market leading comfort and controllability
  • Advanced controls like creep control, customizable terrain selection and simplified speed and sensitivity adjustments allow operators to set up machines to their preference quickly and easily improving comfort
  • High capacity HVAC system provides dependable cooling and heating for maximum comfort
  • Quiet and spacious cab improves comfort and reduces operator fatigue

Durability

  • Field proven engine and emissions technology combined with durable components like simple, fixed geometry turbos provide reliable power
  • Simple, clean and highly engineered engine installation with minimal exhaust plumbing is designed for long life
  • Electrical system upgraded with field proven Cat controls and components
  • Pressurized compartments and engineered airflow forces hot air out of the machine preventing electrical harnesses and sensors from being heat soaked
  • Field proven cooling system keeps engine and hydraulics cool extending component life
  • Two speed gearbox enhanced with improved sealing, larger bearings and stronger gears
  • Field proven hitch and robust box section frames with integrated steering cylinder mounts are built for extended life

Serviceability

  • Cooling system with course fin spacing minimizes plugging while providing easy clean out
  • Pressurized engine, hydraulic and aftertreatment compartments keep debris out of the machine reducing down time for clean out
  • Standard precleaner and engine air intake location maximize service life of air filters to lower owning and operating costs
  • Tilting cab and hinged doors provide market leading access to core components and easy access to daily check points and preventive maintenance service locations
  • Ground level fuel fill and electric hydraulic oil fill pump allows safe and easy service

Work Tools

  • HFW232 bunching saw provides leading durability, bunching capacity and single cut capacity
  • HFW221 felling saw is simple, versatile and a field proven single post saw
  • HFW222 SC felling saw offers an industry exclusive side cut door increasing productivity in multiple cut applications
