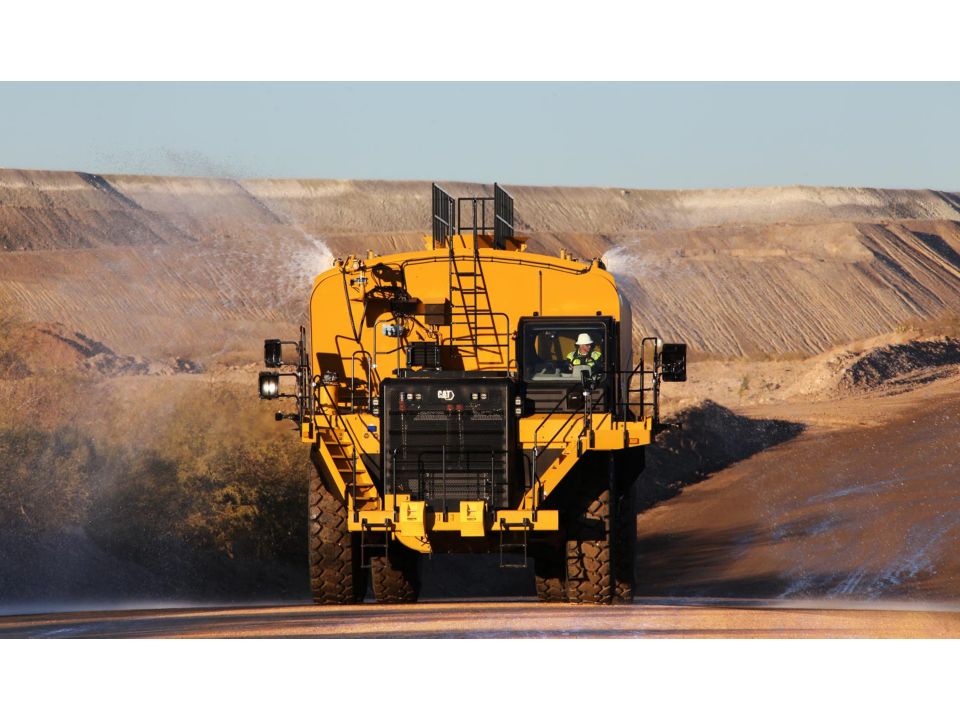

• Lower dust levels, increase visibility, maintain haul road safety — know where and when to water
• With automated water delivery, the operator can remain focused on traffic and driving

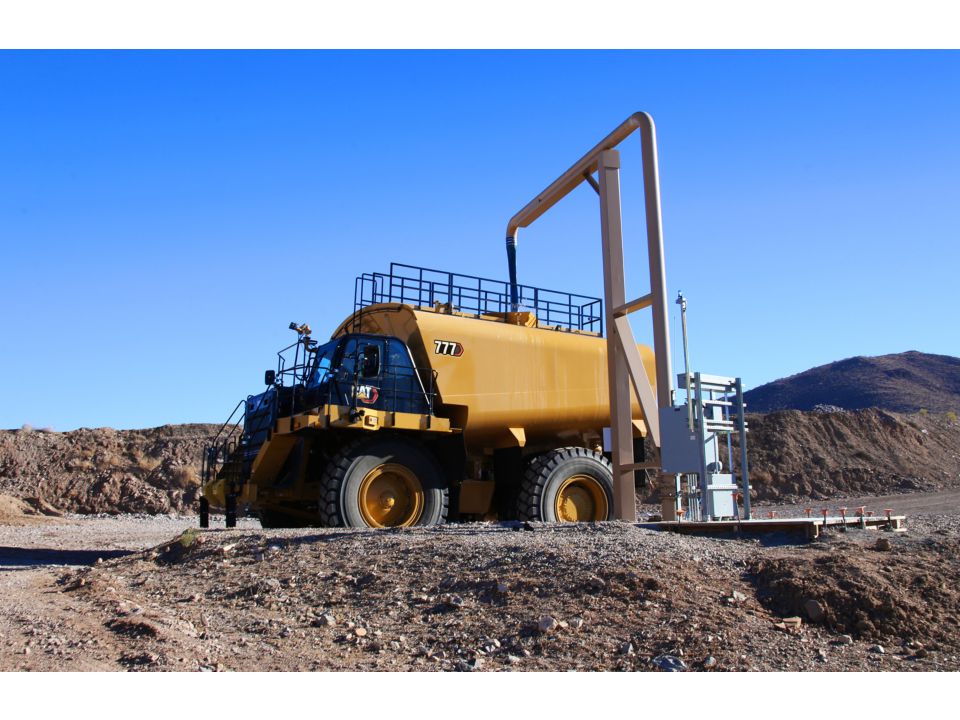

• When water tank is full, the auto shutoff feature prevents overfilling and results in increased component life

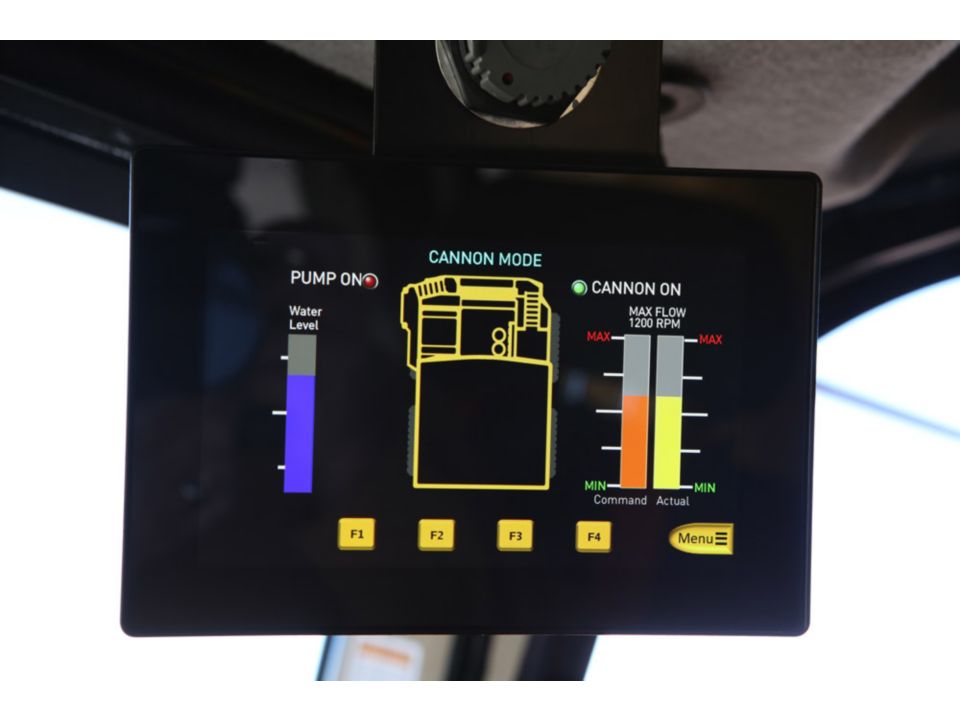

• Monitor tank fill from inside the cab

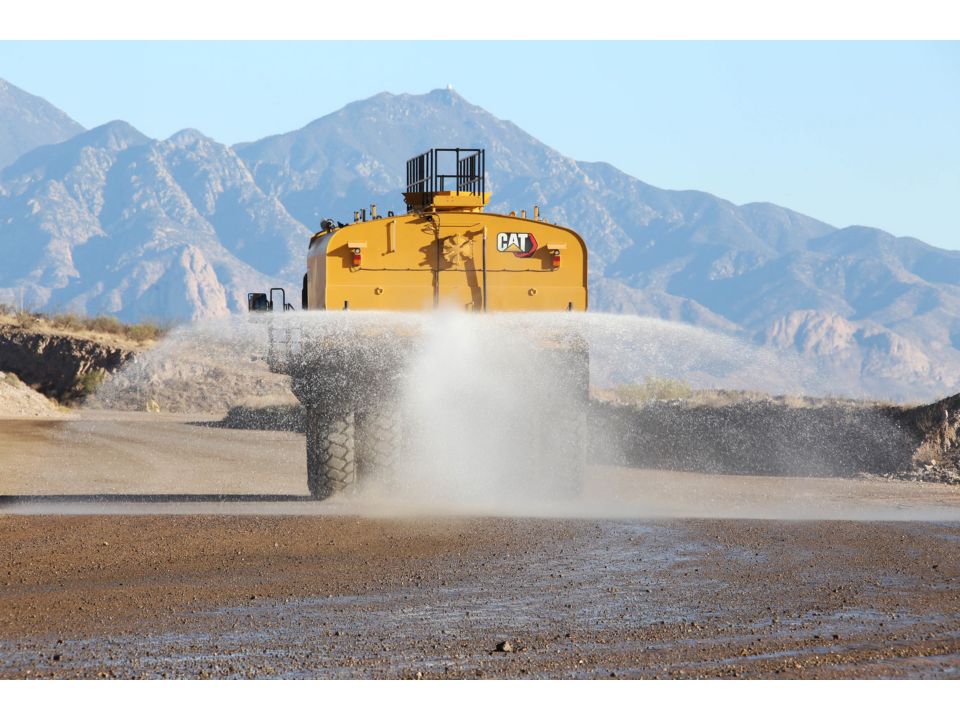

• The water delivery system features automatic start and stop, based on truck speed, which eliminates overwatering at road intersections to improve safety for all vehicles on site
• Traction Control System (TCS) and Wet Disc Braking is standard on all four corners of the truck
• Automatic Retarding Control (ARC) for downhill grades

• Ergonomic, intuitive controls, with left side power window and automatic temperature control

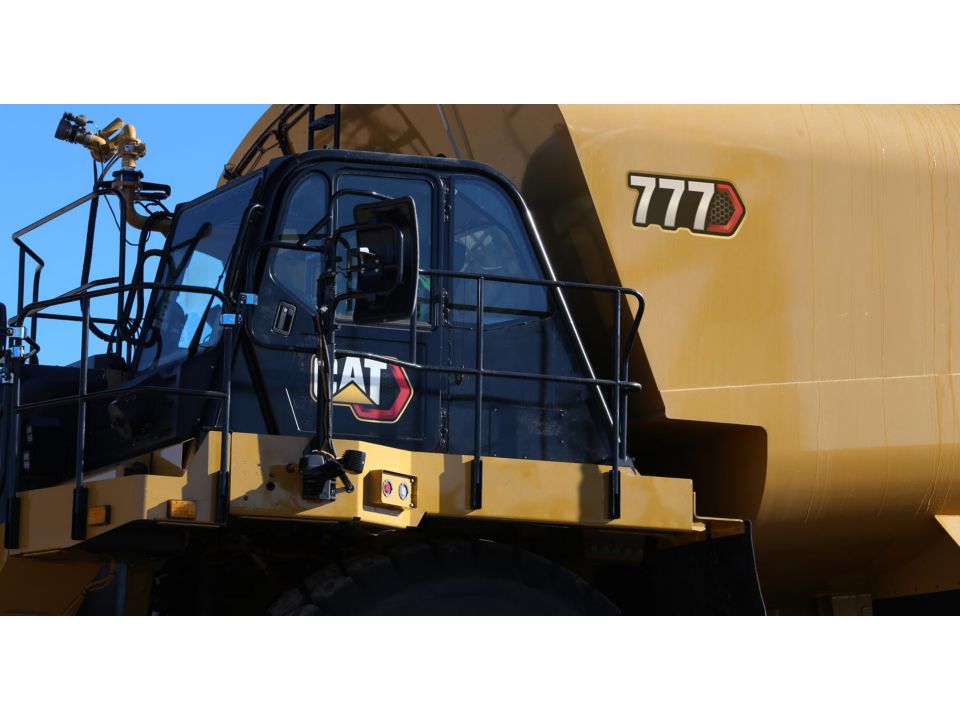

• Spacious cab with window area that supports visibility
• Cab is isolation mounted reducing noise and vibration — sound suppression has decreased noise by 50%
• Lighting packages illuminate both side and front of vehicle

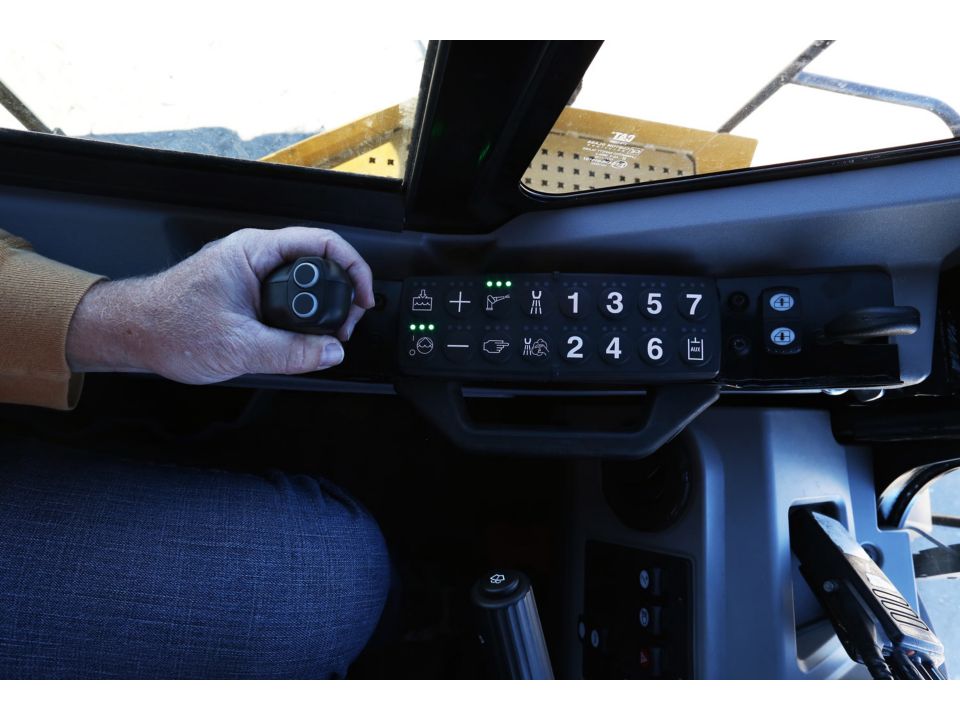

• Factory-installed, integrated and durable ergonomic cab water controls are user-friendly and easy to learn

• Properly watered haul roads directly impact fleet cycle times, enabling you to meet production targets.
• Spend less time maintaining haul roads using proper watering techniques to solve overwatering and underwatering
• Prevent damage to trucks and reduce unplanned downtime with properly watered haul roads
• Pump features soft startup and shuts off automatically when the tank is empty, eliminating damage and preventing the pump from running dry

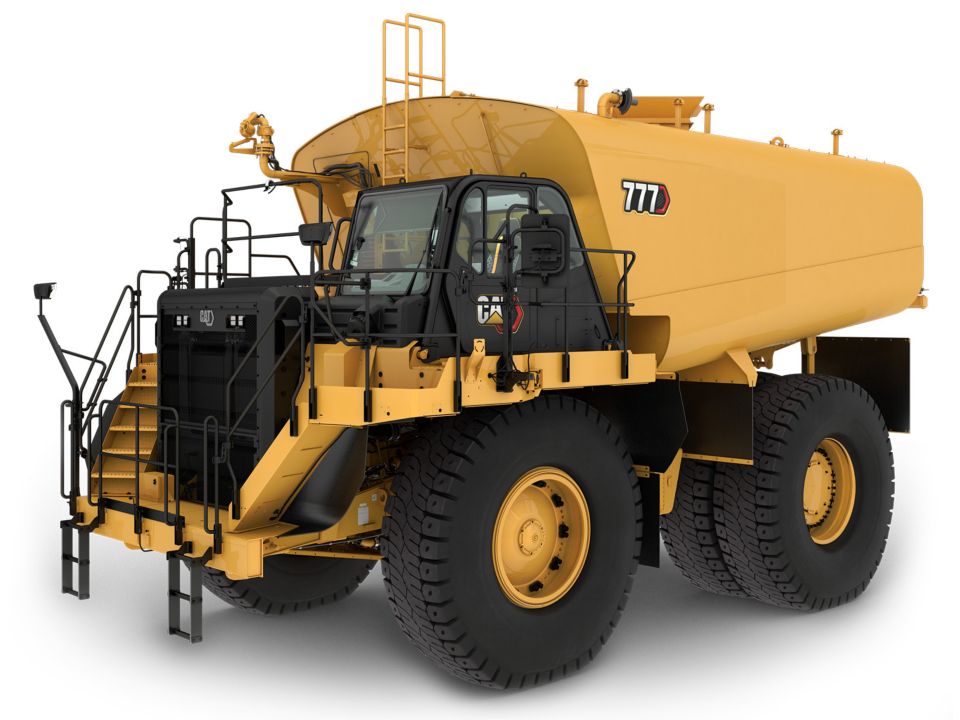

• The 777 is faster and more efficient with a 7% increase in torque for more power to the ground, new transmission controls, and higher travel speeds.


• The Cat Water Delivery System (WDS) helps you manage water effectively and sustainability — helping you do more with less.

• WDS utilizes automatic start and stop to help eliminate overwatering at road intersections.

• WDS provides variable water flow based on truck speed, ensuring most efficient water placement.

• The water cannon operates while truck is idling, reducing fuel consumption by up to *50%.


• Auto Neutral Idle: as the 777 idles in a forward gear, the transmission will automatically slip in and out of a neutral state to avoid stalling the torque converter and raising engine rpm.

• Engine Idle Shutdown: when your truck is in park and idles for more than a preset time, the truck will initiate engine shutdown to conserve fuel. This feature can be time adjusted or turned on or off according to your specific needs.

• Speed Limiting: while you can continue to gear limit your trucks, Caterpillar offers speed limiting that allows the truck to travel at a more fuel efficient engine speed and gear selection.

• New APECS transmission controls increase fuel efficiency by maintaining momentum and speed on grade.

• The water cannon operates at idle, which reduces fuel consumption during cannon operation by up to *50%.


• Cat MineStar for water uses cloud-based connectivity through cellular and WiFi connection to collect and manage data at any job site.

• We offer two levels of connectivity (Basic & Premium*) to meet any customer need using Cat MineStar.

• Water Solutions data can help ensure customers are meeting regulatory requirements.

• View maps and dashboards of your operation to see how much your trucks are watering, where they are located, how much fuel they are using, and more.


“I need to know where my truck is located and when it’s watering.”


• Near-real-time and historical reporting.

• Truck location and utilization data: routes, starts and stops.

• Fuel and water level.

• Whether or not the truck is spraying water.

• Water Delivery System utilization (auto vs. manual mode).

*Based on equipment connectivity via WiFi or cellular data. Basic Connectivity Package comes standard with a 6-month complimentary service-based offering.

“I need to understand fuel utilization, water cycle duration, and how much water the truck is using.”

Premium Connectivity* offers a comprehensive reporting package with data and detailed reports o help mine managers and operators improve watering techniques and efficiency.


• Water usage by truck/fill station.

• Volume of water output over time and area covered.

• Water distribution rate, water delivery system

• setting by location, truck, and conditions.

• Activity breakdown including time and distance.

• (watering, not watering, stopped, etc.)

• View and export at least 6 weeks of historical data.


• Cat Water Solutions trucks are sold, serviced, and supported by the local Cat dealer you know and trust.

• Full support of Cat dealer and parts network.

• The truck is eligible for Equipment Protection Plans (EPP) & Customer Value Agreements (CVAs).
