BU115

Get in touch

Cat® Utility Brooms sweep and collect debris on smooth surfaces in forward or reverse travel. The Utility Broom is recommended for spoil removal during cold planing applications. The Utility Broom can be adjusted for greater bristle down-force in tough applications such as sweeping course material out of a cold planer cut.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Overall Width

71.3 in 1810 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"71.3","MetricUnit":"mm","MetricValue":"1810","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Sweeping Width

59.4 in 1510 mm
{"Name":"Sweeping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"59.4","MetricUnit":"mm","MetricValue":"1510","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Brush Diameter

26 in 660 mm
{"Name":"Brush Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"26","MetricUnit":"mm","MetricValue":"660","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Height

31.2 in 793 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"31.2","MetricUnit":"mm","MetricValue":"793","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Length

58.7 in 1490 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"58.7","MetricUnit":"mm","MetricValue":"1490","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Weight

948 lb 430 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"948","MetricUnit":"kg","MetricValue":"430","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

30-83 L/min (8-22 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"30-83 L/min (8-22 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Pressure

145-227 bar (2100-3300 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"145-227 bar (2100-3300 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Motor Displacement

24 in³/rev 393 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³/rev","EnglishValue":"24","MetricUnit":"cm³/rev","MetricValue":"393","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Brush Speed at Maximum Flow

190 rpm
{"Name":"Brush Speed at Maximum Flow","SpecificationId":null,"TextValue":"190 rpm","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Drive Method

Direct Drive
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Direct Drive","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"14"}

Benefits

Application

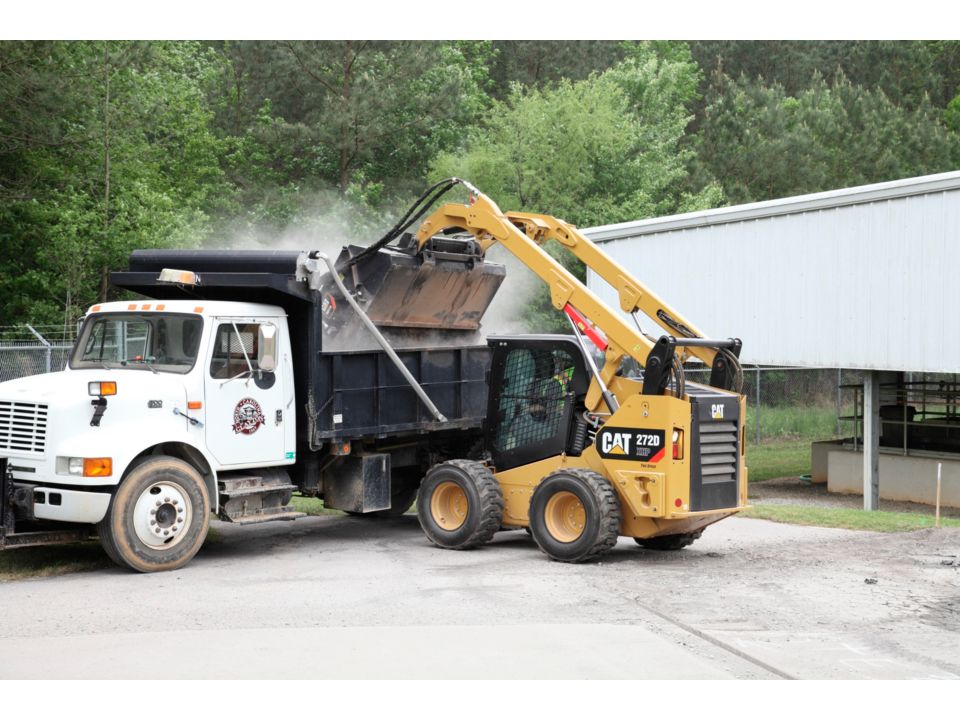

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.

Bi-Directional Sweeping

Utility Brooms have the ability to sweep and collect light debris on smooth surfaces in both forward or reverse.

Broom Material Options

Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.

Large Hopper Capacity

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening with bolt-on, replaceable cutting edge permits fast, efficient dumping.

Optional Dust Control

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

Rubber Boots

Rubber boots on front and sides of broom aid in containing debris and airborne contaminants during sweeping.
