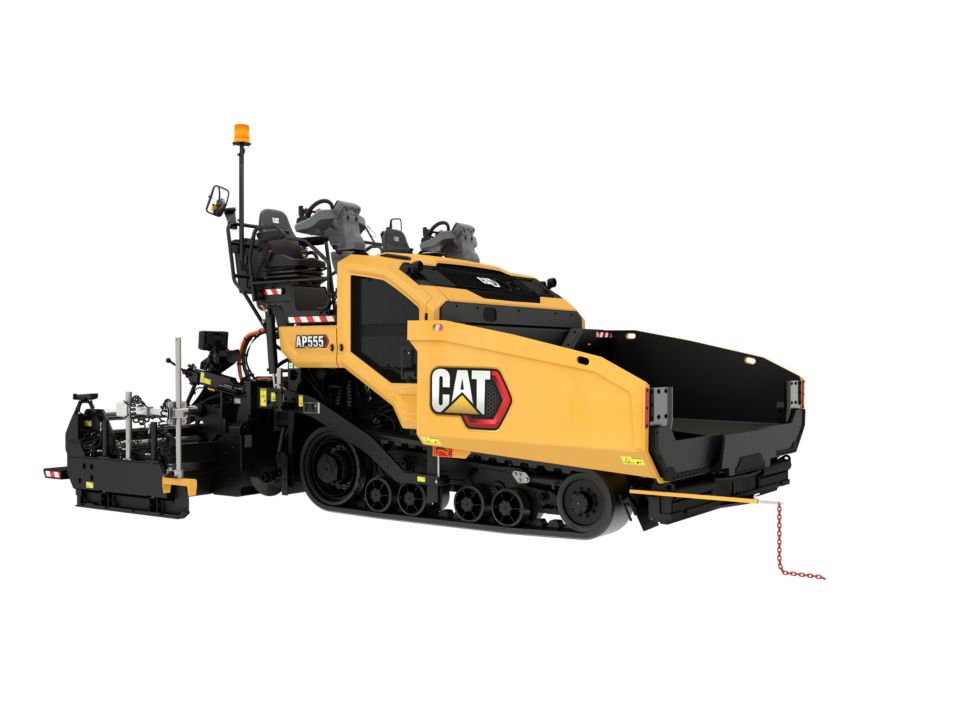

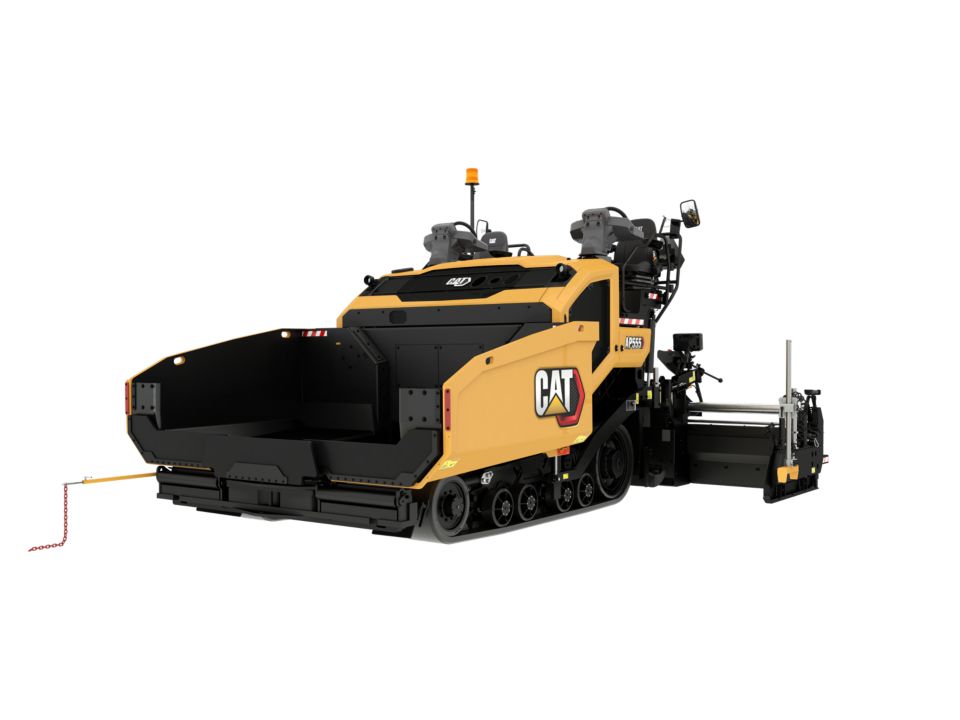

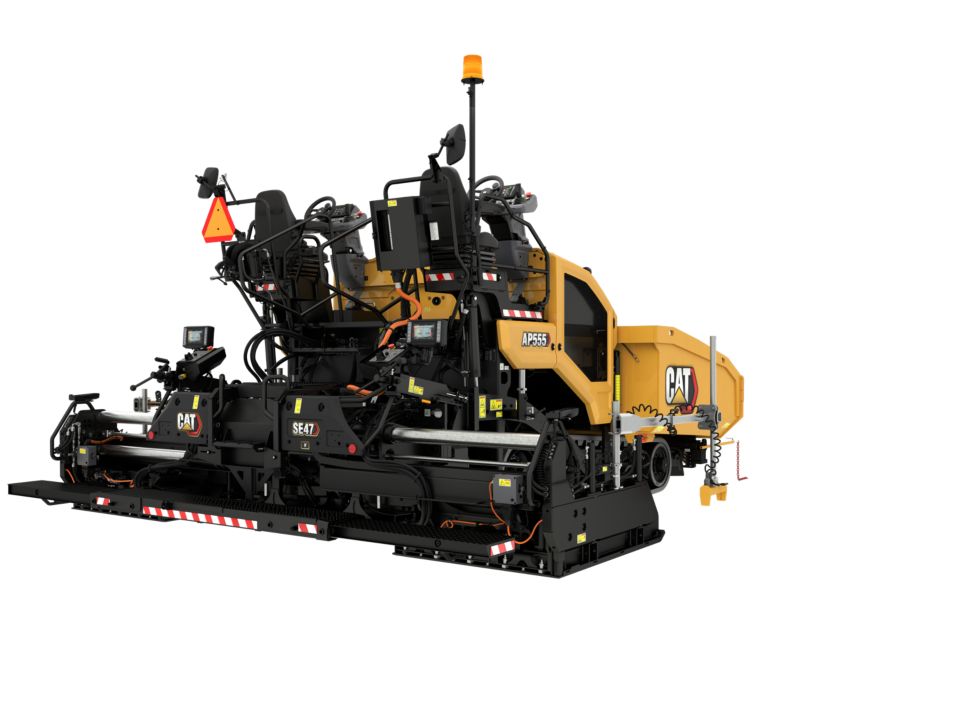

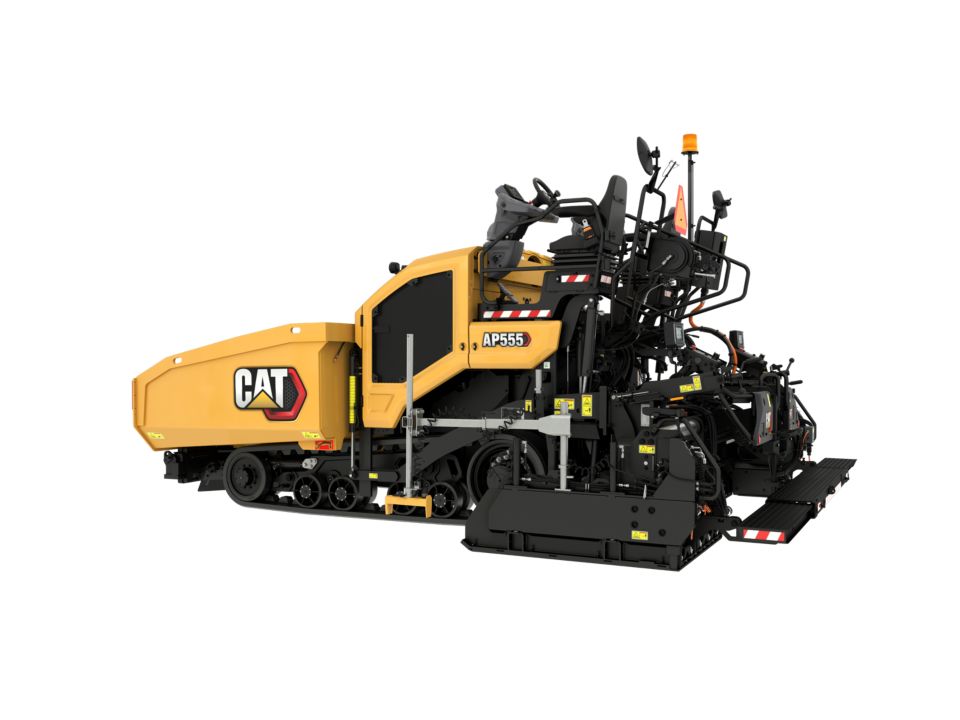

AP555

360 Exterior View 360 Interior View

AP555

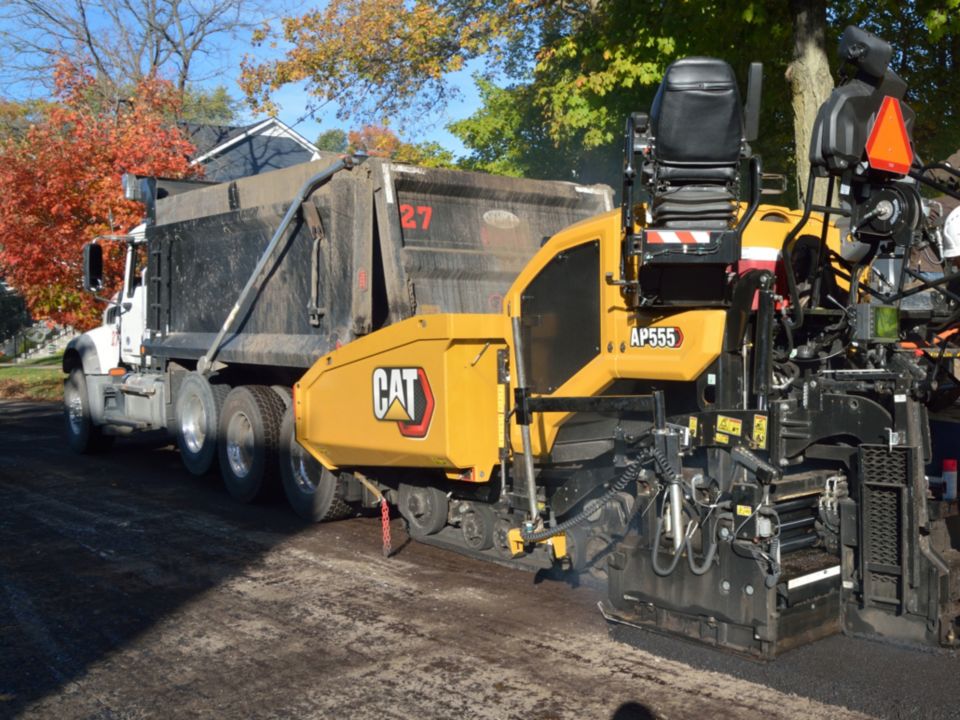

Track-equipped pavers offer superior traction for challenging projects that have poor underfoot conditions or the need to push large haul units up steep grades. Mobil-Trac™ undercarriage systems provide increased mobility and smooth, quiet operation. Some models are available with steel tracks for dependable use and low-cost maintenance. All models feature material feed systems with individual control of conveyors and augers designed to provide continuous, segregation-free material flow to the screed. The ventilation system draws fumes away from the conveyor tunnel as well as the auger chamber and redirects them away from the operator for a more comfortable working environment.
(416) 667-5511 Request a Quote
Book a Demo
Explore my deals
Specifications
Dimensions
  • Paving Range with SE47 FM
    2.4 m - 6.1 m (8' - 20')
    {"Name":"Paving Range with SE47 FM","SpecificationId":null,"TextValue":"2.4 m - 6.1 m (8' - 20')","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"1"}
  • Paving Range with SE47 V
    2.4 m - 6.2 m (8' - 20' 6")
    {"Name":"Paving Range with SE47 V","SpecificationId":null,"TextValue":"2.4 m - 6.2 m (8' - 20' 6\")","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions","SortOrder":"20"}
  • Truck Entry Height
    22 in 567 mm
    {"Name":"Truck Entry Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22","MetricUnit":"mm","MetricValue":"567","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"41"}
  • Operating Length
    19.25 ft 5.9 m
    {"Name":"Operating Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"19.25","MetricUnit":"m","MetricValue":"5.9","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"42"}
  • Operating Width
    10.75 ft 3.3 m
    {"Name":"Operating Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.75","MetricUnit":"m","MetricValue":"3.3","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"43"}
  • Overall Height
    10.75 ft 3.2 m
    {"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.75","MetricUnit":"m","MetricValue":"3.2","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"44"}
  • Transport Length
    18.5 ft 5.6 m
    {"Name":"Transport Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"18.5","MetricUnit":"m","MetricValue":"5.6","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"45"}
  • Transport Width
    8.5 ft 2.5 m
    {"Name":"Transport Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.5","MetricUnit":"m","MetricValue":"2.5","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"46"}
  • Transport Height
    825 ft 2.5 m
    {"Name":"Transport Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"825","MetricUnit":"m","MetricValue":"2.5","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"47"}
Engine
  • Engine Power (1)
    148 hp 110 kW
    {"Name":"Engine Power (1)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"148","MetricUnit":"kW","MetricValue":"110","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
  • Engine Model (1)
    Cat C4.4
    {"Name":"Engine Model (1)","SpecificationId":null,"TextValue":"Cat C4.4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Operating Specifications
  • Maximum Throughput Capacity
    1100 ton(US)/h 1000 tonnes/hr
    {"Name":"Maximum Throughput Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton(US)/h","EnglishValue":"1100","MetricUnit":"tonnes/hr","MetricValue":"1000","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"3"}
  • Maximum Paving Speed
    200 ft/min 61 m/min
    {"Name":"Maximum Paving Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft/min","EnglishValue":"200","MetricUnit":"m/min","MetricValue":"61","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"21"}
  • Maximum Travel Speed
    7 mile/h 11 km/h
    {"Name":"Maximum Travel Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7","MetricUnit":"km/h","MetricValue":"11","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"22"}
Service Refill Capacities
  • Fuel Tank
    53 gal (US) 200 l
    {"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"53","MetricUnit":"l","MetricValue":"200","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"5"}
  • DEF Tank
    5 gal (US) 19 l
    {"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"50"}
  • Cooling System - Total
    6.3 gal (US) 24 l
    {"Name":"Cooling System - Total","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.3","MetricUnit":"l","MetricValue":"24","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"51"}
  • Hydraulic Oil Tank
    32 gal (US) 121 l
    {"Name":"Hydraulic Oil Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"32","MetricUnit":"l","MetricValue":"121","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"52"}
  • Washdown Spray Tank
    8.5 gal (US) 32 l
    {"Name":"Washdown Spray Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8.5","MetricUnit":"l","MetricValue":"32","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"53"}
Weights
  • Operating weight with SE47 FM
    33689 lb 15281 kg
    {"Name":"Operating weight with SE47 FM","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"33689","MetricUnit":"kg","MetricValue":"15281","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
  • Operating weight with SE47 V
    33448 lb 15172 kg
    {"Name":"Operating weight with SE47 V","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"33448","MetricUnit":"kg","MetricValue":"15172","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"30"}
  • Shipping Weight - Paver Only
    26993 lb 12244 kg
    {"Name":"Shipping Weight - Paver Only","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"26993","MetricUnit":"kg","MetricValue":"12244","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"31"}
Benefits

More Performance and Flexibility

  • Powerful C4.4 engine delivers 110 kW (148 hp) of power that supports increased feeder system capacity as well as hopper inserts for continuous paving
  • Tight 90 degree turning capability enables the paver to rotate and cover tracks on a return paving pass
  • Standard paving range utilizing the SE47 V screed is 2.4 m - 4.7 m (8' - 15' 6") with a maximum width of 6.1 m (20')
  • Standard paving range utilizing the SE47 FM screed is 2.4 m - 4.7 m (8' - 15' 6") with a maximum width of 6.2 m (20' 6")
  • Paving depths up to 250 mm (10") supports aggregate paving applications

Transport Made Easy

  • Paver and screed combination weight of 15.3 mt (34,000 lb) enables easy transport on a variety of trailer types
  • Length of less than 5.65 m (18' 6") and width of 2.6 m (8' 6") accommodates machine transport without special permits
  • The front-loading angle of 15 degrees and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
  • Front, middle, and rear tie-down locations make securing the load efficient for quick travel to the next job site

Exceptional Mobility

  • Mobil-trac ™ undercarriage provides exceptional mobility, outstanding traction, and fast travel speeds for unmatched maneuverability around the job site
  • Counter-rotating tracks provide excellent maneuverability in tight quarters
  • Self-tensioning accumulators, center guide blocks, and rugged internal belt cables help ensure durability
  • Rubber-coated components help shed asphalt and prevent accumulation
  • Efficient track plow design pushes material away from the tracks and helps eliminate cold patches caused by track compression

Smooth Material Flow

Service and Repair Kits

  • Paver and screed service and repair kits include all the parts necessary to complete specific repairs
  • Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
  • Repair kits are identified by a single part number to make ordering easy
  • Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Product Link™ Elite

  • Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
  • Easily track location, machine hours, fuel usage, and idle time in real time
  • Diagnostic codes are made available through online web applications
  • Remote flash for easy software updates
  • Scheduled maintenance and SOS notification
  • Remote disable deactivates the engine for enhanced security

Low Owning and Operating Costs

  • Durable Cat C4.4 engine provides 110 kW (148 hp) of power and meets U.S. EPA Tier 4 Final and EU Stage V emissions
  • Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lower sound levels for better comfort and communication
  • Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
  • Maintenance-free high torque motors reduce service requirements for the auger and conveyor drive systems

Screeds that Deliver Quality

  • SE-Series screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
  • Screeds with front-mounted extenders and rear-mounted extenders are available
  • Cat Grade Control or Basic Grade Control options available

Easy Viewing Displays

  • High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
  • New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
  • Single-touch functions from the main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
  • Operating displays can be tailored to specific language requirements with multiple options available
  • Wash-down system includes level indication

More Comfort

  • Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
  • Dual independent consoles provide operation from either side of the machine for optimal visibility to curbs, edges, and transverse joints
  • Dual independent seats swing-out 40 degrees beyond the platform for good visibility to curbs and obstacles
  • Optimized height and integrated exhaust provide unobstructed visibility around the machine
  • Optional screed and paver mounted umbrellas offer protection from direct sunlight
  • Heated seat option delivers comfort in cool weather conditions
  • High visibility 76 mm (3") seat belt helps with crew safety compliance

Smooth Material Flow

  • Low truck entry height and short front apron enhance material flow while simplifying clean-out
  • Feeder system design with 355 mm (14") diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
  • Confined auger chamber keeps material moving and helps eliminate stagnate patches
  • Independent control of each material feed sensor when utilizing a cut-off shoe, simply turn off the sensor for proportional feed system control
Equipment Info

Operating Environment

Dual operating stations

Technology

Product Link™ Elite 643 (cellular)

Powertrain

Cooling fan, variable speed

Electrical System

1400 CCA battery

Material Delivery

Auger extensions, 0.15 m (6")

Service and Maintenance

Hydraulic oil, Cat HYDO Advanced

Safety

Mirror package
