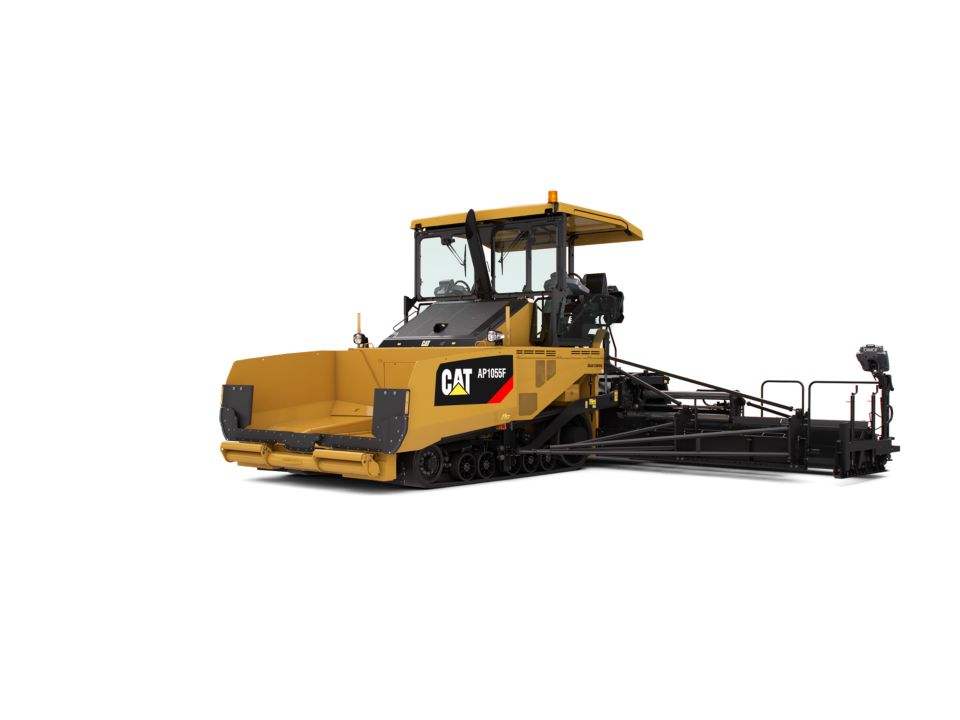

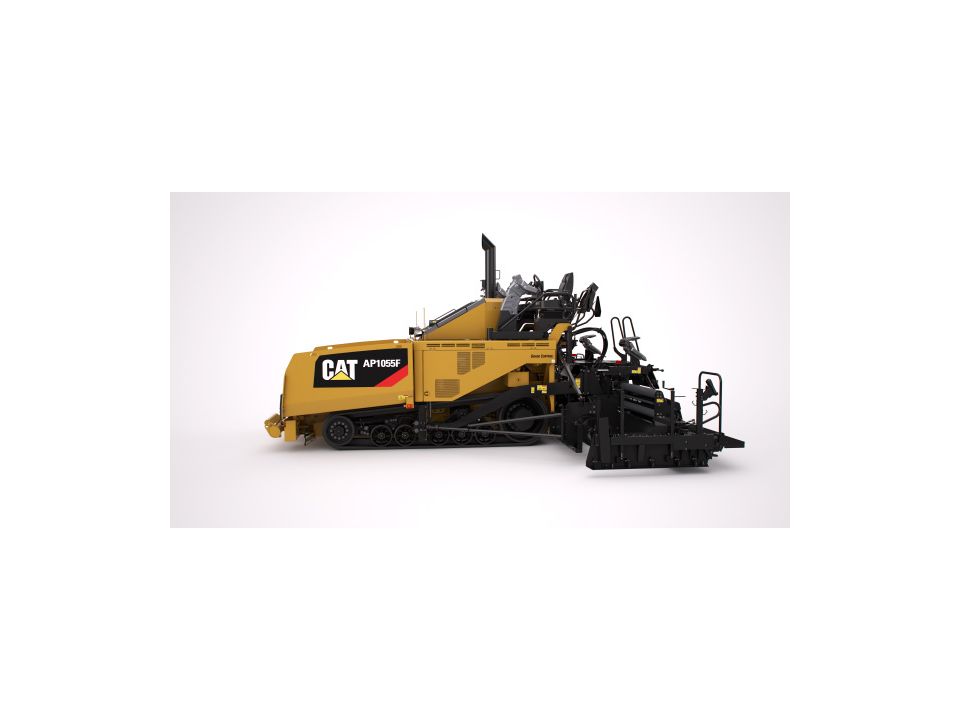

AP1055F
AP1055F

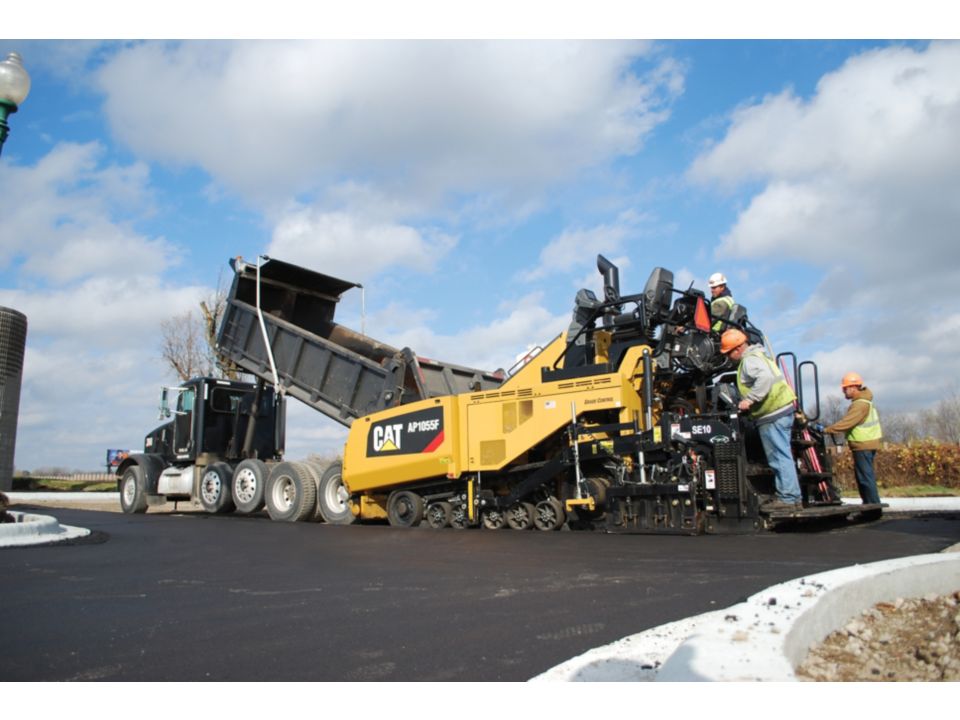

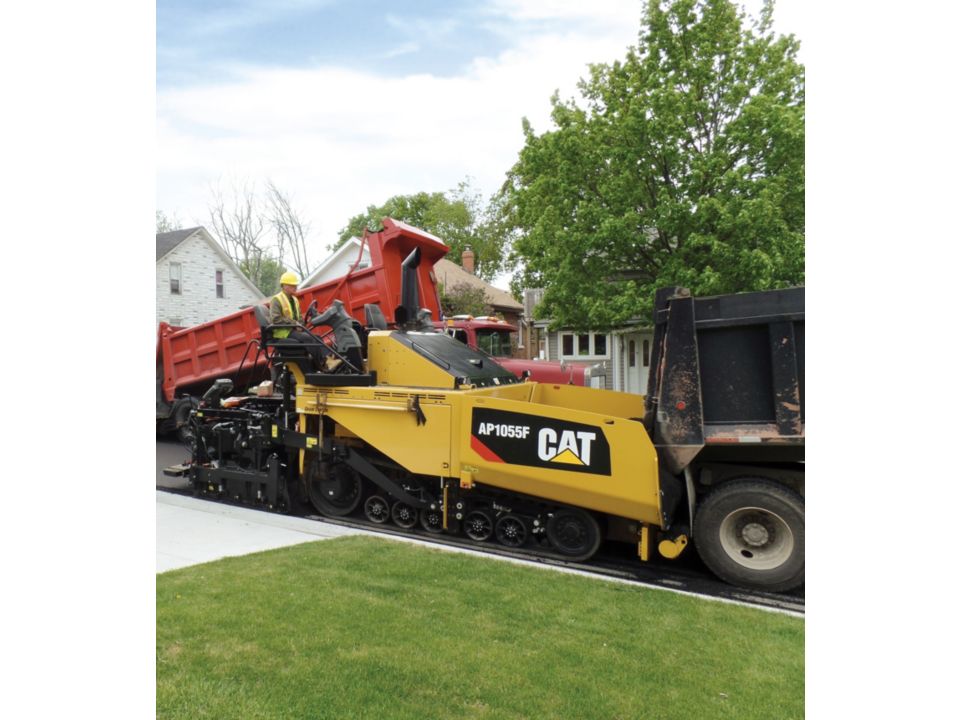

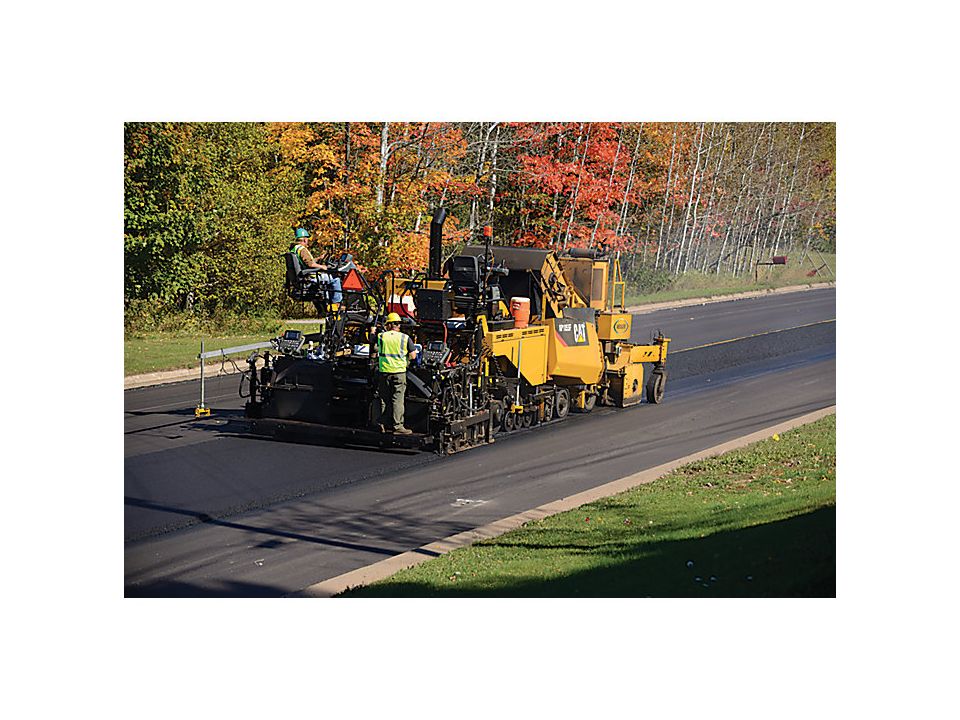

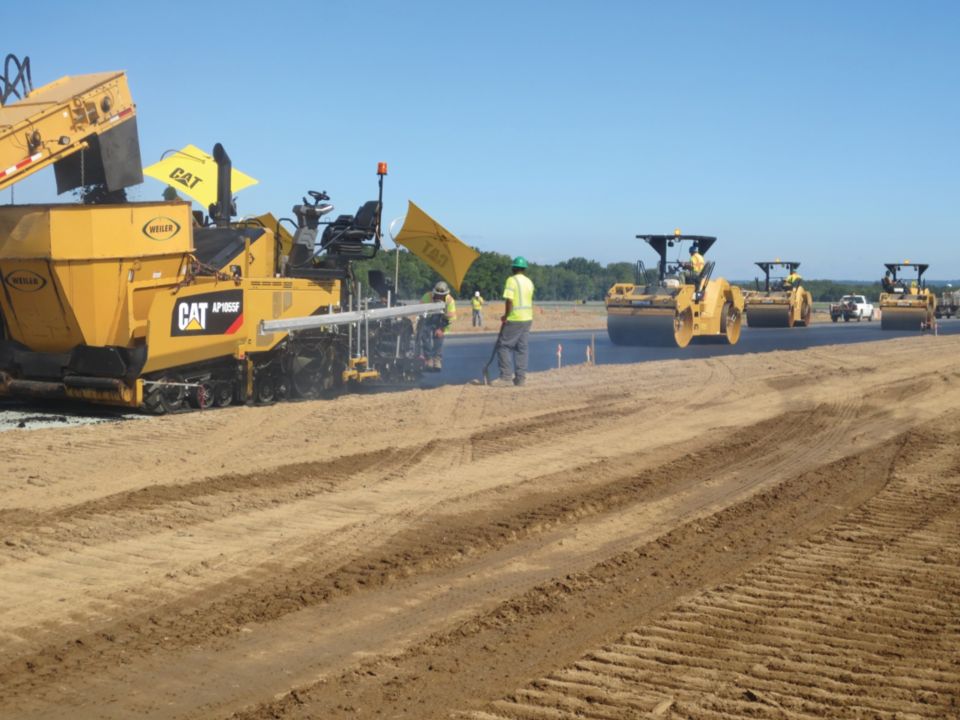

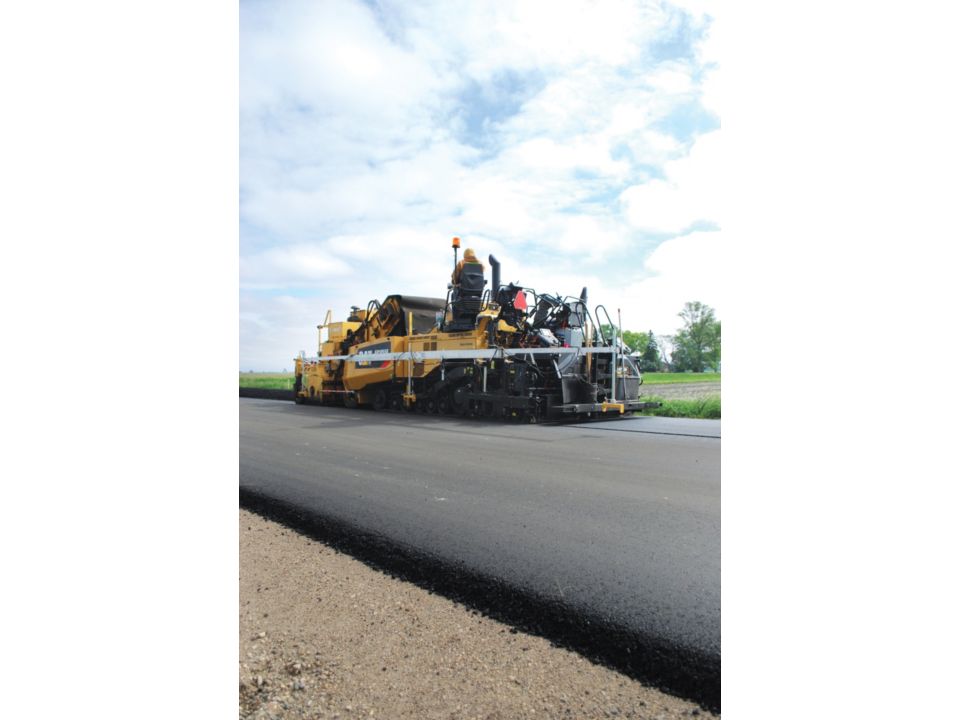

Track-equipped pavers offer superior traction for challenging projects that have poor underfoot conditions or the need to push large haul units up steep grades. Mobil-Trac™ undercarriage systems provide increased mobility and smooth, quiet operation. Some models are available with steel tracks for dependable use and low-cost maintenance. All models feature material feed systems with individual control of conveyors and augers designed to provide continuous, segregation-free material flow to the screed. The ventilation system draws fumes away from the conveyor tunnel as well as the auger chamber and redirects them away from the operator for a more comfortable working environment.
Book a Demo
Explore my deals
Specifications
Dimensions
-
Operating Width - Standard Entry Hopper132 in 3350 mm
-
Operating Height - Without Canopy146 in 3715 mm
-
Operating Width - Low Entry Hopper142 in 3604 mm
-
Operating Height - With Canopy157 in 4000 mm
-
Transport Width - With End Gates Folded9.83 ft 3 m
-
Transport Width - With Screed End Gates10.66 ft 3.21 m
-
Truck Entry Height - With Low Entry Hopper20.5 in 521 m
-
Truck Entry Height - With Standard Entry Hopper22.5 in 572 mm
-
Transport Length - With SE60 V Screed20 ft 6.7 m
-
Transport Length - With SE60 XW-Series22.7 ft 6.88 m
-
Operating Length - With SE60 V Screed22.5 ft 6.86 m
-
Operating Length - With SE60 V XW, VT XW Screeds23.1 ft 7.05 in
-
Transport Height - Without Canopy10.45 ft 2.92 m
-
Transport Height - Canopy Retracted10.5 ft 3.05 mm
Engine
-
Gross Power225 hp 168 kW
-
Engine ModelCat C7.1 with ACERT
Operating Specifications
-
Standard Paving Range3 - 6 m (9' 10"-19' 6")
-
Maximum Travel Speed9 mile/h 14.5 km/h
-
Inside Turn Radius1.5 ft 0.5 m
-
Hopper Capacity - Standard Entry267 ft³ 7.6 m³
-
Maximum Paving Speed - With Tamper Bar Screed82 ft/min 25 m/min
-
Maximum Paving Speed - With Vibratory Screed210 ft/min 64 m/min
-
Maximum Paving Width - SE60 V Screed25 ft 7.65 m
-
Maximum Paving Width - SE60 V XW, VT XW Screeds33 ft 10 m
-
Hopper Capacity - Low Entry Hopper286 ft³ 8.1 m³
-
Maximum Throughput Capacity1766 tonnes/hr 1602 tonnes/hr
Service Refill Capacities
-
Fuel Tank Capacity92 gal (US) 348 l
-
DEF Tank5 gal (US) 19.1 l
Weights
-
Operating Weight - With SE60 V45090 lb 20452 kg
-
Tractor Operating Weight37553 lb 17031 kg
-
Operating Weight - With SE60 VT XW48320 lb 21918 kg
-
Tractor Shipping Weight36804 lb 16691 kg
-
Operating Weight - With SE60 V XW46580 lb 21128 kg
Benefits
Cat C7.1 Engine
The C7.1 engine provides 168 kW (225 hp) and meets U.S. EPA Tier 4 Final and EU Stage IV emmision standards.
Eco-mode
Eco-mode utilizes an engine speed of 1650 rpm and reduces fuel burn by up to 5% over Cat E-series pavers while also lowering sound levels even more.
Automatic Engine Speed Control
When automatic engine speed control is activated, the engine speed is reduced to an idle speed of 1000 rpm when the propel lever is moved to neutral or to 1300 rpm when screed heat is active.
Advanced Eco-mode
Eco-mode and automatic engine speed control when activated together modify the engine rpm based on load factors. When activated the engine will operate at 1650 rpm when paving. If the upper power threshold is exceeded, the engine speed will increase to 2200 rpm and remain there until the demand drops below the threshold and remains there for 30 seconds, ensuring reliable performance.
Quiet Heating
Quiet heat mode operates at an engine speed of 1300 rpm and provides screed plate heating in under 15 minutes.
Quick Heating
Quick heating mode provides a heat-up time in under 35 minutes when equipped with the 10 m (33 ft) wide-width paving package.
Temperature Ranges
Three preset heating options provide a wide range of temperatures for various mix designs; Low is 110 degrees C or 230 degrees F, medium is 130 degrees C or 266 degrees F, high is 160 degrees C or 320 degrees F.
Better Visibility, Exceptional Comfort
The dual independent operating stations can extend beyond the frame for good all-around visibility. The low profile, front-mounted cooling system improves forward viewing and the redesigned auger assembly optimizes visibility to material height in front of the screed. The heated seat option, multiple seat adjustments, and tilting consoles conform to the operator to provide day-long comfort. The top-mounted cooling system directs fumes, hot air, and fan noise away from the crew for a cooler and quieter working environment.
Fumes Management
The exclusive ventilation system draws fumes from the conveyor tunnel as well as the auger chamber and redirects them away from the operator for a more comfortable working environment.
Single Touch Operation
Single touch features for the auto-fill feeder system, feeder system activation, and hopper control, allow operators to concentrate on truck exchanges and other duties for improved efficiency.
Simple Technology
Technology helps operators perform. Intuitive symbols and large graphics simplify operation, while the interactive LCD display with touchscreen access to generator activation, screed temperature control, and mix height adjustment, increase efficiency.
Auto-Fill Feeder System
The auto fill feeder system simplifies starts by alternating the conveyors and augers until the mix height reaches the sensor set point, eliminating manual activation and constant monitoring.
Single Touch Feeder System
The two augers and two conveyors can be activated automatically with a single button, simplifying setup. Each auger and each conveyor can still be operated independently when needed.
One Touch Hopper Control
The hopper wings and hydraulic apron can be folded with a single touch and release. The system can be tailored to activate left or right wings, or the front hydraulic apron independently or together.
Cleanout and Warm-Up Mode
This feature activates the augers, conveyors, and tamper-bar (if equipped) at a reduced speed, allowing the application of release agents to prevent material build-up.
Mix Height Adjustment
Mix height adjustment in front of the screed can be modified from the tractor LCD display for increased versatility when needed.
Hydraulic Mainframe Extensions
The optional 457 mm (18") hydraulic mainframe extensions attach to the auger assembly and provide smooth material flow out to the extenders. They retract with the screed extensions when reducing paving widths.
Multiple Feed Sensor Options
The feeder system can be tailored to automatically operate with 0, 2, or 4 feeder sensors. When paving with 0 sensors due to a failure, simply set the feeder system to automatic and adjust the mix height setting, no need to cycle the manual switch as previous models required.
Easier Service
Hardware-free bed plates simplifies replacement and bottom side mounting hardware for the chain gaurds eliminates bolt wear and material build-up for easier replacement.
Performance
The Mobil-Trac undercarriage minimizes tow-point movement. The front and rear bogie sets crawl over obstacles and help maintain ground contact. The smooth belt option performs well on soft base materials and fresh mats. The tread-bar design excels on loose paving/transport conditions.
Durability
Self-tensioning accumulators, center guide blocks, and rugged internal belt cables ensure durability. The components are rubber coated in order to shed asphalt and prevent accumulation.
Screed Heat Technology
Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure. The system also monitors heating elements for failure conditions, eliminating unnecessary replacement.
Easy Adjustment
Feeder system ratio adjustment capability from the screed provides versatility. Standard hydraulic adjustment for extender height, slope, and crown, allows for on-the-go adjustment at standard and maximum paving widths.
Two-Speed Proportional Extender Control
Exclusive two-speed proportional extender control offers slower speed for precise control around obstacles and quick reaction when extending paving widths.
Simple Replacement
The heating elements slide out for easy replacement, no need to remove the screed plates. Machined screed frames simplify plate replacement and leveling.
Tamper Bar Screed Option
Tamper bar equipped screeds increase density as it tucks material under the screed plates. Three stroke settings of 2, 4, and 7 mm provide versatility and has a variable tamper speed of 0 to 1800 rpm.
Wide-Width Paving Packages
Exclusive power controls simplify adjustment across the entire 10 m (33 ft 4 in) paving width for better mat texture and quality. An innovative hooking system utilizes extender slope to attach wide-width paving packages, eliminating the need for other lifting devices.
Easy Operation
F-Series pavers allow Cat Grade Control to be operated from any of the two tractor or two screed consoles. Split screen mode can be setup to monitor each side of the screed allowing single person operation.
Precise Control
More accurate control maximizes mix utilization and saves money. True averaging with sonic sensors that utilize 5 transducers, 2 readings are discarded and 3 averaged. A 10-point Auto-Calibration eliminates over/under adjustment from a single calibration point. Cross-coupling, slope and elevation are maintained with height adjustments. The true 9 m (30 ft) sonic averaging beam modifies tow point movement by 1/3 of total grade deviation.
Highly Reliable
Water-resistant displays, factory installed components, and consistent routing deliver performance. Sealed components withstand heat, moisture, and vibration, while the built-in temperature sensors provide better reliability than bail-type sensors.
