1600 mm (63 in), 280 L (9.9 ft3), Pin On, 40 mm (1.6 in)

Get in touch

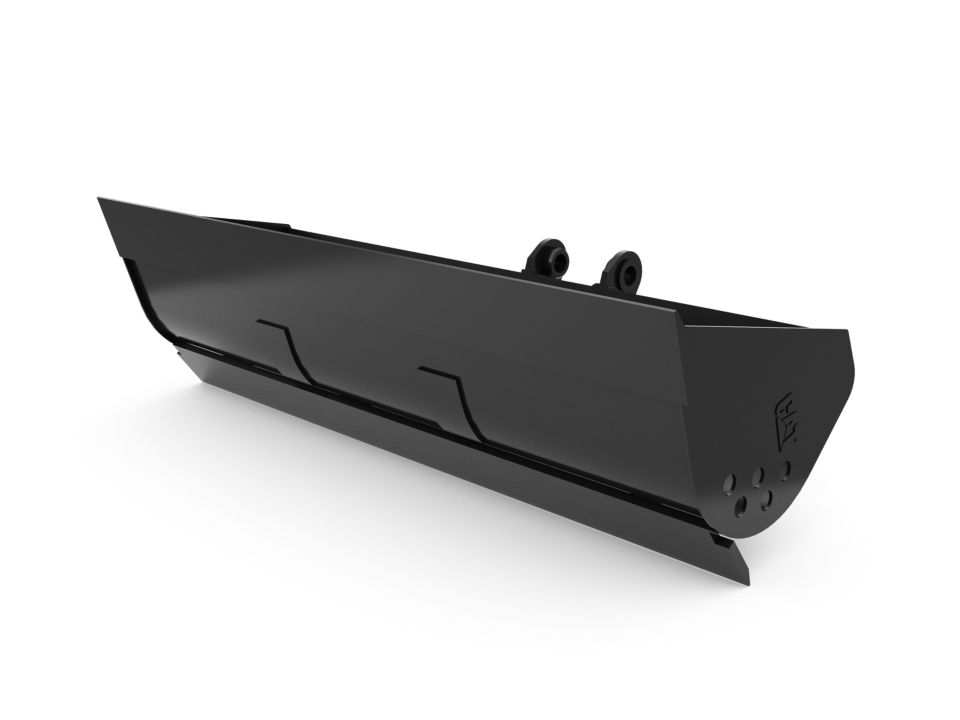

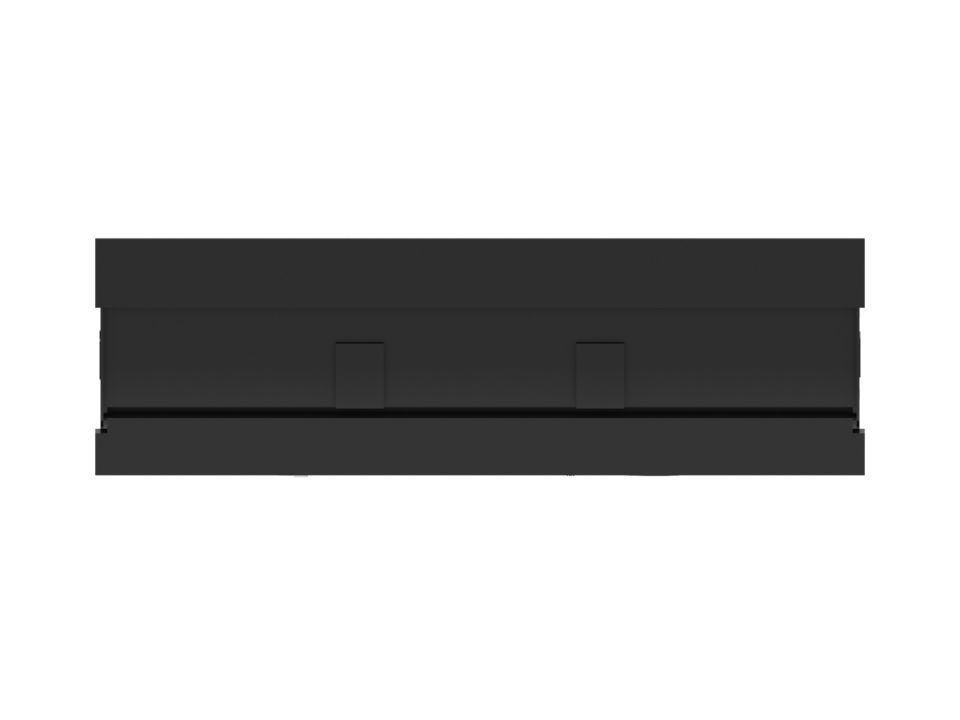

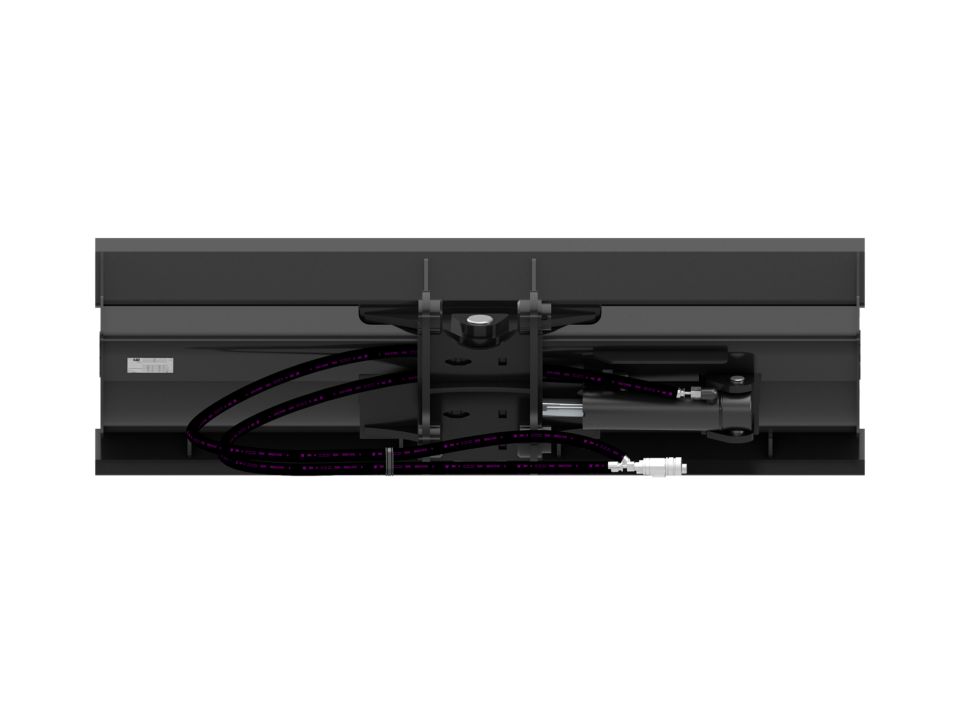

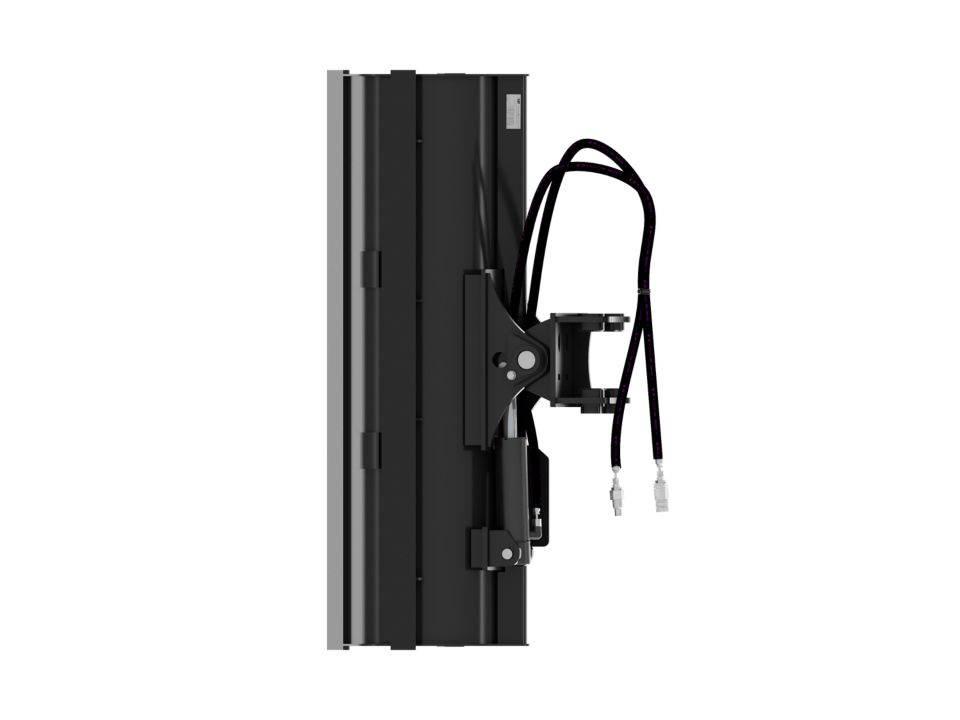

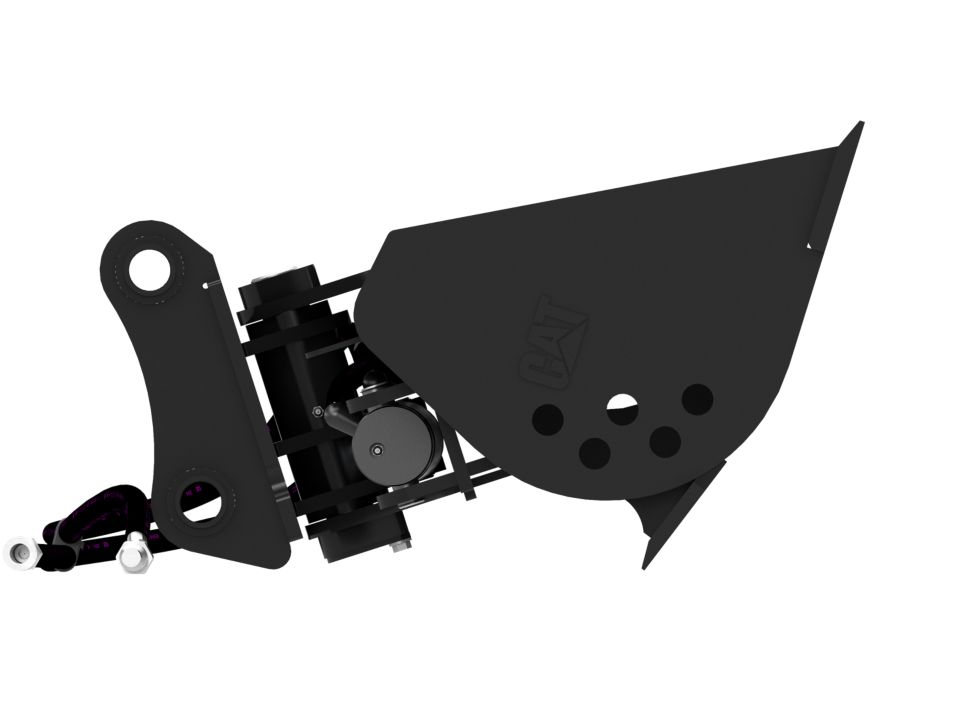

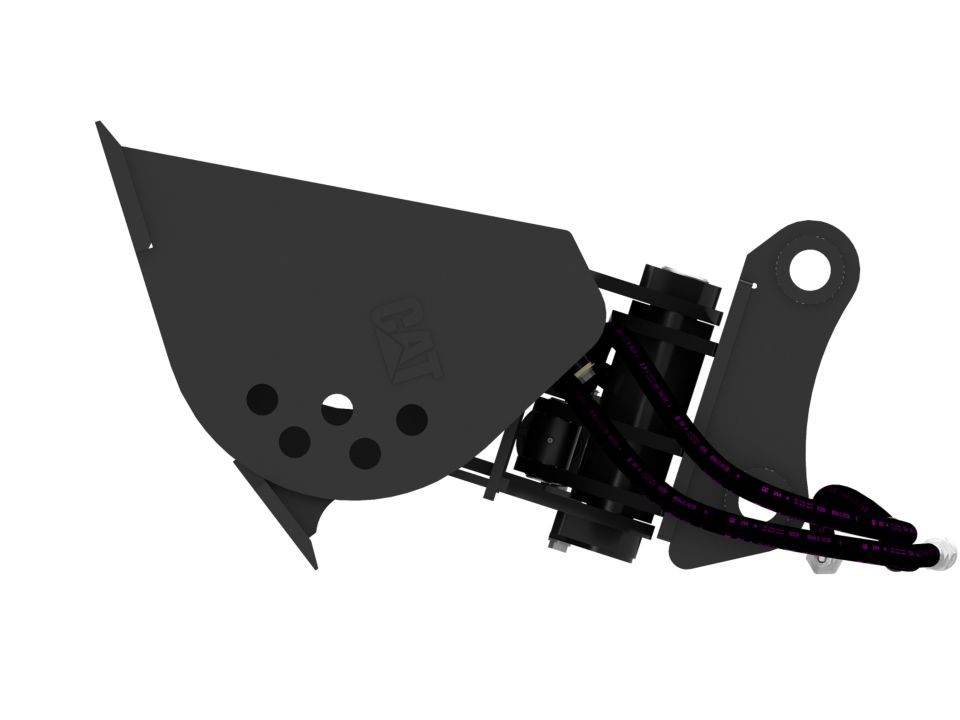

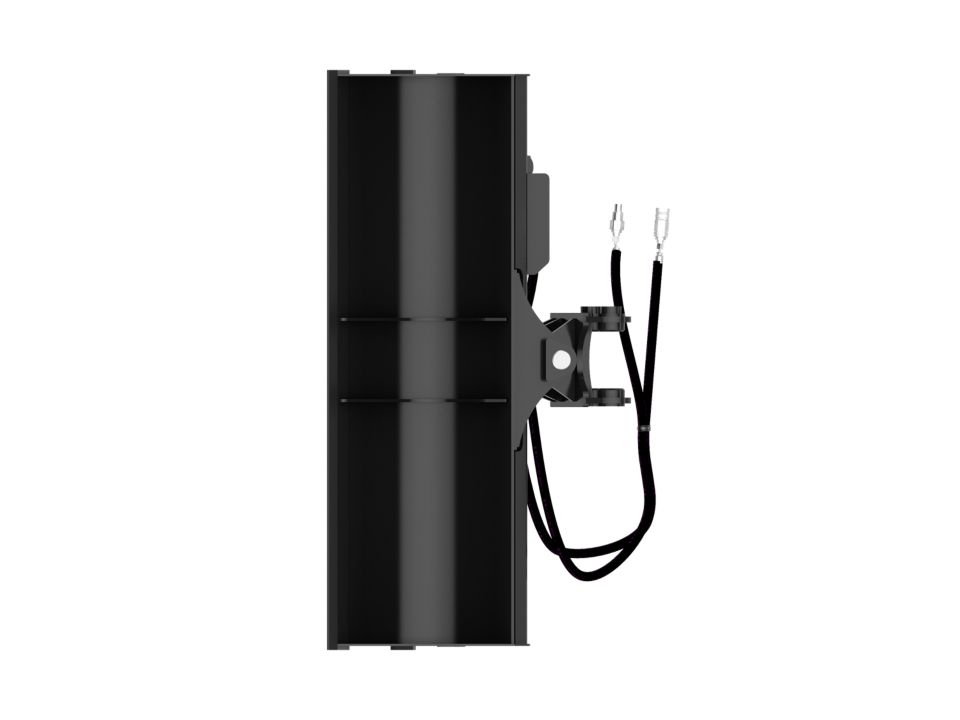

Tilting Ditch Cleaning Buckets for Cat® Mini Excavators are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

63 in 1600 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"63","MetricUnit":"mm","MetricValue":"1600","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Capacity

9.9 ft³ 280.29 l
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft³","EnglishValue":"9.9","MetricUnit":"l","MetricValue":"280.29","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

552.3 lb 250.5 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"552.3","MetricUnit":"kg","MetricValue":"250.5","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Base Edge Thickness

0.8 in 20 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.8","MetricUnit":"mm","MetricValue":"20","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Tip Radius

31.5 in 800 mm
{"Name":"Tip Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"31.5","MetricUnit":"mm","MetricValue":"800","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Interface Type

Pin On
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}

Benefits

Application

Ideal for cleaning wide trenches, loading materials, slope-cutting and profiling, grading and finishing work in construction, landscaping and road maintenance applications.

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
