2.44 m (8 ft)

Get in touch

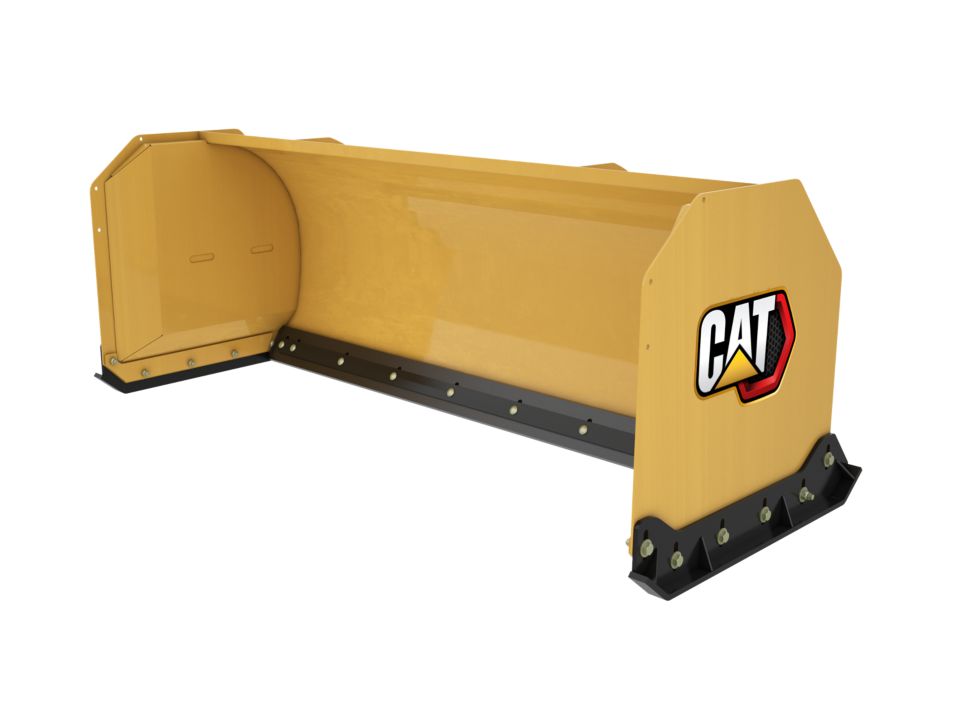

Cat® Straight Snow Pushes are designed for optimal snow removal or any material pushing application. Removing applications can range from parking lots, driveways, airport runways and storage lots. Designed to roll and fold snow with a profiled mold board, the Straight Snow Push maximizes the amount of snow being pushed. Once material is contained and displaced, streamlined box supports ensure that snow does not cling to the tool, increasing productivity. The Cat Straight Snow push features a standard trip edge system which protects your machine and tool from unseen obstacles.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Working Width

96 in 2438 mm
{"Name":"Working Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"96","MetricUnit":"mm","MetricValue":"2438","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Weight

1036.2 lb 470 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1036.2","MetricUnit":"kg","MetricValue":"470","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Length

45 in 1143 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"45","MetricUnit":"mm","MetricValue":"1143","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Moldboard Height

33.6 in 854 mm
{"Name":"Moldboard Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"33.6","MetricUnit":"mm","MetricValue":"854","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Overall Height

39.1 in 994 mm
{"Name":"Overall Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"39.1","MetricUnit":"mm","MetricValue":"994","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}
Trip Edge Type

Rubber With Trip Edge
{"Name":"Trip Edge Type","SpecificationId":null,"TextValue":"Rubber With Trip Edge","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"7"}
Trip Edge Height

4.7 in 119 mm
{"Name":"Trip Edge Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.7","MetricUnit":"mm","MetricValue":"119","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Trip Edge Quantity

1
{"Name":"Trip Edge Quantity","SpecificationId":null,"TextValue":"1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Overall Width

100.5 in 2553 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100.5","MetricUnit":"mm","MetricValue":"2553","Type":"measurement","SpecificationGroup":null,"SortOrder":"11"}

Benefits

Adjustable Trip Edge System

Fitted with up to-two cutting edges, most Cat® Snow Pushes are equipped with a trip edge system incorporated in the base. The sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the Snow Push and machine. A no-trip rubber cutting edge option is available in 2.6 m (8 ft), 3.2 m (10 ft), and 3.8 m (12 ft) sizes that fit all models that utilize a Skid Steer Coupler.

Cutting Edge Options

Optional Back Drag

Optional back drag equipped with rubber edge allows snow to be pulled away from loading docks, doors, and other tight spaces.

Bolt-On Step

Bolt-On step provides safe and ergonomic access to machine cab that is easily replaceable if damaged.

Profiled Moldboard

Profiled moldboard design rolls and folds snow, maximizing capacity of the snow push and improving productivity by minimizing snow clinging to its surface.

Adjustable Skid Shoes

Adjustable skid shoes allow adjustability of cutting edge height to maintain a constant cutting edge depth.

Streamlined Sidewall Design

Streamlined sidewall support in addition to the large torque tube across the moldboard, delivers long life and high performance in the most demanding of snow removal application. Outside box support is designed to minimize snow cling to the moldboard in addition to providing excellent support to the outer push sections.

Cutting Edge Options

Rubber or steel, bolt-on cutting edges are available for all size pushes. Rubber edges minimize damage to the surface being plowed while steel edges cut or throw hard packed snow or ice.
