1812 mm (71 in), Fusion™ Coupler

Get in touch

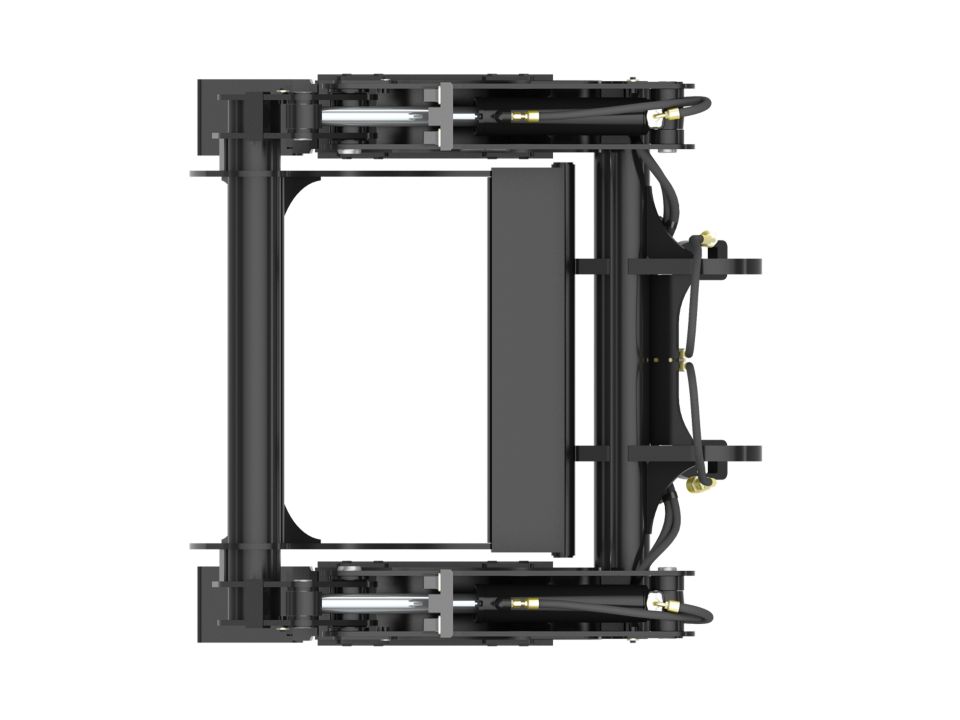

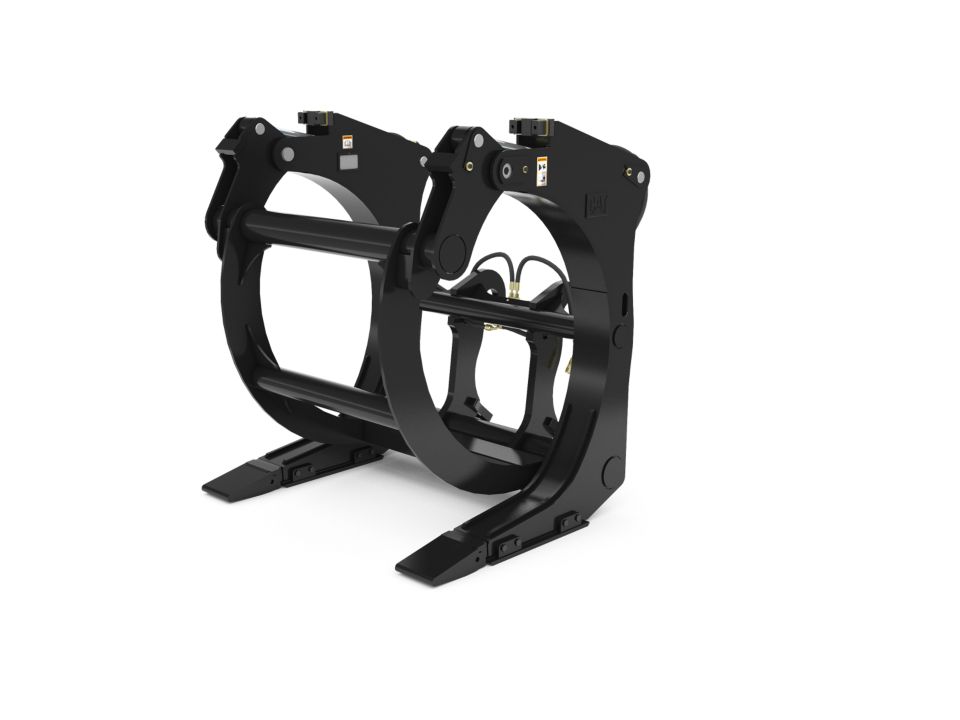

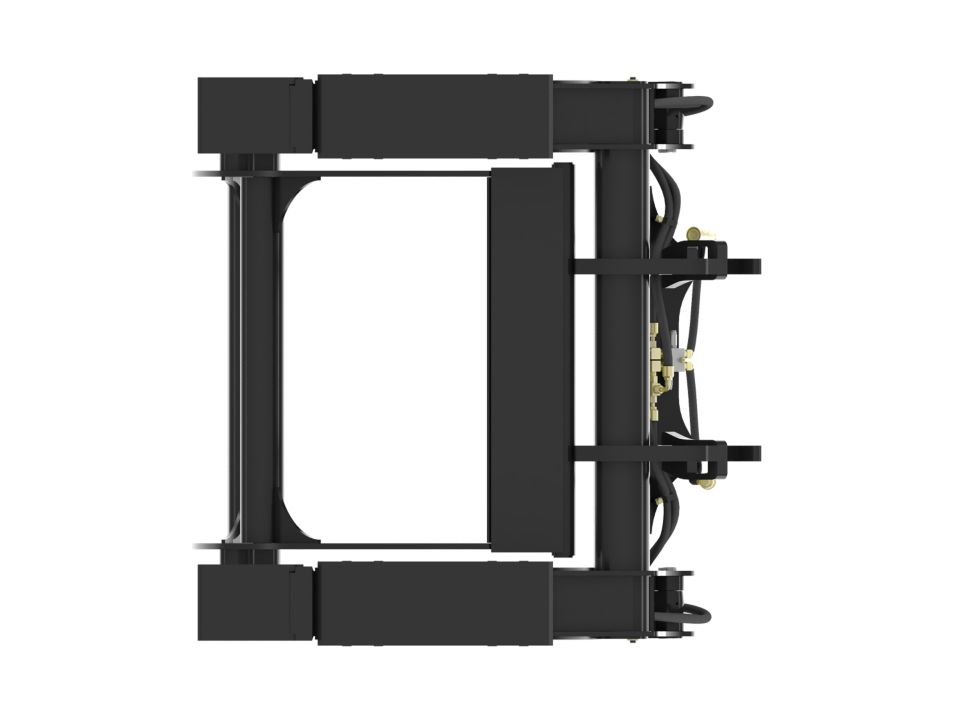

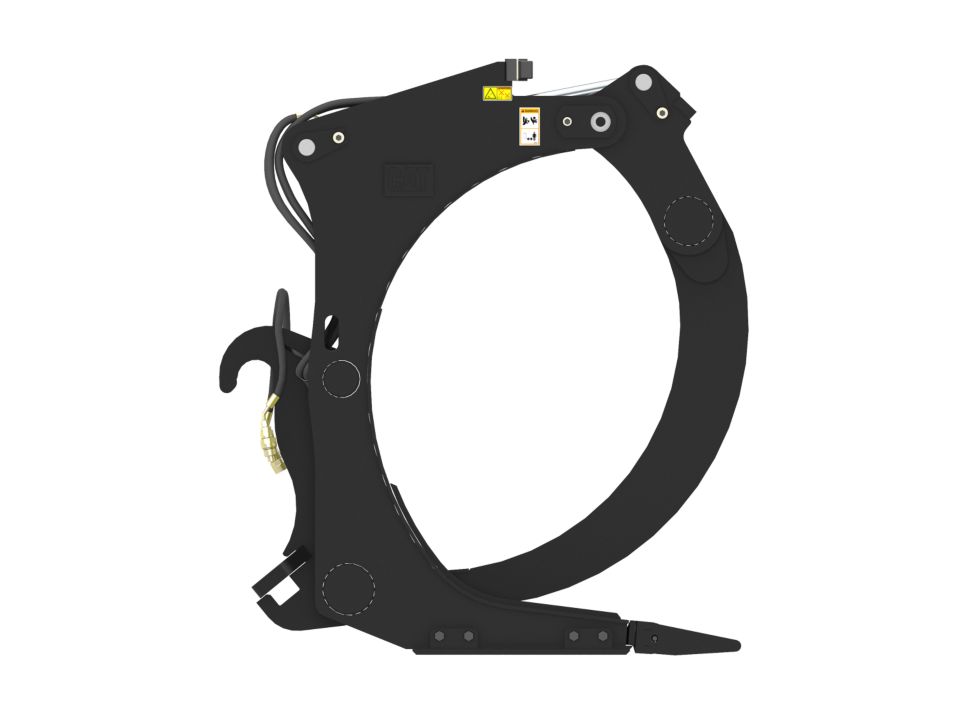

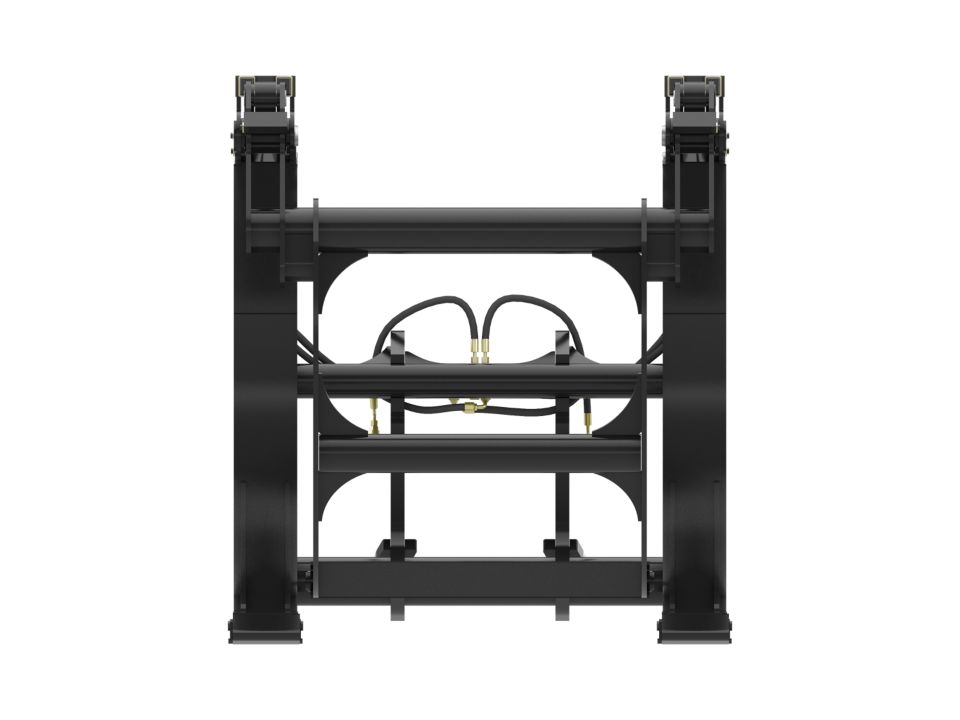

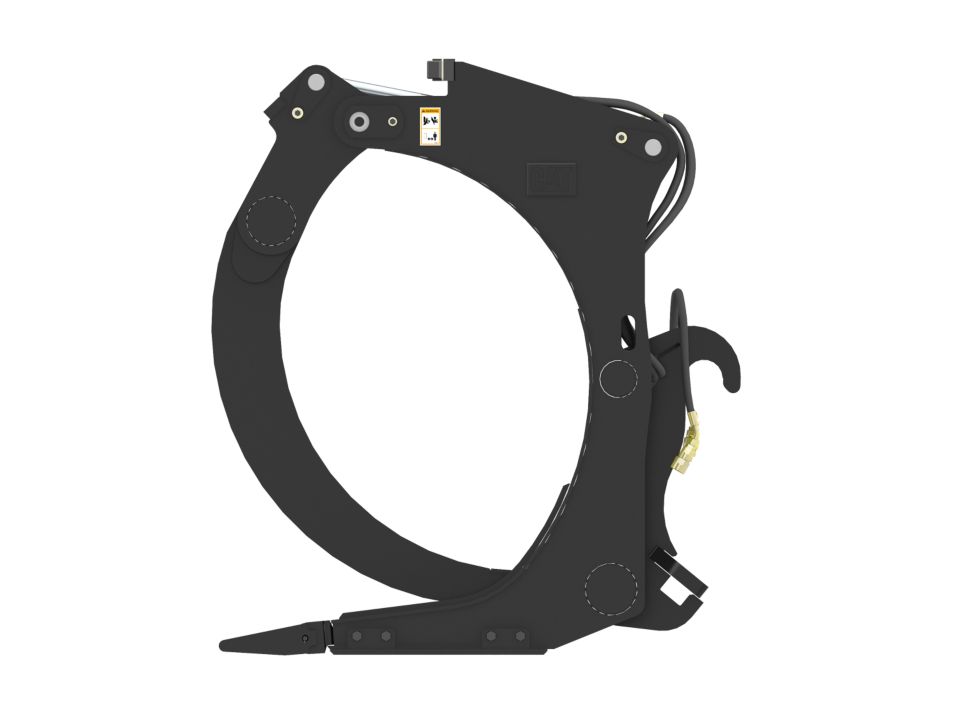

The Cat® Sorting Grapple Forks are designed for numerous applications in log and lumber handling. Moving logs from stack piles for further processing or unloading trucks the Sorting Grapple Forks are built to perform. With adjustable clamp pressure and bolt-wear plates the Sorting Grapple Forks are adjustable to meet the operator's preferences while reducing owning and operating cost.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

71.3 in 1812 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"71.3","MetricUnit":"mm","MetricValue":"1812","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Tine Length

50 in 1269 mm
{"Name":"Tine Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"50","MetricUnit":"mm","MetricValue":"1269","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Grapple Area

20.6 ft² 1.91 m²
{"Name":"Grapple Area","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft²","EnglishValue":"20.6","MetricUnit":"m²","MetricValue":"1.91","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Grapple Height

102.6 in 2606 mm
{"Name":"Grapple Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"102.6","MetricUnit":"mm","MetricValue":"2606","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Grapple Weight

3860.3 lb 1751 kg
{"Name":"Grapple Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"3860.3","MetricUnit":"kg","MetricValue":"1751","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Interface Type

Fusion™ Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Fusion™ Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}
Operating Weight

33170.7 lb 15046 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"33170.7","MetricUnit":"kg","MetricValue":"15046","Type":"measurement","SpecificationGroup":null,"SortOrder":"19"}

Benefits

Application

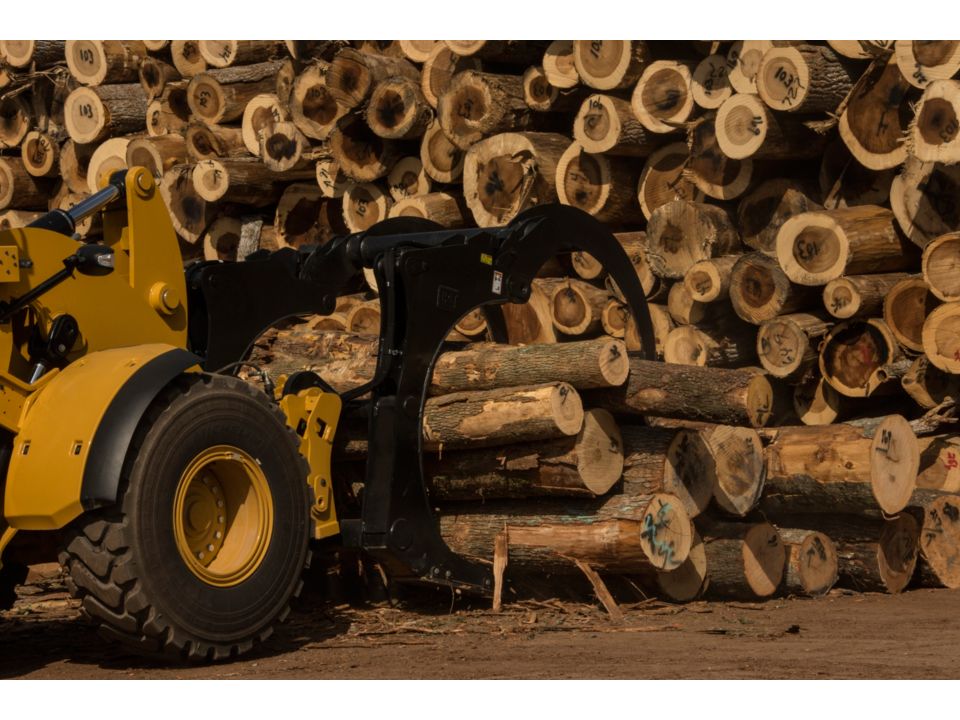

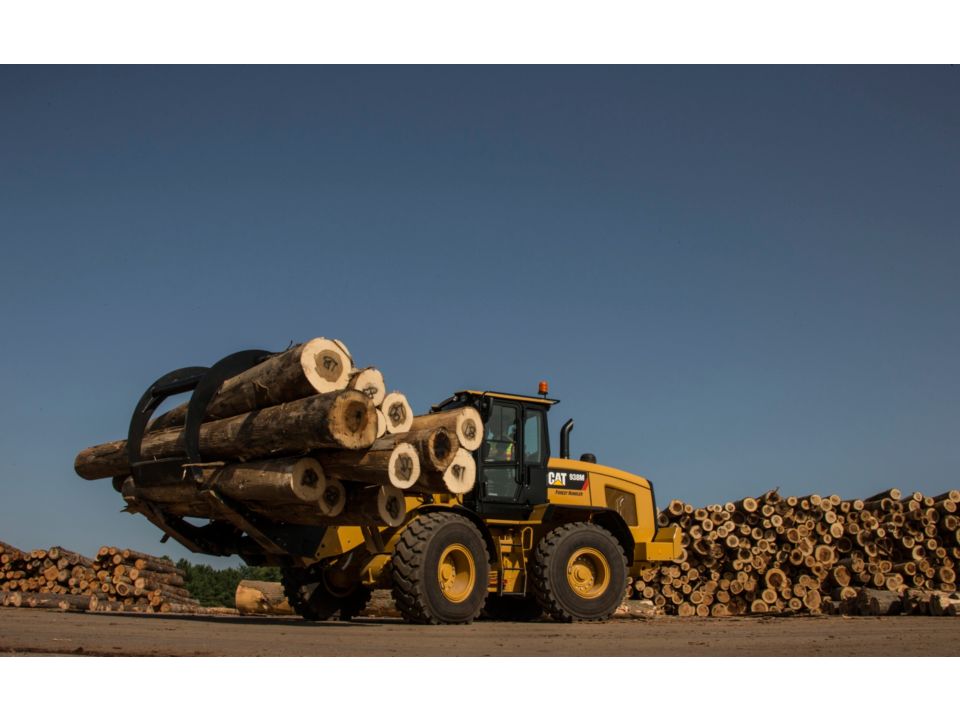

Designed and built for log and lumber and is primarily used for moving logs from stack piles for further processing.

Lumber-Handling Performance

Purpose-built for use in log and lumber applications, the Sorting Grapple Fork is equipped with a large clamp creating a 21 square foot opening for material.

Pressure Regulated Clamping Force

Integrated pressure regulator provides the ability to adjust clamping force, minimizing the potential to damage material being carried.

Short Tines

Specifically designed to slide under log piles and roll them into the grapple. Short tines allow for precise control when loading the grapple with logs.

Replaceable Wear Strips

Bolt-on wear strips on the underside of the grapple are easily replaced at regular service intervals avoiding additional welding.

User-Configurable

Various available fork tips allow the Sorting Grapple to be configured to machine and operation.
