2016 mm (79 in), Rod Tine Style

Get in touch

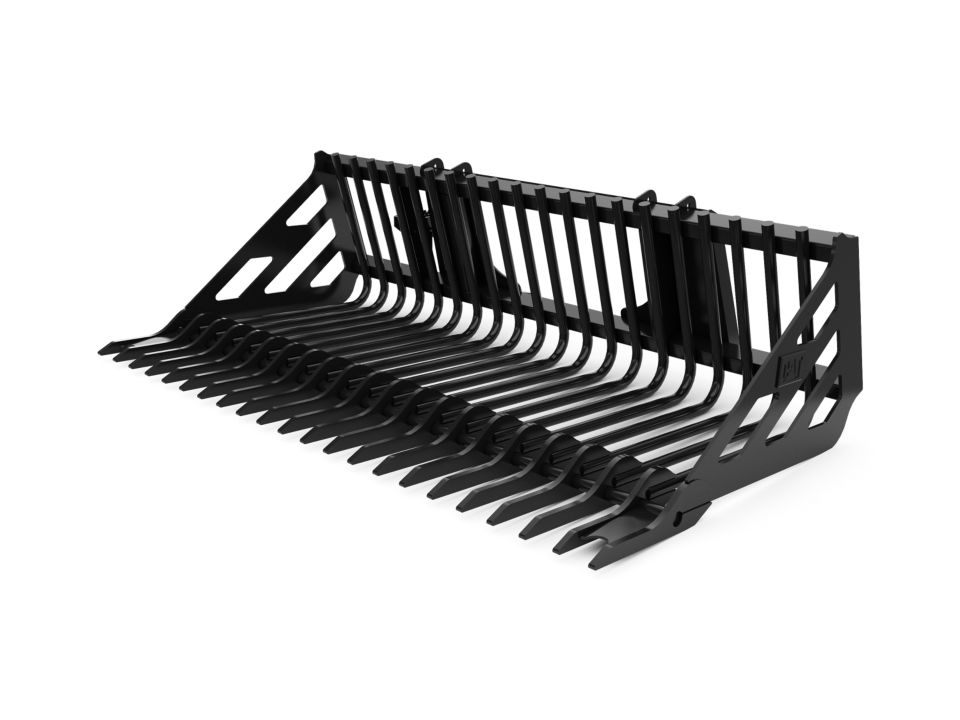

Cat® Skeleton Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for removing rocks and larger debris from soil and sand in a variety of applications and materials. These buckets are ideal for agriculture, construction, landscaping, industrial and scrap handling applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

79.4 in 2016 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"79.4","MetricUnit":"mm","MetricValue":"2016","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Weight

740.8 lb 336 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"740.8","MetricUnit":"kg","MetricValue":"336","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Height

25.4 in 644 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"25.4","MetricUnit":"mm","MetricValue":"644","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

47.2 in 1199 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"47.2","MetricUnit":"mm","MetricValue":"1199","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Sidewall Thickness

0.4 in 10 mm
{"Name":"Sidewall Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.4","MetricUnit":"mm","MetricValue":"10","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Tine Spacing

2.5 in 64 mm
{"Name":"Tine Spacing","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"2.5","MetricUnit":"mm","MetricValue":"64","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Tine Thickness

1.3 in 32 mm
{"Name":"Tine Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1.3","MetricUnit":"mm","MetricValue":"32","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Number of Tines

20
{"Name":"Number of Tines","SpecificationId":null,"TextValue":"20","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}

Benefits

Application

Designed for screening debris from finer materials such as sand and loose soil, and for reclaiming rock and landscaping materials buried by sediment. Cat® Skeleton buckets are for use on both Cat Skid Steer Loaders and Compact Track Loaders.

Rod Tine Style Bucket

Rod tines are 32 mm (1.25 in) in diameter with 16 mm thick tine points improving breakout force by initially separating rock from soil more efficiently than a cutting edge.

Rock Dam

Rock dam improves material retention, reduces spillage and increases productivity.

Serrated Step

Serrated step ensures operator stability for entering and exiting the cab.

Wide Tine Spacing

Wide tine spacing allows for quicker screening and greater material separation.
