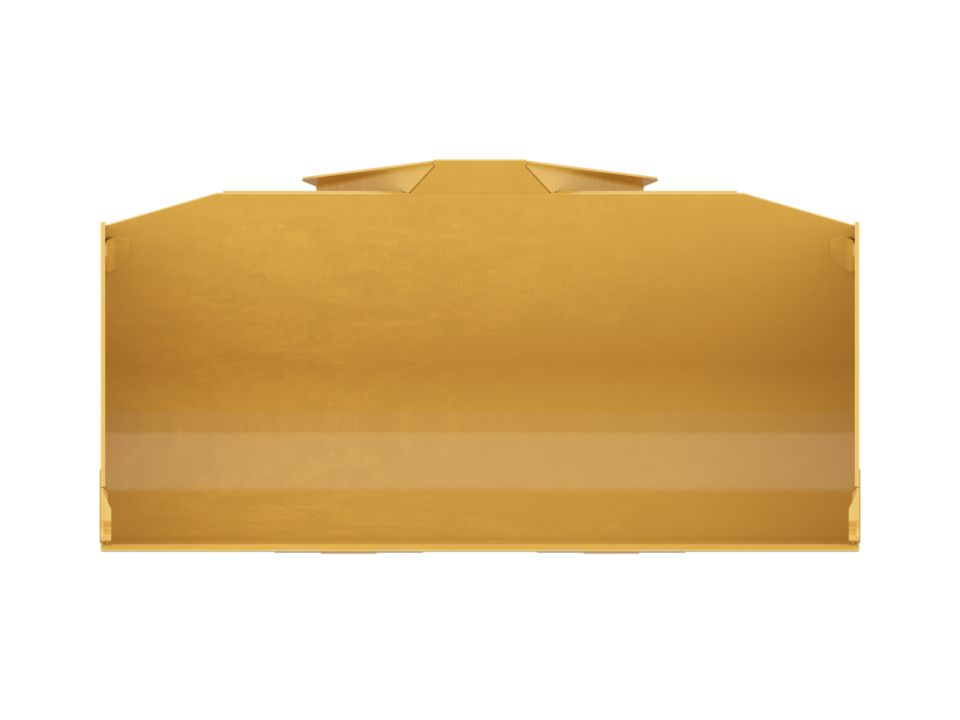

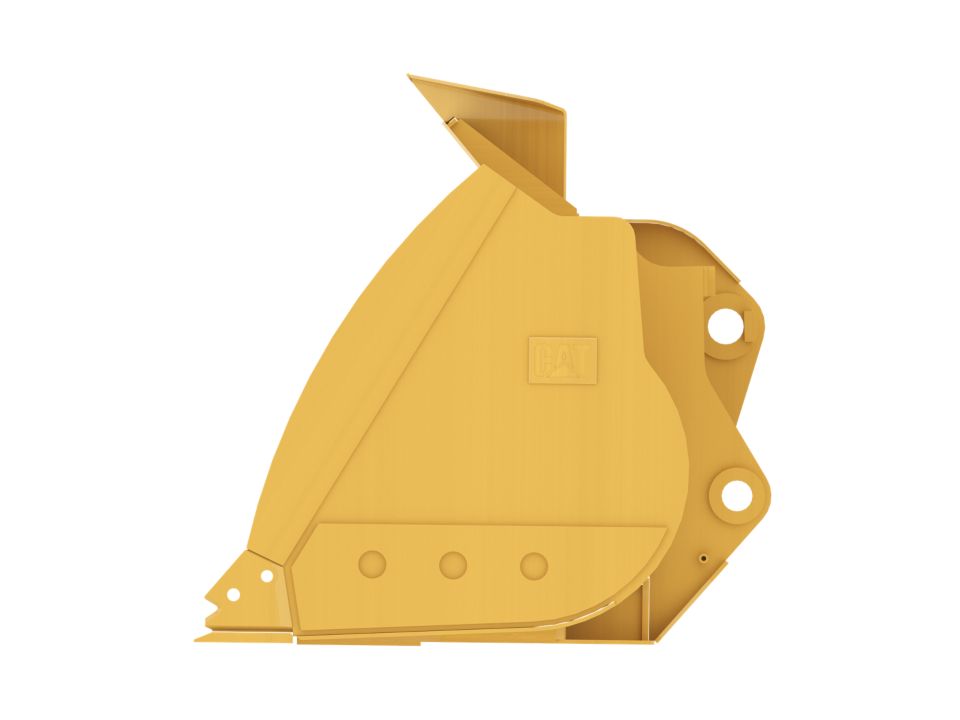

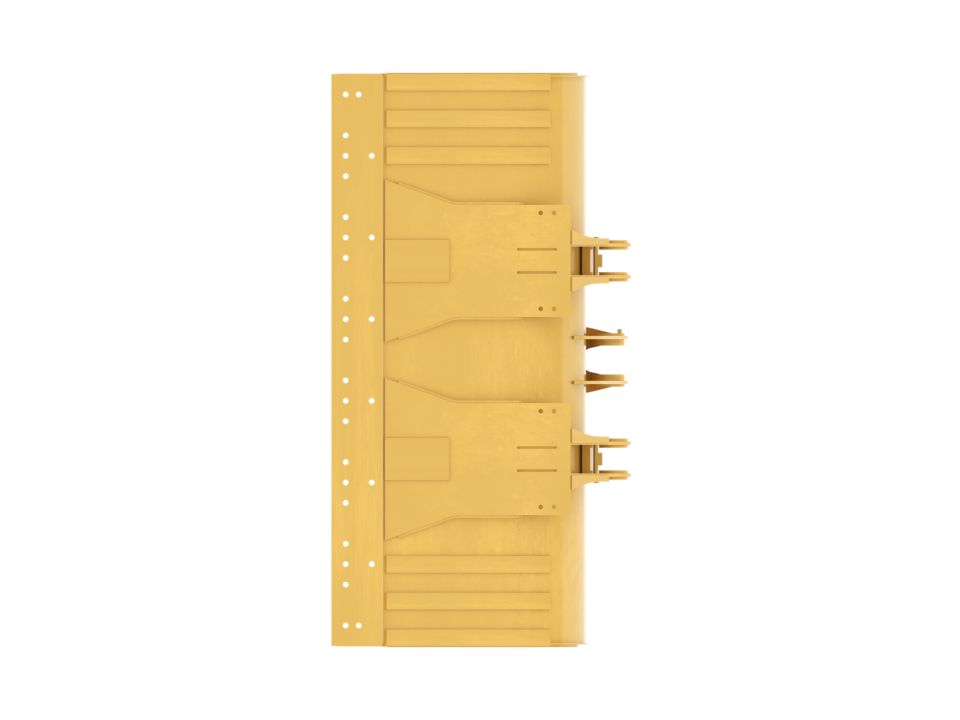

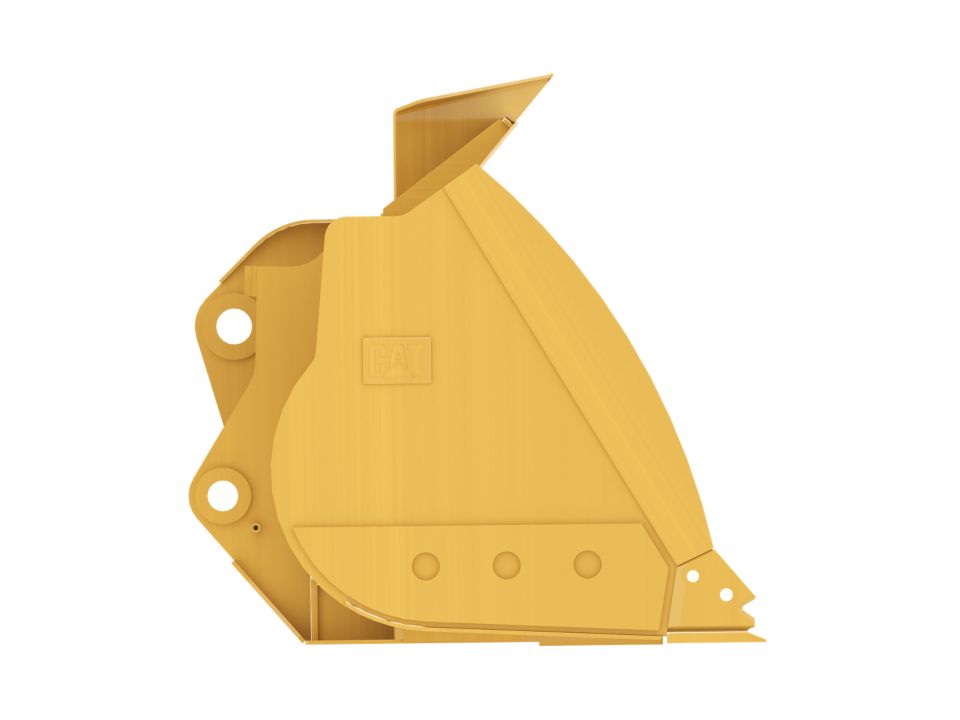

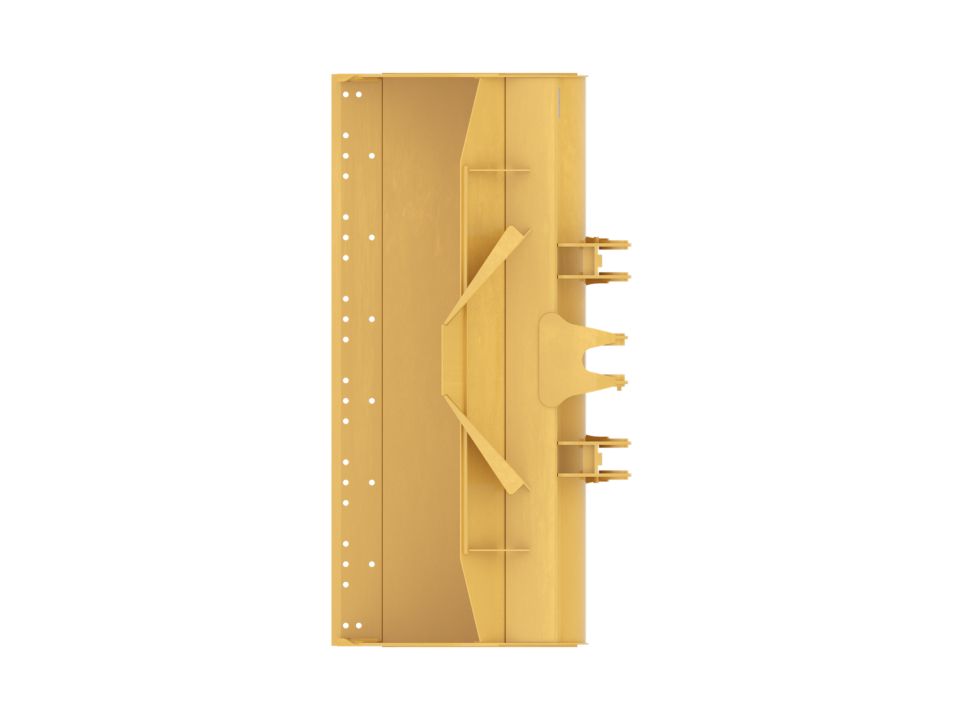

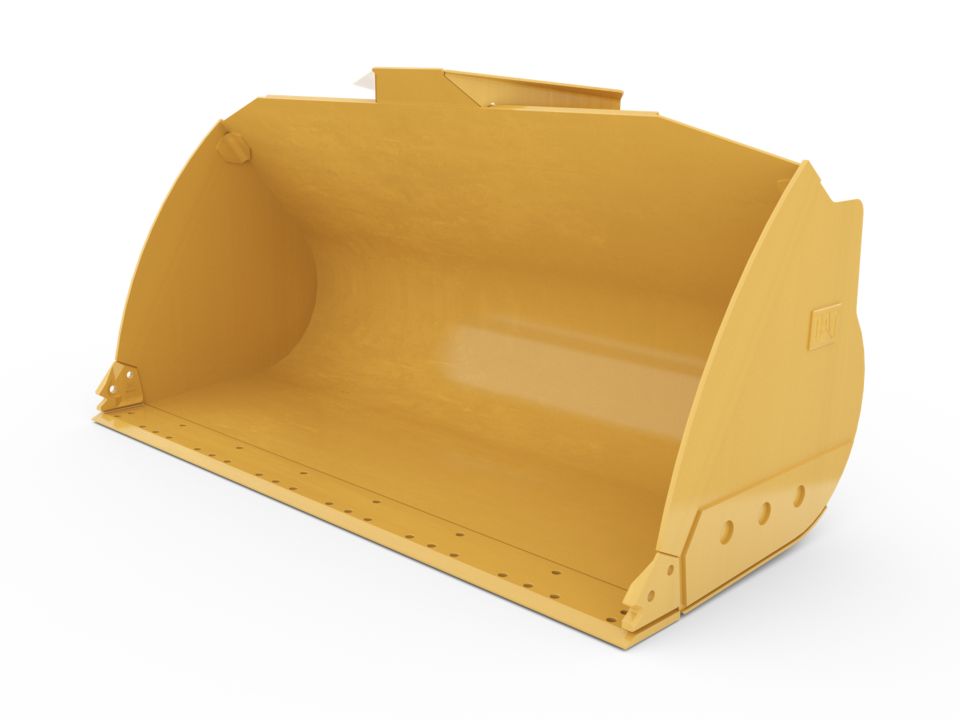

2.9 m3 (3.8 yd3), Pin On, Base Edge, 23.5R25 Tires

Get in touch

Sand and Gravel Buckets are designed for aggregate handling in batch plant loader applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

108 in 2750 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"108","MetricUnit":"mm","MetricValue":"2750","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Height

55.7 in 1414 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"55.7","MetricUnit":"mm","MetricValue":"1414","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

2484.6 lb 1127 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2484.6","MetricUnit":"kg","MetricValue":"1127","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

55.2 in 1403 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"55.2","MetricUnit":"mm","MetricValue":"1403","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Capacity

3.8 yd³ 2.9 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"3.8","MetricUnit":"m³","MetricValue":"2.9","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Edge Thickness

1 in 25 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Cutting Edge Thickness

1 in 25 mm
{"Name":"Cutting Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"1","MetricUnit":"mm","MetricValue":"25","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Interface Type

Pin On
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}

Benefits

Application

Ideal for aggregate handling in batch plant loader applications.

Rugged Design

Additional wear plates on bottom and sides of the bucket improves life of the bucket in coarse aggregate applications.

Performance Series Technology

Performance Series technology - innovations in bucket designs that improve load-ability of buckets, increasing productivity and decreasing fuel costs.

Maximum Machine Usage

Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.

Spill Guard

Spill guard prevents rock and other materials from spilling onto coupler interface and hydraulics.

Replaceable Rear Heel Plates

Adds extra material under the bucket heels to prevent bucket wear specially on high abrasion sites. Easy to replace in the field when needed - no welding required.

Reversible 4 Piece Cutting Edge

The 4 piece cutting edge allows for easy transportation and handling when needed to install at the field. The ability to rotate and use both sides of the cutting edge extends the component life and reduces the operational cost.

Reinforced Side Cutters

Built using special hardened material, the reinforced side cutters allow better wear resistance and the designed for improved material penetration. The available holes permit the extra bolt on side cutters to be installed in required applications.

Increased Dig Depth Design for Larger Tires

These buckets were incorporated to the loader bucket portfolio to accompany those 938´s configured with 23.5” tires for better ground dig performance offsetting the increased machine ground clearance added by the big tires.
