1829 mm (72 in), Fusion™ Coupler

Get in touch

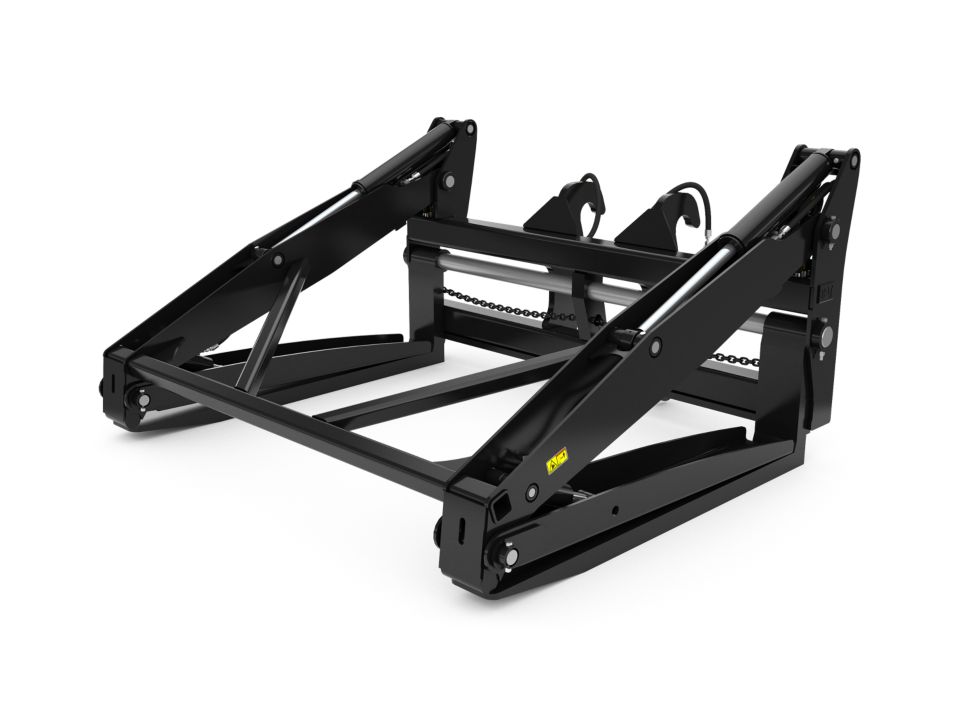

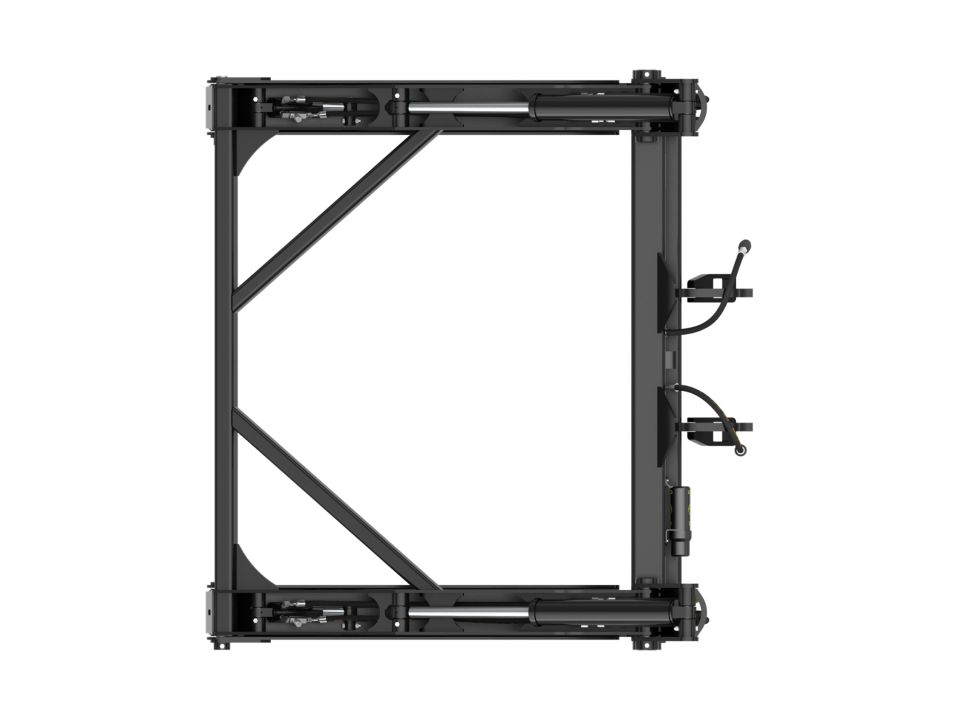

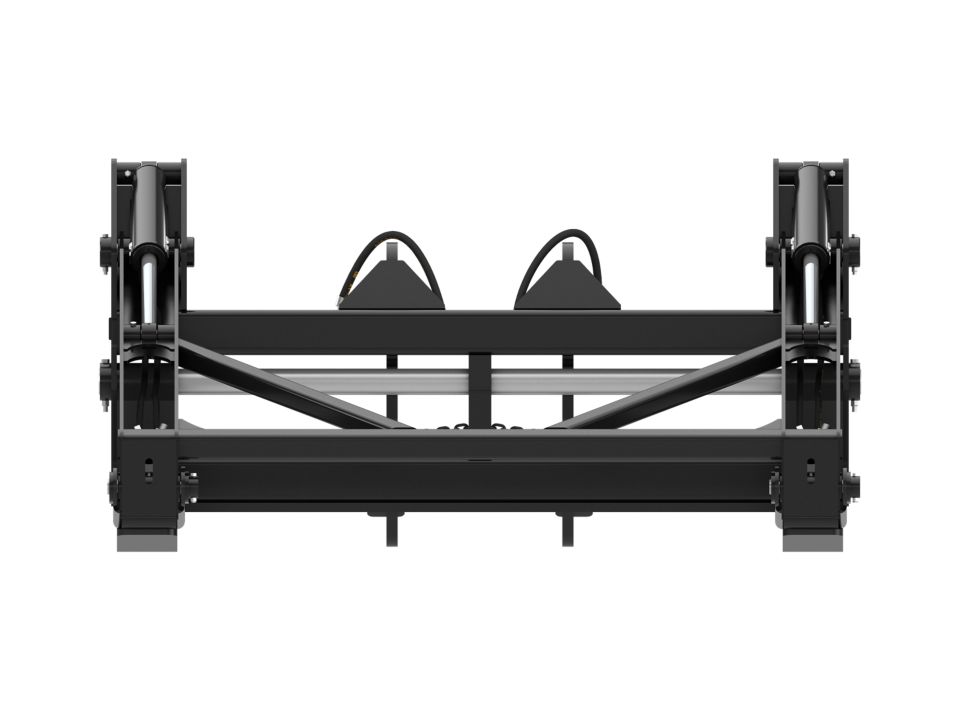

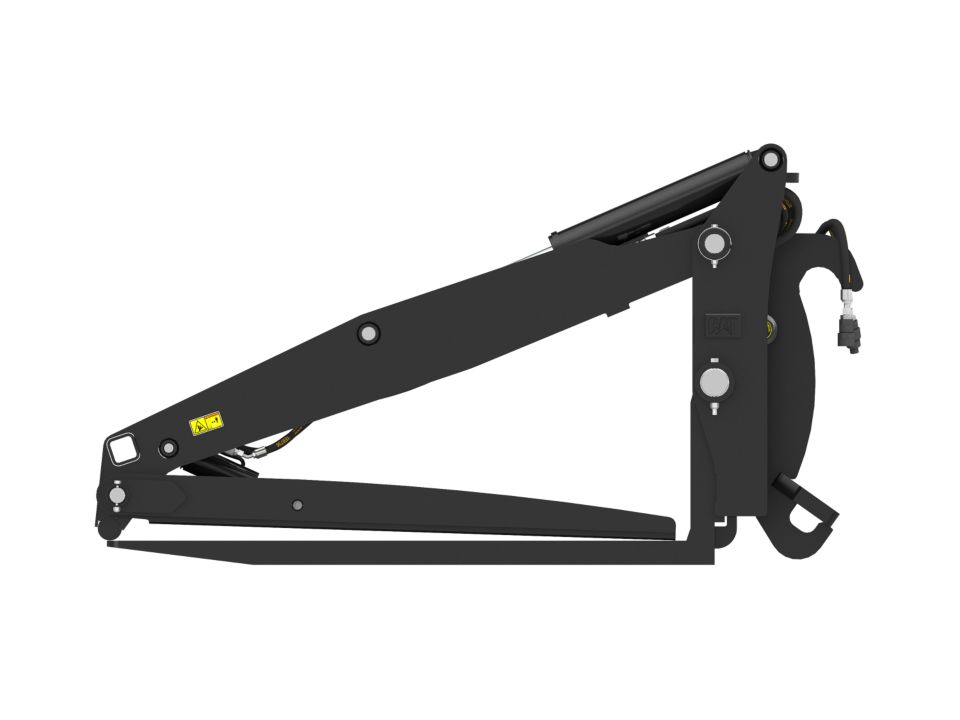

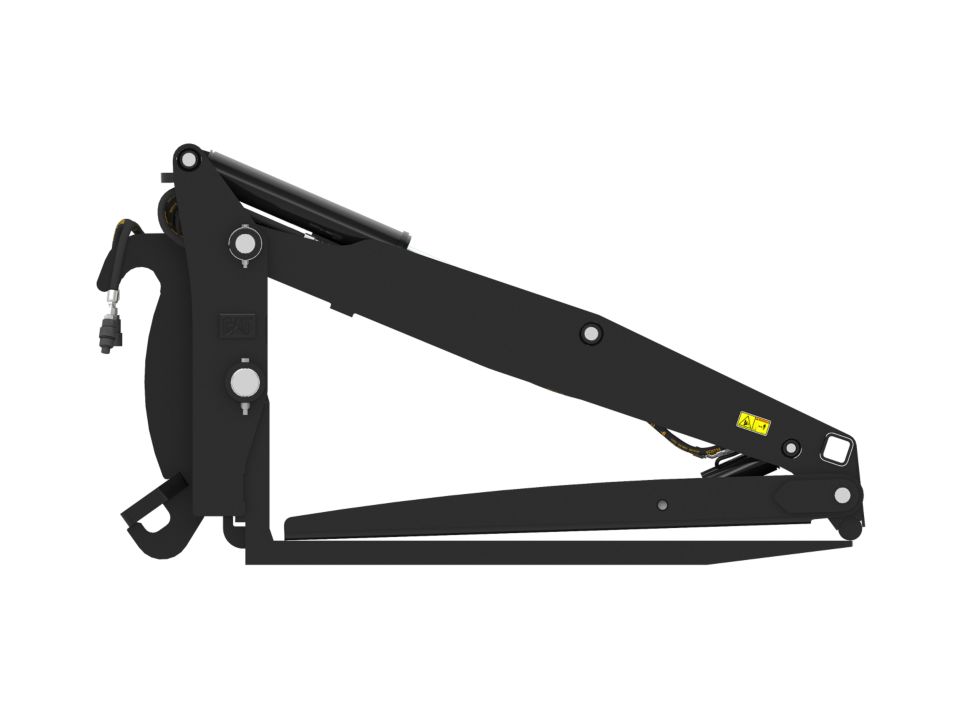

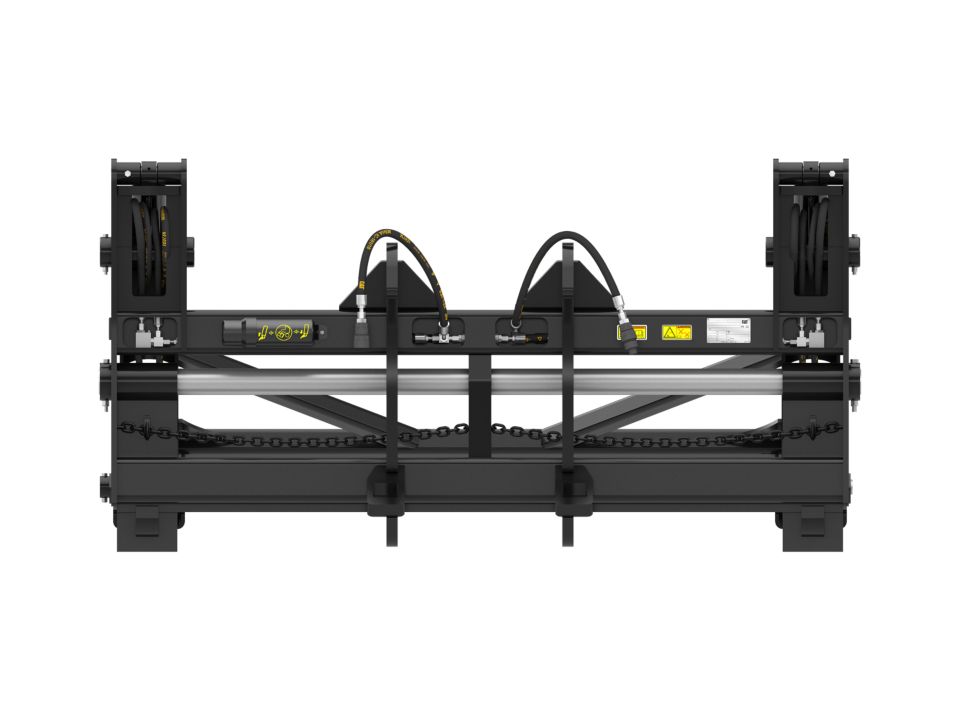

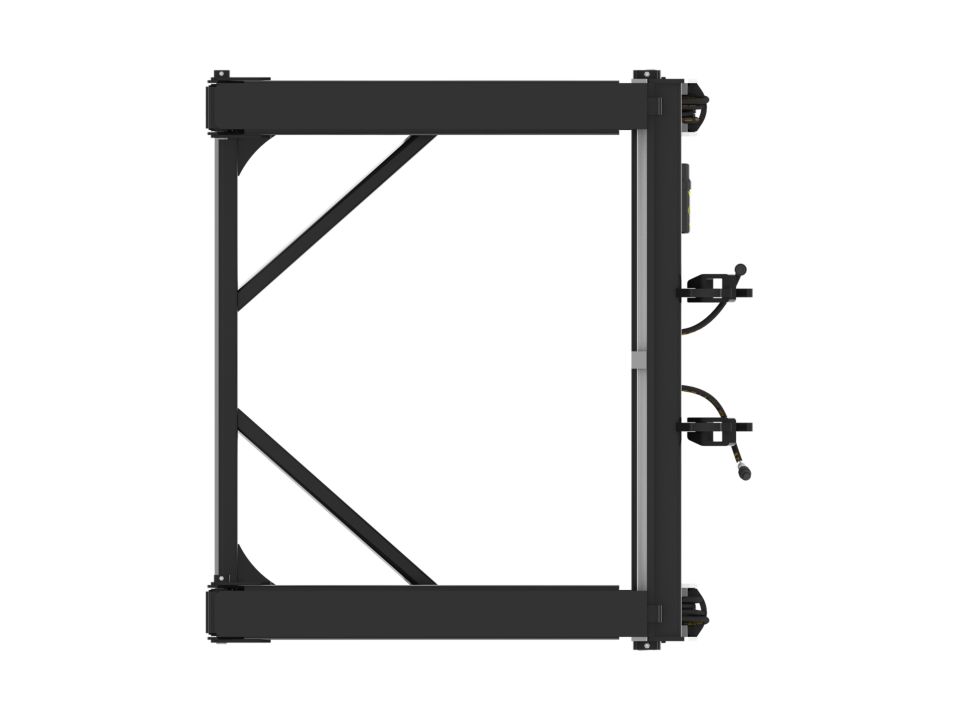

A Cat® wheel loader equipped with a Cat Pipe & Pole Fork is perfect for transporting, loading and unloading long lengths of pipe and poles — either single or multiple pieces. The upper arm of the Pipe & Pole Fork can be moved up and out of the way allowing the fork to work like a pallet fork handle other material.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

100.7 in 2559 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100.7","MetricUnit":"mm","MetricValue":"2559","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Tine Length

72 in 1829 mm
{"Name":"Tine Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72","MetricUnit":"mm","MetricValue":"1829","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

4301.2 lb 1951 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4301.2","MetricUnit":"kg","MetricValue":"1951","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Interface Type

Fusion™ Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Fusion™ Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"4"}
Required Hydraulics

3rd Function
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"3rd Function","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"5"}
Carriage Height - Closed Clamp

52 in 1321 mm
{"Name":"Carriage Height - Closed Clamp","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"52","MetricUnit":"mm","MetricValue":"1321","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Carriage Height - Open Clamp

123.7 in 3143 mm
{"Name":"Carriage Height - Open Clamp","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"123.7","MetricUnit":"mm","MetricValue":"3143","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Tine Spacing - Maximum Width

96 in 2438 mm
{"Name":"Tine Spacing - Maximum Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"96","MetricUnit":"mm","MetricValue":"2438","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Tine Width

8 in 203 mm
{"Name":"Tine Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8","MetricUnit":"mm","MetricValue":"203","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Tine Thickness

3 in 76 mm
{"Name":"Tine Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"76","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Load Capacity

7400.9 lb 3357 kg
{"Name":"Load Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7400.9","MetricUnit":"kg","MetricValue":"3357","Type":"measurement","SpecificationGroup":null,"SortOrder":"11"}

Benefits

Application

Developed with a robust structure, Cat® Pipe & Pole Forks allow for high performance carrying of 76 mm (3 in) pipe up to 762 mm (30 in), all while using the same tool.

Robust and Versatile Structure

Robust carriage and top clamp ensure high levels of production
Wide two-piece clamp holds pipe in place against tines and carriage
Clamp can be positioned for desirable diameter of materials
Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity

Adjustable Tines

Tines width can be adjusted to better fit at application requirements
No tools required for adjustment

Protected Hydraulic Cylinders

The top clamp design allows the hydraulic cylinders to stay protected, avoiding undesirable damages at the cylinder and unexpected down time.

Pallets and other Materials

If palletized material transport is required, just totally open the clamp and use the carriage as a fork.
