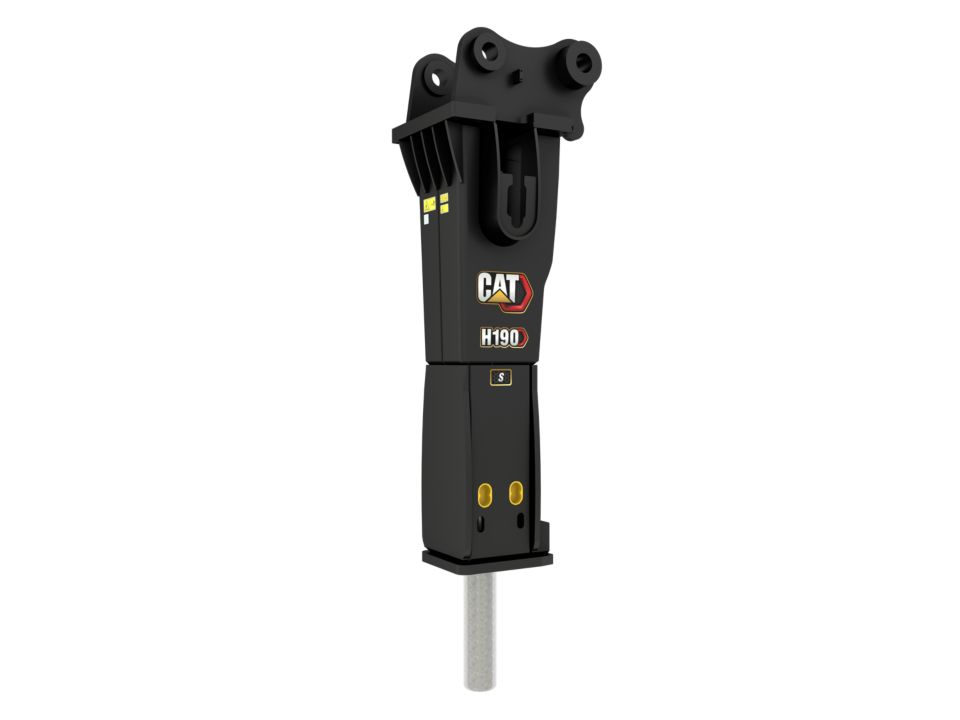

H190 S
H190 S
Book a Demo
Explore my deals
-
Blows per Minute370 to 530
-
Minimum Operating Weight11440 lb 5200 kg
-
Rated Flow - Minimum74 gpm 280 L/min
-
Rated Flow - Maximum101 gpm 380 L/min
-
Minimum Operating Pressure2320 psi 16000 kPa
-
Maximum Operating Pressure2465 psi 17000 kPa
-
Tool Shaft Diameter7.5 in 190 mm
-
Minimum Carrier Weight94798 lb 43 t
-
Maximum Carrier Weight176368 lb 80 t
High Performance
- Automatic shut off offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
- The internal buffering system helps reduce machine vibration and increase noise suppression.
- The standard silencing feature allows you to use a Performance hammer on job sites in noise-sensitive areas like neighborhoods or near hospitals where noise is regulated.
Increase Productivity
- Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
- The oil-fired operating cycle helps provide full power during every blow and less waste heat.
- Critical hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
Easy to Maintain
- Standard on-board autolube provides continuous greasing as the hammer runs, eliminating the need for manual greasing.
- The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.
- The oil-fired design eliminates the need to check gas charge.
- Quick and easy access to maintenance areas helps make hammer maintenance simple.
Boost Efficiency and Productivity with Integrated Technologies
- Never waste time looking for your attachments again. Cat asset tracking is available on all hammers.
- Track your entire fleet of attachments and machines from one source. Hammers with asset tracking can be viewed within VisionLink®.
- Keep your assets secure. Hammers with an asset tracker send an alert if they leave an easy-to-set up site boundary.
