621 Partial Scraper

Get in touch

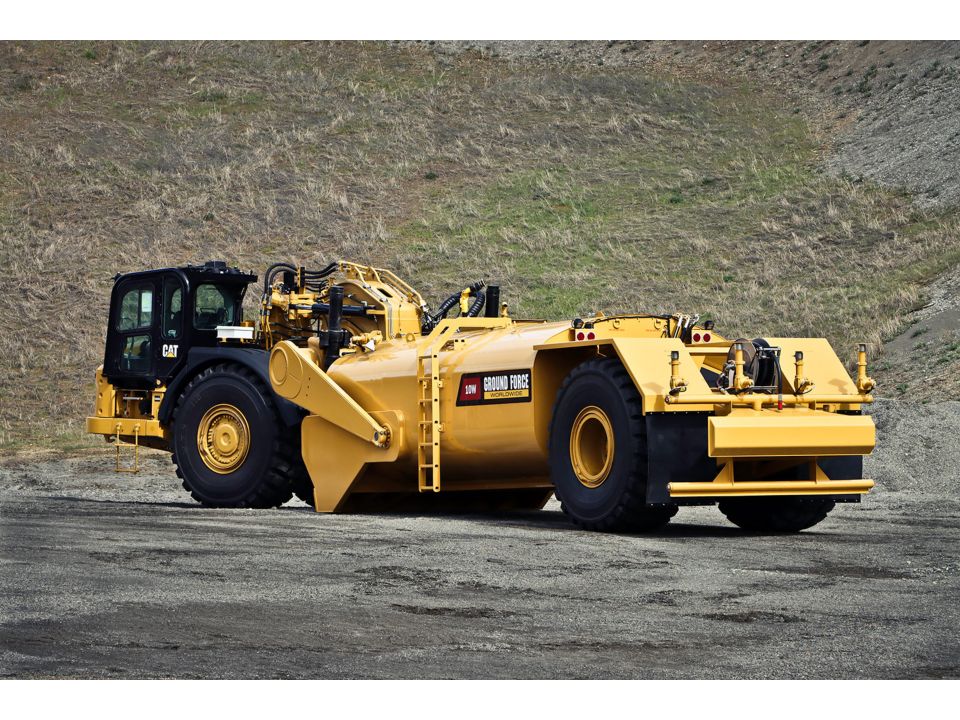

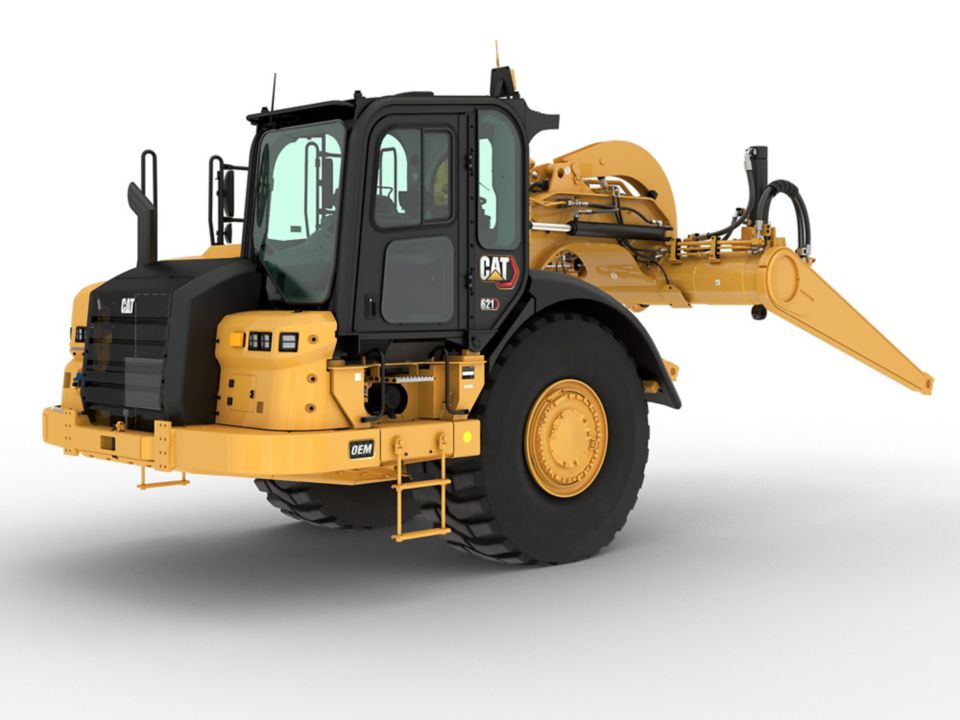

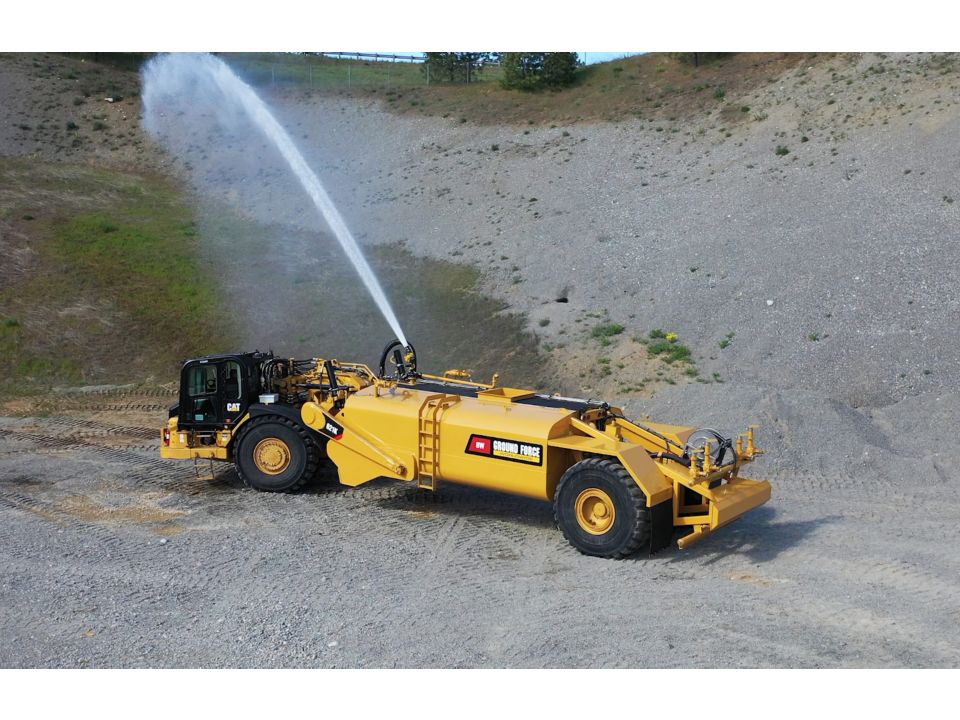

Caterpillar offers partial wheel tractor-scraper power units designed for specialty machines that complement the traditional Cat® product line. These tractor-only configurations are available for purchase directly from Caterpillar OEM Solutions. They can be leveraged for a variety of final machines, including water pulls, elevating scrapers, lowboy trailer power units, and more. With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on time and investment.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Engine

Tractor Engine

Cat® C13
{"Name":"Tractor Engine","SpecificationId":null,"TextValue":"Cat® C13","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}
Flywheel Power - Tractor

407 hp 304 kW
{"Name":"Flywheel Power - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"407","MetricUnit":"kW","MetricValue":"304","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"2"}
Note

Meets U.S. EPA Tier 4 Final or EU Stage V emission standards, or equivalent to U.S. EPA Tier 2, or equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
{"Name":"Note","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final or EU Stage V emission standards, or equivalent to U.S. EPA Tier 2, or equivalent to U.S. EPA Tier 3 and EU Stage IIIA.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"100"}

Service Refill Capacities - Tractor

Fuel Tank

216.1 gal (US) 818 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"216.1","MetricUnit":"l","MetricValue":"818","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"100"}
Crankcase

9.7 gal (US) 37 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9.7","MetricUnit":"l","MetricValue":"37","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"106"}
Transmission

25.5 gal (US) 97 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"25.5","MetricUnit":"l","MetricValue":"97","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"117"}
Differential

41.7 gal (US) 158 l
{"Name":"Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"41.7","MetricUnit":"l","MetricValue":"158","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"118"}
Final Drive - Each

5 gal (US) 19 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"5","MetricUnit":"l","MetricValue":"19","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"120"}
Cooling System

11 gal (US) 42 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11","MetricUnit":"l","MetricValue":"42","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"121"}
Hydraulic Reservoir

21.9 gal (US) 83 l
{"Name":"Hydraulic Reservoir","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"21.9","MetricUnit":"l","MetricValue":"83","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"122"}
Windshield Washer

1.3 gal (US) 5 l
{"Name":"Windshield Washer","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.3","MetricUnit":"l","MetricValue":"5","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"125"}

Standards

Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"10"}
ROPS/FOPS

ROPS: ISO 3471:2008 for up to 17 084 kg (37,664 lb). FOPS: ISO 3449:2005 Level II.
{"Name":"ROPS/FOPS","SpecificationId":null,"TextValue":"ROPS: ISO 3471:2008 for up to 17 084 kg (37,664 lb). FOPS: ISO 3449:2005 Level II.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"11"}
Cab

Seat Belt: SAE J386:JUN1985
{"Name":"Cab","SpecificationId":null,"TextValue":"Seat Belt: SAE J386:JUN1985","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Standards","SortOrder":"12"}

Steering

Width - 180° Turn

38.6 ft 11.8 m
{"Name":"Width - 180° Turn","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"38.6","MetricUnit":"m","MetricValue":"11.8","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"100"}

Transmission

Top Speed - Loaded

33.5 mile/h 53.9 km/h
{"Name":"Top Speed - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"33.5","MetricUnit":"km/h","MetricValue":"53.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"3"}
1 Forward

3.1 mile/h 5 km/h
{"Name":"1 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.1","MetricUnit":"km/h","MetricValue":"5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"90"}
2 Forward

5.5 mile/h 8.9 km/h
{"Name":"2 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.5","MetricUnit":"km/h","MetricValue":"8.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"91"}
3 Forward

7.5 mile/h 12.1 km/h
{"Name":"3 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.5","MetricUnit":"km/h","MetricValue":"12.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"92"}
4 Forward

10.1 mile/h 16.3 km/h
{"Name":"4 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"10.1","MetricUnit":"km/h","MetricValue":"16.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"93"}
5 Forward

13.6 mile/h 21.9 km/h
{"Name":"5 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"13.6","MetricUnit":"km/h","MetricValue":"21.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"94"}
6 Forward

18.4 mile/h 29.6 km/h
{"Name":"6 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"18.4","MetricUnit":"km/h","MetricValue":"29.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"95"}
7 Forward

24.8 mile/h 39.9 km/h
{"Name":"7 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"24.8","MetricUnit":"km/h","MetricValue":"39.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"96"}
8 Forward

33.5 mile/h 53.9 km/h
{"Name":"8 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"33.5","MetricUnit":"km/h","MetricValue":"53.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"97"}
Reverse

5.7 mile/h 9.2 km/h
{"Name":"Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5.7","MetricUnit":"km/h","MetricValue":"9.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"98"}

Benefits

WORK IN COMFORT

Steer with less effort with the newly designed high-pressure steering system.
Enjoy interior improvements and a more ergonomic work environment.
Intuitive, ergonomic controls with multifunction display keep operators focused on their work.
Maintain desired cab temperature with automatic temperature control.

EASY TO OPERATE

Cat Advanced Ride Management (ARM) seat suspension reduces end stroke movement of the load cylinder for a smoother ride.
Engine overspeed protection will automatically engage with no operator input when the machine is in eighth gear. The machine will assist in slowing the machine speed by canceling the throttle command and engaging the engine compression brake.

BE MORE PRODUCTIVE

The Advanced Productivity Electronic Control System (APECS) allows the machine to better utilize engine power and torque.
Set the desired top speed with Ground Speed Control, and the machine will find the gear that works best for the engine and the transmission, providing a lower fuel burn in speed reduced areas.
The Machine Speed Limit feature replaces Top Gear Selection.
Auto-Stall assists in quickly bringing the transmission to an operating temperature at start-up when working in colder climates.

DESIGNED FOR SAFETY

Get in and out of the cab easier with the new powered access ladder system.
Enhance the operator’s awareness of site surroundings with the optional Work Area Vision System (WAVS).
Ground-level access to fuel fill and several maintenance points for easier and safer service.
Seat belt indicator provides visual and audible alerts when the seat belt is not in use.
Wide brake shoes and brake drums improve brake performance and reduce brake and drum wear.
Secondary brakes engage automatically if service pressure drops
Parking Brake features a spring-applied, hydraulic pressure released mechanism that operates the service brakes.

SUPPORTED BY THE CAT DEALER NETWORK

Full support of Cat dealer and parts network.
Eligible for Equipment Protection Plans (EPP) & Customer Value Agreements (CVAs).

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWERTRAIN

Cat® C13 engine with Mechanically Actuated Electronic Unit Injection (MEUI™)

ELECTRICAL

Alternator, 115 ampere

OPERATOR ENVIRONMENT

HVAC system, heat, AC, defrost

FLUIDS

Extended life coolant to -37° C (-34° F)

OTHER EQUIPMENT

Advanced cushion hitch

OTHER ATTACHMENTS

Fast-fill fuel tank
