657

Get in touch

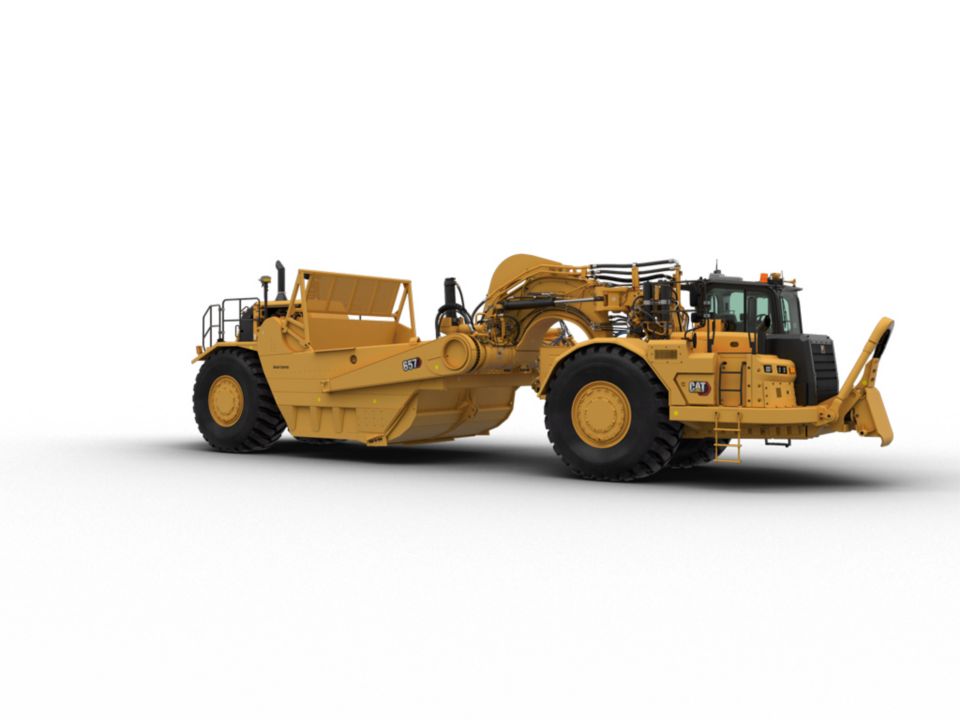

The Open Bowl Wheel Tractor-Scraper is available as a self-loading, push loaded or push loaded hauling system with a broad material appetite.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Dimensions

Width - Overall Machine

14.3 ft 4.36 m
{"Name":"Width - Overall Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"14.3","MetricUnit":"m","MetricValue":"4.36","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"40"}
Width - Tractor

12.3 ft 3.62 m
{"Name":"Width - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.3","MetricUnit":"m","MetricValue":"3.62","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"41"}
Width - Rear Tire Center Lines

9.21 ft 2.81 m
{"Name":"Width - Rear Tire Center Lines","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.21","MetricUnit":"m","MetricValue":"2.81","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"42"}
Width - Inside of Bowl

12.07 ft 3.68 m
{"Name":"Width - Inside of Bowl","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.07","MetricUnit":"m","MetricValue":"3.68","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"43"}
Width - Outside Bowl - Shipping Width

12.84 ft 3.91 m
{"Name":"Width - Outside Bowl - Shipping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.84","MetricUnit":"m","MetricValue":"3.91","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"45"}
Height - Overall Shipping

15.29 ft 4.66 m
{"Name":"Height - Overall Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15.29","MetricUnit":"m","MetricValue":"4.66","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"46"}
Height - Top of Cab

12.86 ft 3.92 m
{"Name":"Height - Top of Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.86","MetricUnit":"m","MetricValue":"3.92","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"47"}
Ground Clearance - Tractor

2.3 ft 0.7 m
{"Name":"Ground Clearance - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"m","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"48"}
Front of Tractor to Front Axle

14.93 ft 4.63 m
{"Name":"Front of Tractor to Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"14.93","MetricUnit":"m","MetricValue":"4.63","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"49"}
Axle to Vertical Hitch Pin

1.8 ft 0.55 m
{"Name":"Axle to Vertical Hitch Pin","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.8","MetricUnit":"m","MetricValue":"0.55","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"51"}
Height - Scraper Blade Maximum

2.17 ft 0.66 m
{"Name":"Height - Scraper Blade Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.17","MetricUnit":"m","MetricValue":"0.66","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"52"}
Wheel Base

32.68 ft 9.96 m
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"32.68","MetricUnit":"m","MetricValue":"9.96","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"53"}
Length - Overall Machine

58.96 ft 17.05 m
{"Name":"Length - Overall Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"58.96","MetricUnit":"m","MetricValue":"17.05","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"54"}
Rear Axle - Rear of Machine

8.07 ft 2.46 m
{"Name":"Rear Axle - Rear of Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.07","MetricUnit":"m","MetricValue":"2.46","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"55"}

Engine

Tractor Engine

Cat® C18
{"Name":"Tractor Engine","SpecificationId":null,"TextValue":"Cat® C18","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}
Scraper Engine

Cat® C15
{"Name":"Scraper Engine","SpecificationId":null,"TextValue":"Cat® C15","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"2"}

General

Top Speed - Loaded

33 mile/h 56.1 km/h
{"Name":"Top Speed - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"33","MetricUnit":"km/h","MetricValue":"56.1","Type":"measurement","SpecificationGroup":"General","SortOrder":"4"}

Hydraulics

Bowl Cylinder Bore

7.08 in 180 mm
{"Name":"Bowl Cylinder Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.08","MetricUnit":"mm","MetricValue":"180","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"126"}
Bowl Cylinder Stroke

37.4 in 950 mm
{"Name":"Bowl Cylinder Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"37.4","MetricUnit":"mm","MetricValue":"950","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"127"}
Apron Cylinder Bore

7.08 in 180 mm
{"Name":"Apron Cylinder Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.08","MetricUnit":"mm","MetricValue":"180","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"128"}
Apron Cylinder Stroke

29.92 in 759.5 mm
{"Name":"Apron Cylinder Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.92","MetricUnit":"mm","MetricValue":"759.5","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"129"}
Ejector Cylinder Stroke (Stage 1/ Stage 2)

38.32 in 973.5 mm
{"Name":"Ejector Cylinder Stroke (Stage 1/ Stage 2)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"38.32","MetricUnit":"mm","MetricValue":"973.5","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"131"}
Steering Circuit (@ High Idle)

76.08 gpm 288 L/min
{"Name":"Steering Circuit (@ High Idle)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"76.08","MetricUnit":"L/min","MetricValue":"288","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"132"}
Implement Circuit (@ High Idle)

517 L/min 517 L/min
{"Name":"Implement Circuit (@ High Idle)","SpecificationId":null,"TextValue":null,"EnglishUnit":"L/min","EnglishValue":"517","MetricUnit":"L/min","MetricValue":"517","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"133"}
Cushion Hitch Circuit

19.54 gpm 74 L/min
{"Name":"Cushion Hitch Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"19.54","MetricUnit":"L/min","MetricValue":"74","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"134"}
Secondary Steering Circuit

14.52 gal/hr 55 l/hr
{"Name":"Secondary Steering Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/hr","EnglishValue":"14.52","MetricUnit":"l/hr","MetricValue":"55","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"135"}
Relief Valve - Steering Circuit

1959 psi 13500 kPa
{"Name":"Relief Valve - Steering Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1959","MetricUnit":"kPa","MetricValue":"13500","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"136"}
Relief Valve - Implement Circuit

1999 psi 13780 kPa
{"Name":"Relief Valve - Implement Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1999","MetricUnit":"kPa","MetricValue":"13780","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"137"}
Compensator Settings - Cushion Hitch Circuit

3002 psi 20700 kPa
{"Name":"Compensator Settings - Cushion Hitch Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3002","MetricUnit":"kPa","MetricValue":"20700","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"138"}

Scraper Bowl

Scraper Capacity - Heaped

44 yd³ 33.6 m³
{"Name":"Scraper Capacity - Heaped","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"44","MetricUnit":"m³","MetricValue":"33.6","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"2"}
Rated Load

104000 lb 47174 kg
{"Name":"Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"104000","MetricUnit":"kg","MetricValue":"47174","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"8"}
Capacity - Struck

32 yd³ 24.5 m³
{"Name":"Capacity - Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"32","MetricUnit":"m³","MetricValue":"24.5","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"58"}
Depth of Cut - Maximum

16.4 in 417 mm
{"Name":"Depth of Cut - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16.4","MetricUnit":"mm","MetricValue":"417","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"59"}
Width - Cut - To Router Bits

12.5 ft 3.8 m
{"Name":"Width - Cut - To Router Bits","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"m","MetricValue":"3.8","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"60"}
Ground Clearance - Maximum

2.3 ft 0.7 m
{"Name":"Ground Clearance - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"m","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"61"}
Depth of Spread - Maximum

26 in 660 mm
{"Name":"Depth of Spread - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"26","MetricUnit":"mm","MetricValue":"660","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"73"}
Apron Opening

92 in 2337 mm
{"Name":"Apron Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"92","MetricUnit":"mm","MetricValue":"2337","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"74"}
Apron Closure Force

39200 lb 176 kN
{"Name":"Apron Closure Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"39200","MetricUnit":"kN","MetricValue":"176","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"75"}
Hyd. Penetration Force - 657G

121000 lb 542 kN
{"Name":"Hyd. Penetration Force - 657G","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"121000","MetricUnit":"kN","MetricValue":"542","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"1000"}

Scraper Engine

Net Power

353 kW/447 hp
{"Name":"Net Power","SpecificationId":null,"TextValue":"353 kW/447 hp","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Scraper Engine","SortOrder":"7"}
Gross Power (SAE J1995)

481 hp 359 kW
{"Name":"Gross Power (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"481","MetricUnit":"kW","MetricValue":"359","Type":"measurement","SpecificationGroup":"Scraper Engine","SortOrder":"12"}
Net Power (ISO 14396)

480 hp 353 kW
{"Name":"Net Power (ISO 14396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"480","MetricUnit":"kW","MetricValue":"353","Type":"measurement","SpecificationGroup":"Scraper Engine","SortOrder":"18"}
Bore

5.4 in 137.2 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.4","MetricUnit":"mm","MetricValue":"137.2","Type":"measurement","SpecificationGroup":"Scraper Engine","SortOrder":"85"}
Stroke

6.75 in 171.5 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.75","MetricUnit":"mm","MetricValue":"171.5","Type":"measurement","SpecificationGroup":"Scraper Engine","SortOrder":"87"}
Displacement

928 in³ 15.2 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"928","MetricUnit":"l","MetricValue":"15.2","Type":"measurement","SpecificationGroup":"Scraper Engine","SortOrder":"89"}
Net Power (SAE J1349/ISO 9249)

415 hp 333 kW
{"Name":"Net Power (SAE J1349/ISO 9249)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"415","MetricUnit":"kW","MetricValue":"333","Type":"measurement","SpecificationGroup":"Scraper Engine","SortOrder":"1000"}

Service Refill Capacities - Scraper

Fuel Tank

430 gal (US) 1628 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"430","MetricUnit":"l","MetricValue":"1628","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"189"}
Crankcase

8.9 gal (US) 34 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8.9","MetricUnit":"l","MetricValue":"34","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"190"}
Transmission

31.9 gal (US) 121 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"31.9","MetricUnit":"l","MetricValue":"121","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"191"}
Final Drive - Each

7.8 gal (US) 30 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"7.8","MetricUnit":"l","MetricValue":"30","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"193"}
Cooling System

16.6 gal (US) 63.2 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"16.6","MetricUnit":"l","MetricValue":"63.2","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"195"}
Differential

44 gal (US) 168 l
{"Name":"Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"44","MetricUnit":"l","MetricValue":"168","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"1000"}

Service Refill Capacities - Tractor

Crankcase

13.7 gal (US) 38 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"13.7","MetricUnit":"l","MetricValue":"38","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"106"}
Transmission

35.9 gal (US) 136 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"35.9","MetricUnit":"l","MetricValue":"136","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"117"}
Final Drive - Each

6 gal (US) 29.5 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6","MetricUnit":"l","MetricValue":"29.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"120"}
Cooling System

23.4 gal (US) 88.6 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"23.4","MetricUnit":"l","MetricValue":"88.6","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"121"}
Hydraulic Reservoir

39.6 gal (US) 150 l
{"Name":"Hydraulic Reservoir","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"39.6","MetricUnit":"l","MetricValue":"150","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"122"}
Windshield Washer

0.5 gal (US) 5 l
{"Name":"Windshield Washer","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.5","MetricUnit":"l","MetricValue":"5","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"125"}
Differential

36 gal (US) 136 l
{"Name":"Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"36","MetricUnit":"l","MetricValue":"136","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"1000"}

Steering

Width - 180° Turn - Right

45.4 ft 13.85 m
{"Name":"Width - 180° Turn - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"45.4","MetricUnit":"m","MetricValue":"13.85","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"100"}
Width - 180° Turn - Left

47.57 ft 14.5 m
{"Name":"Width - 180° Turn - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"47.57","MetricUnit":"m","MetricValue":"14.5","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"101"}
Steering Angle - Right

90
{"Name":"Steering Angle - Right","SpecificationId":null,"TextValue":"90","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"102"}
Steering Angle - Left

85
{"Name":"Steering Angle - Left","SpecificationId":null,"TextValue":"85","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"103"}

Tractor Engine

Flywheel Power - Tractor/Scraper

469kW (637 hp) / 353 kW (479 hp)
{"Name":"Flywheel Power - Tractor/Scraper","SpecificationId":null,"TextValue":"469kW (637 hp) / 353 kW (479 hp)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tractor Engine","SortOrder":"1"}
Net Power

469 kW/637 hp
{"Name":"Net Power","SpecificationId":null,"TextValue":"469 kW/637 hp","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tractor Engine","SortOrder":"5"}
Gross Power (SAE J1995)

637 hp 475 kW
{"Name":"Gross Power (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"637","MetricUnit":"kW","MetricValue":"475","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"9"}
Net Power (ISO 14396)

637 hp 469 kW
{"Name":"Net Power (ISO 14396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"637","MetricUnit":"kW","MetricValue":"469","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"15"}
Bore

5.7 in 145 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.7","MetricUnit":"mm","MetricValue":"145","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"84"}
Stroke

7.2 in 183 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.2","MetricUnit":"mm","MetricValue":"183","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"86"}
Displacement

1105 in³ 18.1 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"1105","MetricUnit":"l","MetricValue":"18.1","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"88"}
Net Power (SAE J1349/ISO 9249)

584 hp 436 kW
{"Name":"Net Power (SAE J1349/ISO 9249)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"584","MetricUnit":"kW","MetricValue":"436","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"1000"}
Net Power (SAE J1349/ISO 9249)

592 hp 436 kW
{"Name":"Net Power (SAE J1349/ISO 9249)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"592","MetricUnit":"kW","MetricValue":"436","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"1000"}

Transmission

1 Forward

3.5 mile/h 5.7 km/h
{"Name":"1 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.5","MetricUnit":"km/h","MetricValue":"5.7","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"90"}
2 Forward

6.5 mile/h 10.5 km/h
{"Name":"2 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.5","MetricUnit":"km/h","MetricValue":"10.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"91"}
3 Forward

7.8 mile/h 12.5 km/h
{"Name":"3 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.8","MetricUnit":"km/h","MetricValue":"12.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"92"}
4 Forward

10.6 mile/h 17 km/h
{"Name":"4 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"10.6","MetricUnit":"km/h","MetricValue":"17","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"93"}
5 Forward

14.2 mile/h 22.8 km/h
{"Name":"5 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14.2","MetricUnit":"km/h","MetricValue":"22.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"94"}
6 Forward

19.2 mile/h 30.9 km/h
{"Name":"6 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"19.2","MetricUnit":"km/h","MetricValue":"30.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"95"}
7 Forward

25.7 mile/h 41.4 km/h
{"Name":"7 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25.7","MetricUnit":"km/h","MetricValue":"41.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"96"}
8 Forward

34.9 mile/h 56.1 km/h
{"Name":"8 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34.9","MetricUnit":"km/h","MetricValue":"56.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"97"}
Reverse

6.7 mile/h 10.8 km/h
{"Name":"Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.7","MetricUnit":"km/h","MetricValue":"10.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"98"}
Top Speed - Loaded

33 mile/h 56.1 km/h
{"Name":"Top Speed - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"33","MetricUnit":"km/h","MetricValue":"56.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"1000"}

Weights - Push-Pull

Total Shipping

160505 lb 72804 kg
{"Name":"Total Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"160505","MetricUnit":"kg","MetricValue":"72804","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"31"}
Tractor Shipping

93635 lb 42472 kg
{"Name":"Tractor Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"93635","MetricUnit":"kg","MetricValue":"42472","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"32"}
Scraper Shipping

64068 lb 29061 kg
{"Name":"Scraper Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"64068","MetricUnit":"kg","MetricValue":"29061","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"33"}
Total Operating - Empty

164244 lb 74500 kg
{"Name":"Total Operating - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"164244","MetricUnit":"kg","MetricValue":"74500","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"34"}
Front Axle

93842 lb 42566 kg
{"Name":"Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"93842","MetricUnit":"kg","MetricValue":"42566","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"35"}
Rear Axle

66663 lb 30238 kg
{"Name":"Rear Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"66663","MetricUnit":"kg","MetricValue":"30238","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"36"}
Total Operating - Loaded

268302 lb 121700 kg
{"Name":"Total Operating - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"268302","MetricUnit":"kg","MetricValue":"121700","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"37"}
Front Axle - Loaded

134165 lb 60856 kg
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"134165","MetricUnit":"kg","MetricValue":"60856","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"38"}
Rear Axle - Loaded

130340 lb 59121 kg
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"130340","MetricUnit":"kg","MetricValue":"59121","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"39"}

Benefits

BE MORE PRODUCTIVE

Advanced Productivity Electronic Control System (APECS) allows the engine and transmission to communicate on a high level. This communication enables the machine to better utilize the power and torque the engine is producing. The net result is moving more material.
Use Ground Speed Control to set the desired top speed, and the machine will find the gear that works best for the engine and the transmission, providing a lower fuel burn.
The Machine Speed Limit feature replaces Top Gear Selection.
Auto-Stall assists in quickly bringing the transmission to an operating temperature at start-up when the machine is working in a cold climate regions.
Cat Payload for scrapers is an earthmoving solution for optimal payload and job site efficiency. Cat Payload achieves on-the-go weighing by using bowl lift cylinder pressure during the loaded haul segment. Cat Payload is optimized to be used with Sequence Assist, which provides increased productivity with less operator effort.

WORK IN COMFORT

Steer with less effort with the newly designed High-Pressure Steering system.
Reduce up to 14 individual operator commands per cycle with
Sequence Assist (optional attachment).
Enjoy interior improvements and a more ergonomic work environment
with a 21% larger cab than the 657 G-Series cabs.
Intuitive, ergonomic controls with multifunction display keep operators focused on their work.
Maintain desired cab temperature with Automatic
Temperature Control.

DESIGNED FOR SAFETY

Get in and out of the cab easier with the new powered access
ladder system.
Enhance an operator’s awareness of the site surroundings with the
Work Area Vision System (WAVS).
Convenient ground-level access to fuel fill and multiple
maintenance points, ensuring safer and more efficient service.
Seat belt indicator provides visual and audible alerts when the seat belt is not in use.
The fuel fill, fuel filter, engine oil filter, engine oil change, and water drain are easily accessible at ground level.

EASY TO OPERATE

Cat Advance Ride Management (ARM) seat suspension reduces end stroke movement of the load cylinder for a smoother ride.
Engine overspeed protection will automatically engage with no operator input when the machine is in eighth gear. The machine will assist in slowing the machine speed by canceling the throttle command and engaging the engine compression brake.
The spacious cab features easy, intuitive controls and excellent
visibility. The cab provides a comfortable working environment for
all-day operation.

INTEGRATED CAT TECHNOLOGIES

Access information anytime, anywhere with VisionLinkTM –
    use it to make informed decisions that boost productivity, lower
    costs, simplify maintenance, and improve safety and security
    on your jobsite.
Product Link™ collects machine data that can be viewed online
through web and mobile applications (optional attachment).
Hit target grade faster and more accurately with Cat Grade
technologies. Finish jobs in fewer passes and with less operator
effort, saving you time and helping to increase profit.
Monitor, manage, and enhance jobsite operations.

EXECUTE EFFICIENCY

The Cat C18 tractor and C15 scraper engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards, contributing to
lower fuel consumption.
The tractor hydraulic on-demand fan helps assist in lower
fuel consumption.
Cat Grade (optional attachment) intelligently ensures the machine
does not cut below grade in a cut area or overfill in the fill area.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, backup

OPERATOR ENVIRONMENT

Air Conditioner (includes heater and defroster)

POWER TRAIN

Tractor

OTHER STANDARD EQUIPMENT

Tractor

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

657

BE MORE PRODUCTIVE

WORK IN COMFORT

DESIGNED FOR SAFETY

EASY TO OPERATE

INTEGRATED CAT TECHNOLOGIES

EXECUTE EFFICIENCY

NOTE

ELECTRICAL

OPERATOR ENVIRONMENT

POWER TRAIN

OTHER STANDARD EQUIPMENT

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
