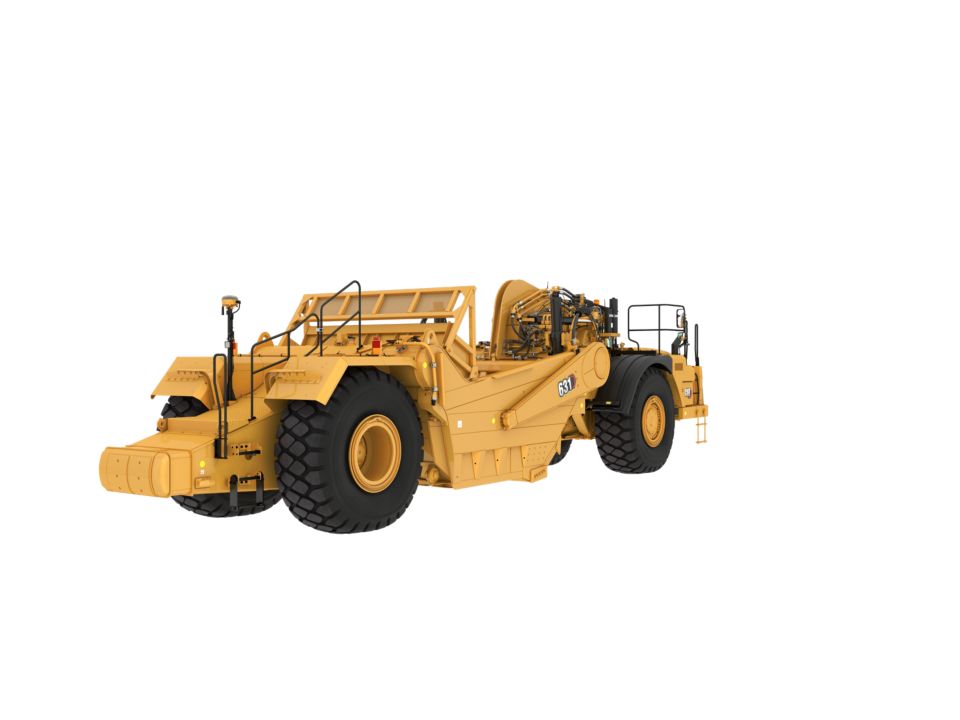

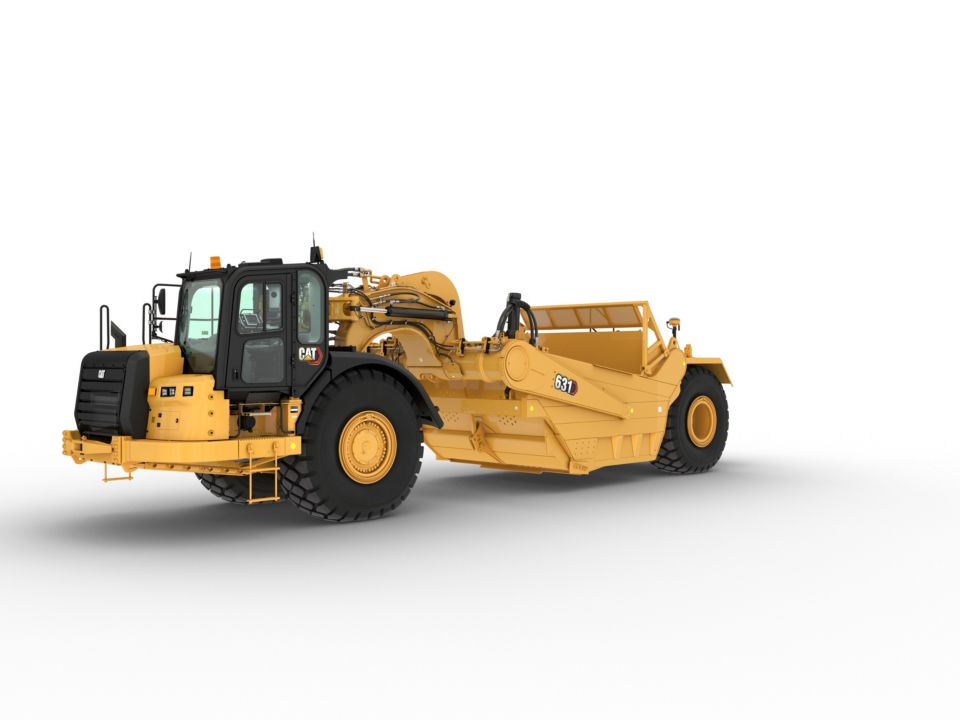

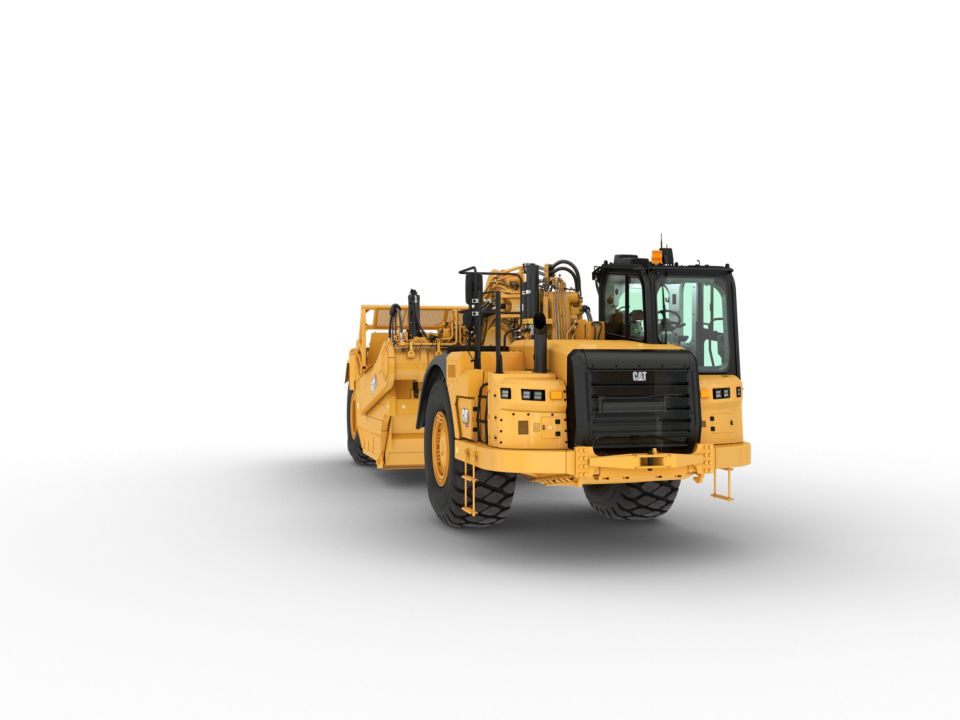

The Open Bowl Wheel Tractor-Scraper is available as a self-loading, push loaded or push loaded hauling system with a broad material appetite.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Cab

Exterior Sound Level

The exterior sound power level for the standard machine (ISO 6393) is 116 dB(A).
{"Name":"Exterior Sound Level","SpecificationId":null,"TextValue":"The exterior sound power level for the standard machine (ISO 6393) is 116 dB(A).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"99"}
ROPS/FOPS

ROPS/FOPS meet “ISO Standards.”
{"Name":"ROPS/FOPS","SpecificationId":null,"TextValue":"ROPS/FOPS meet “ISO Standards.”","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Cab","SortOrder":"99"}

Dimensions

Width - Overall Machine

155 in 3937 mm
{"Name":"Width - Overall Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"155","MetricUnit":"mm","MetricValue":"3937","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"80"}
Width - Overall Machine - Ladder Down

159.3 in 4045 mm
{"Name":"Width - Overall Machine - Ladder Down","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"159.3","MetricUnit":"mm","MetricValue":"4045","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"81"}
Width - Tractor

144.2 in 3662 mm
{"Name":"Width - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"144.2","MetricUnit":"mm","MetricValue":"3662","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"82"}
Width - Rear Tire Centers

96.9 in 2462 mm
{"Name":"Width - Rear Tire Centers","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"96.9","MetricUnit":"mm","MetricValue":"2462","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"83"}
Width - Inside of Bowl

134 in 3404 mm
{"Name":"Width - Inside of Bowl","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"134","MetricUnit":"mm","MetricValue":"3404","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"84"}
Width - Outside Bowl - Shipping Width

143.1 in 3635 mm
{"Name":"Width - Outside Bowl - Shipping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"143.1","MetricUnit":"mm","MetricValue":"3635","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"85"}
Height - Overall Shipping

153.2 in 3892 mm
{"Name":"Height - Overall Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"153.2","MetricUnit":"mm","MetricValue":"3892","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"86"}
Height - Top of Cab

149.8 in 3805 mm
{"Name":"Height - Top of Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"149.8","MetricUnit":"mm","MetricValue":"3805","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"87"}
Front of Tractor to Front Axle

142 in 3608 mm
{"Name":"Front of Tractor to Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"142","MetricUnit":"mm","MetricValue":"3608","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"88"}
Ground Clearance - Tractor

26.1 in 664 mm
{"Name":"Ground Clearance - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"26.1","MetricUnit":"mm","MetricValue":"664","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"89"}
Axle to Vertical Hitch Pin

20 in 509 mm
{"Name":"Axle to Vertical Hitch Pin","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"20","MetricUnit":"mm","MetricValue":"509","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"90"}
Height - Scraper Blade Maximum

20 in 510 mm
{"Name":"Height - Scraper Blade Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"20","MetricUnit":"mm","MetricValue":"510","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"91"}
Wheel Base

346.8 in 8808 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"346.8","MetricUnit":"mm","MetricValue":"8808","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"92"}
Length - Overall Machine - Standard

596.8 in 15160 mm
{"Name":"Length - Overall Machine - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"596.8","MetricUnit":"mm","MetricValue":"15160","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"93"}
Length - Maximum (Push-Pull)

655.2 in 16643 mm
{"Name":"Length - Maximum (Push-Pull)","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"655.2","MetricUnit":"mm","MetricValue":"16643","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"94"}
Rear Axle - Rear of Machine

108 in 2744 mm
{"Name":"Rear Axle - Rear of Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"108","MetricUnit":"mm","MetricValue":"2744","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"95"}
Width - Outside Rear Tires

143.2 in 3636 mm
{"Name":"Width - Outside Rear Tires","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"143.2","MetricUnit":"mm","MetricValue":"3636","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"1000"}

Engine

Emissions

Cat® C18 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"Cat® C18 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"5"}
Engine Model - Tractor

Cat® C18
{"Name":"Engine Model - Tractor","SpecificationId":null,"TextValue":"Cat® C18","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"6"}
Rated Engine RPM - Tractor

1900 r/min 1900 r/min
{"Name":"Rated Engine RPM - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1900","MetricUnit":"r/min","MetricValue":"1900","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Flywheel Power - Tractor

570 hp 425 kW
{"Name":"Flywheel Power - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"570","MetricUnit":"kW","MetricValue":"425","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}

General

Overall Width

12.11 ft 3.94 m
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.11","MetricUnit":"m","MetricValue":"3.94","Type":"measurement","SpecificationGroup":"General","SortOrder":"7"}
Overall Shipping Height

12.9 ft 3.89 m
{"Name":"Overall Shipping Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.9","MetricUnit":"m","MetricValue":"3.89","Type":"measurement","SpecificationGroup":"General","SortOrder":"8"}
Scraper Capacity - Struck

24 yd³ 18.3 m³
{"Name":"Scraper Capacity - Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"24","MetricUnit":"m³","MetricValue":"18.3","Type":"measurement","SpecificationGroup":"General","SortOrder":"9"}
Scraper Capacity - Heaped

34 yd³ 26 m³
{"Name":"Scraper Capacity - Heaped","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"34","MetricUnit":"m³","MetricValue":"26","Type":"measurement","SpecificationGroup":"General","SortOrder":"10"}
Rated Load

37 200 kg (82,200 lb); 37.2 tonnes (41.1 tons)
{"Name":"Rated Load","SpecificationId":null,"TextValue":"37 200 kg (82,200 lb); 37.2 tonnes (41.1 tons)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"General","SortOrder":"11"}
Width - Cut

17.7 ft 3.51 m
{"Name":"Width - Cut","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"17.7","MetricUnit":"m","MetricValue":"3.51","Type":"measurement","SpecificationGroup":"General","SortOrder":"12"}
Maximum Depth of Cut

12.4 in 450 mm
{"Name":"Maximum Depth of Cut","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"12.4","MetricUnit":"mm","MetricValue":"450","Type":"measurement","SpecificationGroup":"General","SortOrder":"13"}
Maximum Depth of Spread

21.1 in 535 mm
{"Name":"Maximum Depth of Spread","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21.1","MetricUnit":"mm","MetricValue":"535","Type":"measurement","SpecificationGroup":"General","SortOrder":"14"}
Top Speed - Loaded

34.7 mile/h 55.8 km/h
{"Name":"Top Speed - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34.7","MetricUnit":"km/h","MetricValue":"55.8","Type":"measurement","SpecificationGroup":"General","SortOrder":"15"}
180° Curb-to-Curb Turning Width

40.12 ft 12.23 m
{"Name":"180° Curb-to-Curb Turning Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"40.12","MetricUnit":"m","MetricValue":"12.23","Type":"measurement","SpecificationGroup":"General","SortOrder":"16"}
Tires - Scraper

37.25R35**E3
{"Name":"Tires - Scraper","SpecificationId":null,"TextValue":"37.25R35**E3","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"General","SortOrder":"17"}
Tires - Tractor

37.25R35**E3
{"Name":"Tires - Tractor","SpecificationId":null,"TextValue":"37.25R35**E3","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"General","SortOrder":"17"}
Fuel Tank Refill Capacity - Scraper

231 gal (US) 874 l
{"Name":"Fuel Tank Refill Capacity - Scraper","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"231","MetricUnit":"l","MetricValue":"874","Type":"measurement","SpecificationGroup":"General","SortOrder":"1000"}

Implement Cycle Times

Bowl Raise

3.5 s 3.5 s
{"Name":"Bowl Raise","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"3.5","MetricUnit":"s","MetricValue":"3.5","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"140"}
Bowl Lower

3.5 s 3.5 s
{"Name":"Bowl Lower","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"3.5","MetricUnit":"s","MetricValue":"3.5","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"141"}
Apron Raise

4 s 4 s
{"Name":"Apron Raise","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"4","MetricUnit":"s","MetricValue":"4","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"142"}
Apron Lower

3.8 s 3.8 s
{"Name":"Apron Lower","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"3.8","MetricUnit":"s","MetricValue":"3.8","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"143"}
Ejector Extend

8.5 s 8.5 s
{"Name":"Ejector Extend","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"8.5","MetricUnit":"s","MetricValue":"8.5","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"144"}
Ejector Retract

8.5 s 8.5 s
{"Name":"Ejector Retract","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"8.5","MetricUnit":"s","MetricValue":"8.5","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"145"}
Bail Raise

1.5 s 1.5 s
{"Name":"Bail Raise","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"1.5","MetricUnit":"s","MetricValue":"1.5","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"146"}
Bail Lower

2.1 s 2.1 s
{"Name":"Bail Lower","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"2.1","MetricUnit":"s","MetricValue":"2.1","Type":"measurement","SpecificationGroup":"Implement Cycle Times","SortOrder":"147"}

Non Push-Pull

Overall Length

49.34 ft 15.04 m
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"49.34","MetricUnit":"m","MetricValue":"15.04","Type":"measurement","SpecificationGroup":"Non Push-Pull","SortOrder":"90"}
Operating Weight - Empty

102750 lb 46600 kg
{"Name":"Operating Weight - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"102750","MetricUnit":"kg","MetricValue":"46600","Type":"measurement","SpecificationGroup":"Non Push-Pull","SortOrder":"91"}

Push-Pull

Operating Weight - Empty

106430 lb 48275 kg
{"Name":"Operating Weight - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"106430","MetricUnit":"kg","MetricValue":"48275","Type":"measurement","SpecificationGroup":"Push-Pull","SortOrder":"90"}
Overall Length - With Bail Down

54.59 ft 16.64 m
{"Name":"Overall Length - With Bail Down","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"54.59","MetricUnit":"m","MetricValue":"16.64","Type":"measurement","SpecificationGroup":"Push-Pull","SortOrder":"130"}

Safety Criteria Compliance Standards

Steering System

ISO 5010:2007
{"Name":"Steering System","SpecificationId":null,"TextValue":"ISO 5010:2007","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Safety Criteria Compliance Standards","SortOrder":"99"}
Falling Object Protective Structure (FOPS)

ISO 3449:2005 Level II
{"Name":"Falling Object Protective Structure (FOPS)","SpecificationId":null,"TextValue":"ISO 3449:2005 Level II","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Safety Criteria Compliance Standards","SortOrder":"99"}
Rollover Protection Structure (ROPS)

ISO 3471:2008 for up to 21 282 kg (46,919 lb)
{"Name":"Rollover Protection Structure (ROPS)","SpecificationId":null,"TextValue":"ISO 3471:2008 for up to 21 282 kg (46,919 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Safety Criteria Compliance Standards","SortOrder":"99"}
Seat Belt

SAE J386:FEB2006
{"Name":"Seat Belt","SpecificationId":null,"TextValue":"SAE J386:FEB2006","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Safety Criteria Compliance Standards","SortOrder":"99"}
Reverse Alarm

ISO 9533:2010
{"Name":"Reverse Alarm","SpecificationId":null,"TextValue":"ISO 9533:2010","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Safety Criteria Compliance Standards","SortOrder":"99"}
Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Safety Criteria Compliance Standards","SortOrder":"99"}

Scraper Bowl

Scraper Capacity - Heaped

34 yd³ 26 m³
{"Name":"Scraper Capacity - Heaped","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"34","MetricUnit":"m³","MetricValue":"26","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"2"}

Service Refill Capacities

Real Wheels (Each)

2.37 gal (US) 9 l
{"Name":"Real Wheels (Each)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.37","MetricUnit":"l","MetricValue":"9","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"62"}
Crankcase - Tractor

13.7 gal (US) 52 l
{"Name":"Crankcase - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"13.7","MetricUnit":"l","MetricValue":"52","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"63"}
Transmission System

29 gal (US) 110 l
{"Name":"Transmission System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"29","MetricUnit":"l","MetricValue":"110","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"64"}
Cooling System

18.75 gal (US) 71 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"18.75","MetricUnit":"l","MetricValue":"71","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"65"}
Fuel Tank

231 gal (US) 874 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"231","MetricUnit":"l","MetricValue":"874","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"66"}
Hydraulic System

37.5 gal (US) 142 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"37.5","MetricUnit":"l","MetricValue":"142","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"67"}
Diesel Exhaust Fluid (DEF)

8 gal (US) 30.5 l
{"Name":"Diesel Exhaust Fluid (DEF)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8","MetricUnit":"l","MetricValue":"30.5","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"68"}

Service Refill Capacities - Scraper

Final Drive - Each

8.71 gal (US) 33 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8.71","MetricUnit":"l","MetricValue":"33","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"72"}

Service Refill Capacities - Tractor

Windshield Washer Reservoir

1.3 gal (US) 5 l
{"Name":"Windshield Washer Reservoir","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1.3","MetricUnit":"l","MetricValue":"5","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"69"}
Differential

40.41 gal (US) 153 l
{"Name":"Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"40.41","MetricUnit":"l","MetricValue":"153","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"71"}

Tractor Engine

Flywheel Power - Tractor/Scraper

570 hp 425 kW
{"Name":"Flywheel Power - Tractor/Scraper","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"570","MetricUnit":"kW","MetricValue":"425","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"1"}

Transmission

Top Speed - Loaded

34.7 mile/h 55.8 km/h
{"Name":"Top Speed - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34.7","MetricUnit":"km/h","MetricValue":"55.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"3"}

Travel Speeds - Runout

Transmission Gear - First

3.4 mile/h 5.5 km/h
{"Name":"Transmission Gear - First","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.4","MetricUnit":"km/h","MetricValue":"5.5","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"5"}
Transmission Gear - Second

6.2 mile/h 10 km/h
{"Name":"Transmission Gear - Second","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.2","MetricUnit":"km/h","MetricValue":"10","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"7"}
Transmission Gear - Third

7.7 mile/h 12.4 km/h
{"Name":"Transmission Gear - Third","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.7","MetricUnit":"km/h","MetricValue":"12.4","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"8"}
Transmission Gear - Fourth

10.5 mile/h 16.9 km/h
{"Name":"Transmission Gear - Fourth","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"10.5","MetricUnit":"km/h","MetricValue":"16.9","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"9"}
Transmission Gear - Fifth

14.1 mile/h 22.7 km/h
{"Name":"Transmission Gear - Fifth","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14.1","MetricUnit":"km/h","MetricValue":"22.7","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"10"}
Transmission Gear - Sixth

19 mile/h 30.6 km/h
{"Name":"Transmission Gear - Sixth","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"19","MetricUnit":"km/h","MetricValue":"30.6","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"11"}
Transmission Gear - Seventh

25.7 mile/h 41.4 km/h
{"Name":"Transmission Gear - Seventh","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25.7","MetricUnit":"km/h","MetricValue":"41.4","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"12"}
Transmission Gear - Eighth

34.7 mile/h 55.8 km/h
{"Name":"Transmission Gear - Eighth","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34.7","MetricUnit":"km/h","MetricValue":"55.8","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"13"}
Transmission Gear - Reverse

6.2 mile/h 9.9 km/h
{"Name":"Transmission Gear - Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.2","MetricUnit":"km/h","MetricValue":"9.9","Type":"measurement","SpecificationGroup":"Travel Speeds - Runout","SortOrder":"14"}

Benefits

Be More Productive

The Advanced Productivity Electronic Control System (APECS) allows
    the engine and transmission to communicate on a high level. This
    communication allows the machine to utilize better the power
    and torque the engine is producing. The net result is moving more
    material.
Use Ground Speed Control to set the desired top speed and the machine will find the gear that works best for the engine and the
transmission, providing a lower fuel burn.
The machine speed limit feature allows the machine to maintain a
set top speed instead of relying on top gear selector.
Auto-Stall assists in quickly bringing the transmission to an
operating temperature at start-up when the machine is working in a cold climate region.
Cat® Payload for scrapers is an earthmoving solution for optimal payload and jobsite efficiency. Cat Payload achieves on-the-go weighing by using bowl lift cylinder pressure during the loaded haul segment. Cat Payload is optimized to be used with Sequence Assist, which provides increased productivity with less operator
effort.
Enhance productivity through the usage of Cat Payload with
Sequence Assist.

Work in comfort

Reduce up to 14 individual operator commands per cycle with Sequence Assist.
Steer with less effort using the newly designed high-pressure steering system.
Enjoy interior improvements and a more ergonomic work
environment with a 21% larger cab than the G Series cab.
Intuitive, ergonomic controls keep operators focused on their work.
Maintain desired cab temperature with automatic temperature control.

Designed for Safety

Enhance an operator’s awareness of site surroundings with the work area vision system (WAVS).
Get in and out of the cab easier with the new powered access ladder system (optional attachment).
Seat belt indicator provides visual and audible alerts when the seatbelt is not in use.
Advanced Cushion Hitch allows the cushion hitch to prevent endstroke by predicting endstroke events and managing the rate of dampening, resulting in reduced hitch maintenance and improved operator ride in rough conditions.
The fuel fill, fuel filter, engine oil filter, engine oil change, and water drain are easily accessible at ground level.

Easy to Operate

The spacious cab features easy, intuitive controls and excellent visibility
. The cab provides a comfortable working environment for all-day
operation.
Cat advanced ride management (ARM) seat suspension reduces end
stroke movement of the load cylinder for a smoother ride.
Engine overspeed protection will automatically engage with no operator
input when the machine is in eighth gear. The machine will assist in slowing the machine speed by canceling the throttle command and engaging the engine compression brake.

Integrated Cat Technologies

Monitor, manage, and enhance jobsite operations.
Hit the target grade faster and more accurately with Cat Grade technologies. Finish jobs in fewer passes and with less operator effort, saving you time and helping to increase profit.
Product Link™ collects machine data that can be viewed online through web and mobile applications (optional attachment).
Access information anytime, anywhere with VisionLink® – use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security on your
jobsite.
Shorten the learning curve for inexperienced operators with
Sequence Assist and Load Assist (included with Cat Grade
attachment).

Execute Efficiency

The new tractor hydraulic on -demand fan helps assist in lower fuel consumption.
Using draft-arm overflow guards diverts material away from the bowl, preventing material from getting caught between the draft arms and the bowl sides.
Cat Grade (optional attachment) intelligently ensures the machine does not cut below grade in a cut area or overfill in the fill area.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN – TRACTOR

Cat® C18

POWER TRAIN – SCRAPER

Braking system:

Primary and secondary, dry caliper, hydraulic actuated

ELECTRICAL – TRACTOR

Alternator, 150 Amp

ELECTRICAL – SCRAPER

Alarm, backup

OPERATOR ENVIRONMENT – TRACTOR

HVAC system, heat, AC, defrost

FLUIDS

Extended Life Coolant to –37° C (–34° F)

OTHER STANDARD EQUIPMENT – TRACTOR

Advanced cushion hitch

OTHER STANDARD EQUIPMENT – SCRAPER

Bowl:

18.3 m3 (24 yd3), struck
26 m3 (34 yd3), heaped

Product Brochures

Product Brochure #1

Product Brochure #2

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

631

Be More Productive

Work in comfort

Designed for Safety

Easy to Operate

Integrated Cat Technologies

Execute Efficiency

NOTE

POWER TRAIN – TRACTOR

POWER TRAIN – SCRAPER

ELECTRICAL – TRACTOR

ELECTRICAL – SCRAPER

OPERATOR ENVIRONMENT – TRACTOR

FLUIDS

OTHER STANDARD EQUIPMENT – TRACTOR

OTHER STANDARD EQUIPMENT – SCRAPER

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
