651

Get in touch

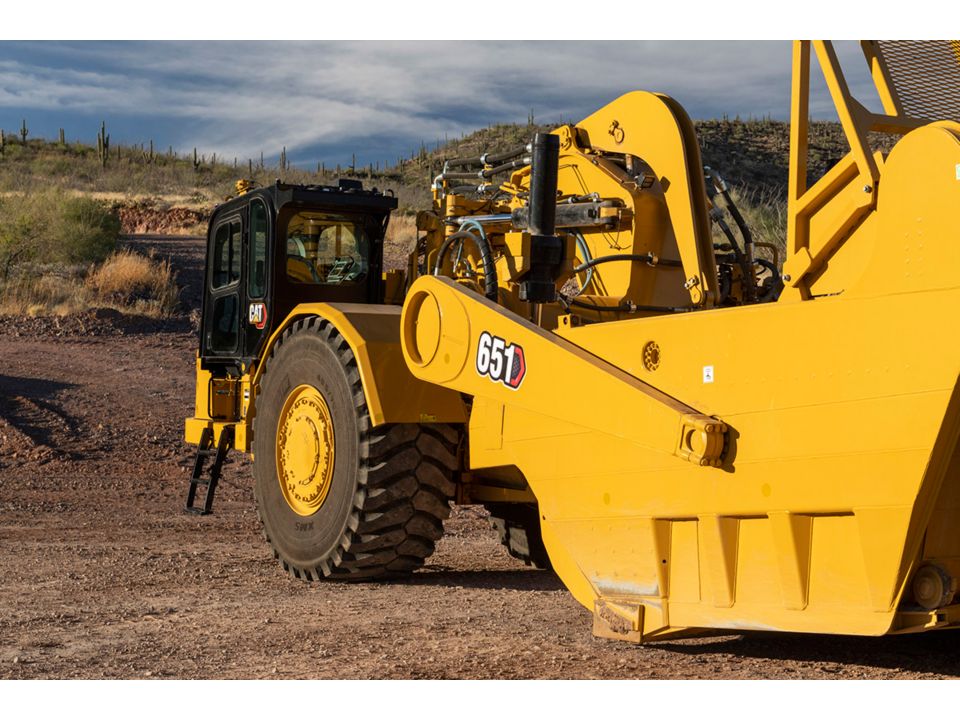

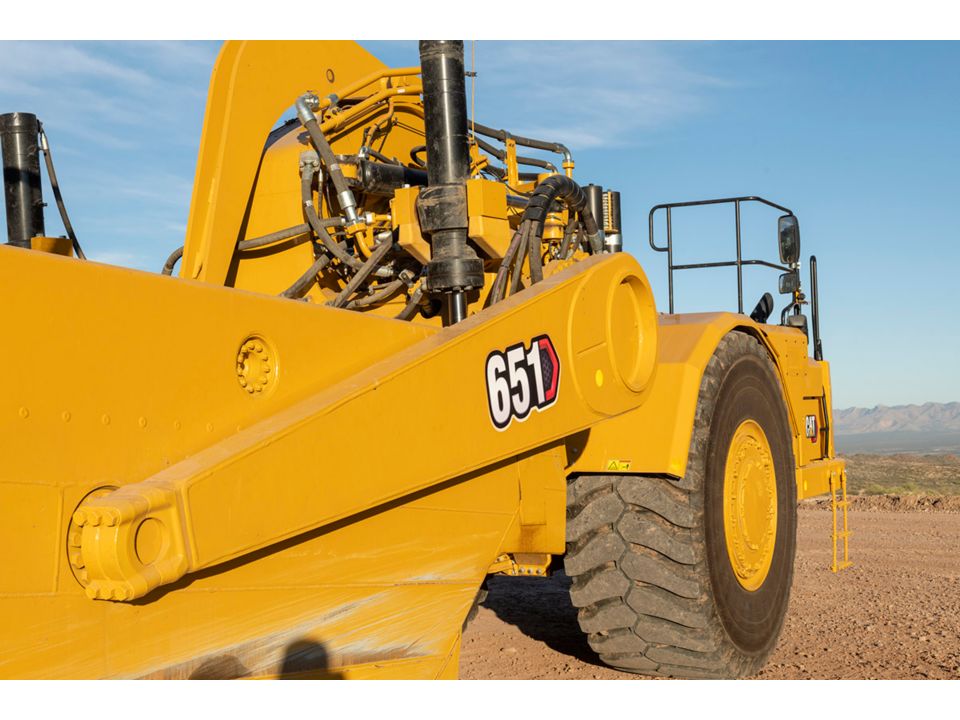

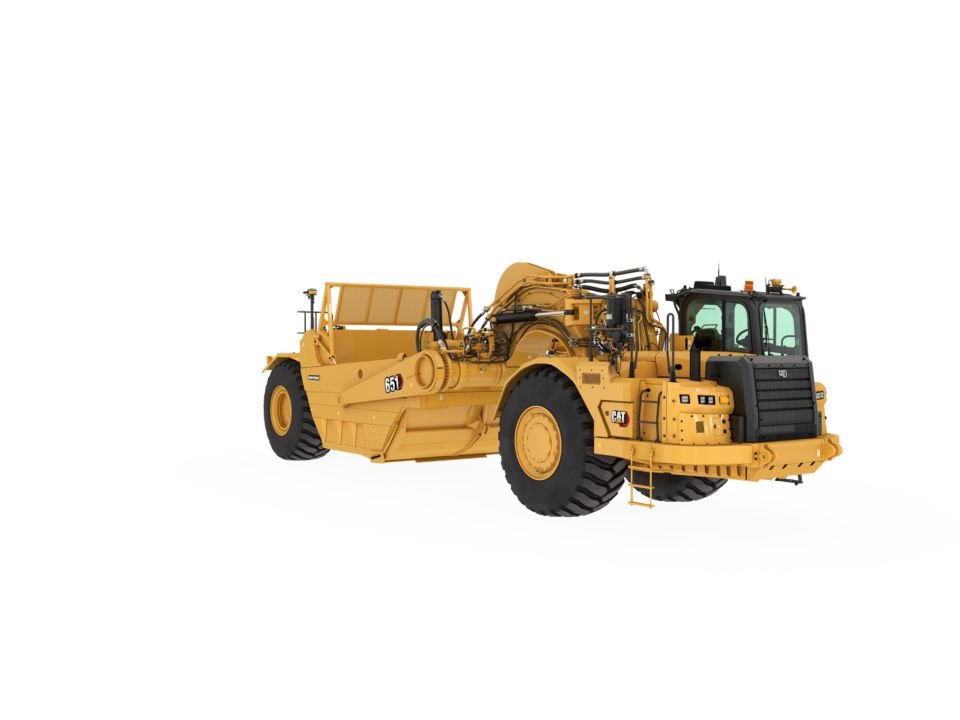

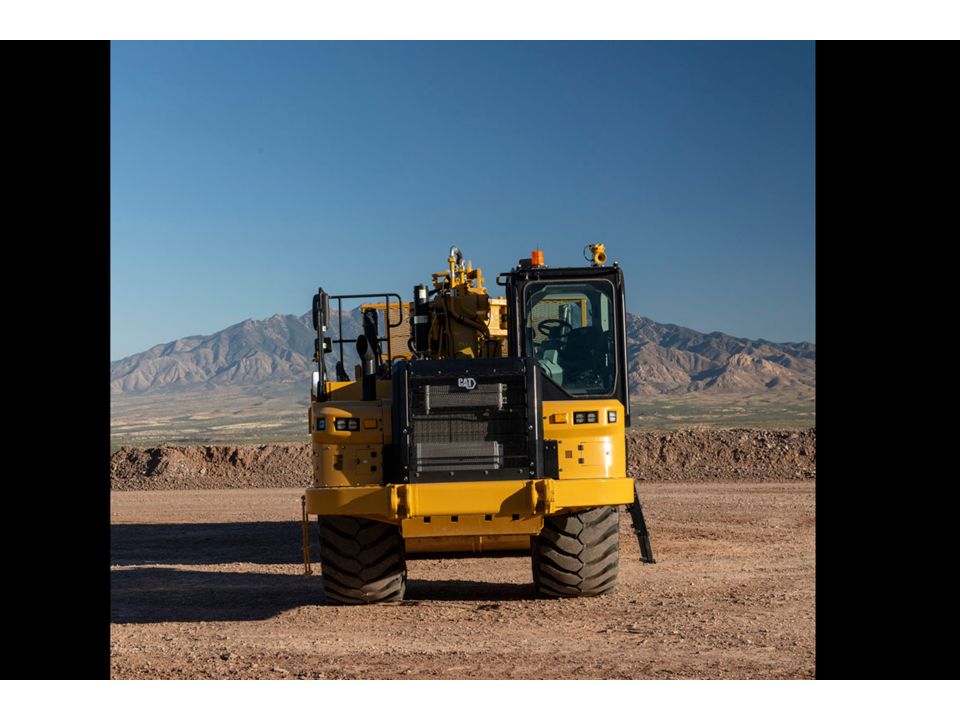

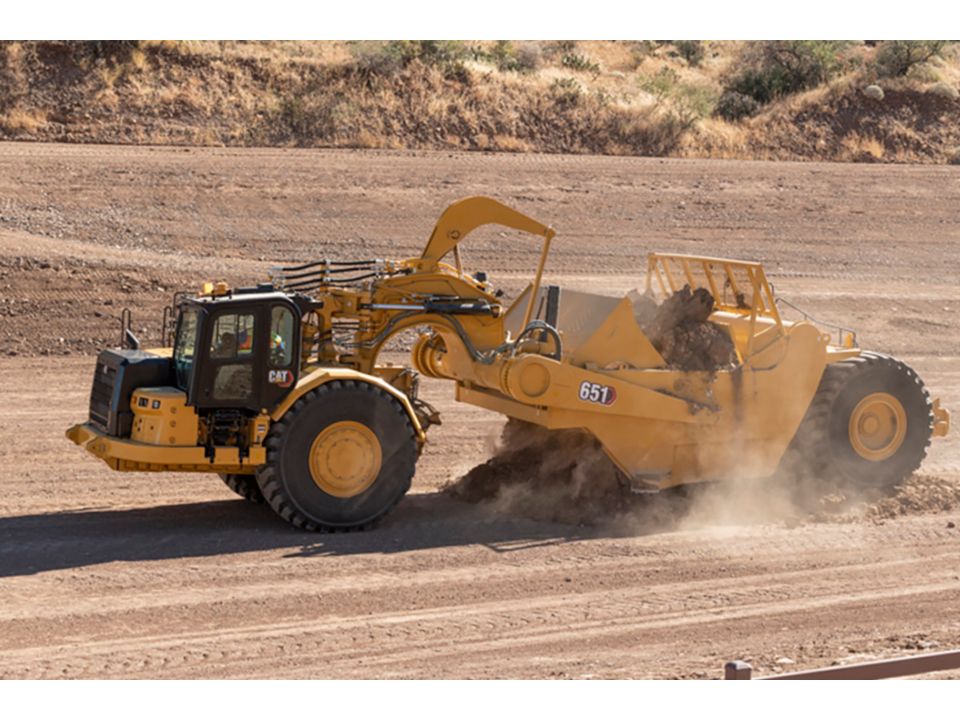

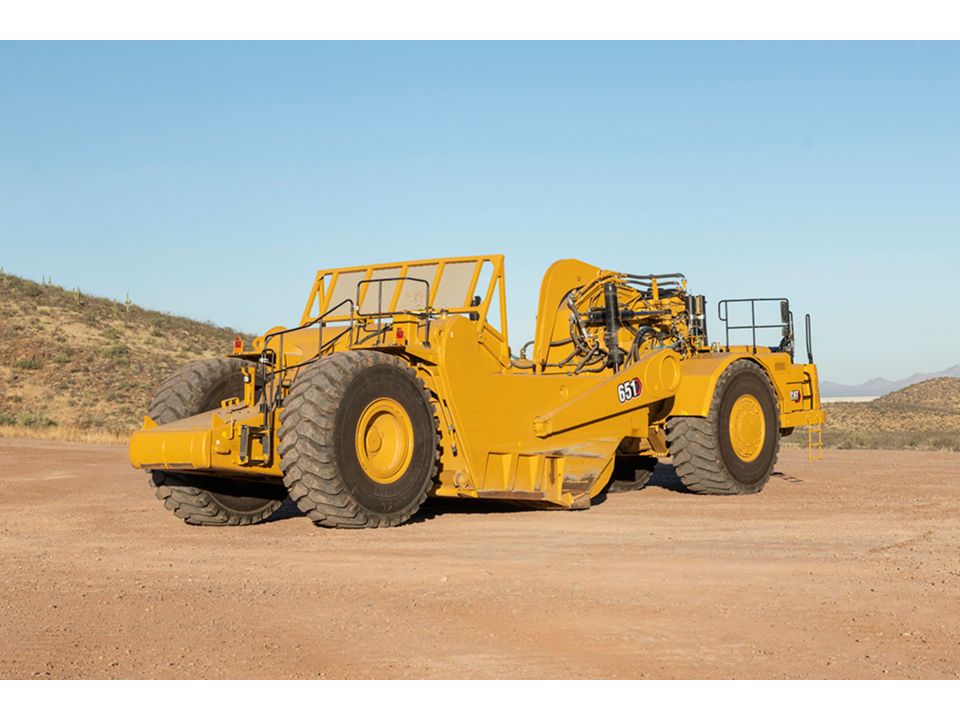

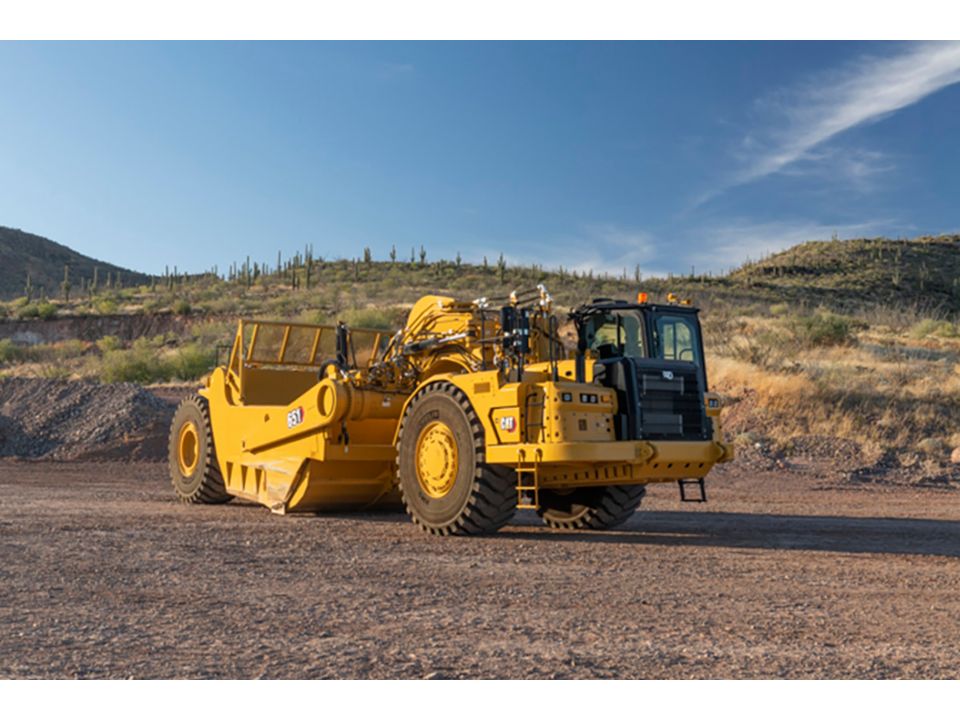

The Open Bowl Wheel Tractor-Scraper is available as a self-loading, push loaded or push loaded hauling system with a broad material appetite.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Dimensions

Width - Overall Machine

14.3 ft 4.36 m
{"Name":"Width - Overall Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"14.3","MetricUnit":"m","MetricValue":"4.36","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"40"}
Width - Tractor

11.87 ft 3.62 m
{"Name":"Width - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"11.87","MetricUnit":"m","MetricValue":"3.62","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"41"}
Width - Rear Tire Center Lines

9.21 ft 2.81 m
{"Name":"Width - Rear Tire Center Lines","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.21","MetricUnit":"m","MetricValue":"2.81","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"42"}
Width - Inside of Bowl

12.07 ft 3.68 m
{"Name":"Width - Inside of Bowl","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.07","MetricUnit":"m","MetricValue":"3.68","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"43"}
Width - Outside Bowl - Shipping Width

12.98 ft 3.91 m
{"Name":"Width - Outside Bowl - Shipping Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.98","MetricUnit":"m","MetricValue":"3.91","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"45"}
Height - Overall Shipping

15.29 ft 4.42 m
{"Name":"Height - Overall Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15.29","MetricUnit":"m","MetricValue":"4.42","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"46"}
Height - Top of Cab

12.77 ft 3.89 m
{"Name":"Height - Top of Cab","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.77","MetricUnit":"m","MetricValue":"3.89","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"47"}
Ground Clearance - Tractor

2.3 ft 0.7 m
{"Name":"Ground Clearance - Tractor","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"m","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"48"}
Front of Tractor to Front Axle

14.93 ft 3.88 m
{"Name":"Front of Tractor to Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"14.93","MetricUnit":"m","MetricValue":"3.88","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"49"}
Axle to Vertical Hitch Pin

1.8 ft 0.55 m
{"Name":"Axle to Vertical Hitch Pin","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.8","MetricUnit":"m","MetricValue":"0.55","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"51"}
Height - Scraper Blade Maximum

2.17 ft 0.66 m
{"Name":"Height - Scraper Blade Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.17","MetricUnit":"m","MetricValue":"0.66","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"52"}
Wheel Base

32.68 ft 9.96 m
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"32.68","MetricUnit":"m","MetricValue":"9.96","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"53"}
Length - Overall Machine

58.96 ft 17.97 m
{"Name":"Length - Overall Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"58.96","MetricUnit":"m","MetricValue":"17.97","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"54"}
Rear Axle - Rear of Machine

8.07 ft 2.46 m
{"Name":"Rear Axle - Rear of Machine","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8.07","MetricUnit":"m","MetricValue":"2.46","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"55"}

Engine

Tractor Engine

Cat® C18
{"Name":"Tractor Engine","SpecificationId":null,"TextValue":"Cat® C18","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"1"}

Hydraulics

Bowl Cylinder Bore

7.08 in 180 mm
{"Name":"Bowl Cylinder Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.08","MetricUnit":"mm","MetricValue":"180","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"126"}
Bowl Cylinder Stroke

37.4 in 950 mm
{"Name":"Bowl Cylinder Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"37.4","MetricUnit":"mm","MetricValue":"950","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"127"}
Apron Cylinder Bore

7.08 in 180 mm
{"Name":"Apron Cylinder Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.08","MetricUnit":"mm","MetricValue":"180","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"128"}
Apron Cylinder Stroke

29.92 in 759.5 mm
{"Name":"Apron Cylinder Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.92","MetricUnit":"mm","MetricValue":"759.5","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"129"}
Steering Circuit (@ High Idle)

76.08 gpm 288 L/min
{"Name":"Steering Circuit (@ High Idle)","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"76.08","MetricUnit":"L/min","MetricValue":"288","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"132"}
Cushion Hitch Circuit

19.54 gpm 74 L/min
{"Name":"Cushion Hitch Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"19.54","MetricUnit":"L/min","MetricValue":"74","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"134"}
Secondary Steering Circuit

14.52 gal/hr 55 l/hr
{"Name":"Secondary Steering Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal/hr","EnglishValue":"14.52","MetricUnit":"l/hr","MetricValue":"55","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"135"}
Relief Valve - Steering Circuit

1959 psi 13500 kPa
{"Name":"Relief Valve - Steering Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1959","MetricUnit":"kPa","MetricValue":"13500","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"136"}
Relief Valve - Implement Circuit

1999 psi 13780 kPa
{"Name":"Relief Valve - Implement Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1999","MetricUnit":"kPa","MetricValue":"13780","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"137"}
Compensator Settings - Cushion Hitch Circuit

3002 psi 20700 kPa
{"Name":"Compensator Settings - Cushion Hitch Circuit","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3002","MetricUnit":"kPa","MetricValue":"20700","Type":"measurement","SpecificationGroup":"Hydraulics","SortOrder":"138"}

Scraper Bowl

Scraper Capacity - Heaped

44 yd³ 33.6 m³
{"Name":"Scraper Capacity - Heaped","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"44","MetricUnit":"m³","MetricValue":"33.6","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"2"}
Rated Load

104000 lb 47174 kg
{"Name":"Rated Load","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"104000","MetricUnit":"kg","MetricValue":"47174","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"8"}
Capacity - Struck

32 yd³ 24.5 m³
{"Name":"Capacity - Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"32","MetricUnit":"m³","MetricValue":"24.5","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"58"}
Depth of Cut - Maximum

17.3 in 417 mm
{"Name":"Depth of Cut - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.3","MetricUnit":"mm","MetricValue":"417","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"59"}
Width - Cut - To Router Bits

12.5 ft 3.8 m
{"Name":"Width - Cut - To Router Bits","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"m","MetricValue":"3.8","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"60"}
Ground Clearance - Maximum

2.3 ft 0.7 m
{"Name":"Ground Clearance - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"m","MetricValue":"0.7","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"61"}
Depth of Spread - Maximum

26 in 660 mm
{"Name":"Depth of Spread - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"26","MetricUnit":"mm","MetricValue":"660","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"73"}
Apron Opening

92 in 2337 mm
{"Name":"Apron Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"92","MetricUnit":"mm","MetricValue":"2337","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"74"}
Apron Closure Force

39200 lb 176 kN
{"Name":"Apron Closure Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"39200","MetricUnit":"kN","MetricValue":"176","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"75"}
Hyd. Penetration Force - 657G

121000 lb 542 kN
{"Name":"Hyd. Penetration Force - 657G","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"121000","MetricUnit":"kN","MetricValue":"542","Type":"measurement","SpecificationGroup":"Scraper Bowl","SortOrder":"1000"}

Service Refill Capacities - Scraper

Crankcase

8.9 gal (US) 34 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8.9","MetricUnit":"l","MetricValue":"34","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"1000"}
Transmission

31.9 gal (US) 121 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"31.9","MetricUnit":"l","MetricValue":"121","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"1000"}
Cooling System

16.6 gal (US) 63.2 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"16.6","MetricUnit":"l","MetricValue":"63.2","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"1000"}
Final Drive - Each

7.8 gal (US) 30 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"7.8","MetricUnit":"l","MetricValue":"30","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"1000"}
Fuel Tank

430 gal (US) 1628 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"430","MetricUnit":"l","MetricValue":"1628","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"1000"}
Differential

44 gal (US) 168 l
{"Name":"Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"44","MetricUnit":"l","MetricValue":"168","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Scraper","SortOrder":"1000"}

Service Refill Capacities - Tractor

Crankcase

13.7 gal (US) 52 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"13.7","MetricUnit":"l","MetricValue":"52","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"106"}
Transmission

35.9 gal (US) 136 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"35.9","MetricUnit":"l","MetricValue":"136","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"117"}
Differential

36 gal (US) 136 l
{"Name":"Differential","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"36","MetricUnit":"l","MetricValue":"136","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"118"}
Final Drive - Each

6.3 gal (US) 24 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6.3","MetricUnit":"l","MetricValue":"24","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"120"}
Cooling System

23.4 gal (US) 88.6 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"23.4","MetricUnit":"l","MetricValue":"88.6","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"121"}
Hydraulic Reservoir

39.6 gal (US) 150 l
{"Name":"Hydraulic Reservoir","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"39.6","MetricUnit":"l","MetricValue":"150","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"122"}
Windshield Washer

0.5 gal (US) 5 l
{"Name":"Windshield Washer","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"0.5","MetricUnit":"l","MetricValue":"5","Type":"measurement","SpecificationGroup":"Service Refill Capacities - Tractor","SortOrder":"125"}

Steering

Width - 180° Turn - Right

44.6 ft 13.6 m
{"Name":"Width - 180° Turn - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"44.6","MetricUnit":"m","MetricValue":"13.6","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"100"}
Width - 180° Turn - Left

47.57 ft 14.5 m
{"Name":"Width - 180° Turn - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"47.57","MetricUnit":"m","MetricValue":"14.5","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"101"}
Steering Angle - Right

90
{"Name":"Steering Angle - Right","SpecificationId":null,"TextValue":"90","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"102"}
Steering Angle - Left

85
{"Name":"Steering Angle - Left","SpecificationId":null,"TextValue":"85","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"103"}

Tractor Engine

Flywheel Power - Tractor/Scraper

469kW (629 hp)
{"Name":"Flywheel Power - Tractor/Scraper","SpecificationId":null,"TextValue":"469kW (629 hp)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tractor Engine","SortOrder":"1"}
Bore

5.7 in 145 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.7","MetricUnit":"mm","MetricValue":"145","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"84"}
Stroke

7.2 in 183 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.2","MetricUnit":"mm","MetricValue":"183","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"86"}
Displacement

1105 in³ 18.1 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"1105","MetricUnit":"l","MetricValue":"18.1","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"88"}
Net Power (SAE J1349/ISO 9249)

592 hp 436 kW
{"Name":"Net Power (SAE J1349/ISO 9249)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"592","MetricUnit":"kW","MetricValue":"436","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"1000"}
Gross Power (SAE J1995)

637 hp 475 kW
{"Name":"Gross Power (SAE J1995)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"637","MetricUnit":"kW","MetricValue":"475","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"1000"}
Net Power (ISO 14396)

585 hp 436 kW
{"Name":"Net Power (ISO 14396)","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"585","MetricUnit":"kW","MetricValue":"436","Type":"measurement","SpecificationGroup":"Tractor Engine","SortOrder":"1000"}
Net Power

469 kW/629 hp (ISO 14369:2002)
{"Name":"Net Power","SpecificationId":null,"TextValue":"469 kW/629 hp (ISO 14369:2002)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tractor Engine","SortOrder":"1000"}

Transmission

Top Speed - Loaded

34.9 mile/h 56.1 km/h
{"Name":"Top Speed - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34.9","MetricUnit":"km/h","MetricValue":"56.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"3"}
1 Forward

3.5 mile/h 5.7 km/h
{"Name":"1 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3.5","MetricUnit":"km/h","MetricValue":"5.7","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"90"}
2 Forward

6.5 mile/h 10.5 km/h
{"Name":"2 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.5","MetricUnit":"km/h","MetricValue":"10.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"91"}
3 Forward

7.8 mile/h 12.5 km/h
{"Name":"3 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.8","MetricUnit":"km/h","MetricValue":"12.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"92"}
4 Forward

10.6 mile/h 17 km/h
{"Name":"4 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"10.6","MetricUnit":"km/h","MetricValue":"17","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"93"}
5 Forward

14.2 mile/h 22.8 km/h
{"Name":"5 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14.2","MetricUnit":"km/h","MetricValue":"22.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"94"}
6 Forward

19.2 mile/h 30.9 km/h
{"Name":"6 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"19.2","MetricUnit":"km/h","MetricValue":"30.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"95"}
7 Forward

25.7 mile/h 41.4 km/h
{"Name":"7 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"25.7","MetricUnit":"km/h","MetricValue":"41.4","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"96"}
8 Forward

34.9 mile/h 56.1 km/h
{"Name":"8 Forward","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"34.9","MetricUnit":"km/h","MetricValue":"56.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"97"}
Reverse

6.7 mile/h 10.8 km/h
{"Name":"Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"6.7","MetricUnit":"km/h","MetricValue":"10.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"98"}

Weights - Push-Pull

Total Shipping

160505 lb 72804 kg
{"Name":"Total Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"160505","MetricUnit":"kg","MetricValue":"72804","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"31"}
Tractor Shipping

93635 lb 42472 kg
{"Name":"Tractor Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"93635","MetricUnit":"kg","MetricValue":"42472","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"32"}
Scraper Shipping

64068 lb 29061 kg
{"Name":"Scraper Shipping","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"64068","MetricUnit":"kg","MetricValue":"29061","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"33"}
Total Operating - Empty

164244 lb 74500 kg
{"Name":"Total Operating - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"164244","MetricUnit":"kg","MetricValue":"74500","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"34"}
Front Axle

93842 lb 42566 kg
{"Name":"Front Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"93842","MetricUnit":"kg","MetricValue":"42566","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"35"}
Rear Axle

66663 lb 30238 kg
{"Name":"Rear Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"66663","MetricUnit":"kg","MetricValue":"30238","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"36"}
Total Operating - Loaded

268302 lb 121700 kg
{"Name":"Total Operating - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"268302","MetricUnit":"kg","MetricValue":"121700","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"37"}
Front Axle - Loaded

134165 lb 60856 kg
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"134165","MetricUnit":"kg","MetricValue":"60856","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"38"}
Rear Axle - Loaded

130340 lb 59121 kg
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"130340","MetricUnit":"kg","MetricValue":"59121","Type":"measurement","SpecificationGroup":"Weights - Push-Pull","SortOrder":"39"}

Benefits

BE MORE PRODUCTIVE

The Advanced Productivity Electronic Control System (APECS) enables communication between the engine and transmission to optimize power and torque output effectively. This integration
results in enhanced efficiency with a net result of moving more
material.
Use Ground Speed Control to set the desired top speed, and the machine will find the gear that works best for the engine and the transmission, providing a lower fuel burn.
The machine speed limit feature allows the machine to maintain a
set the top speed instead of relying on top gear selector.
Auto-Stall assists in quickly bringing the transmission to an
operating temperature at start-up when the machine is working in a cold climate region.
Cat Payload for scrapers is an earthmoving solution for optimal payload and jobsite efficiency. Cat Payload achieves on-the-go
    weighing by using bowl lift cylinder pressure during the loaded haul segment. Cat Payload is optimized to be used with Sequence
    Assist, which provides increased productivity with less operator
    effort.

WORK IN COMFORT

Steer with less effort with the newly designed high-pressure steering system.
Reduce up to 14 individual operator commands per cycle with
Sequence Assist.
Enjoy interior improvements and a more ergonomic work environment
.
Intuitive, ergonomic controls with multifunction display keep operators
focused on their work.
Maintain desired cab temperature with automatic temperature control
.

DESIGNED FOR SAFETY

Get in and out of the cab easier with the powered access ladder system.
Enhance the operator’s awareness of site surroundings with the
Work Area Vision System (WAVS).
Convenient ground-level access to fuel fill and several maintenance points for easier
and safer service.
Seat belt indicator provides visual and audible alerts when the seat
belt is not in use.

EASY TO OPERATE

Cat Advanced Ride Management (ARM) seat suspension reduces end stroke movement of the load cylinder for a smoother ride.
Engine overspeed protection will automatically engage with no operator input when the machine is in eighth gear. The machine will assist in slowing the machine speed by canceling the throttle command and engaging the engine compression brake.
The spacious cab features easy, intuitive controls and excellent
visibility. The cab provides a comfortable working environment for
all-day operation.

INTEGRATED CAT TECHNOLOGIES

Access information anytime, anywhere with Vision Link™– use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security on your job site.
Product Link™
collects machine data that can be viewed online through
web and mobile applications (optional attachment).
Hit target grade faster and more accurately with Cat Grade
technologies. Finish jobs in fewer passes and with less operator
effort, saving you time and helping to increase profit.
Monitor, manage, and enhance jobsite operations.
Shorten the learning curve for inexperienced operators with
Sequence Assist.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, backup

OPERATOR ENVIRONMENT

Air Conditioner (includes heater and defroster)

POWER TRAIN

Tractor

OTHER STANDARD EQUIPMENT

Tractor

Product Brochures

Product Brochure #1

Product Brochure #2

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

651

BE MORE PRODUCTIVE

WORK IN COMFORT

DESIGNED FOR SAFETY

EASY TO OPERATE

INTEGRATED CAT TECHNOLOGIES

NOTE

ELECTRICAL

OPERATOR ENVIRONMENT

POWER TRAIN

OTHER STANDARD EQUIPMENT

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
