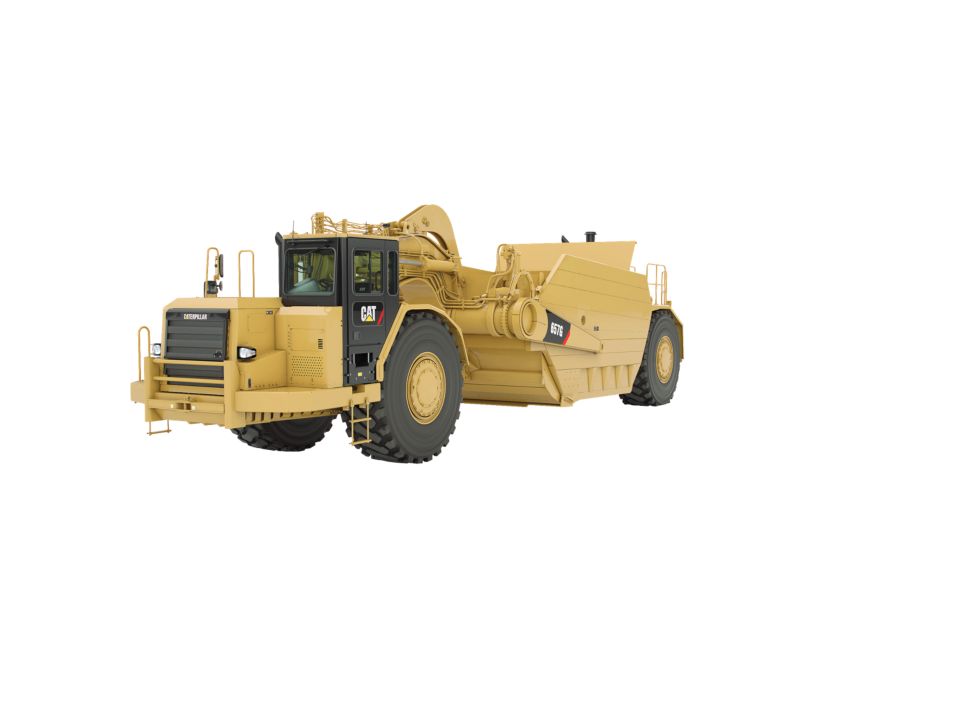

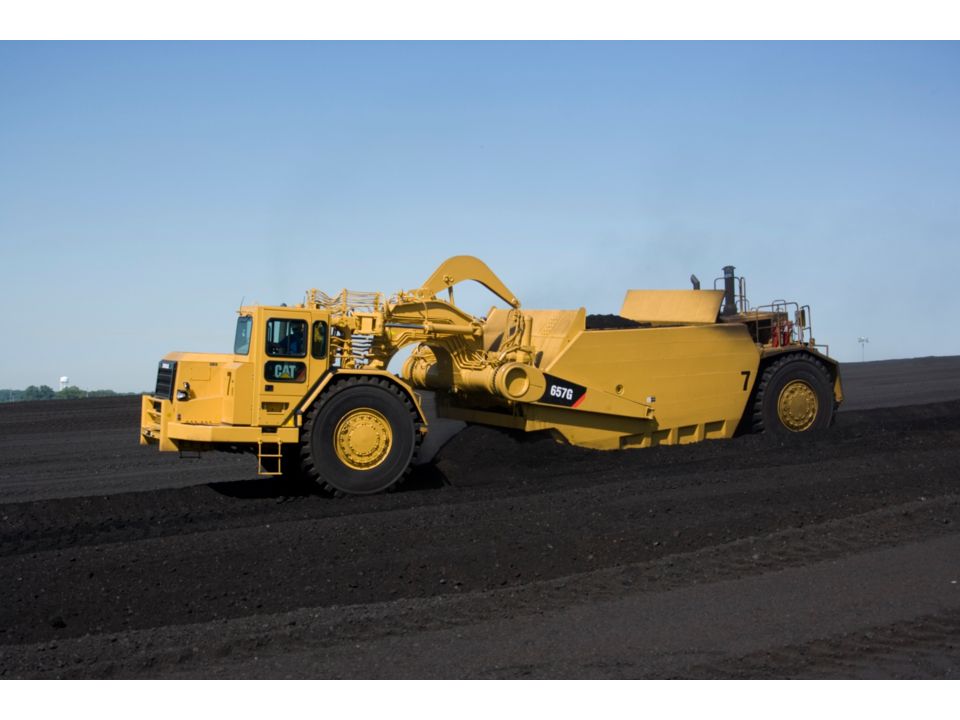

657G
Open Bowl Scrapers
The Open Bowl Wheel Tractor-Scraper is available as a self-loading, push loaded or push loaded hauling system with a broad material appetite.
Book a Demo
Explore my deals
Specifications
Dimensions
-
Width - Overall Machine171 in 4344 mm
-
Width - Tractor141.77 in 3601 mm
-
Width - Rear Tire Center Lines110.75 in 2813 mm
-
Width - Inside of Bowl145 in 3683 mm
-
Width - Outside Bowl - Shipping Width154 in 3914 mm
-
Height - Overall Shipping185.4 in 4710 mm
-
Height - Top of Cab146.14 in 3712 mm
-
Ground Clearance - Tractor25.39 in 645 mm
-
Front of Tractor to Front Axle148.4 in 3770 mm
-
Axle to Vertical Hitch Pin23.94 in 608 mm
-
Height - Scraper Blade Maximum26.77 in 680 mm
-
Wheel Base391.97 in 9956 mm
-
Length - Overall Machine636.38 in 16164 mm
-
Rear Axle - Rear of Machine95.98 in 2438 mm
-
Bail Length - Maximum (Push-Pull)72.28 in 1836 mm
Engine
-
Tractor EngineCat® C18 ACERT™
-
Scraper EngineCat C15 ACERT
Hydraulics
-
Bowl Cylinder Bore9.25 in 235 mm
-
Bowl Cylinder Stroke37.4 in 950 mm
-
Apron Cylinder Bore9.25 in 235 mm
-
Apron Cylinder Stroke29.92 in 760 mm
-
Ejector Cylinder Bore10.24 in 260 mm
-
Ejector Cylinder Stroke76.61 in 1946 mm
-
Steering Circuit99.9 gpm 378 L/min
-
Scraper Circuit153 gpm 579 L/min
-
Cushion Hitch Circuit12.7 gpm 48 L/min
-
Secondary Steering Circuit64.2 gpm 243 L/min
-
Relief Valve - Steering Circuit1959 psi 13500 kPa
-
Relief Valve - Implement Circuit1999 psi 13780 kPa
-
Compensator Settings - Cushion Hitch Circuit3002 psi 20700 kPa
Scraper Bowl
-
Scraper Capacity - Heaped44 yd³ 33.6 m³
-
Rated Load104000 lb 47174 kg
-
Capacity - Struck32 yd³ 24.5 m³
-
Depth of Cut - Maximum17 in 440 mm
-
Width - Cut - To Router Bits12.7 in 3846 mm
-
Ground Clearance - Maximum23 in 580 mm
-
Cutting Edge Thickness1.8 in 45 mm
-
Hyd. Penetration Force - 657G121000 lb 542 kN
-
Depth of Spread - Maximum26 in 660 mm
-
Apron Opening92 in 2337 mm
-
Apron Closure Force39200 lb 176 kN
Scraper Engine
-
Net Power306/337 kW 410/451 hp
-
Gross Power - Gears 1-2437 hp 326 kW
-
Gross Power - Gears 3-8478 hp 356 kW
-
Net Power - Gears 1-2410 hp 306 kW
-
Net Power - Gears 3-8451 hp 337 kW
-
Bore5.5 in 140 mm
-
Stroke6.5 in 165 mm
-
Displacement928 in³ 15.2 l
Service Refill Capacities - Scraper
-
Fuel Tank - 657G421.9 gal (US) 1597 l
-
Crankcase10 gal (US) 38 l
-
Transmission32 gal (US) 121 l
-
Differential44 gal (US) 168 l
-
Final Drive - Each7.9 gal (US) 30 l
-
Wheel Coolant - Each34.3 gal (US) 130 l
-
Cooling System24 gal (US) 89 l
Service Refill Capacities - Tractor
-
Crankcase17 gal (US) 64 l
-
Transmission36 gal (US) 136 l
-
Differential36 gal (US) 136 l
-
Final Drive - Each6 gal (US) 23 l
-
Cooling System33 gal (US) 125 l
-
Hydraulic Reservoir80 gal (US) 303 l
-
Wheel Coolant - Each34.3 gal (US) 130 l
-
Windshield Washer0.5 gal (US) 2 l
Steering
-
Width - 180° Turn - Right44.62 ft 13.6 m
-
Width - 180° Turn - Left47.57 ft 14.5 m
-
Steering Angle - Right90°
-
Steering Angle - Left85°
Tractor Engine
-
Flywheel Power - Tractor/Scraper447 kW (600 hp) / 337 kW (451 hp)
-
Net Power421/447 kW 564/600 hp
-
Gross Power - Gears 1-2596 hp 445 kW
-
Gross Power - Gears 3-8632 hp 471 kW
-
Net Power - Gears 1-2564 hp 421 kW
-
Net Power - Gears 3-8600 hp 447 kW
-
Bore5.7 in 145 mm
-
Stroke7.2 in 183 mm
-
Displacement1105 in³ 18.1 l
Transmission
-
Top Speed - Loaded33 mile/h 55.7 km/h
-
1 Forward3.5 mile/h 5.6 km/h
-
2 Forward6.3 mile/h 10.2 km/h
-
3 Forward7.8 mile/h 12.5 km/h
-
4 Forward10.6 mile/h 17 km/h
-
5 Forward14.1 mile/h 22.7 km/h
-
6 Forward19 mile/h 30.6 km/h
-
7 Forward25.6 mile/h 41.2 km/h
-
8 Forward34.6 mile/h 55.7 km/h
-
Reverse6.1 mile/h 9.8 km/h
Weights - Push-Pull
-
Total Shipping160505 lb 72804 kg
-
Tractor Shipping93635 lb 42472 kg
-
Scraper Shipping64068 lb 29061 kg
-
Total Operating - Empty160505 lb 72804 kg
-
Front Axle93842 lb 42566 kg
-
Rear Axle66663 lb 30238 kg
-
Total Operating - Loaded264505 lb 119978 kg
-
Front Axle - Loaded134165 lb 60856 kg
-
Rear Axle - Loaded130340 lb 59121 kg
Weights - Standard, Tandem
-
Total Shipping147959 lb 67113 kg
-
Tractor Shipping87717 lb 39788 kg
-
Scraper Shipping60242 lb 27325 kg
-
Total Operating - Empty150761 lb 68384 kg
-
Front Axle87924 lb 39881 kg
-
Rear Axle62837 lb 28503 kg
-
Total Operating - Loaded254761 lb 115558 kg
-
Front Axle Weight - Loaded128246 lb 58172 kg
-
Rear Axle - Weight - Loaded126515 lb 57386 kg
Benefits
Operator Comfort
- Ergonomic layout with plenty of room to work.
- Fatigue fighting low-effort controls with convenient auto-kickouts and detents
- Air suspension Cat Comfort Seat adjusts and rotates for more comfortable machine operation
- HVAC, defroster, radio ready are standard
Productivity
- Excellent visibility to bail, cutting edge and bowl
- Transmission hold maintains gear selection for optimum loading performance
- Dual throttle pedals for independent front and rear engine control
- Single joystick control replaces three implement levers in previous models
- Differential lock improves traction, reducing tire slip, wear, and operating costs
- Hydraulic retarding for braking on grades
Safety
- Hand rails strategically placed for three points of contact
- Seat adjusts for best visibility and access to controls; integrated seat belt
- ROPS/FOPS integrated into cab structure
- Front and rear windshield wipers
- Optional secondary steering helps maneuver the machine when primary steering is inoperable
- Four braking systems: primary, secondary, parking and hydraulic retarding (optional)
Instruments
- 1) Bowl (up/down), 2) Ejector (forward/back), 3) Thumb rocker switch, apron, 4) Transmission hold, 5) Cushion hitch, Trigger switch (not shown) bail control
- Simple gauge cluster is easy to read
- 657G dash can display either front or rear engine data
- Backlit switches are close at hand
- Messaging alerts technicians and operator to service needs
ACERT™ Technology
- U.S. EPA Tier 3, EU Stage IIIa emissions compliant
- Controlled combustion using proven systems, components
- Cross flow cylinder heads for clean air, better circulation
- Delivers fuel at the right time and pressure
- Rate shaping manages emissions in the combustion cycle
Cat C18 Engine - Tractor
- Excellent power density, load response across the curve
- High compression ratio improves cold start and performance
- MEUI fuel injection matches quantity and timing to load
- Matched to the high efficiency torque converter and electronically controlled power shift transmission, it has the torque rise to power through tough material and provide years of dependable service
Cat C15 Engine - Scraper
- Strong block and head - 18:1 compression ratio improves cold start performance
- Coolant, oil flow design improves heat transfer for durability
- Articulated two-piece piston with forged steel crown improves thermal stability and strength
- ADEM A4 ECM cold start strategy protects the engine, reduces white smoke and warm up time
- Automatic altitude compensation
- Mechanical Hydraulic Electronic Unit Fuel Injectors (MEUI) improve combustion with precise injection and atomization
Engine Speed Lock
Allows the operator to maintain a given engine speed without using the accelerator pedal.
Planetary Powershift Transmission Is Electronically Controlled
- Tractor gears 1-2 - converter drive for increased torque, tractor gears 3-8 - direct-drive for drive train efficiency. Scraper gears stay in converter drive for optimum torque
- Transmission Hold maintains converter drive for max rimpull, or holds current gear for best control
- Programmable Top Gear manually sets top gear available (3rd-8th) to match conditions or speed
- Neutral Coast Inhibitor prevents power train overspeeding by synchronizing engine rpm, pump lubrication and drive train speed, preventing under-lubrication
- Hydraulic Retarder (optional) reduces service brake wear and enhances machine control
Final Drives
- Outboard-mounted, planetary design reduces torque loads within the power train
- Double-row roller bearings and Duo-Cone™ seals assure reliability
- Differential Lock improves traction in slippery conditions, reducing tire wear
Brake Performance
- Wide brake shoes and brake drums improve brake performance and reduce brake and drum wear
- Separate front and rear circuits. Secondary brakes engage automatically if service pressure drops
- Parking Brake features a spring-applied, air-released mechanism that operates the service brakes
Torque Converter
Increases rimpull and shortens load times, and eliminates engine stall to efficiently deliver power to the ground and move more dirt.
Benefits of Electronic Control Modules (ECMs)
ECMs (3 on the tractor, 2 on rear-powered scrapers) offer:
- Better fuel economy by optimizing engine settings
- Greater reliability with operator warnings if problems arise
- Combining tractor and rear powered-scraper monitoring systems, easy access diagnostics, more durable components improves serviceability
- Reduced exhaust smoke by optimizing the fuel/air ratio during cranking, starting and acceleration
- Air filter restriction indicator alerts operator if filter exceeds allowable limit
- Periodically raises engine rpm during low idle to keep the batteries fully charged
Combined Electronic Monitoring System (EMS III)
Monitors both the tractor and scraper status on the 657G; access fault codes from one location. The tractor and powered scraper use the same controller for parts commonality and easier servicing.
Product Link Ready
This wireless system lets the customer track location, service meter hours and machine health information. Can also issue alerts if the machine is operated beyond owner defined time and location limits.
Easy Access Diagnostics Means Faster Problem Solving
Diagnostic codes, via the Electronic Technician (Cat ET), and a radio call can often let the service technician know which tools, manuals, and possibly even replacement parts to bring.
Cushion Hitch
The electronically actuated cushion hitch has a parallelogram-type linkage for exceptional strength. Vertically mounted hydraulic cylinder transfers road shocks to nitrogen accumulators. Nitrogen accumulator absorbs and dampens road shocks, thus preventing these loads from being transmitted to the operator.
- controlled oil flow dampens rebound oscillation
- leveling valve applies pressure via an orifice to automatically center piston in the load cylinder
- steel castings are used to eliminate many welded joints and increase strength
- double-kingbolt design withstands high external forces and simplifies installation and removal
Lockout Switch
An operator-selectable lockout switch, located on the joystick, locks the cushion hitch down for improved cutting edge control when loading or dumping.
Bowl Design
Excellent productivity, improved draft arm protection, and better load retention. Low profile design offers less resistance to incoming materials, while cellular construction adds strength and dent resistance to bowl sides and floor.
Bulldozer Ejection System
Combines constant spreading control with minimum carryback.
Overflow Guard
An available overflow guard on the scraper bowl helps retain material, and limits spills onto the rear of the scraper.
Push-Loading
Where material types include rocky/abrasive material, or become traction-limited, push loading a 657G with a Cat D10 or D11 will optimize tire wear and productivity.
Cutting Edges and Cat Ground Engaging Tools (GET)
May be adjusted according to job conditions. Smooth and serrated cutting edges with available tip options can be applied to match job site conditions. For most efficient loading, use the thinnest cutting edge that provides satisfactory wear life and impact resistance.
Tandem Engines
Tandem engine machines improve cycle times on grades and in slippery underfoot conditions. Also improves the machine's loading characteristics in tough materials like clay.
Material Appetite
Well suited to handle a wide variety of material from clay to shot rock.
Bowl Capacity
High-capacity bowls, built longer and taller than earth-moving bowls, allow the 657G to achieve rated load in light weight coal.

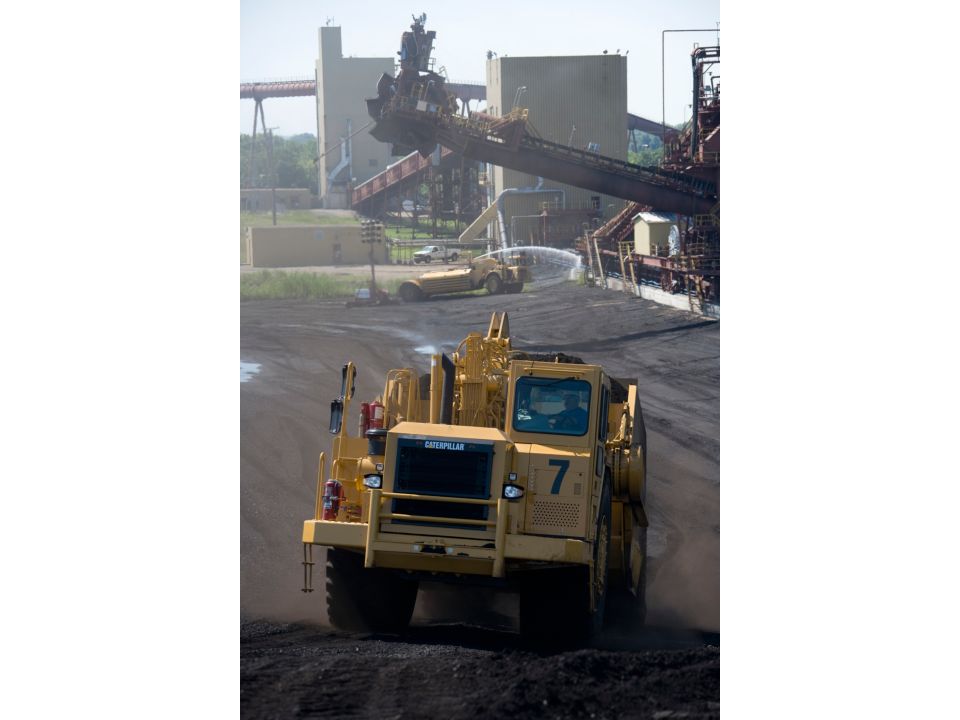

Wheel Tractor-Scraper Benefits
- High speed, self-loading productivity for stockpile and feeder management

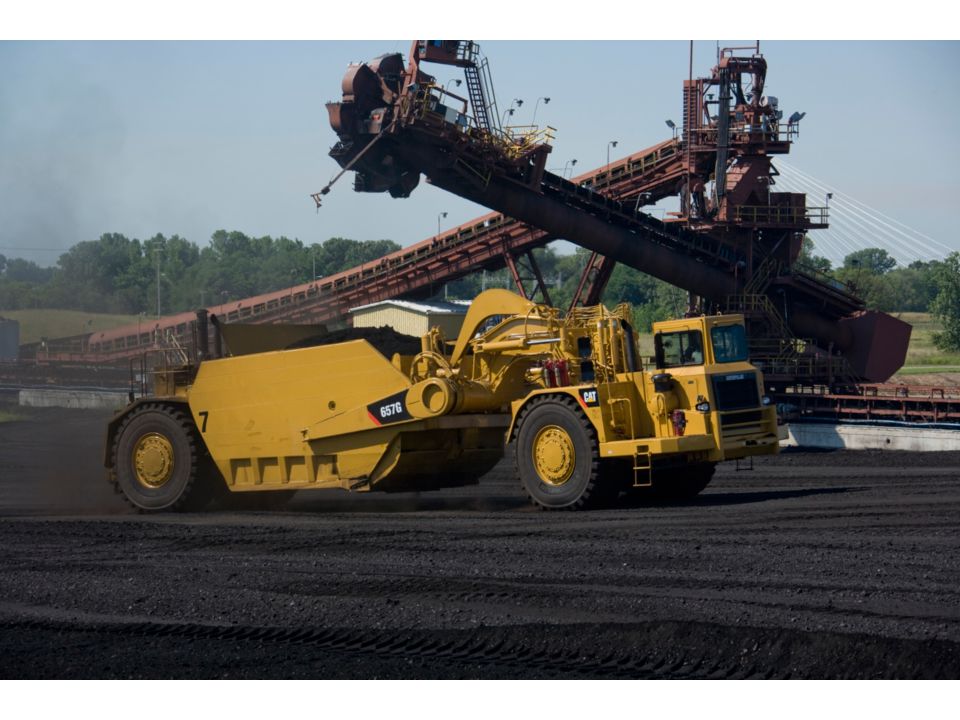

- Coal pile compaction
- Bowl capacity 56 m³ (73 yd³) heaped
- All-wheel drive allows the machine to work in poor underfoot conditions and operate on piles of loose coal
Combined Power Increases Production
Push-pull applies the power of four engines to a single cutting edge. The benefit is realized in tough-to-load material and fast loading of both machines. Push-pull applications have the potential to produce the lowest cost per unit volume, and a high rate of production.
Hydraulically Actuated Bail
The push-pull arrangement uses a hydraulically actuated bail and cushioned plate to push, and a hook that is attached to the rear of the scraper to pull.
Engine Service Points
- Maintenance/service points grouped on the right side
- Grouping fluid fill and check points, filters and sampling ports shortens maintenance times
- Electronic Monitoring System (EMS) provides real-time information to the operator of system warnings
- Electronic Technician (Cat ET) displays real-time system data to better inform the service technician
Implement Valve Relocation
The implement valve is relocated from the tractor to the top of the scraper draft tube, reducing the number of hoses and tubes crossing over the gooseneck. This reduces potential leak points and improves service access.
Scraper Electrical Harness and One Piece Power Block
The flexible ribbon wiring harness oscillates with the machine, and polyurethane boots offer better protection against the elements. The jumpstart receptacle and disconnect switch are integrated into a one-piece power block, with a lockable cover, for better electrical integrity and serviceability.
Electro-Hydraulic Implement Control Simplifies Serviceability
Removing the cab pilot valve and associated lines improves reliability and reduces noise. The high efficiency electro-hydraulic pilot oil filter provides cleaner oil for the pilot system.
Equipment Info
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
Alarm, backup
OPERATOR ENVIRONMENT
Air Conditioner (includes heater and defroster)
POWER TRAIN
Tractor
OTHER STANDARD EQUIPMENT
Tractor
Product Brochures
The Toromont Cat advantage
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.
Contact an equipment specialist
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.
Insert form
