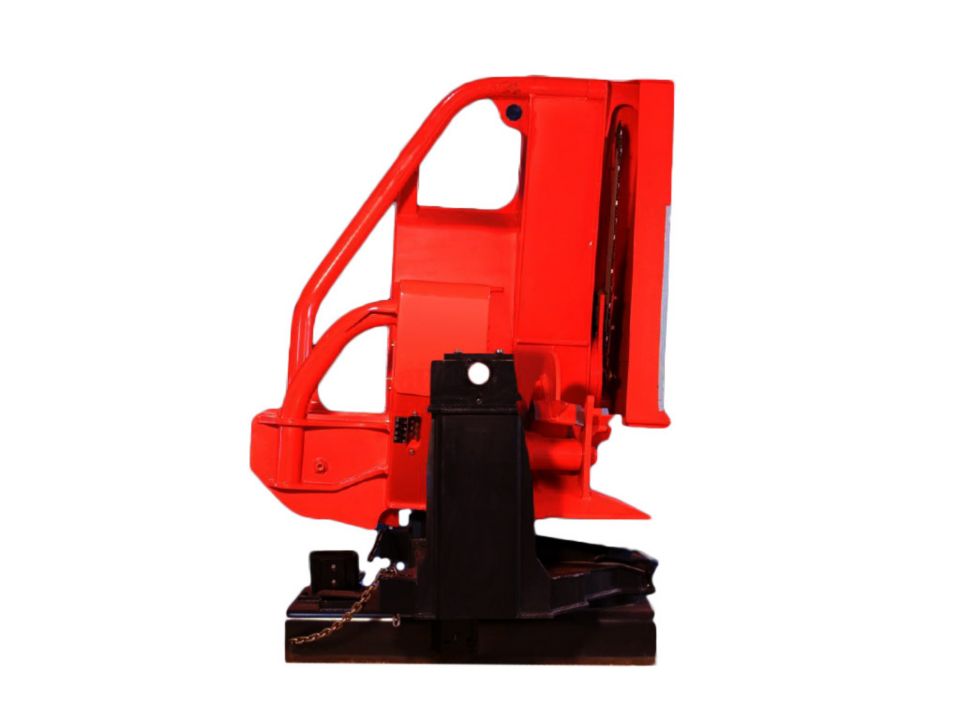

CTR 320

Get in touch

Oil reservoir for Cat Pull Through Delimbers

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Number of Knives

3
{"Name":"Number of Knives","SpecificationId":null,"TextValue":"3","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Bar and Chain Oil Reservoir

8.25 gal (US) 31.23 l
{"Name":"Bar and Chain Oil Reservoir","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"8.25","MetricUnit":"l","MetricValue":"31.23","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Throat Opening

31 in 78.74 cm
{"Name":"Throat Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"31","MetricUnit":"cm","MetricValue":"78.74","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Direct Saw Drive Sprocket, Case Hardened, 9 Teeth

4 in 10.16 cm
{"Name":"Direct Saw Drive Sprocket, Case Hardened, 9 Teeth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4","MetricUnit":"cm","MetricValue":"10.16","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Turntable Bearing Mounting Bolts

Grade 8
{"Name":"Turntable Bearing Mounting Bolts","SpecificationId":null,"TextValue":"Grade 8","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Auto Chain Tensioning System

Standard
{"Name":"Auto Chain Tensioning System","SpecificationId":null,"TextValue":"Standard","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Saw Chain Pitch

0.75 in 1.9 cm
{"Name":"Saw Chain Pitch","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.75","MetricUnit":"cm","MetricValue":"1.9","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Frame Height

99.7 in 253.23 cm
{"Name":"Frame Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"99.7","MetricUnit":"cm","MetricValue":"253.23","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Nose Roller Width

17 in 43.18 cm
{"Name":"Nose Roller Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17","MetricUnit":"cm","MetricValue":"43.18","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Oregon® Brand 11H Roller Tip Saw Bar

44 in 111.76 cm
{"Name":"Oregon® Brand 11H Roller Tip Saw Bar","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"44","MetricUnit":"cm","MetricValue":"111.76","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Mounting Base

H-D Rotating Cradle
{"Name":"Mounting Base","SpecificationId":null,"TextValue":"H-D Rotating Cradle","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Turntable Bearing Mounting Bolt Measurement

0.75 in 1.9 cm
{"Name":"Turntable Bearing Mounting Bolt Measurement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.75","MetricUnit":"cm","MetricValue":"1.9","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Saw Chain Drive Links

66
{"Name":"Saw Chain Drive Links","SpecificationId":null,"TextValue":"66","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Bar and Chain Oiler

Automatic
{"Name":"Bar and Chain Oiler","SpecificationId":null,"TextValue":"Automatic","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Saw Chain

Oregon® Brand 11H
{"Name":"Saw Chain","SpecificationId":null,"TextValue":"Oregon® Brand 11H","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Frame Length

72.42 in 184.02 cm
{"Name":"Frame Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"72.42","MetricUnit":"cm","MetricValue":"184.02","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Mounting Base Pin Dia.

3 in 7.62 mm
{"Name":"Mounting Base Pin Dia.","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"7.62","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Nose Roller Diameter

16 in 40.64 cm
{"Name":"Nose Roller Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16","MetricUnit":"cm","MetricValue":"40.64","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Total Weight - Including Accumulator Box

6700 lb 3039 kg
{"Name":"Total Weight - Including Accumulator Box","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6700","MetricUnit":"kg","MetricValue":"3039","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Frame Width

86.15 in 218.82 cm
{"Name":"Frame Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"86.15","MetricUnit":"cm","MetricValue":"218.82","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Alloy Steel Blades

18 in 45.72 cm
{"Name":"Alloy Steel Blades","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"18","MetricUnit":"cm","MetricValue":"45.72","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
Turntable Bearing Diameter

22 in 55.88 cm
{"Name":"Turntable Bearing Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22","MetricUnit":"cm","MetricValue":"55.88","Type":"measurement","SpecificationGroup":null,"SortOrder":"99"}
High Flow Topping Saw Motor 340.7 to 416.4 Lpm (90 to 110 gpm)

Optional
{"Name":"High Flow Topping Saw Motor 340.7 to 416.4 Lpm (90 to 110 gpm)","SpecificationId":null,"TextValue":"Optional","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Low Flow Topping Saw Motor 151.4 to 208.2 Lpm (40 to 55 gpm)

Optional
{"Name":"Low Flow Topping Saw Motor 151.4 to 208.2 Lpm (40 to 55 gpm)","SpecificationId":null,"TextValue":"Optional","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
Standard Flow Topping Saw Motor 208.2 to 340.7 Lpm (55 to 90 gpm)

Standard
{"Name":"Standard Flow Topping Saw Motor 208.2 to 340.7 Lpm (55 to 90 gpm)","SpecificationId":null,"TextValue":"Standard","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"99"}
