772 Bare Chassis

Get in touch

Caterpillar OEM Off-Highway Trucks specifically for work in mines, construction and quarries. Our Off-Highway Trucks are pass-matched with Cat Wheel Loaders and Hydraulic Excavators to speed cycle times and maximize productivity.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Brakes

Brake Surface - Front

216 in² 1395 cm²
{"Name":"Brake Surface - Front","SpecificationId":null,"TextValue":null,"EnglishUnit":"in²","EnglishValue":"216","MetricUnit":"cm²","MetricValue":"1395","Type":"measurement","SpecificationGroup":"Brakes","SortOrder":"10"}
Brake Surface - Rear

7794 in² 50281 cm²
{"Name":"Brake Surface - Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"in²","EnglishValue":"7794","MetricUnit":"cm²","MetricValue":"50281","Type":"measurement","SpecificationGroup":"Brakes","SortOrder":"11"}

Engine

Engine Model

Cat® C18
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C18","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"10"}
Rated Engine Speed

1700 r/min 1700 r/min
{"Name":"Rated Engine Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"1700","MetricUnit":"r/min","MetricValue":"1700","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"11"}
Gross Power - SAE J1995

605 hp 451 kW
{"Name":"Gross Power - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"605","MetricUnit":"kW","MetricValue":"451","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"12"}
Rated Net Power - SAE J1349

550 hp 410 kW
{"Name":"Rated Net Power - SAE J1349","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"550","MetricUnit":"kW","MetricValue":"410","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"13"}
Number of Cylinders

6
{"Name":"Number of Cylinders","SpecificationId":null,"TextValue":"6","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"14"}
Bore

5.7 in 145 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.7","MetricUnit":"mm","MetricValue":"145","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"15"}
Stroke

7.2 in 183 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.2","MetricUnit":"mm","MetricValue":"183","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"16"}
Displacement

1105 in³ 18.1 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"1105","MetricUnit":"l","MetricValue":"18.1","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"17"}
Note

Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.
{"Name":"Note","SpecificationId":null,"TextValue":"Net Power advertised is the power available at the flywheel when the engine is equipped with air intake system, exhaust system, and alternator.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"100"}

Operating Specifications

Nominal Water Tank Capacity

11000 gal (US) 41500 l
{"Name":"Nominal Water Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"11000","MetricUnit":"l","MetricValue":"41500","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"3"}

ROPS

Tractor ROPS

77430 lb 35122 kg
{"Name":"Tractor ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"77430","MetricUnit":"kg","MetricValue":"35122","Type":"measurement","SpecificationGroup":"ROPS","SortOrder":"2"}

Service Refill Capacities

Fuel Tank Capacity

140 gal (US) 530 l
{"Name":"Fuel Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"140","MetricUnit":"l","MetricValue":"530","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"10"}
Cooling System

33 gal (US) 125 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"33","MetricUnit":"l","MetricValue":"125","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"11"}
Crankcase

17 gal (US) 64 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"17","MetricUnit":"l","MetricValue":"64","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"12"}
Brake/Hoist Hydraulic Tank

38 gal (US) 145 l
{"Name":"Brake/Hoist Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"38","MetricUnit":"l","MetricValue":"145","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"13"}
Brake Hoist System

60 gal (US) 227 l
{"Name":"Brake Hoist System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"60","MetricUnit":"l","MetricValue":"227","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"14"}
Differential - Final Drives

47 gal (US) 180 l
{"Name":"Differential - Final Drives","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"47","MetricUnit":"l","MetricValue":"180","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"15"}
Steering System - Including Tank

60 gal (US) 227 l
{"Name":"Steering System - Including Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"60","MetricUnit":"l","MetricValue":"227","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"16"}
Torque Converter - Transmission System

17 gal (US) 64 l
{"Name":"Torque Converter - Transmission System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"17","MetricUnit":"l","MetricValue":"64","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"17"}

Steering

Steering Standards

ISO 5010:2007
{"Name":"Steering Standards","SpecificationId":null,"TextValue":"ISO 5010:2007","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"10"}
Steer Angle

31 ° 31 °
{"Name":"Steer Angle","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"31","MetricUnit":"°","MetricValue":"31","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"11"}
Turning Diameter

57.7 ft 17.6 m
{"Name":"Turning Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"57.7","MetricUnit":"m","MetricValue":"17.6","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"12"}
Turning Circle - Clearance Diameter

66.6 ft 20.3 m
{"Name":"Turning Circle - Clearance Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"66.6","MetricUnit":"m","MetricValue":"20.3","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"13"}

Transmission

Forward - 1

8 mile/h 12.9 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"10"}
Forward - 2

10.9 mile/h 17.5 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"10.9","MetricUnit":"km/h","MetricValue":"17.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"11"}
Forward - 3

14.8 mile/h 23.8 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14.8","MetricUnit":"km/h","MetricValue":"23.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"12"}
Forward - 4

19.8 mile/h 31.9 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"19.8","MetricUnit":"km/h","MetricValue":"31.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"13"}
Forward - 5

26.9 mile/h 43.3 km/h
{"Name":"Forward - 5","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"26.9","MetricUnit":"km/h","MetricValue":"43.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"14"}
Forward - 6

36.2 mile/h 58.3 km/h
{"Name":"Forward - 6","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"36.2","MetricUnit":"km/h","MetricValue":"58.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"15"}
Forward - 7

49.2 mile/h 79.2 km/h
{"Name":"Forward - 7","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"49.2","MetricUnit":"km/h","MetricValue":"79.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"16"}
Reverse

10.4 mile/h 16.7 km/h
{"Name":"Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"10.4","MetricUnit":"km/h","MetricValue":"16.7","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"17"}
Note

Maximum travel speeds with standard 21.00R33 (E4) tires.
{"Name":"Note","SpecificationId":null,"TextValue":"Maximum travel speeds with standard 21.00R33 (E4) tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"100"}

Weights

LRC Bare Chassis Weight without Hoist

58414 lb 26496 kg
{"Name":"LRC Bare Chassis Weight without Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"58414","MetricUnit":"kg","MetricValue":"26496","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"1"}
LRC Bare Chassis Weight with Hoist

59223 lb 26863 kg
{"Name":"LRC Bare Chassis Weight with Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"59223","MetricUnit":"kg","MetricValue":"26863","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"9"}
LRC Gross Vehicle Weight (Target) with Hoist

180999 lb 82100 kg
{"Name":"LRC Gross Vehicle Weight (Target) with Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"180999","MetricUnit":"kg","MetricValue":"82100","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"10"}
LRC Gross Vehicle Weight (Target) without Hoist

180999 lb 82100 kg
{"Name":"LRC Gross Vehicle Weight (Target) without Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"180999","MetricUnit":"kg","MetricValue":"82100","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"11"}
HRC Bare Chassis Weight without Hoist

59567 lb 27019 kg
{"Name":"HRC Bare Chassis Weight without Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"59567","MetricUnit":"kg","MetricValue":"27019","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"18"}
HRC Bare Chassis Weight with Hoist

60376 lb 27386 kg
{"Name":"HRC Bare Chassis Weight with Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"60376","MetricUnit":"kg","MetricValue":"27386","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"19"}
HRC Gross Vehicle Weight (Target) with Hoist

180999 lb 82100 kg
{"Name":"HRC Gross Vehicle Weight (Target) with Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"180999","MetricUnit":"kg","MetricValue":"82100","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"21"}
HRC Gross Vehicle Weight (Target) without Hoist

180999 lb 82100 kg
{"Name":"HRC Gross Vehicle Weight (Target) without Hoist","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"180999","MetricUnit":"kg","MetricValue":"82100","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"22"}
Note

LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.
{"Name":"Note","SpecificationId":null,"TextValue":"LRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. U.S. EPA Tier 4 Final / EU Stage V available for applicable markets.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"100"}

Benefits

Tractor ROPS Rating

Cat® Off-Highway Truck Bare Chassis ROPS is certified to ISO 3471 Tractor criteria, to provide a higher level of protection for towing applications.

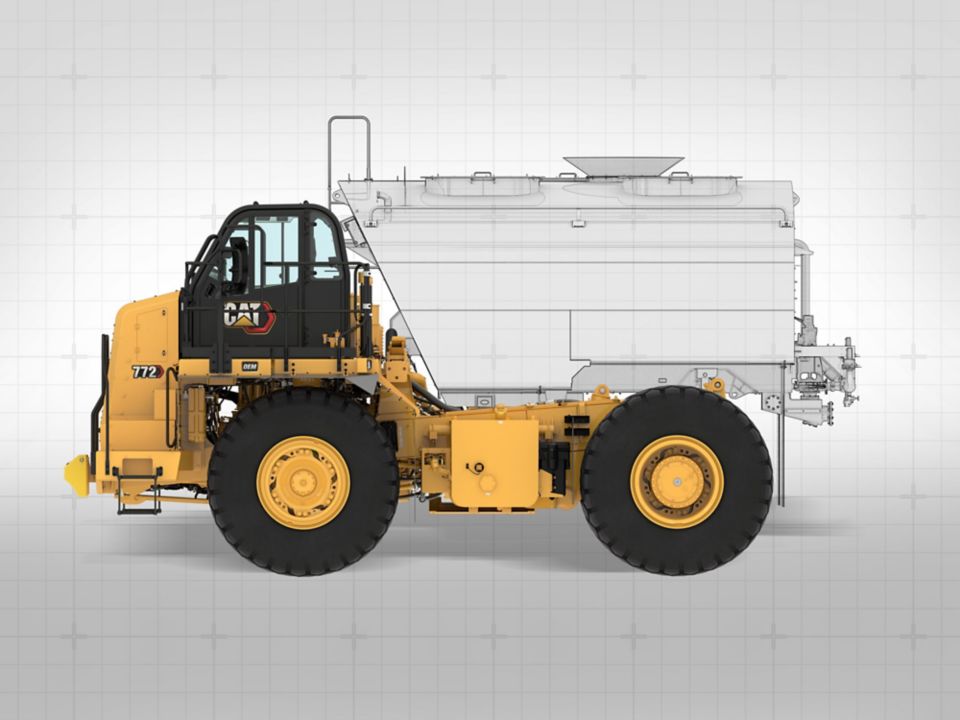

Water Truck Applications

Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for water truck applications in both mining and construction projects.
Using an off-highway truck bare chassis provides a solution that is ideal for dust suppression, road construction, fire protection, and other applications.
Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the water truck application, all through your local Cat dealer, to provide the best solution for your business.

Service Truck Applications

Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for service truck applications in both mining and construction projects.
Using an off-highway truck bare chassis provides a solution that is ideal for delivering fuel and preventive maintenance lubrication to your site's machine fleet.
Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the service truck application, all through your local Cat dealer, to provide the best solution for your business.

Tow Applications

Cat Off-Highway Truck Bare Chassis are rugged and reliable platforms for tow applications.
Using an off-highway truck bare chassis provides a solution that is ideal for equipment trailers and bottom dump trailers.
Caterpillar works with OEMs worldwide to match the appropriate bare chassis machine to the tow application, all through your local Cat dealer, to provide the best solution for your business.

Equipment Info

For more information on 772 Bare Chassis options, please contact Caterpillar OEM Solutions at <a href="mailto:oem_solutions@cat.com">oem_solutions@cat.com</a>.

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWERTRAIN

Air-To-Air Aftercooler (ATAAC)

ELECTRICAL

Alarm backup

OPERATOR ENVIRONMENT

Air conditioning/heat

OTHER EQUIPMENT

Guards: Driveline, Engine crankcase, Fan

CAT TECHNOLOGY PRODUCTS

Product Link Ready

FLUIDS & FILTERS

Extended life coolant, -35° C (-30° F)
