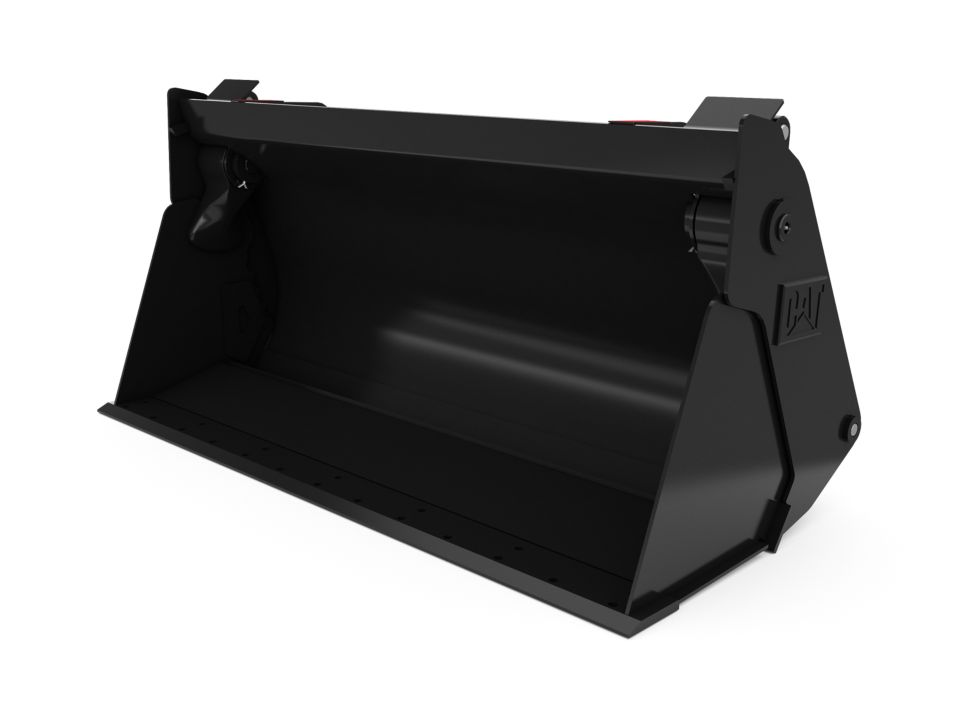

0.6 m3 (0.8 yd3), Skid Steer Coupler, Base Edge

Get in touch

Cat® Multi-Purpose Buckets have the same loading, reliability and durability characteristics as other Compact Wheel Loader buckets, with the added versatility for digging, dozing, clamping, grading and leveling in a broad range of applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

70.2 in 1784 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"70.2","MetricUnit":"mm","MetricValue":"1784","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Weight

825 lb 374.2 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"825","MetricUnit":"kg","MetricValue":"374.2","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Height

34.4 in 874 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"34.4","MetricUnit":"mm","MetricValue":"874","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

33.1 in 841 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"33.1","MetricUnit":"mm","MetricValue":"841","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Capacity

0.8 yd³ 0.6 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.8","MetricUnit":"m³","MetricValue":"0.6","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Jaw Opening

20.1 in 510 mm
{"Name":"Jaw Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"20.1","MetricUnit":"mm","MetricValue":"510","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Clam Angle

66 degrees
{"Name":"Clam Angle","SpecificationId":null,"TextValue":"66 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"7"}
Base Edge Thickness

0.8 in 20 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.8","MetricUnit":"mm","MetricValue":"20","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"10"}

Benefits

Application

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Added Versatility

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Dozing Application

Bucket clam jaw opening allows the bucket to be used as a dozing blade.

Serrated Clam Edge

Serrated clam side edge provides a gripping surface to hold material.

Ground Engaging Tool Options

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
