0.8 m3 (1.0 yd3), Skid Steer Coupler, Bolt-On Teeth

Get in touch

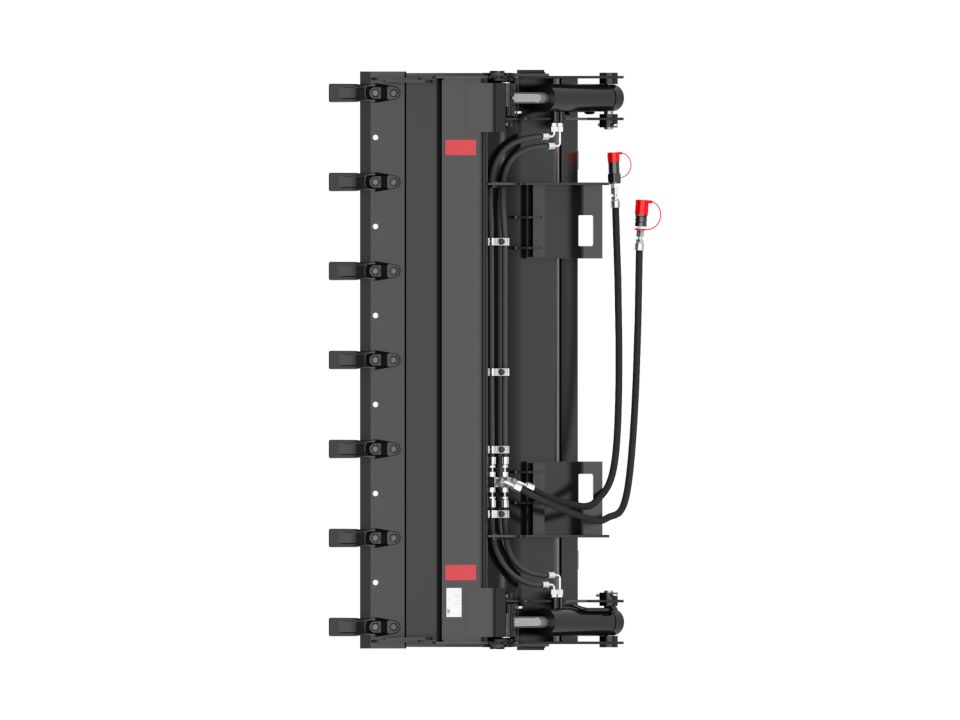

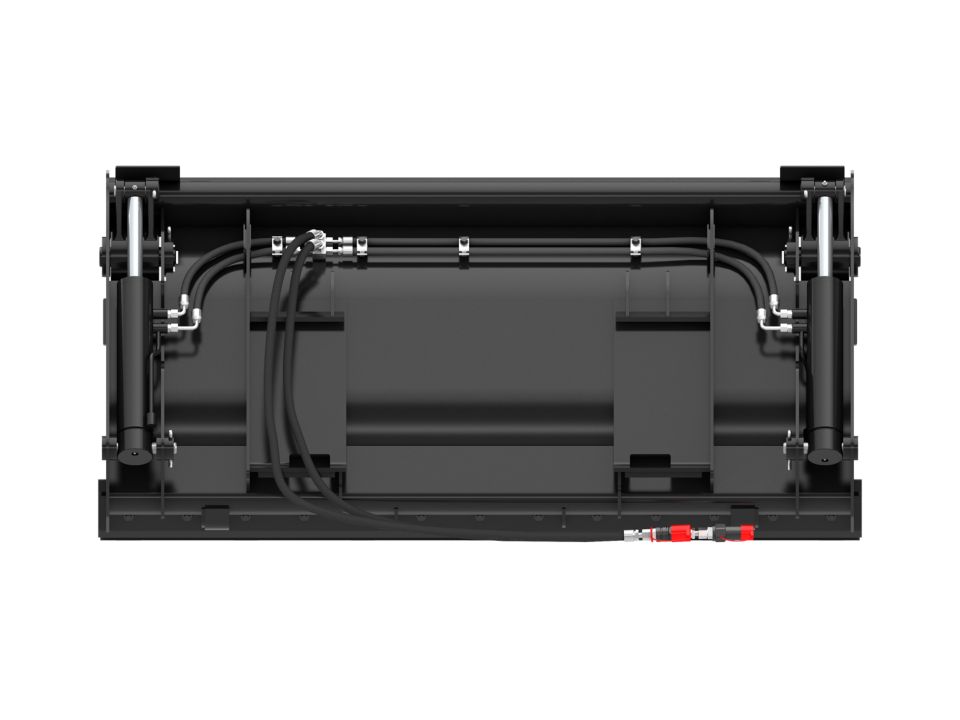

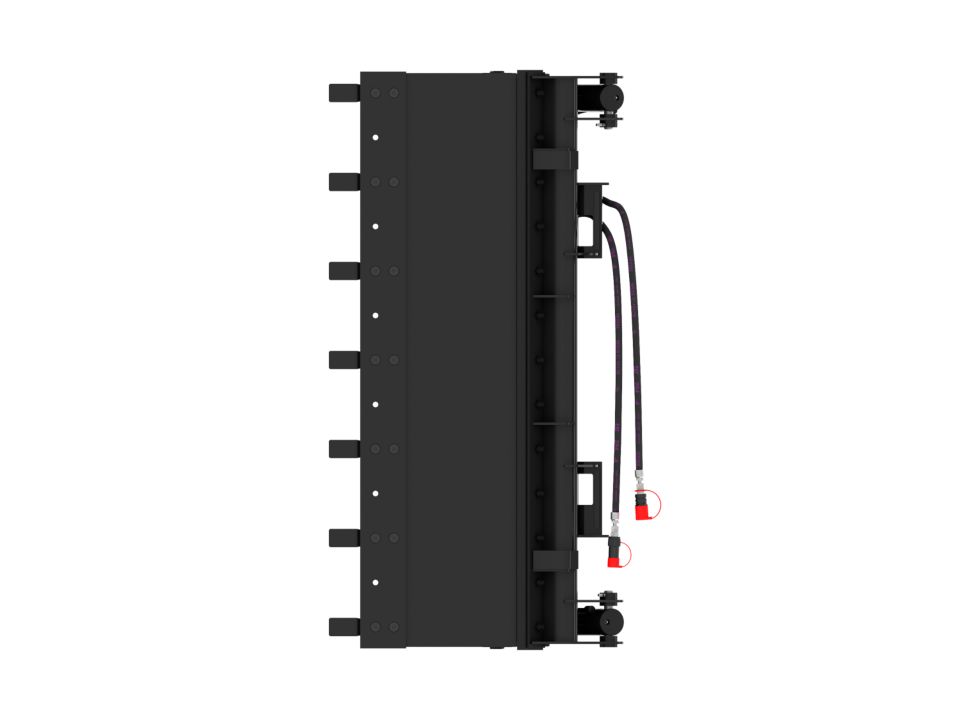

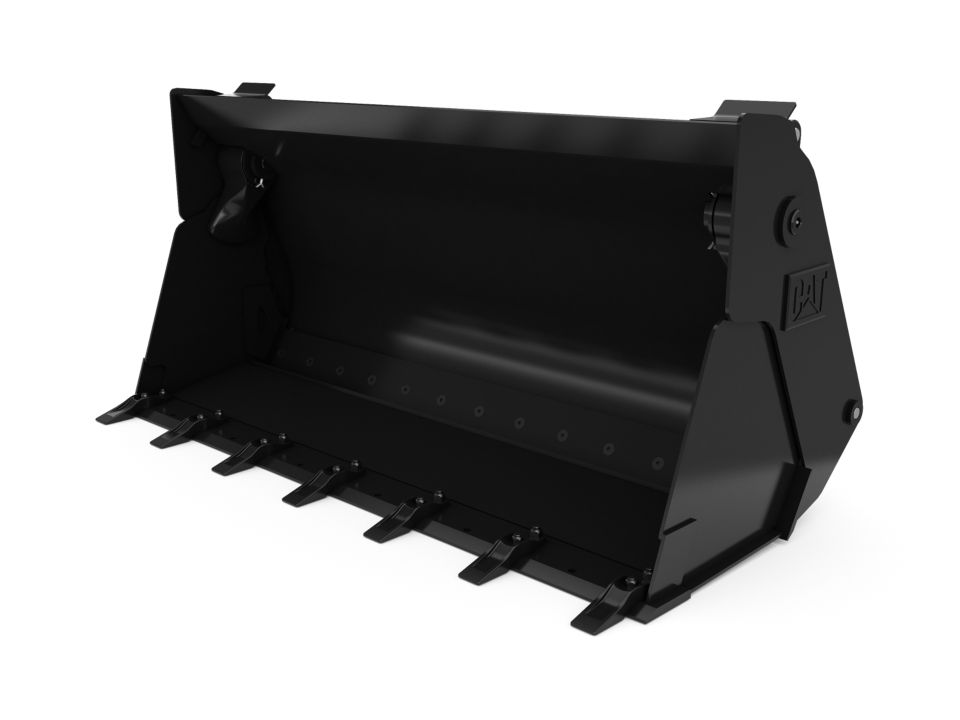

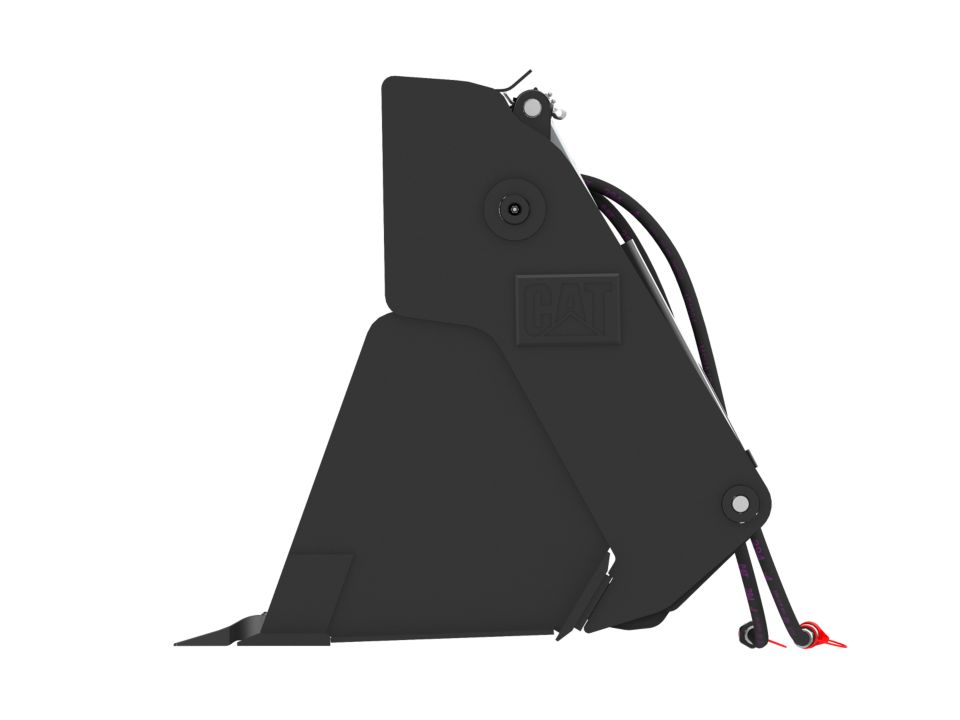

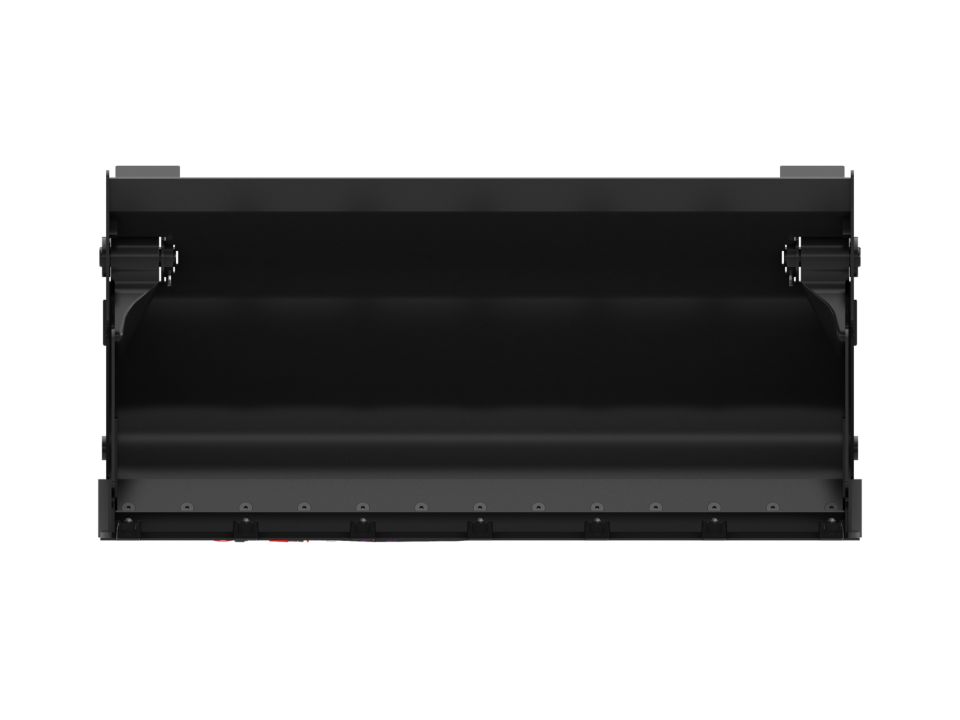

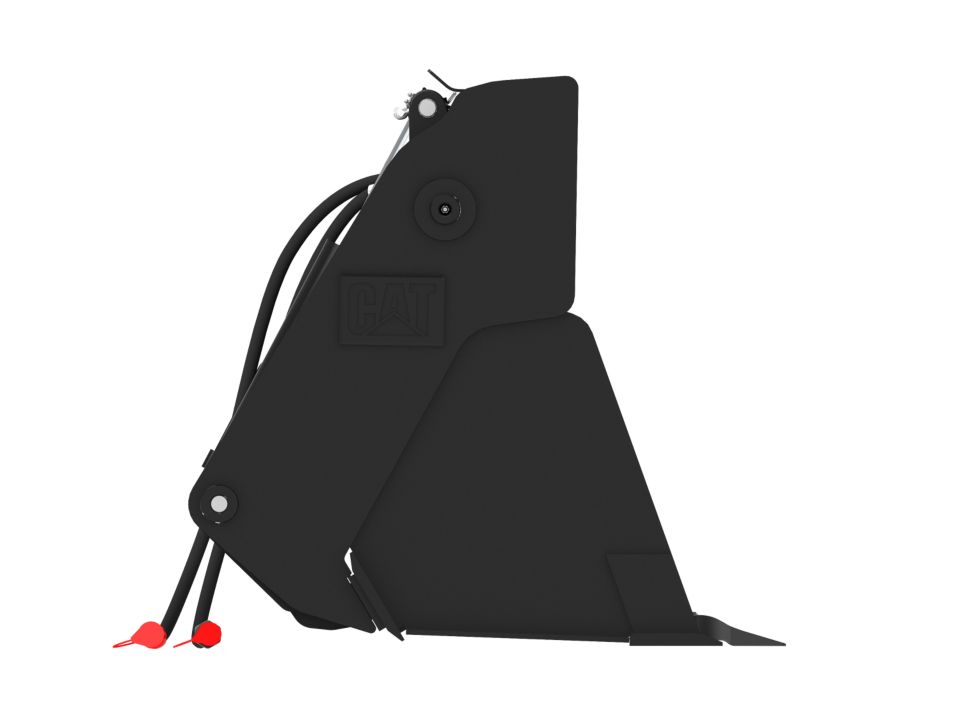

Cat® Multi-Purpose Buckets have the same loading, reliability and durability characteristics as other Compact Wheel Loader buckets, with the added versatility for digging, dozing, clamping, grading and leveling in a broad range of applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

74.4 in 1890 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.4","MetricUnit":"mm","MetricValue":"1890","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Weight

1131 lb 513 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1131","MetricUnit":"kg","MetricValue":"513","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Height

36.5 in 927 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"36.5","MetricUnit":"mm","MetricValue":"927","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Length

37.9 in 962 mm
{"Name":"Length","SpecificationId":null,"TextValue":"66 degrees","EnglishUnit":"in","EnglishValue":"37.9","MetricUnit":"mm","MetricValue":"962","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Capacity

1 yd³ 0.8 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":"yd³","EnglishValue":"1","MetricUnit":"m³","MetricValue":"0.8","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Jaw Opening

21.7 in 551 mm
{"Name":"Jaw Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21.7","MetricUnit":"mm","MetricValue":"551","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Clam Angle

66 degrees
{"Name":"Clam Angle","SpecificationId":null,"TextValue":"66 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"7"}
Base Edge Thickness

0.8 in 20 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.8","MetricUnit":"mm","MetricValue":"20","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"10"}

Benefits

Application

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Added Versatility

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Dozing Application

Bucket clam jaw opening allows the bucket to be used as a dozing blade.

Serrated Clam Edge

Serrated clam side edge provides a gripping surface to hold material.

Ground Engaging Tool Options

Base bucket also available with bolt-on cutting edge and bolt-on teeth.
