2188 mm (86 in), Bolt-On Teeth

Get in touch

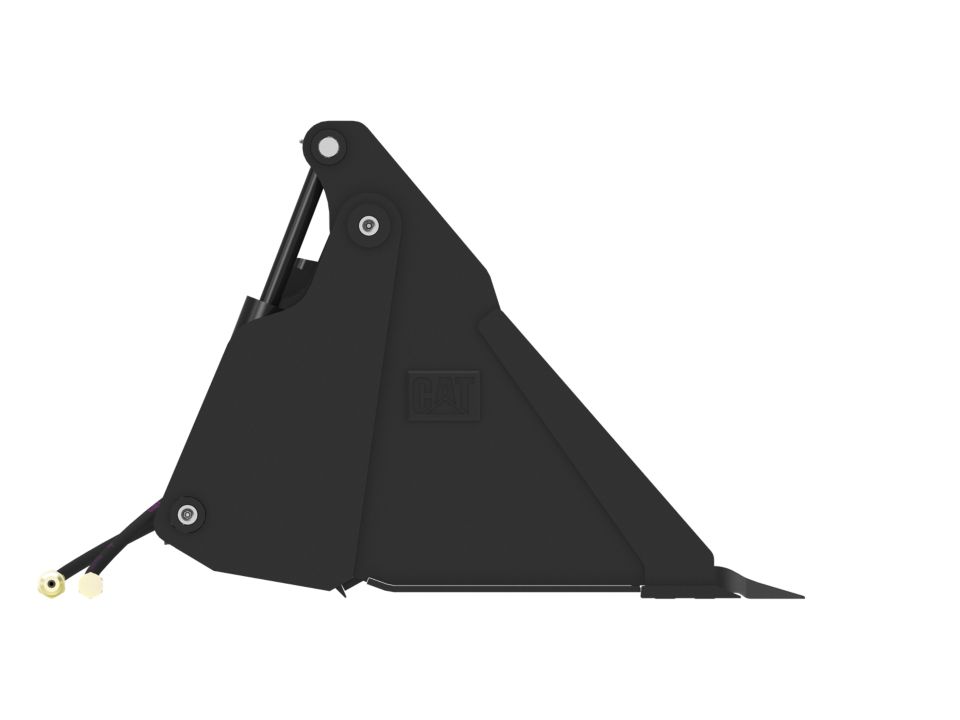

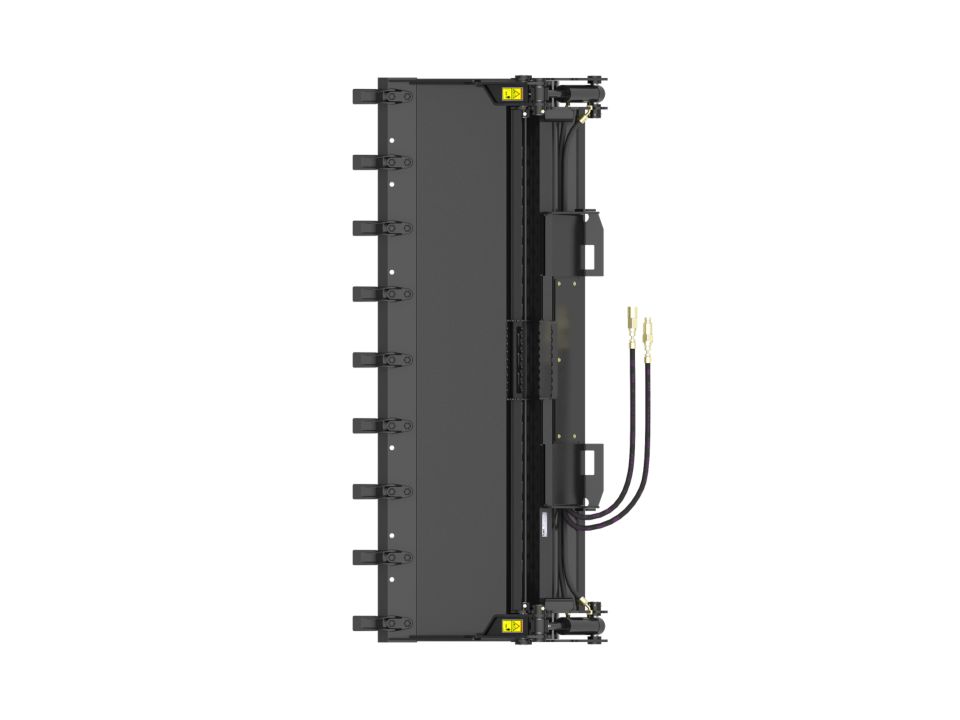

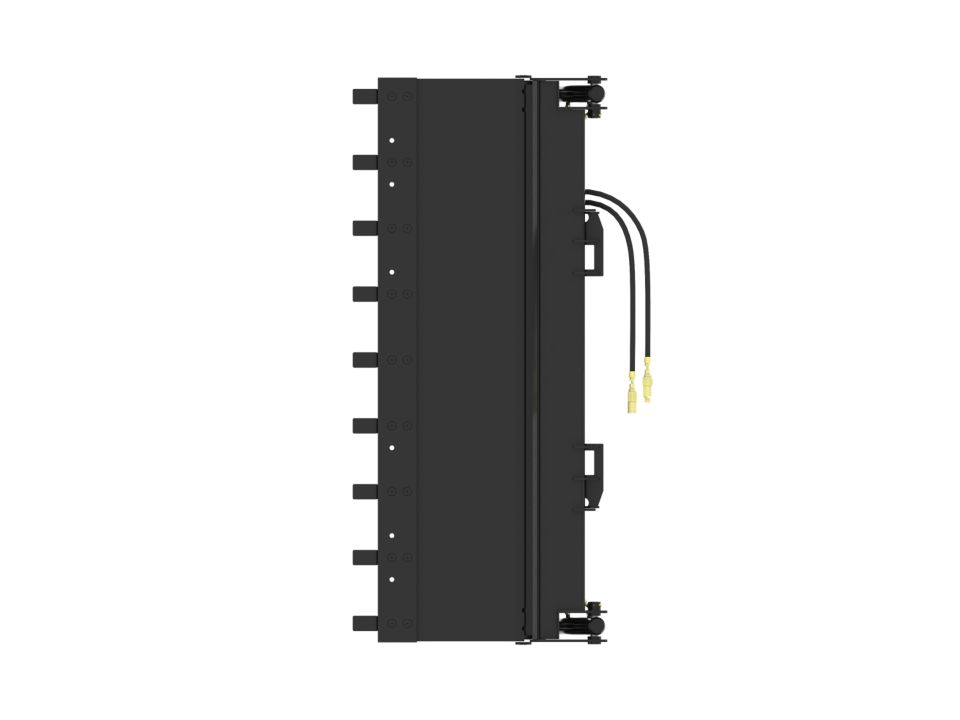

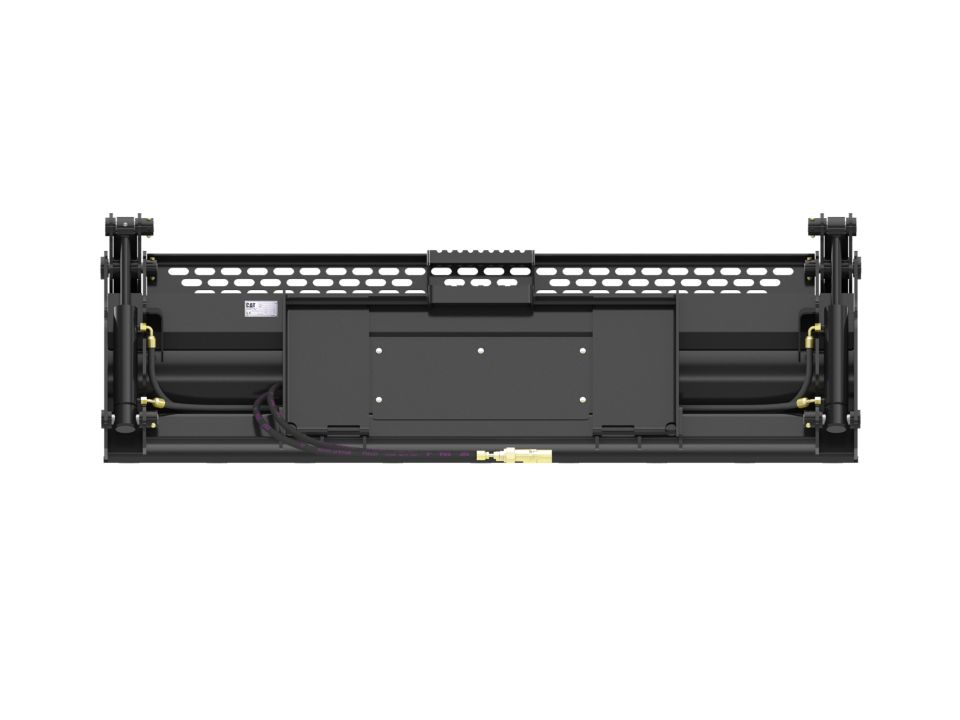

Cat® Multi-Purpose Buckets for Cat Skid Steer Loaders and Compact Track Loaders are extremely durable buckets, ideal for a wide variety of tasks in construction, landscaping, industrial and demolition applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

86.1 in 2188 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"86.1","MetricUnit":"mm","MetricValue":"2188","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Capacity

0.56 yd³ 0.43 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.56","MetricUnit":"m³","MetricValue":"0.43","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

1018.5 lb 462 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1018.5","MetricUnit":"kg","MetricValue":"462","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Height

28.5 in 725 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28.5","MetricUnit":"mm","MetricValue":"725","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Length

38.9 in 988 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"38.9","MetricUnit":"mm","MetricValue":"988","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Edge Thickness

0.7 in 19 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.7","MetricUnit":"mm","MetricValue":"19","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Operating Pressure

3335.9 psi 23000 kPa
{"Name":"Operating Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3335.9","MetricUnit":"kPa","MetricValue":"23000","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Jaw Opening

30.2 in 767 mm
{"Name":"Jaw Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30.2","MetricUnit":"mm","MetricValue":"767","Type":"measurement","SpecificationGroup":null,"SortOrder":"9"}
Clam Angle

89 degrees
{"Name":"Clam Angle","SpecificationId":null,"TextValue":"89 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"10"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}

Benefits

Application

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Excellent Clamping Force

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Clam Jaw Opens a Full 89 Degrees

Bucket clam jaw opens a full 89 degrees, allowing the bucket to be used as a dozing blade.

Serrated Clam Side Edge

Serrated clam side edge provides a gripping surface to hold material.

Ground Engaging Tool Options

Base bucket also available with bolt-on cutting edge, bolt-on teeth and bolt-on tooth bar.
