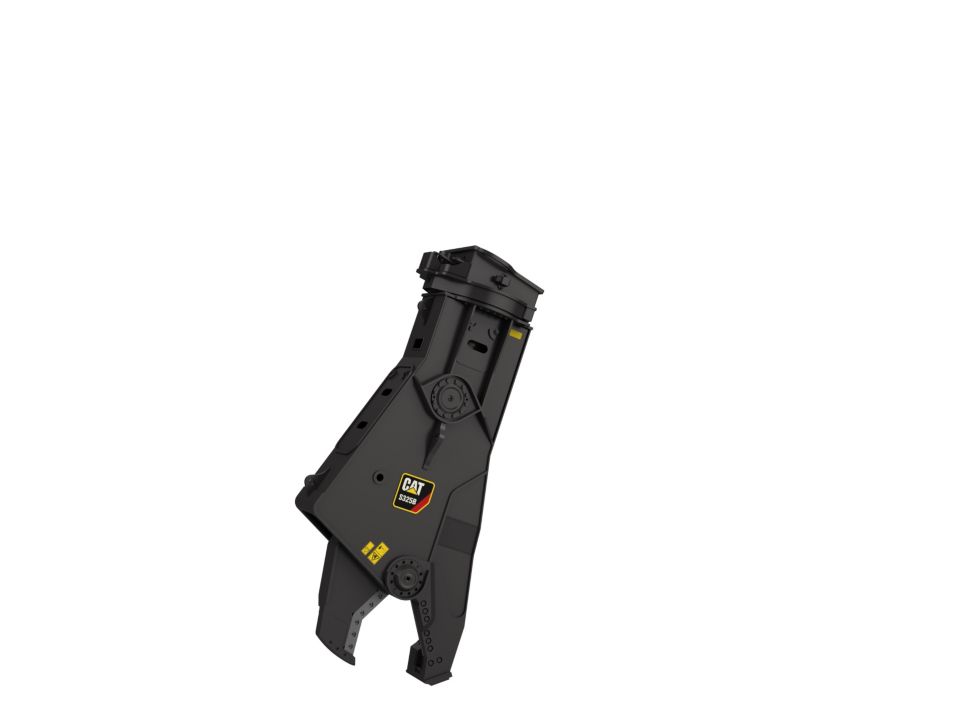

S325B

Get in touch

Steel-frame demolition and scrap processing are the starting points for metals recycling. Cat® Scrap and Demolition Shears power through these applications, providing the production and reliably that keep your operation in the black. Available in sizes to fit Cat machines from skid-steers to large excavators.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Weight - Stick Mount

6604 lb 2996 kg
{"Name":"Weight - Stick Mount","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6604","MetricUnit":"kg","MetricValue":"2996","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Rotation Circuit - Maximum Flow

10.6 gpm 40 L/min
{"Name":"Rotation Circuit - Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"10.6","MetricUnit":"L/min","MetricValue":"40","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Tip Force

143 Sh Ton 1274 kN
{"Name":"Tip Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"143","MetricUnit":"kN","MetricValue":"1274","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Height

60 in 1525 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"60","MetricUnit":"mm","MetricValue":"1525","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Depth

22 in 571 mm
{"Name":"Jaw Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"22","MetricUnit":"mm","MetricValue":"571","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Apex Force

250 Sh Ton 2221 kN
{"Name":"Apex Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"250","MetricUnit":"kN","MetricValue":"2221","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Width - Moving

13 in 342 mm
{"Name":"Jaw Width - Moving","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"13","MetricUnit":"mm","MetricValue":"342","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Cutting Circuit - Maximum Relief Pressure

5075 psi 35000 kPa
{"Name":"Cutting Circuit - Maximum Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5075","MetricUnit":"kPa","MetricValue":"35000","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Width

31 in 792 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"31","MetricUnit":"mm","MetricValue":"792","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Length

125 in 3177 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"125","MetricUnit":"mm","MetricValue":"3177","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Cutting Circuit - Maximum Flow

53 gpm 200 L/min
{"Name":"Cutting Circuit - Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"53","MetricUnit":"L/min","MetricValue":"200","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Width - Fixed

12 in 304 mm
{"Name":"Jaw Width - Fixed","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"12","MetricUnit":"mm","MetricValue":"304","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Opening

21 in 528 mm
{"Name":"Jaw Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21","MetricUnit":"mm","MetricValue":"528","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Throat Force

625 Sh Ton 5562 kN
{"Name":"Throat Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"625","MetricUnit":"kN","MetricValue":"5562","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Weight - Boom Mount

7474 lb 3390 kg
{"Name":"Weight - Boom Mount","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7474","MetricUnit":"kg","MetricValue":"3390","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Rotation Circuit - Maximum Relief Pressure

2031 psi 14000 kPa
{"Name":"Rotation Circuit - Maximum Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2031","MetricUnit":"kPa","MetricValue":"14000","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Cycle Time - Close

3 Seconds
{"Name":"Cycle Time - Close","SpecificationId":null,"TextValue":"3 Seconds","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"1000"}

Benefits

Jaw Design

Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.

360-degree Rotation

Operator can spin the jaws 360 degrees in either direction to quickly position the jaws for a cut.

Reversible Knives

The four main, side and front knives are fully reversible with four effective cutting edges.

Easy Maintenance

Large access panels on the top, bottom, and sides of the shear housing make it easier to service inside components.

Protected Cylinder

Design of the shear housing provides full protection of the cylinder throughout the complete cutting cycle.

Completely Cat

Only Caterpillar offers an integrated machine-hydraulics-shear system supported by Caterpillar from front to end, throughout the life of the system.
