S320B

Get in touch

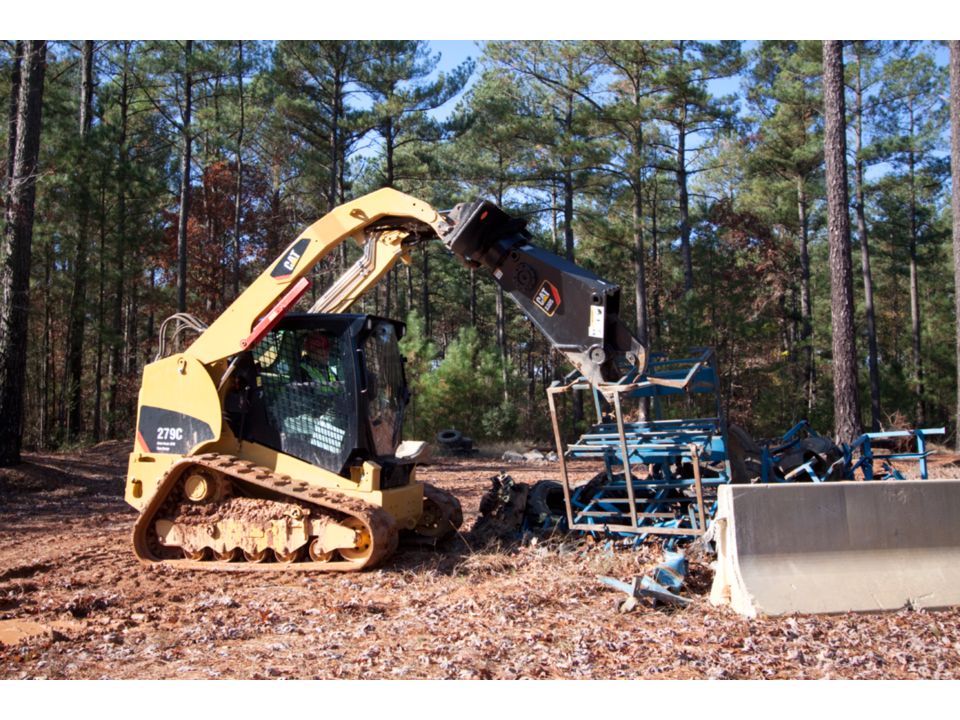

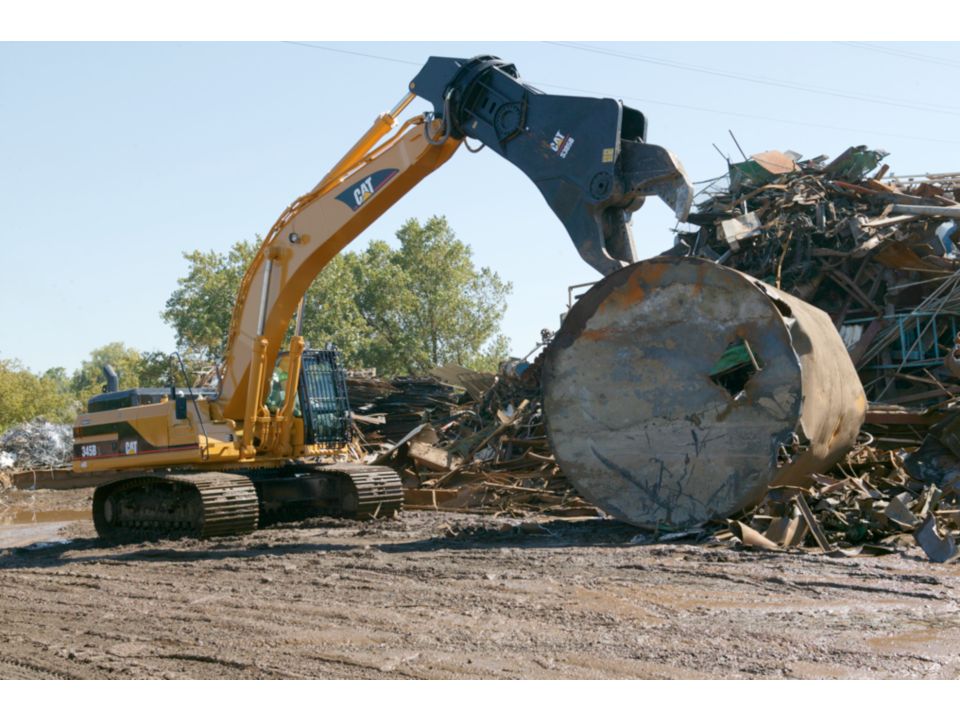

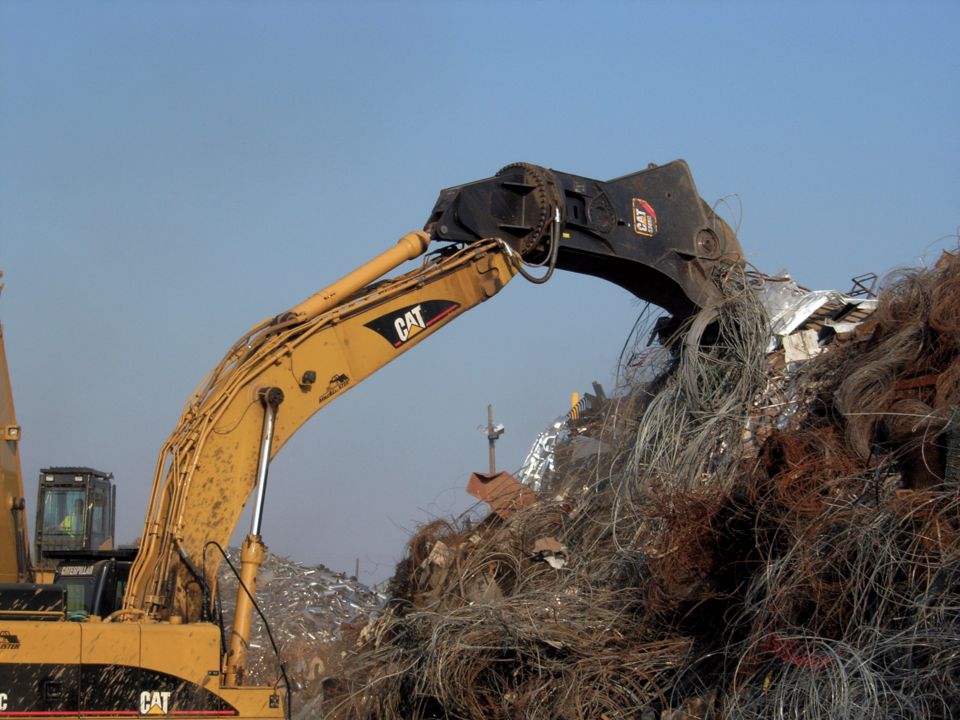

Steel-frame demolition and scrap processing are the starting points for metals recycling. Cat® Scrap and Demolition Shears power through these applications, providing the production and reliably that keep your operation in the black. Available in sizes to fit Cat machines from skid-steers to large excavators.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Cutting Circuit - Maximum Relief Pressure

5075 psi 35000 kPa
{"Name":"Cutting Circuit - Maximum Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5075","MetricUnit":"kPa","MetricValue":"35000","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Apex Force

178 Sh Ton 1583 kN
{"Name":"Apex Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"178","MetricUnit":"kN","MetricValue":"1583","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Width

31 in 792 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"31","MetricUnit":"mm","MetricValue":"792","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Tip Force

100 Sh Ton 892 kN
{"Name":"Tip Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"100","MetricUnit":"kN","MetricValue":"892","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Cutting Circuit - Maximum Flow

40 gpm 150 L/min
{"Name":"Cutting Circuit - Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"40","MetricUnit":"L/min","MetricValue":"150","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Depth

18 in 459 mm
{"Name":"Jaw Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"18","MetricUnit":"mm","MetricValue":"459","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Width - Moving

3 in 90 mm
{"Name":"Jaw Width - Moving","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3","MetricUnit":"mm","MetricValue":"90","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Throat Force

417 Sh Ton 3706 kN
{"Name":"Throat Force","SpecificationId":null,"TextValue":null,"EnglishUnit":"Sh Ton","EnglishValue":"417","MetricUnit":"kN","MetricValue":"3706","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Length

110 in 2792 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"110","MetricUnit":"mm","MetricValue":"2792","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Weight - Stick Mount

4774 lb 2165 kg
{"Name":"Weight - Stick Mount","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"4774","MetricUnit":"kg","MetricValue":"2165","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Weight - Boom Mount

5666 lb 2570 kg
{"Name":"Weight - Boom Mount","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"5666","MetricUnit":"kg","MetricValue":"2570","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Width - Fixed

12 in 304 mm
{"Name":"Jaw Width - Fixed","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"12","MetricUnit":"mm","MetricValue":"304","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Height

53 in 1340 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"53","MetricUnit":"mm","MetricValue":"1340","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Jaw Opening

16 in 409 mm
{"Name":"Jaw Opening","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16","MetricUnit":"mm","MetricValue":"409","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Rotation Circuit - Maximum Relief Pressure

2030 psi 14000 kPa
{"Name":"Rotation Circuit - Maximum Relief Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2030","MetricUnit":"kPa","MetricValue":"14000","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Rotation Circuit - Maximum Flow

10.6 gpm 40 L/min
{"Name":"Rotation Circuit - Maximum Flow","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"10.6","MetricUnit":"L/min","MetricValue":"40","Type":"measurement","SpecificationGroup":null,"SortOrder":"1000"}
Cycle Time - Close

3 Seconds
{"Name":"Cycle Time - Close","SpecificationId":null,"TextValue":"3 Seconds","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"1000"}

Benefits

Jaw Design

Unique straight lower jaw design effectively enhances the cutting force by facilitating the spreading out of steel along the length of the jaw, maximizing the shear cutting force.

360-degree Rotation

Operator can spin the jaws 360 degrees in either direction to quickly position the jaws for a cut.

Reversible Knives

The four main, side and front knives are fully reversible with four effective cutting edges.

Easy Maintenance

Large access panels on the top, bottom, and sides of the shear housing make it easier to service inside components.

Protected Cylinder

Design of the shear housing provides full protection of the cylinder throughout the complete cutting cycle.

Completely Cat

Only Caterpillar offers an integrated machine-hydraulics-shear system supported by Caterpillar from front to end, throughout the life of the system.
