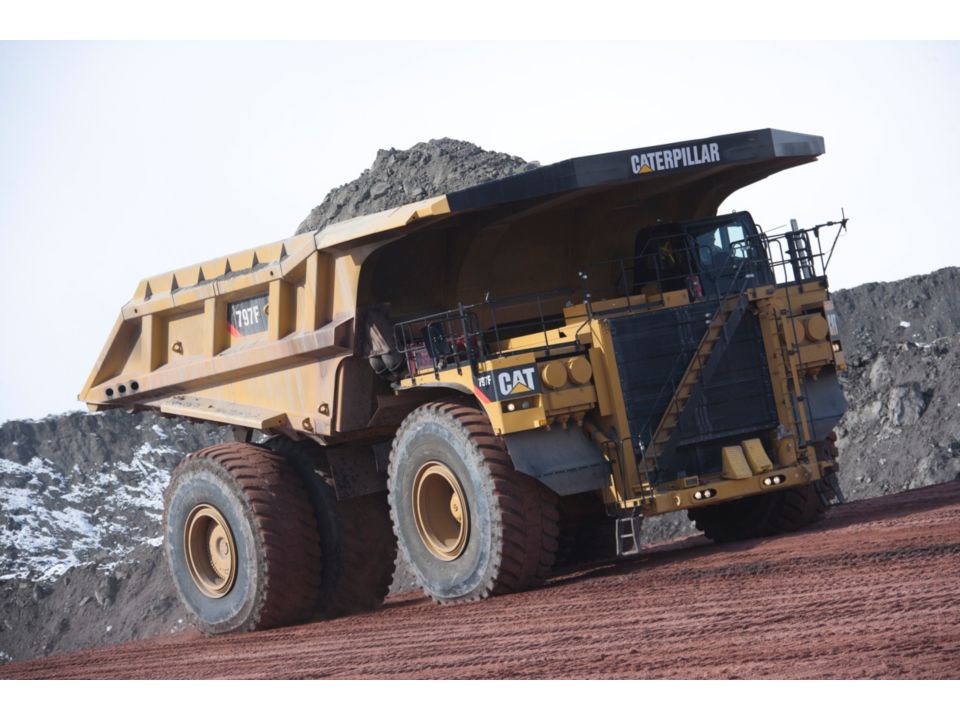

Approximate Weights - HP Body
-
Front Axle - Empty
47.20%
{"Name":"Front Axle - Empty","SpecificationId":null,"TextValue":"47.20%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - HP Body","SortOrder":"10"}
-
Front Axle - Loaded
33.30%
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":"33.30%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - HP Body","SortOrder":"11"}
-
Rear Axle - Empty
52.80%
{"Name":"Rear Axle - Empty","SpecificationId":null,"TextValue":"52.80%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - HP Body","SortOrder":"12"}
-
Rear Axle - Loaded
66.70%
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":"66.70%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - HP Body","SortOrder":"13"}
Approximate Weights - MSD II
-
Front Axle - Empty
47.20%
{"Name":"Front Axle - Empty","SpecificationId":null,"TextValue":"47.20%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - MSD II","SortOrder":"10"}
-
Front Axle - Loaded
33.30%
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":"33.30%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - MSD II","SortOrder":"11"}
-
Rear Axle - Empty
52.80%
{"Name":"Rear Axle - Empty","SpecificationId":null,"TextValue":"52.80%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - MSD II","SortOrder":"12"}
-
Rear Axle - Loaded
66.70%
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":"66.70%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Approximate Weights - MSD II","SortOrder":"13"}

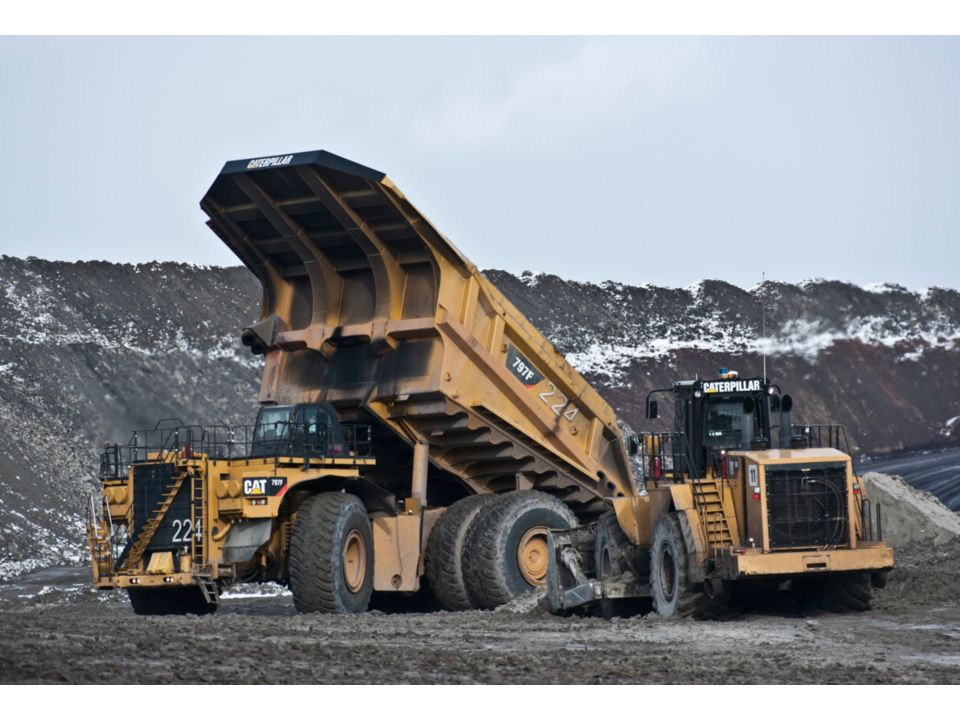

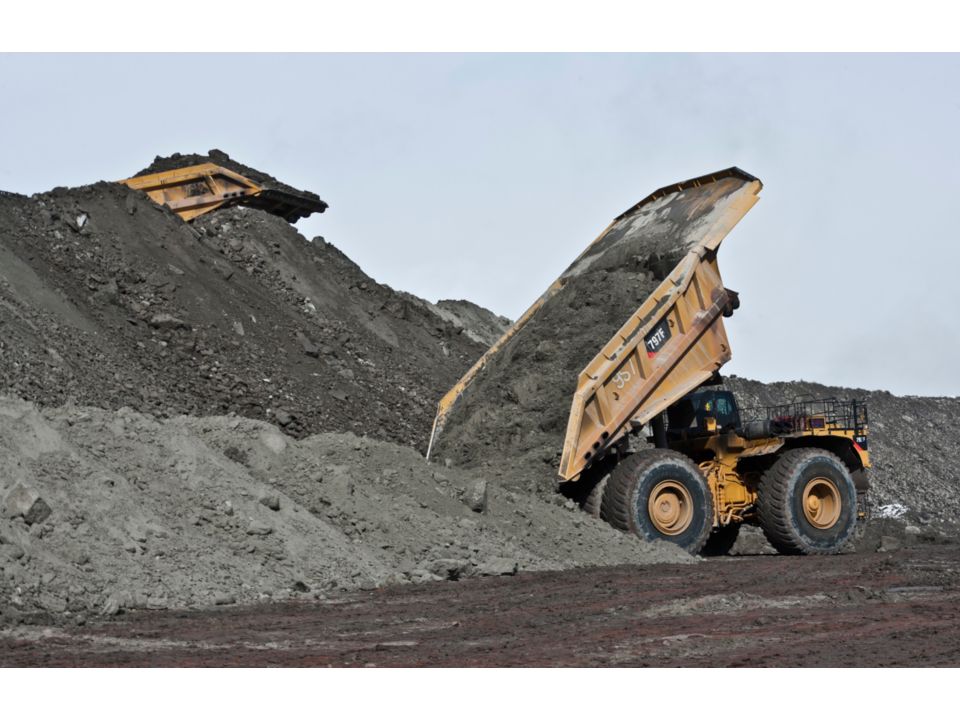

Body Hoists
-
Pump Flow - High Idle
317 gpm
1200 L/min
{"Name":"Pump Flow - High Idle","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"317","MetricUnit":"L/min","MetricValue":"1200","Type":"measurement","SpecificationGroup":"Body Hoists","SortOrder":"10"}
-
Relief Valve Setting - Raise
3510 psi
24200 kPa
{"Name":"Relief Valve Setting - Raise","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3510","MetricUnit":"kPa","MetricValue":"24200","Type":"measurement","SpecificationGroup":"Body Hoists","SortOrder":"11"}
-
Body Raise Time - High Idle
25 s
25 s
{"Name":"Body Raise Time - High Idle","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"25","MetricUnit":"s","MetricValue":"25","Type":"measurement","SpecificationGroup":"Body Hoists","SortOrder":"12"}
-
High Idle Body Lower Time - Float
19 s
19 s
{"Name":"High Idle Body Lower Time - Float","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"19","MetricUnit":"s","MetricValue":"19","Type":"measurement","SpecificationGroup":"Body Hoists","SortOrder":"13"}
Brakes
-
Number of Discs per Side - Front
10
{"Name":"Number of Discs per Side - Front","SpecificationId":null,"TextValue":"10","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Brakes","SortOrder":"9"}
-
Number of Discs per Side - Rear
15
{"Name":"Number of Discs per Side - Rear","SpecificationId":null,"TextValue":"15","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Brakes","SortOrder":"10"}
-
Brake Surface
51243 in²
330517 cm²
{"Name":"Brake Surface","SpecificationId":null,"TextValue":null,"EnglishUnit":"in²","EnglishValue":"51243","MetricUnit":"cm²","MetricValue":"330517","Type":"measurement","SpecificationGroup":"Brakes","SortOrder":"12"}
-
Standards
ISO 3450:2011
{"Name":"Standards","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Brakes","SortOrder":"13"}
Braking System
-
Outside Diameter
42 in
1067 mm
{"Name":"Outside Diameter","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"42","MetricUnit":"mm","MetricValue":"1067","Type":"measurement","SpecificationGroup":"Braking System","SortOrder":"11"}

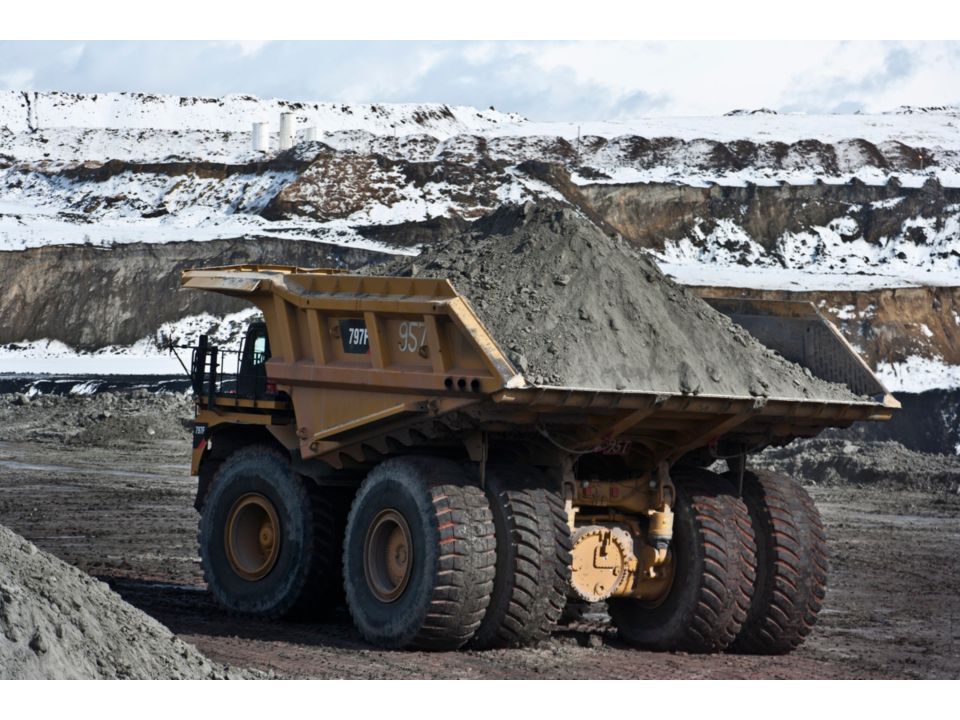

Capacity - 100% Fill Factor
-
Struck
188-213 m³ (246-290 yd³)
{"Name":"Struck","SpecificationId":null,"TextValue":"188-213 m³ (246-290 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Capacity - 100% Fill Factor","SortOrder":"10"}
-
Heaped 2:1 Capacity - ISO 6483:1980
240-267 m³ (314-350 yd³)
{"Name":"Heaped 2:1 Capacity - ISO 6483:1980","SpecificationId":null,"TextValue":"240-267 m³ (314-350 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Capacity - 100% Fill Factor","SortOrder":"11"}
-
Note
Consult your local Cat dealer for truck body recommendations.
{"Name":"Note","SpecificationId":null,"TextValue":"Consult your local Cat dealer for truck body recommendations.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Capacity - 100% Fill Factor","SortOrder":"12"}
Capacity - MSD II - 100% Fill Factor
-
Struck
188-213 m³ (246-290 yd³)
{"Name":"Struck","SpecificationId":null,"TextValue":"188-213 m³ (246-290 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Capacity - MSD II - 100% Fill Factor","SortOrder":"13"}
-
Heaped (SAE 2:1)
240-267 m³ (314-350 yd³)
{"Name":"Heaped (SAE 2:1)","SpecificationId":null,"TextValue":"240-267 m³ (314-350 yd³)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Capacity - MSD II - 100% Fill Factor","SortOrder":"14"}
-
Note
Consult your local Cat dealer for truck body recommendations.
{"Name":"Note","SpecificationId":null,"TextValue":"Consult your local Cat dealer for truck body recommendations.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Capacity - MSD II - 100% Fill Factor","SortOrder":"15"}
Dimensions
-
Inside Body Depth - Maximum
11 ft
3363 mm
{"Name":"Inside Body Depth - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"11","MetricUnit":"mm","MetricValue":"3363","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"10"}
-
Loading Height - Empty
23 ft
6998 mm
{"Name":"Loading Height - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"23","MetricUnit":"mm","MetricValue":"6998","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"10"}
-
Overall Length
49.5 ft
15080 mm
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"49.5","MetricUnit":"mm","MetricValue":"15080","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"10"}
-
Height - Top of ROPS - Empty
21.4 ft
6526 mm
{"Name":"Height - Top of ROPS - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"21.4","MetricUnit":"mm","MetricValue":"6526","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"12"}
-
Overall Body Length
48.6 ft
14802 mm
{"Name":"Overall Body Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"48.6","MetricUnit":"mm","MetricValue":"14802","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"12"}
-
Rear Axle - Tail
12.9 ft
3944 mm
{"Name":"Rear Axle - Tail","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.9","MetricUnit":"mm","MetricValue":"3944","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"16"}
-
Dump Clearance
6.58 ft
2017 mm
{"Name":"Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.58","MetricUnit":"mm","MetricValue":"2017","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"17"}
-
Inside Body Length
32.75 ft
9976 mm
{"Name":"Inside Body Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"32.75","MetricUnit":"mm","MetricValue":"9976","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"18"}
-
Wheel Base
23.58 ft
7195 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"23.58","MetricUnit":"mm","MetricValue":"7195","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"19"}
-
Engine Guard Clearance - Loaded
3.33 ft
1025 mm
{"Name":"Engine Guard Clearance - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.33","MetricUnit":"mm","MetricValue":"1025","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"19"}
-
Centerline of Rear Dual Tire Width
20.41 ft
6233 mm
{"Name":"Centerline of Rear Dual Tire Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"20.41","MetricUnit":"mm","MetricValue":"6233","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"21"}
-
Inside Body Width
27.91 ft
8513 mm
{"Name":"Inside Body Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"27.91","MetricUnit":"mm","MetricValue":"8513","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"21"}
-
Overall Tire Width
31.25 ft
9529 mm
{"Name":"Overall Tire Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"31.25","MetricUnit":"mm","MetricValue":"9529","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"22"}
-
Front Canopy Height - Empty
25.33 ft
7709 mm
{"Name":"Front Canopy Height - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"25.33","MetricUnit":"mm","MetricValue":"7709","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"23"}
-
Overall Canopy Width
29.91 ft
9116 mm
{"Name":"Overall Canopy Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"29.91","MetricUnit":"mm","MetricValue":"9116","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"25"}
-
Loaded Ground Clearance
2.58 ft
786 mm
{"Name":"Loaded Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.58","MetricUnit":"mm","MetricValue":"786","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"27"}
-
Rear Axle - Clearance - Loaded
3.08 ft
947 mm
{"Name":"Rear Axle - Clearance - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.08","MetricUnit":"mm","MetricValue":"947","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"29"}
-
Outside Body Width
32 ft
9755 mm
{"Name":"Outside Body Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"32","MetricUnit":"mm","MetricValue":"9755","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"29"}
-
Centerline Front Tire Width
21.41 ft
6534 mm
{"Name":"Centerline Front Tire Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"21.41","MetricUnit":"mm","MetricValue":"6534","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"30"}
-
Overall Height - Body Raised
51.5 ft
15701 mm
{"Name":"Overall Height - Body Raised","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"51.5","MetricUnit":"mm","MetricValue":"15701","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)
-
Height to Top of ROPS - Empty
21.41 ft
6526 mm
{"Name":"Height to Top of ROPS - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"21.41","MetricUnit":"mm","MetricValue":"6526","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"11"}
-
Overall Body Length
51.13 ft
15583 mm
{"Name":"Overall Body Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"51.13","MetricUnit":"mm","MetricValue":"15583","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"12"}
-
Inside Body Length
32.75 ft
9976 mm
{"Name":"Inside Body Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"32.75","MetricUnit":"mm","MetricValue":"9976","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"13"}
-
Overall Length
51.13 ft
15583 mm
{"Name":"Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"51.13","MetricUnit":"mm","MetricValue":"15583","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"14"}
-
Wheelbase
23.61 ft
7195 mm
{"Name":"Wheelbase","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"23.61","MetricUnit":"mm","MetricValue":"7195","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"15"}
-
Rear Axle to Tail
12.94 ft
3944 mm
{"Name":"Rear Axle to Tail","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.94","MetricUnit":"mm","MetricValue":"3944","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"16"}
-
Loaded Ground Clearance
2.58 ft
786 mm
{"Name":"Loaded Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.58","MetricUnit":"mm","MetricValue":"786","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"17"}
-
Dump Clearance
5.8 ft
1768 mm
{"Name":"Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"5.8","MetricUnit":"mm","MetricValue":"1768","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"18"}
-
Loading Height - Empty
22.25 ft
6786 mm
{"Name":"Loading Height - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"22.25","MetricUnit":"mm","MetricValue":"6786","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"19"}
-
Inside Body Depth - Maximum
11 ft
3363 mm
{"Name":"Inside Body Depth - Maximum","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"11","MetricUnit":"mm","MetricValue":"3363","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"20"}
-
Overall Height - Body Raised
50.8 ft
15485 mm
{"Name":"Overall Height - Body Raised","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"50.8","MetricUnit":"mm","MetricValue":"15485","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"21"}
-
Centerline Front Tire Width
21.44 ft
6534 mm
{"Name":"Centerline Front Tire Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"21.44","MetricUnit":"mm","MetricValue":"6534","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"22"}
-
Engine Guard Clearance - Loaded
3.36 ft
1025 mm
{"Name":"Engine Guard Clearance - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.36","MetricUnit":"mm","MetricValue":"1025","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"23"}
-
Outside Body Width
34.1 ft
10393 mm
{"Name":"Outside Body Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"34.1","MetricUnit":"mm","MetricValue":"10393","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"24"}
-
Overall Canopy Width
34.1 ft
10393 mm
{"Name":"Overall Canopy Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"34.1","MetricUnit":"mm","MetricValue":"10393","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"25"}
-
Inside Body Width
29.65 ft
9036 mm
{"Name":"Inside Body Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"29.65","MetricUnit":"mm","MetricValue":"9036","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"26"}
-
Front Canopy Height - Empty
25 ft
7630 mm
{"Name":"Front Canopy Height - Empty","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"25","MetricUnit":"mm","MetricValue":"7630","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"27"}
-
Rear Axle Clearance - Loaded
3.11 ft
947 mm
{"Name":"Rear Axle Clearance - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.11","MetricUnit":"mm","MetricValue":"947","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"28"}
-
Overall Tire Width
31.25 ft
9529 mm
{"Name":"Overall Tire Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"31.25","MetricUnit":"mm","MetricValue":"9529","Type":"measurement","SpecificationGroup":"Dimensions (All dimensions are approximate. Dimensions are with body 507-1580.)","SortOrder":"30"}
Engine
-
Engine Model
Cat® C175-20
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C175-20","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"2"}
-
Gross Power - SAE J1995
4000 hp
2983 kW
{"Name":"Gross Power - SAE J1995","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"4000","MetricUnit":"kW","MetricValue":"2983","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"3"}
-
Gross Power - SAE J1995:2015
4000 hp
2983 kW
{"Name":"Gross Power - SAE J1995:2015","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"4000","MetricUnit":"kW","MetricValue":"2983","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"4"}
-
Net Power - SAE J1349:2011
3887 hp
2981 kW
{"Name":"Net Power - SAE J1349:2011","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"3887","MetricUnit":"kW","MetricValue":"2981","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"5"}
-
Bore
6.9 in
175 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.9","MetricUnit":"mm","MetricValue":"175","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"13"}
-
Stroke
8.7 in
220 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8.7","MetricUnit":"mm","MetricValue":"220","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"14"}
-
Displacement
6469 in³
106 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"6469","MetricUnit":"l","MetricValue":"106","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"15"}
-
Emissions
U.S. EPA Compliant. Where applicable, the Cat C175-20 engine is compliant with U.S. EPA emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"U.S. EPA Compliant. Where applicable, the Cat C175-20 engine is compliant with U.S. EPA emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"18"}
-
Note (1)
Power ratings apply at 1,750 rpm when tested under the specific conditions for the specified standard.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Power ratings apply at 1,750 rpm when tested under the specific conditions for the specified standard.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"100"}
-
Note (2)
Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 99 kPa (29.32 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (69° F) and an LHV of 42 780 kJ/kg (18,390 Btu/lb) when engine is used at 30° C (38° F).
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 99 kPa (29.32 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (69° F) and an LHV of 42 780 kJ/kg (18,390 Btu/lb) when engine is used at 30° C (38° F).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"101"}
-
Note (3)
No low altitude arrangement (LAA) engine derating required up to 2134 m (7,000 ft) altitude.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"No low altitude arrangement (LAA) engine derating required up to 2134 m (7,000 ft) altitude.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"102"}
-
Note (4)
No high altitude arrangement (HAA) engine derating required up to 4877 m (16,000 ft) altitude.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"No high altitude arrangement (HAA) engine derating required up to 4877 m (16,000 ft) altitude.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"103"}
Final Drives
-
Differential Ratio
1.276:1
{"Name":"Differential Ratio","SpecificationId":null,"TextValue":"1.276:1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Final Drives","SortOrder":"43"}
-
Planetary Ratio
16.67:1
{"Name":"Planetary Ratio","SpecificationId":null,"TextValue":"16.67:1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Final Drives","SortOrder":"44"}
-
Total Reduction Ratio
21.26:1
{"Name":"Total Reduction Ratio","SpecificationId":null,"TextValue":"21.26:1","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Final Drives","SortOrder":"45"}
-
Note
Double reduction, planetary with full floating axles.
{"Name":"Note","SpecificationId":null,"TextValue":"Double reduction, planetary with full floating axles.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Final Drives","SortOrder":"99"}
ROPS
-
ROPS Standards
ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
{"Name":"ROPS Standards","SpecificationId":null,"TextValue":"ROPS (Rollover Protective Structure) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"ROPS","SortOrder":"10"}
-
FOPS Standards
FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria.
{"Name":"FOPS Standards","SpecificationId":null,"TextValue":"FOPS (Falling Objects Protective Structure) meets ISO 3449:2005 Level II FOPS criteria.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"ROPS","SortOrder":"11"}
Service Refill Capacities
-
Fuel Tank
1000 gal (US)
3785 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"1000","MetricUnit":"l","MetricValue":"3785","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"10"}
-
DEF Tank
99 gal (US)
375 l
{"Name":"DEF Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"99","MetricUnit":"l","MetricValue":"375","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"11"}
-
Cooling System
306 gal (US)
1160 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"306","MetricUnit":"l","MetricValue":"1160","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"12"}
-
Crankcase
84 gal (US)
319 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"84","MetricUnit":"l","MetricValue":"319","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"13"}
-
Front Wheels - Each
16 gal (US)
61 l
{"Name":"Front Wheels - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"16","MetricUnit":"l","MetricValue":"61","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"14"}
-
Final Drive - Each
49 gal (US)
185 l
{"Name":"Final Drive - Each","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"49","MetricUnit":"l","MetricValue":"185","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"15"}
-
Differentials
311 gal (US)
1176 l
{"Name":"Differentials","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"311","MetricUnit":"l","MetricValue":"1176","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"16"}
-
Steering Tank
67 gal (US)
254 l
{"Name":"Steering Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"67","MetricUnit":"l","MetricValue":"254","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"17"}
-
Steering System - Including Tank
94 gal (US)
355 l
{"Name":"Steering System - Including Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"94","MetricUnit":"l","MetricValue":"355","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"18"}
-
Brake/Hoist Hydraulic Lines
219 gal (US)
830 l
{"Name":"Brake/Hoist Hydraulic Lines","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"219","MetricUnit":"l","MetricValue":"830","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"19"}
-
Brake Hoist System - Includes Tank
441 gal (US)
1600 l
{"Name":"Brake Hoist System - Includes Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"441","MetricUnit":"l","MetricValue":"1600","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"20"}
-
Brake/Hoist Tank
203 gal (US)
770 l
{"Name":"Brake/Hoist Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"203","MetricUnit":"l","MetricValue":"770","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"21"}
-
Torque Converter Sump
80 gal (US)
303 l
{"Name":"Torque Converter Sump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"80","MetricUnit":"l","MetricValue":"303","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"22"}
-
Torque Converter/Transmission System - Including Sump
166 gal (US)
629 l
{"Name":"Torque Converter/Transmission System - Including Sump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"166","MetricUnit":"l","MetricValue":"629","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"23"}
Sound
-
Sound Standards (1)
The operator sound pressure level measured according to work cycle procedures specified in ISO 6394:2008 and 6396:2008 is 76 dB(A) for cab offered by Caterpillar when properly installed and maintained and tested with doors and windows closed.
{"Name":"Sound Standards (1)","SpecificationId":null,"TextValue":"The operator sound pressure level measured according to work cycle procedures specified in ISO 6394:2008 and 6396:2008 is 76 dB(A) for cab offered by Caterpillar when properly installed and maintained and tested with doors and windows closed.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}
-
Sound Standards (2)
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.
{"Name":"Sound Standards (2)","SpecificationId":null,"TextValue":"Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"100"}
Steering
-
Steer Angle
40 °
40 °
{"Name":"Steer Angle","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"40","MetricUnit":"°","MetricValue":"40","Type":"measurement","SpecificationGroup":"Steering","SortOrder":"10"}
-
Steering Standards
ISO 5010:2007
{"Name":"Steering Standards","SpecificationId":null,"TextValue":"ISO 5010:2007","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Steering","SortOrder":"100"}
Suspension
-
Effective Cylinder Stroke - Front
12.3 in
313.6 mm
{"Name":"Effective Cylinder Stroke - Front","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"12.3","MetricUnit":"mm","MetricValue":"313.6","Type":"measurement","SpecificationGroup":"Suspension","SortOrder":"10"}
-
Effective Cylinder Stroke - Rear
6.5 in
165.1 mm
{"Name":"Effective Cylinder Stroke - Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.5","MetricUnit":"mm","MetricValue":"165.1","Type":"measurement","SpecificationGroup":"Suspension","SortOrder":"11"}
-
Rear axle - Oscillation
±4.0 degrees
{"Name":"Rear axle - Oscillation","SpecificationId":null,"TextValue":"±4.0 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Suspension","SortOrder":"12"}
Tires
-
Tires
59/80R63 – Michelin or Bridgestone
{"Name":"Tires","SpecificationId":null,"TextValue":"59/80R63 – Michelin or Bridgestone","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tires","SortOrder":"99"}
-
Note
Productive capabilities of the 797F are such that, under certain job conditions, TKPH (TMPH) capabilities of standard tires could be exceeded and, therefore, limit production.
{"Name":"Note","SpecificationId":null,"TextValue":"Productive capabilities of the 797F are such that, under certain job conditions, TKPH (TMPH) capabilities of standard tires could be exceeded and, therefore, limit production.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Tires","SortOrder":"100"}
Transmission
-
Forward - 1
7 mile/h
11.3 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7","MetricUnit":"km/h","MetricValue":"11.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"35"}
-
Forward - 2
9.5 mile/h
15.2 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"9.5","MetricUnit":"km/h","MetricValue":"15.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"36"}
-
Forward - 3
12.7 mile/h
20.5 km/h
{"Name":"Forward - 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"12.7","MetricUnit":"km/h","MetricValue":"20.5","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"37"}
-
Forward - 4
17.2 mile/h
27.7 km/h
{"Name":"Forward - 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"17.2","MetricUnit":"km/h","MetricValue":"27.7","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"38"}
-
Forward - 5
23.1 mile/h
37.2 km/h
{"Name":"Forward - 5","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"23.1","MetricUnit":"km/h","MetricValue":"37.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"39"}
-
Forward - 6
31.2 mile/h
50.3 km/h
{"Name":"Forward - 6","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"31.2","MetricUnit":"km/h","MetricValue":"50.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"40"}
-
Forward - 7
42 mile/h
67.6 km/h
{"Name":"Forward - 7","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"42","MetricUnit":"km/h","MetricValue":"67.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"41"}
-
Reverse
7.4 mile/h
11.9 km/h
{"Name":"Reverse","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"7.4","MetricUnit":"km/h","MetricValue":"11.9","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"42"}
-
Top Speed - Loaded
42 mile/h
67.6 km/h
{"Name":"Top Speed - Loaded","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"42","MetricUnit":"km/h","MetricValue":"67.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"100"}
Weight Distributions - Approximate
-
Front Axle - Empty
47.20%
{"Name":"Front Axle - Empty","SpecificationId":null,"TextValue":"47.20%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weight Distributions - Approximate","SortOrder":"10"}
-
Rear Axle - Empty
52.80%
{"Name":"Rear Axle - Empty","SpecificationId":null,"TextValue":"52.80%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weight Distributions - Approximate","SortOrder":"11"}
-
Front Axle - Loaded
33.30%
{"Name":"Front Axle - Loaded","SpecificationId":null,"TextValue":"33.30%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weight Distributions - Approximate","SortOrder":"12"}
-
Rear Axle - Loaded
66.70%
{"Name":"Rear Axle - Loaded","SpecificationId":null,"TextValue":"66.70%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weight Distributions - Approximate","SortOrder":"13"}
Weights - Approximate
-
Nominal Rated Payload
400 ton (US)
363 t
{"Name":"Nominal Rated Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"400","MetricUnit":"t","MetricValue":"363","Type":"measurement","SpecificationGroup":"Weights - Approximate","SortOrder":"1"}
-
Rated Gross Machine Weight
1375000 lb
623690 kg
{"Name":"Rated Gross Machine Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1375000","MetricUnit":"kg","MetricValue":"623690","Type":"measurement","SpecificationGroup":"Weights - Approximate","SortOrder":"5"}
-
Body Weight Range
41 368-61 235 kg (91,200-135,000 lb)
{"Name":"Body Weight Range","SpecificationId":null,"TextValue":"41 368-61 235 kg (91,200-135,000 lb)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights - Approximate","SortOrder":"11"}
-
Chassis Weight
486263 lb
220565 kg
{"Name":"Chassis Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"486263","MetricUnit":"kg","MetricValue":"220565","Type":"measurement","SpecificationGroup":"Weights - Approximate","SortOrder":"12"}
-
Note (1)
Refer to the Cat Mining Truck 10/10/20 Payload Policy for maximum gross machine weight limitations.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Refer to the Cat Mining Truck 10/10/20 Payload Policy for maximum gross machine weight limitations.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights - Approximate","SortOrder":"100"}
-
Note (2)
Body weight varies depending on body and liner configuration. Weight range for known applications.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Body weight varies depending on body and liner configuration. Weight range for known applications.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights - Approximate","SortOrder":"101"}
-
Note (3)
Chassis weight with 100 percent fuel, hoist, body mounting group, rims and tires.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"Chassis weight with 100 percent fuel, hoist, body mounting group, rims and tires.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights - Approximate","SortOrder":"102"}
