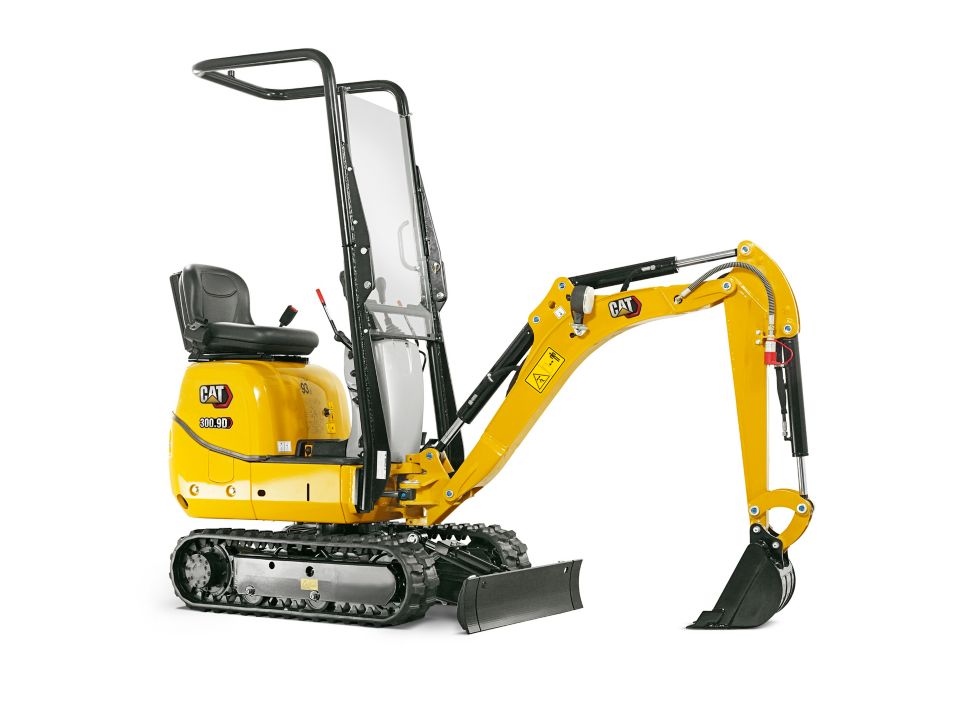

300.9D

Get in touch

An extensive line of Cat® mini hydraulic excavators offers the performance to dig in and be productive on every job.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Chassis and Swivel Gear

Gradeability

30°/58%
{"Name":"Gradeability","SpecificationId":null,"TextValue":"30°/58%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Chassis and Swivel Gear","SortOrder":"99"}
Travel Speed

1.12 mile/h 1.8 km/h
{"Name":"Travel Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.12","MetricUnit":"km/h","MetricValue":"1.8","Type":"measurement","SpecificationGroup":"Chassis and Swivel Gear","SortOrder":"99"}
Track Width

7 in 180 mm
{"Name":"Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7","MetricUnit":"mm","MetricValue":"180","Type":"measurement","SpecificationGroup":"Chassis and Swivel Gear","SortOrder":"99"}
Ground Clearance

5 in 127 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5","MetricUnit":"mm","MetricValue":"127","Type":"measurement","SpecificationGroup":"Chassis and Swivel Gear","SortOrder":"99"}
Ground Pressure

3.5 psi 0.25 kg/cm²
{"Name":"Ground Pressure","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3.5","MetricUnit":"kg/cm²","MetricValue":"0.25","Type":"measurement","SpecificationGroup":"Chassis and Swivel Gear","SortOrder":"99"}
Machine Swing Speed

8 r/min 8 r/min
{"Name":"Machine Swing Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"8","MetricUnit":"r/min","MetricValue":"8","Type":"measurement","SpecificationGroup":"Chassis and Swivel Gear","SortOrder":"99"}
Number of Rollers - Each Side

2
{"Name":"Number of Rollers - Each Side","SpecificationId":null,"TextValue":"2","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Chassis and Swivel Gear","SortOrder":"99"}

Dimensions

Dig Depth

68 in 1731 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"68","MetricUnit":"mm","MetricValue":"1731","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"3"}
Undercarriage Width - Extended

2.83 ft 864 mm
{"Name":"Undercarriage Width - Extended","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.83","MetricUnit":"mm","MetricValue":"864","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Width

2.4 ft 730 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.4","MetricUnit":"mm","MetricValue":"730","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Height - With ROPS Safety Frame Folded Down

4.94 ft 1507 mm
{"Name":"Height - With ROPS Safety Frame Folded Down","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.94","MetricUnit":"mm","MetricValue":"1507","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Dump Height

6.68 ft 2035 mm
{"Name":"Maximum Dump Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"6.68","MetricUnit":"mm","MetricValue":"2035","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Dozer Lift Height

8 in 197 mm
{"Name":"Maximum Dozer Lift Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8","MetricUnit":"mm","MetricValue":"197","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Length - Undercarriage

4 ft 1220 mm
{"Name":"Length - Undercarriage","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4","MetricUnit":"mm","MetricValue":"1220","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Vertical Dig Depth

4.43 ft 1349 mm
{"Name":"Maximum Vertical Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"4.43","MetricUnit":"mm","MetricValue":"1349","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Minimum Front Linkage Swing Radius

3.77 ft 1150 mm
{"Name":"Minimum Front Linkage Swing Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.77","MetricUnit":"mm","MetricValue":"1150","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Boom Swing Angle - Left

55 ° 55 °
{"Name":"Boom Swing Angle - Left","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"55","MetricUnit":"°","MetricValue":"55","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Undercarriage Width - Retracted

2.33 ft 711 mm
{"Name":"Undercarriage Width - Retracted","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.33","MetricUnit":"mm","MetricValue":"711","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Boom Swing Angle - Right

56 ° 56 °
{"Name":"Boom Swing Angle - Right","SpecificationId":null,"TextValue":null,"EnglishUnit":"°","EnglishValue":"56","MetricUnit":"°","MetricValue":"56","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Reach

10.09 ft 3074 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.09","MetricUnit":"mm","MetricValue":"3074","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Reach - Ground Level

9.92 ft 3023 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.92","MetricUnit":"mm","MetricValue":"3023","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Transport Length - Arm Lowered

9 ft 2746 mm
{"Name":"Transport Length - Arm Lowered","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9","MetricUnit":"mm","MetricValue":"2746","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Track Width

7 in 180 mm
{"Name":"Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7","MetricUnit":"mm","MetricValue":"180","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Tail Swing Radius

2.41 ft 736 mm
{"Name":"Tail Swing Radius","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.41","MetricUnit":"mm","MetricValue":"736","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Dozer Dig Depth

7 in 174 mm
{"Name":"Maximum Dozer Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7","MetricUnit":"mm","MetricValue":"174","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Maximum Dig Height

9.39 ft 2863 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"9.39","MetricUnit":"mm","MetricValue":"2863","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}
Height - With ROPS Safety Frame Unfolded

7.47 ft 2276 mm
{"Name":"Height - With ROPS Safety Frame Unfolded","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"7.47","MetricUnit":"mm","MetricValue":"2276","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"99"}

Dozer Blade

Height

8 in 200 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8","MetricUnit":"mm","MetricValue":"200","Type":"measurement","SpecificationGroup":"Dozer Blade","SortOrder":"99"}
Dig Depth

7 in 174 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7","MetricUnit":"mm","MetricValue":"174","Type":"measurement","SpecificationGroup":"Dozer Blade","SortOrder":"99"}
Width

28 in 700 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28","MetricUnit":"mm","MetricValue":"700","Type":"measurement","SpecificationGroup":"Dozer Blade","SortOrder":"99"}
Lift Height

8 in 197 mm
{"Name":"Lift Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"8","MetricUnit":"mm","MetricValue":"197","Type":"measurement","SpecificationGroup":"Dozer Blade","SortOrder":"99"}

Engine

Net Power

13 hp 9.6 kW
{"Name":"Net Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"13","MetricUnit":"kW","MetricValue":"9.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Engine Model

Yanmar 31NV70
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Yanmar 31NV70","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"4"}
Rated Speed

2100 r/min 2100 r/min
{"Name":"Rated Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"2100","MetricUnit":"r/min","MetricValue":"2100","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"58"}
Maximum Engine Output

18 hp 13.7 kW
{"Name":"Maximum Engine Output","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"18","MetricUnit":"kW","MetricValue":"13.7","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Gross Power - ISO 14396

18 hp 13.7 kW
{"Name":"Gross Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"18","MetricUnit":"kW","MetricValue":"13.7","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Diesel Tank Volume

2.64 gal (US) 10 l
{"Name":"Diesel Tank Volume","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.64","MetricUnit":"l","MetricValue":"10","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement

52 in³ 854 cm³
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"52","MetricUnit":"cm³","MetricValue":"854","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Flywheel Output ISO

13 hp 9.6 kW
{"Name":"Flywheel Output ISO","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"13","MetricUnit":"kW","MetricValue":"9.6","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Battery

12 V, 20 Amp
{"Name":"Battery","SpecificationId":null,"TextValue":"12 V, 20 Amp","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Type

Water cooled model 3-cylinder diesel engine
{"Name":"Type","SpecificationId":null,"TextValue":"Water cooled model 3-cylinder diesel engine","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Make/Type

Yanmar 31NV70
{"Name":"Make/Type","SpecificationId":null,"TextValue":"Yanmar 31NV70","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Emissions

Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
{"Name":"Emissions","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Pumps

2 gear pumps
{"Name":"Pumps","SpecificationId":null,"TextValue":"2 gear pumps","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"54"}
Discharge Capacity

11.4 + 11.4 L/min (3 + 3 gal/min)
{"Name":"Discharge Capacity","SpecificationId":null,"TextValue":"11.4 + 11.4 L/min (3 + 3 gal/min)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"61"}
Operating Pressure for the Work and Travel Hydraulics

2466 psi 170 bar
{"Name":"Operating Pressure for the Work and Travel Hydraulics","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"2466","MetricUnit":"bar","MetricValue":"170","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure Pivot

1015 psi 70 bar
{"Name":"Operating Pressure Pivot","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"1015","MetricUnit":"bar","MetricValue":"70","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Hydraulic Tank Capacity

3.7 gal (US) 14 l
{"Name":"Hydraulic Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"3.7","MetricUnit":"l","MetricValue":"14","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Noise Emissions

Sound Power Level (LWA) (to 2000/14/EG)

93 dB(A) 93 dB(A)
{"Name":"Sound Power Level (LWA) (to 2000/14/EG)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"93","MetricUnit":"dB(A)","MetricValue":"93","Type":"measurement","SpecificationGroup":"Noise Emissions","SortOrder":"99"}

Operating Specifications

Stick Length - Standard

34.8 in 890 mm
{"Name":"Stick Length - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"34.8","MetricUnit":"mm","MetricValue":"890","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}
Machine Overhang

12.5 in 318 mm
{"Name":"Machine Overhang","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"318","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"99"}

Operational Data

Operating Weight - Without Safety Frame

2061 lb 935 kg
{"Name":"Operating Weight - Without Safety Frame","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2061","MetricUnit":"kg","MetricValue":"935","Type":"measurement","SpecificationGroup":"Operational Data","SortOrder":"99"}
Digging Force - Bucket

2000 lb 8.9 kN
{"Name":"Digging Force - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2000","MetricUnit":"kN","MetricValue":"8.9","Type":"measurement","SpecificationGroup":"Operational Data","SortOrder":"99"}
Digging Force - Stick

1011 lb 4.5 kN
{"Name":"Digging Force - Stick","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1011","MetricUnit":"kN","MetricValue":"4.5","Type":"measurement","SpecificationGroup":"Operational Data","SortOrder":"99"}
Operating Weight - With Safety Frame

2170 lb 985 kg
{"Name":"Operating Weight - With Safety Frame","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2170","MetricUnit":"kg","MetricValue":"985","Type":"measurement","SpecificationGroup":"Operational Data","SortOrder":"99"}

Weights

Operating Weight

2061 lb 935 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2061","MetricUnit":"kg","MetricValue":"935","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Operating Weight - Without Safety Frame

2061 lb 935 kg
{"Name":"Operating Weight - Without Safety Frame","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2061","MetricUnit":"kg","MetricValue":"935","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Operating Weight - With Safety Frame

2170 lb 985 kg
{"Name":"Operating Weight - With Safety Frame","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"2170","MetricUnit":"kg","MetricValue":"985","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

Compact Dimensions

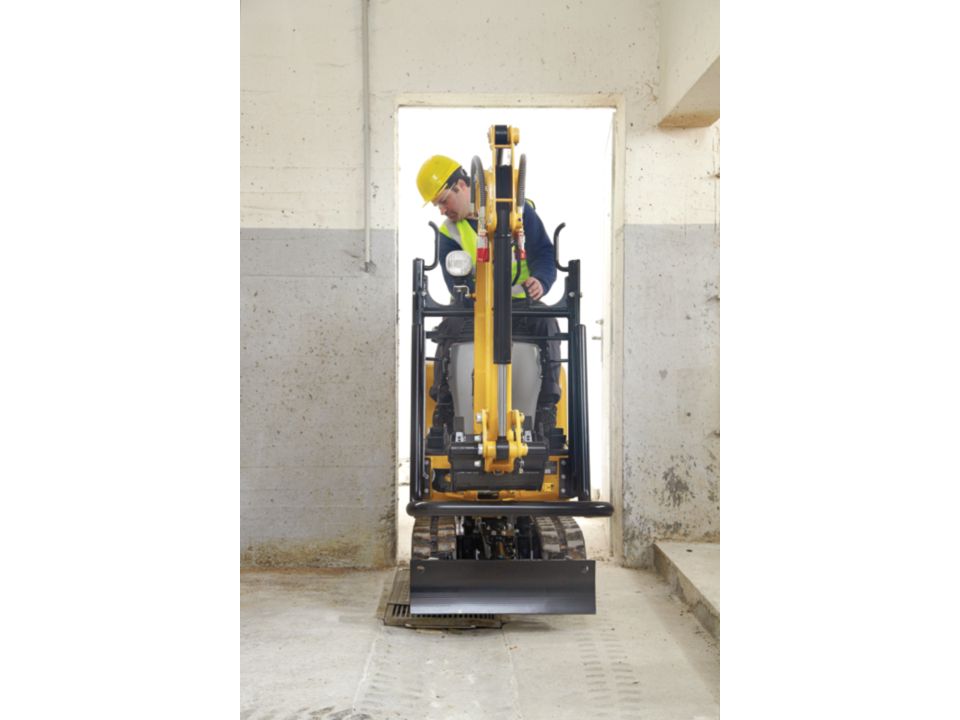

With an overall width of only 730 mm (2 ft 5 in) the Cat® 300.9D can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.

Extending Undercarriage and Blade

An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator's seat, enables the machine to pass through narrow openings.

Foldable Safety Frame

A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.

Simple Controls

The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precise operation is possible from easy to use controls allowing all skill levels to be productive with little practice.

Easy Service

Service and maintenance time is reduced to a minimum with a simple to open steel engine cover and all maintenance and greasing points easily accessible.

Versatility

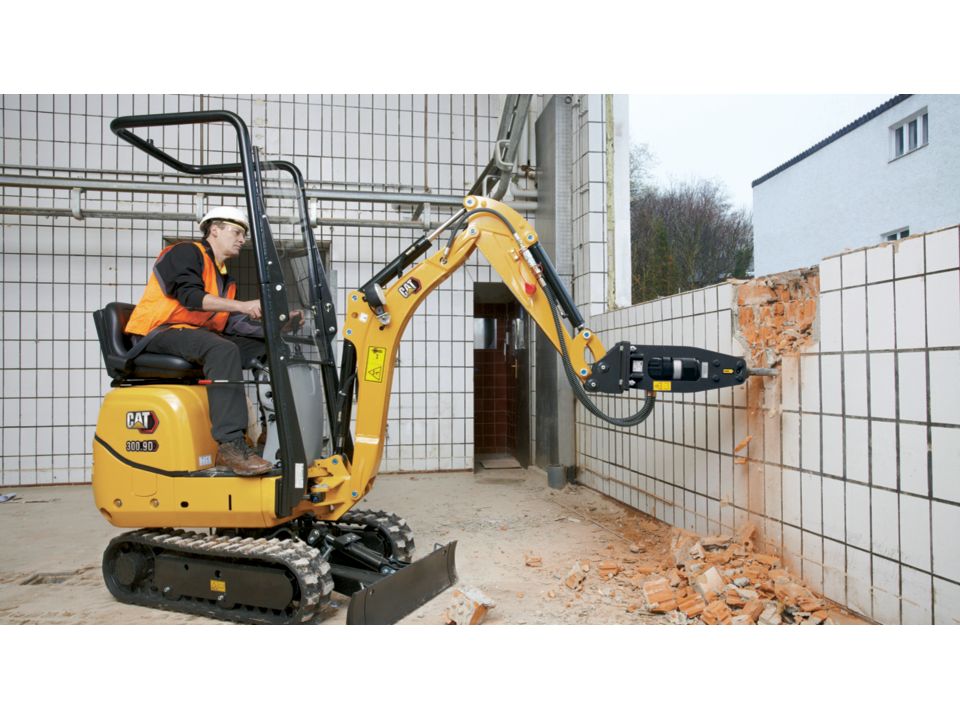

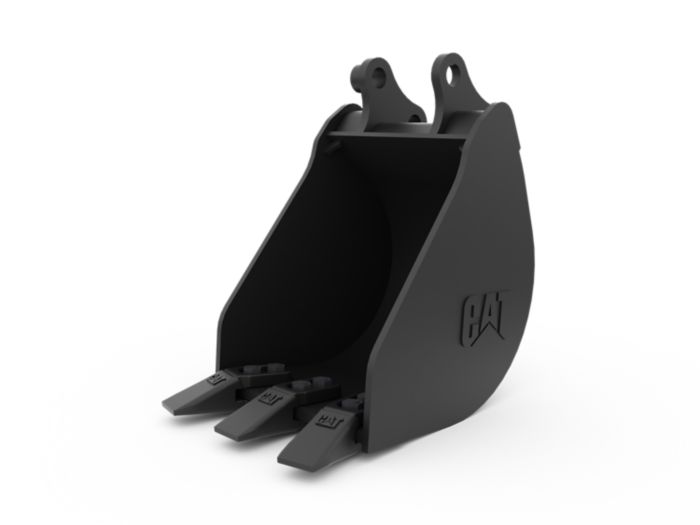

A range of tools is available to take advantage of the machine's versatility. All tools are matched to the machine to optimize performance and deliver excellent value through high productivity and long life.

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3

Product Brochure #4

Product Brochure #5

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

300.9D

300.9D

Compact Dimensions

Extending Undercarriage and Blade

Foldable Safety Frame

Simple Controls

Easy Service

Versatility

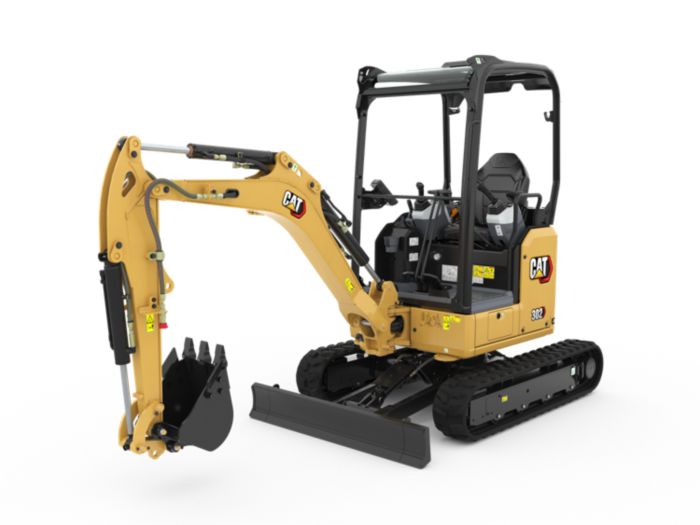

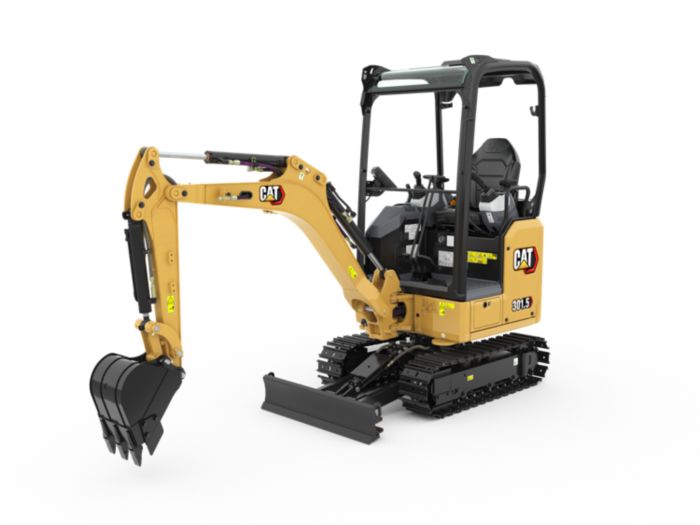

Similar Models
