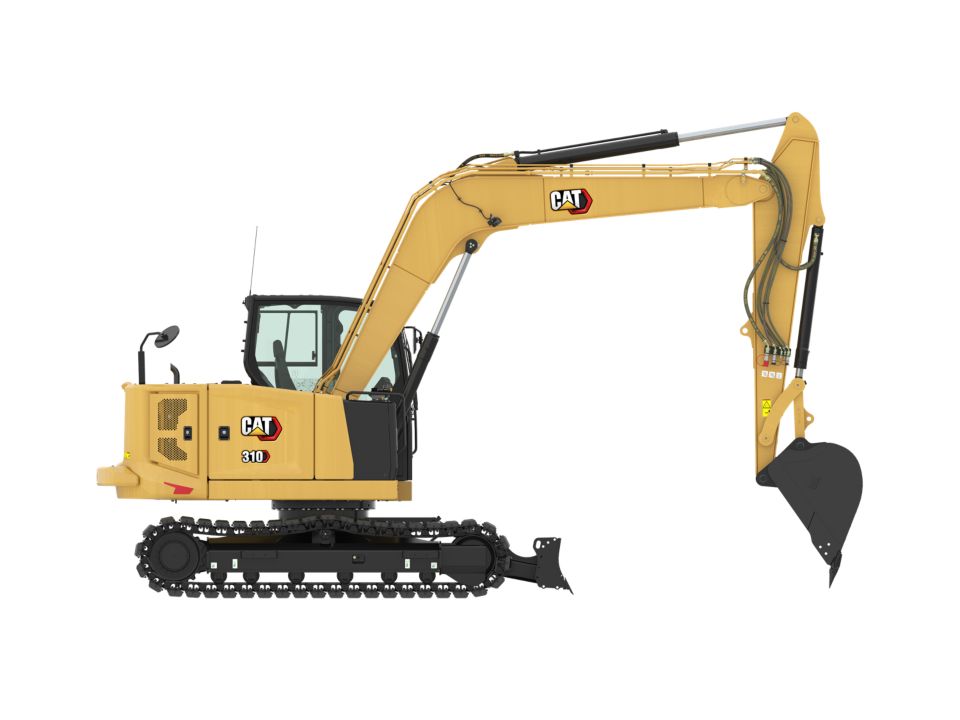

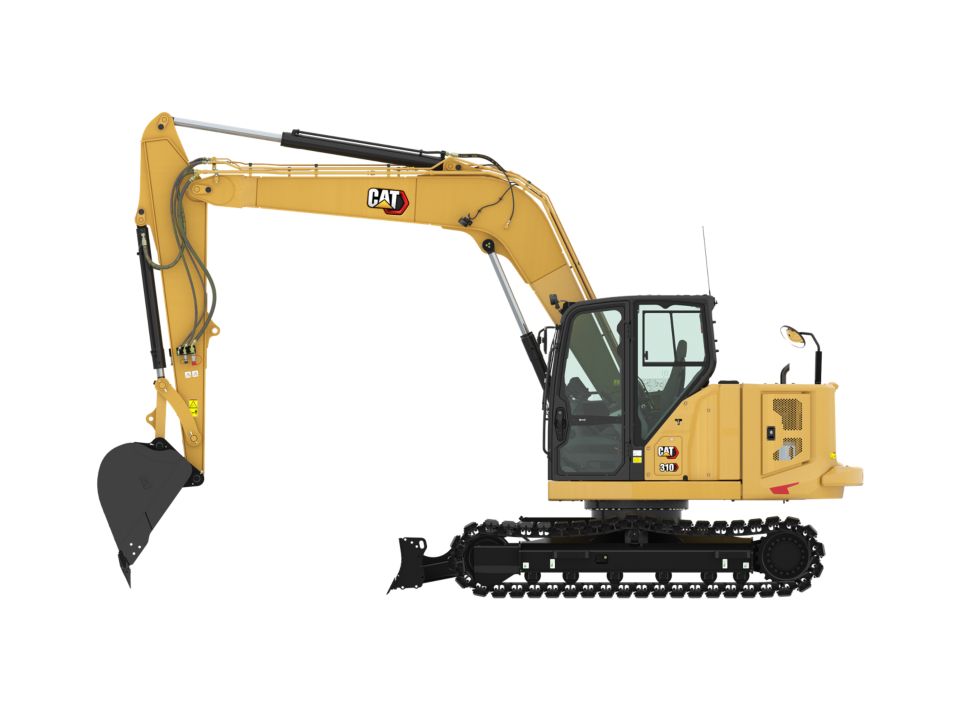

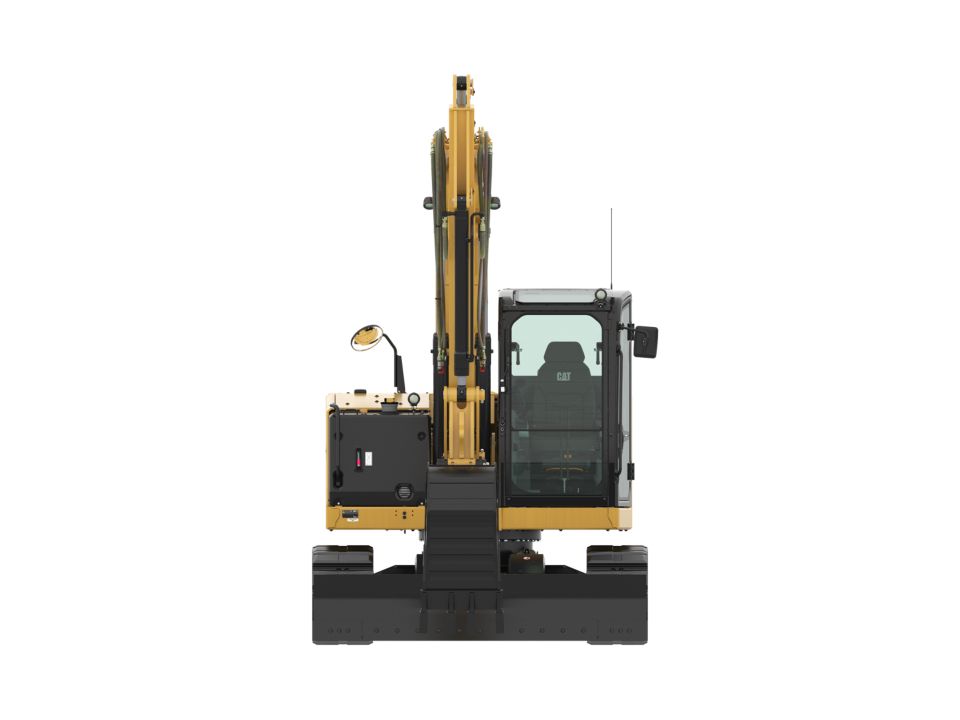

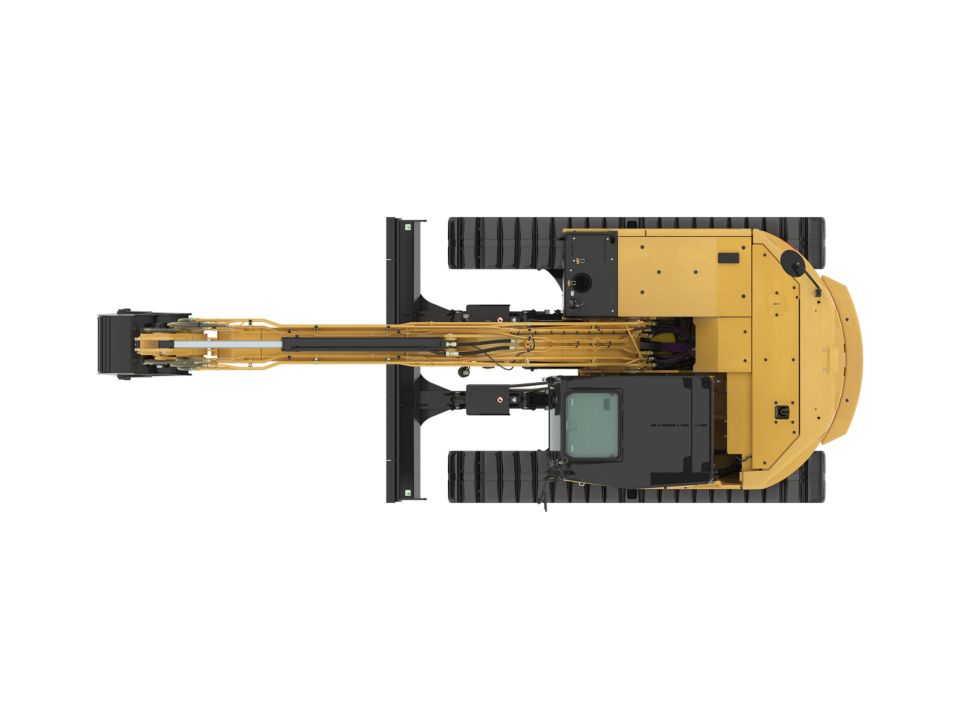

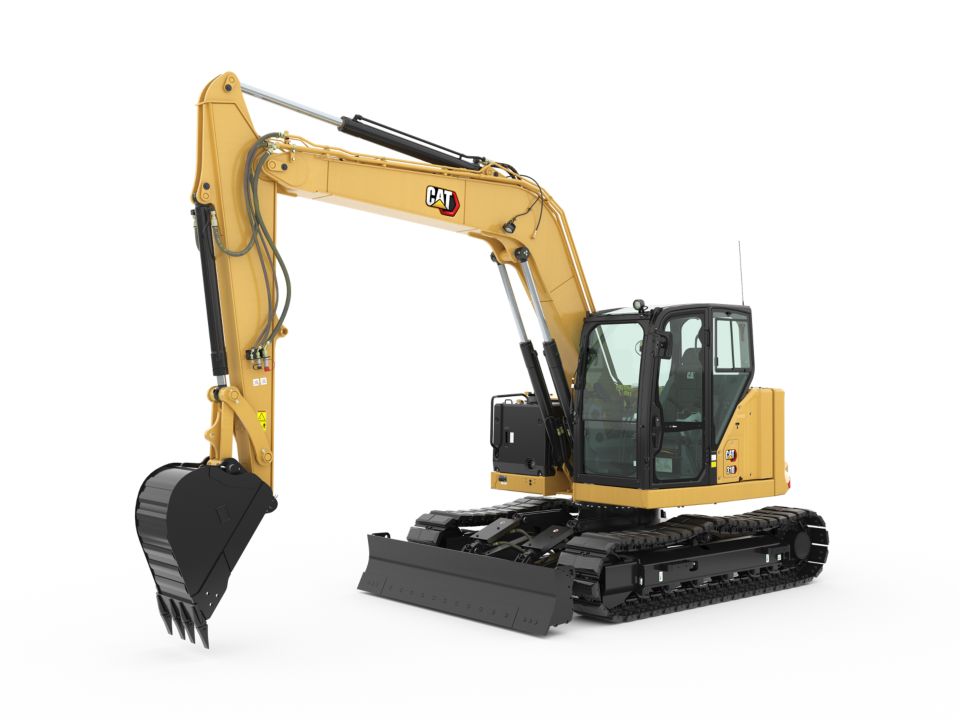

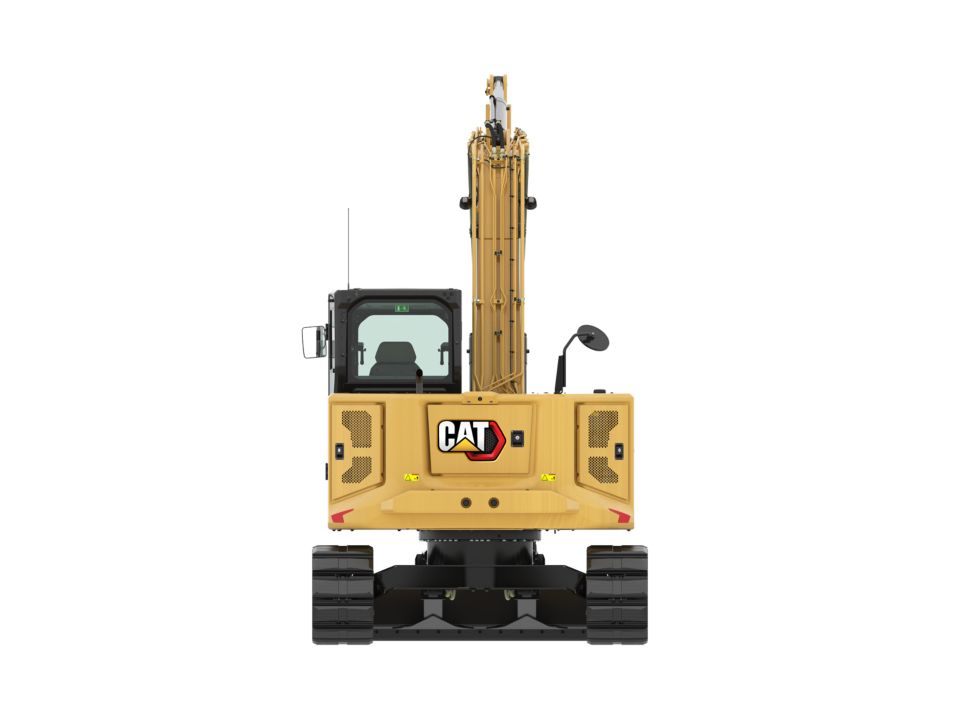

310 - Tier 4 / Stage V | Toromont Cat

Get in touch

An extensive line of Cat® mini hydraulic excavators offers the performance to dig in and be productive on every job.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"99"}

Blade

Height

17 in 431 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17","MetricUnit":"mm","MetricValue":"431","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"42"}
Width - Standard

97.2 in 2470 mm
{"Name":"Width - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"97.2","MetricUnit":"mm","MetricValue":"2470","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"99"}
Width - Wide

103.9 in 2640 mm
{"Name":"Width - Wide","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"103.9","MetricUnit":"mm","MetricValue":"2640","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"99"}

Certification - Cab

Top Guard

ISO 10262:1998 (Level I)
{"Name":"Top Guard","SpecificationId":null,"TextValue":"ISO 10262:1998 (Level I)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab","SortOrder":"99"}
Roll Over Protective Structure (ROPS)

ISO 12117-2:2008
{"Name":"Roll Over Protective Structure (ROPS)","SpecificationId":null,"TextValue":"ISO 12117-2:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab","SortOrder":"99"}

Dimensions

Dig Depth

205.2 in 5211 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"205.2","MetricUnit":"mm","MetricValue":"5211","Type":"measurement","SpecificationGroup":"Dimensions","SortOrder":"3"}

Dimensions - Standard Stick

Height - Boom Working - With Tools**

106.3 in 2700 mm
{"Name":"Height - Boom Working - With Tools**","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"106.3","MetricUnit":"mm","MetricValue":"2700","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Reach

303 in 7695 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"303","MetricUnit":"mm","MetricValue":"7695","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Track Belt/Shoe Width

17.7 in 450 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17.7","MetricUnit":"mm","MetricValue":"450","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Blade Depth

18.8 in 478 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"18.8","MetricUnit":"mm","MetricValue":"478","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
O/A Track Width

97.2 in 2470 mm
{"Name":"O/A Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"97.2","MetricUnit":"mm","MetricValue":"2470","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Swing Bearing - Height

28.9 in 735 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28.9","MetricUnit":"mm","MetricValue":"735","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Boom In Reach

83.3 in 2116 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"83.3","MetricUnit":"mm","MetricValue":"2116","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Dump Clearance

229.5 in 5829 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"229.5","MetricUnit":"mm","MetricValue":"5829","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Blade Height

16.6 in 421 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16.6","MetricUnit":"mm","MetricValue":"421","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Note (1)

*Boom Height when stick is pinned in transport position (if available) with no attachments.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Boom Height when stick is pinned in transport position (if available) with no attachments.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
O/A Undercarriage Length

126 in 3200 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"126","MetricUnit":"mm","MetricValue":"3200","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Dig Height

313.8 in 7970 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"313.8","MetricUnit":"mm","MetricValue":"7970","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Tail Swing without Counterweight

70.9 in 1800 mm
{"Name":"Tail Swing without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"70.9","MetricUnit":"mm","MetricValue":"1800","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Overall Shipping Length - with Counterweight

274.9 in 6983 mm
{"Name":"Overall Shipping Length - with Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"274.9","MetricUnit":"mm","MetricValue":"6983","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Height - Boom Transport - No Tools*

100.4 in 2550 mm
{"Name":"Height - Boom Transport - No Tools*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100.4","MetricUnit":"mm","MetricValue":"2550","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Tail Swing - Standard Counterweight

76.1 in 1933 mm
{"Name":"Tail Swing - Standard Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"76.1","MetricUnit":"mm","MetricValue":"1933","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Note (2)

**Boom Height when stick is pinned in working position with attachments.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Boom Height when stick is pinned in working position with attachments.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Overall Shipping Length - without Counterweight

269.7 in 6850 mm
{"Name":"Overall Shipping Length - without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"269.7","MetricUnit":"mm","MetricValue":"6850","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Vertical Wall

172.6 in 4385 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"172.6","MetricUnit":"mm","MetricValue":"4385","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Stick Length

98.4 in 2500 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"98.4","MetricUnit":"mm","MetricValue":"2500","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Maximum Reach - Ground Level

298 in 7570 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"298","MetricUnit":"mm","MetricValue":"7570","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Cab Height

100 in 2541 mm
{"Name":"Cab Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100","MetricUnit":"mm","MetricValue":"2541","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Dig Depth

205.2 in 5211 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"205.2","MetricUnit":"mm","MetricValue":"5211","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}
Ground Clearance - Frame

14 in 356 mm
{"Name":"Ground Clearance - Frame","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14","MetricUnit":"mm","MetricValue":"356","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"99"}

Engine

Net Power

69 hp 51.2 kW
{"Name":"Net Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"69","MetricUnit":"kW","MetricValue":"51.2","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC

69 hp 51.2 kW
{"Name":"Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"69","MetricUnit":"kW","MetricValue":"51.2","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Bore

3.5 in 90 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.5","MetricUnit":"mm","MetricValue":"90","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Gross Power - SAE J1995:2014

74.3 hp 55.4 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"74.3","MetricUnit":"kW","MetricValue":"55.4","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note

Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.
{"Name":"Note","SpecificationId":null,"TextValue":"Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Stroke

4.3 in 110 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.3","MetricUnit":"mm","MetricValue":"110","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Engine Model - U.S. EPA Tier 4 Final/EU Stage V

Cat® C2.8 Turbo
{"Name":"Engine Model - U.S. EPA Tier 4 Final/EU Stage V","SpecificationId":null,"TextValue":"Cat® C2.8 Turbo","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}
Displacement

171 in³ 2.8 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"171","MetricUnit":"l","MetricValue":"2.8","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"99"}
Note 1

Advertised power is tested per the specified standard in effect at the time of manufacture.
{"Name":"Note 1","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"99"}

Hydraulic System

Pump Flow at 2,400 rpm

62 gpm 233 L/min
{"Name":"Pump Flow at 2,400 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"62","MetricUnit":"L/min","MetricValue":"233","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Secondary - Pressure at Pump

4134 psi 285 bar
{"Name":"Maximum Auxiliary Circuit - Secondary - Pressure at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Primary - Pressure at Pump

4134 psi 285 bar
{"Name":"Maximum Auxiliary Circuit - Primary - Pressure at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Note

Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
{"Name":"Note","SpecificationId":null,"TextValue":"Flow and pressure are not combinable. Under load, as flow rises pressure goes down.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Swing

3336 psi 230 bar
{"Name":"Operating Pressure - Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3336","MetricUnit":"bar","MetricValue":"230","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Equipment

4134 psi 285 bar
{"Name":"Operating Pressure - Equipment","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Primary - Flow at Pump

35 gpm 131 L/min
{"Name":"Maximum Auxiliary Circuit - Primary - Flow at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"35","MetricUnit":"L/min","MetricValue":"131","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Maximum Auxiliary Circuit - Secondary - Flow at Pump

9 gpm 33 L/min
{"Name":"Maximum Auxiliary Circuit - Secondary - Flow at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"9","MetricUnit":"L/min","MetricValue":"33","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Operating Pressure - Travel

4134 psi 285 bar
{"Name":"Operating Pressure - Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Digging Force - Bucket

17459 lb 77.7 kN
{"Name":"Digging Force - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"17459","MetricUnit":"kN","MetricValue":"77.7","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Digging Force - Stick

11060 lb 49.2 kN
{"Name":"Digging Force - Stick","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"11060","MetricUnit":"kN","MetricValue":"49.2","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"99"}
Type

Load Sensing Hydraulics with Variable Displacement Piston Pump
{"Name":"Type","SpecificationId":null,"TextValue":"Load Sensing Hydraulics with Variable Displacement Piston Pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"99"}

Service Refill Capacities

Hydraulic System

37 gal (US) 140 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"37","MetricUnit":"l","MetricValue":"140","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Engine Oil

2.3 gal (US) 8.8 l
{"Name":"Engine Oil","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.3","MetricUnit":"l","MetricValue":"8.8","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Hydraulic Tank

14 gal (US) 53 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"14","MetricUnit":"l","MetricValue":"53","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Cooling System

2.6 gal (US) 10 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.6","MetricUnit":"l","MetricValue":"10","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}
Fuel Tank

38 gal (US) 145 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"38","MetricUnit":"l","MetricValue":"145","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"99"}

Sound

Average Exterior Sound Pressure (ISO 6395:2008)

99 dB(A) 99 dB(A)
{"Name":"Average Exterior Sound Pressure (ISO 6395:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"99","MetricUnit":"dB(A)","MetricValue":"99","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}
Operator Sound Pressure (ISO 6396:2008)

72 dB(A) 72 dB(A)
{"Name":"Operator Sound Pressure (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"99"}
Note

European Union Directive "2000/14/EC"
{"Name":"Note","SpecificationId":null,"TextValue":"European Union Directive \"2000/14/EC\"","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"99"}

Sustainability

Recyclability

96%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"96%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"99"}

Swing System

Machine Swing Speed

10 r/min 10 r/min
{"Name":"Machine Swing Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"10","MetricUnit":"r/min","MetricValue":"10","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"99"}

Travel System

Maximum Traction Force - Low Speed

19064 lb 84.8 kN
{"Name":"Maximum Traction Force - Low Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"19064","MetricUnit":"kN","MetricValue":"84.8","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Ground Pressure - Maximum Weight

5.8 psi 40.2 kPa
{"Name":"Ground Pressure - Maximum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5.8","MetricUnit":"kPa","MetricValue":"40.2","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Travel Speed - Low

1.6 mile/h 2.6 km/h
{"Name":"Travel Speed - Low","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.6","MetricUnit":"km/h","MetricValue":"2.6","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Maximum Traction Force - High Speed

7419 lb 33 kN
{"Name":"Maximum Traction Force - High Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"7419","MetricUnit":"kN","MetricValue":"33","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Travel Speed - High

2.9 mile/h 4.7 km/h
{"Name":"Travel Speed - High","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"2.9","MetricUnit":"km/h","MetricValue":"4.7","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}
Gradeability - Maximum

30 degrees
{"Name":"Gradeability - Maximum","SpecificationId":null,"TextValue":"30 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Travel System","SortOrder":"99"}
Ground Pressure - Minimum Weight

5.4 psi 37.2 kPa
{"Name":"Ground Pressure - Minimum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5.4","MetricUnit":"kPa","MetricValue":"37.2","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"99"}

Weight Increase from Minimum Configuration

Counterweight

551 lb 250 kg
{"Name":"Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"551","MetricUnit":"kg","MetricValue":"250","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}
Extra Counterweight

1103 lb 500 kg
{"Name":"Extra Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1103","MetricUnit":"kg","MetricValue":"500","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}
Steel Tracks with Pads

728 lb 330 kg
{"Name":"Steel Tracks with Pads","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"728","MetricUnit":"kg","MetricValue":"330","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"99"}

Weights

Operating Weight

23002 lb 10432 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"23002","MetricUnit":"kg","MetricValue":"10432","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Maximum Operating Weight with Cab**

22859 lb 10367 kg
{"Name":"Maximum Operating Weight with Cab**","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"22859","MetricUnit":"kg","MetricValue":"10367","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Note (2)

**Maximum Weight is based on steel tracks with rubber pads, (500 kg/1,103 lb) counterweight, operator, full fuel tank, long stick, blade and no bucket.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Maximum Weight is based on steel tracks with rubber pads, (500 kg/1,103 lb) counterweight, operator, full fuel tank, long stick, blade and no bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}
Minimum Operating Weight with Cab*

21026 lb 9536 kg
{"Name":"Minimum Operating Weight with Cab*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"21026","MetricUnit":"kg","MetricValue":"9536","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"99"}
Note (1)

*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"99"}

Benefits

ALL DAY COMFORT

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Equipment Info

ENGINE

Cat C2.8 Turbo Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Fit-For-Life Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC) Aftertreatment System

HYDRAULICS

Electronic Variable Displacement Piston Pump

OPERATOR ENVIRONMENT

TOPS – ISO 12117:1997

UNDERCARRIAGE

Greased and Lubricated Track

BOOM, STICK AND LINKAGES

One Piece Boom (4300 mm/169.3 in)

ELECTRICAL

12 Volt Electrical System

OTHER

Locks on External Enclosure Doors

GUARDING

Roll Over Protective Structure (ROPS) ISO 12117-2:2008

TECHNOLOGY

Product Link Basic

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3

Product Brochure #4

Product Brochure #5

Product Brochure #6

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

310 - Tier 4 / Stage V

Mini Excavators

310 - Tier 4 / Stage V

Mini Excavators

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A MINI DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

UNMATCHED DEALER SUPPORT

SUSTAINABILITY

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

OTHER

GUARDING

TECHNOLOGY

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
