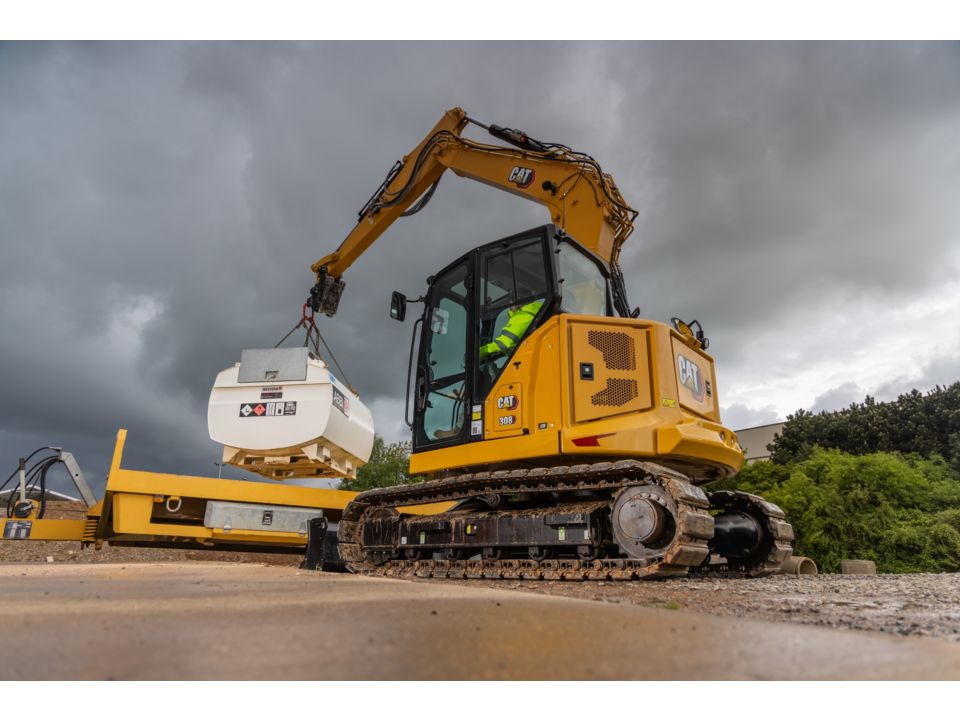

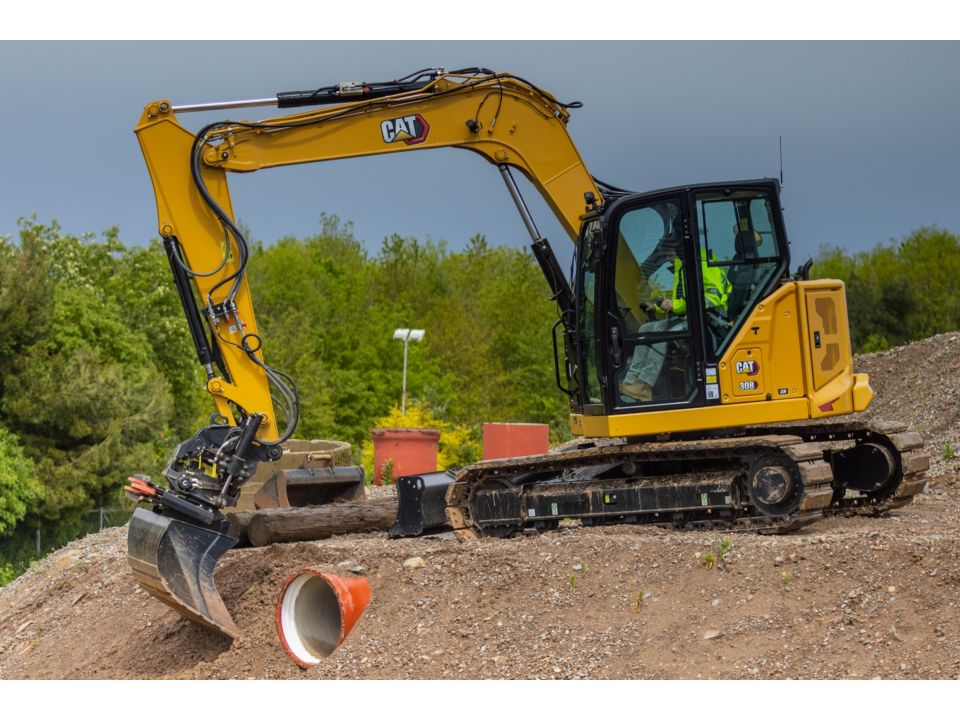

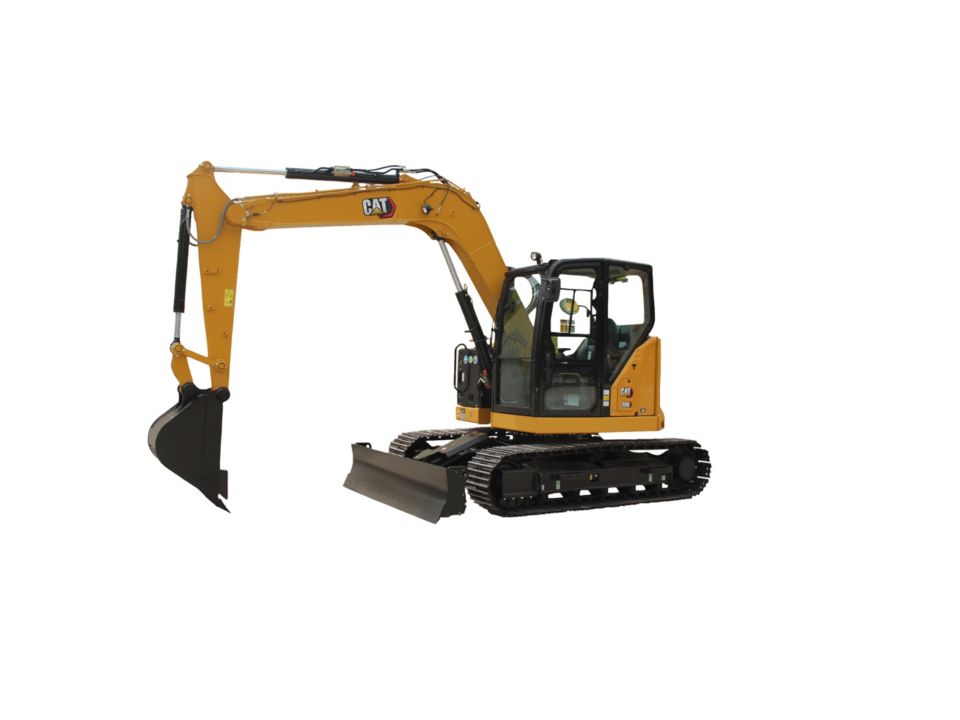

308 CR (Fixed Boom)

Get in touch

An extensive line of Cat® mini hydraulic excavators offers the performance to dig in and be productive on every job.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"5"}

Blade

Width - Standard

90.6 in 2300 mm
{"Name":"Width - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"90.6","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"5"}
Width - Wide

96.5 in 2450 mm
{"Name":"Width - Wide","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"96.5","MetricUnit":"mm","MetricValue":"2450","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"6"}
Height

17 in 431 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"17","MetricUnit":"mm","MetricValue":"431","Type":"measurement","SpecificationGroup":"Blade","SortOrder":"7"}

Certification - Cab

Roll Over Protective Structure (ROPS)

ISO 12117-2:2008
{"Name":"Roll Over Protective Structure (ROPS)","SpecificationId":null,"TextValue":"ISO 12117-2:2008","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab","SortOrder":"5"}
Top Guard

ISO 10262:1998 (Level I)
{"Name":"Top Guard","SpecificationId":null,"TextValue":"ISO 10262:1998 (Level I)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Certification - Cab","SortOrder":"6"}

Dimensions - Long Stick

Dig Depth

185 in 4687 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"185","MetricUnit":"mm","MetricValue":"4687","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"3"}
Vertical Wall

162 in 4110 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"162","MetricUnit":"mm","MetricValue":"4110","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"5"}
Maximum Reach - Ground Level

266 in 6766 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"266","MetricUnit":"mm","MetricValue":"6766","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"6"}
Maximum Reach

272 in 6900 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"272","MetricUnit":"mm","MetricValue":"6900","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"7"}
Maximum Dig Height

307 in 7809 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"307","MetricUnit":"mm","MetricValue":"7809","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"8"}
Maximum Dump Clearance

223 in 5672 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"223","MetricUnit":"mm","MetricValue":"5672","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"9"}
Boom In Reach

89 in 2250 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"89","MetricUnit":"mm","MetricValue":"2250","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"10"}
Tail Swing with Counterweight

56 in 1425 mm
{"Name":"Tail Swing with Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"56","MetricUnit":"mm","MetricValue":"1425","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"11"}
Tail Swing without Counterweight

51 in 1290 mm
{"Name":"Tail Swing without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51","MetricUnit":"mm","MetricValue":"1290","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"13"}
Maximum Blade Height

14.6 in 370 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.6","MetricUnit":"mm","MetricValue":"370","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"14"}
Maximum Blade Depth

16 in 407 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16","MetricUnit":"mm","MetricValue":"407","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"15"}
Height - Boom Transport - No Tools*

100 in 2540 mm
{"Name":"Height - Boom Transport - No Tools*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100","MetricUnit":"mm","MetricValue":"2540","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"16"}
Height - Boom Working - With Tools**

121 in 3080 mm
{"Name":"Height - Boom Working - With Tools**","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"121","MetricUnit":"mm","MetricValue":"3080","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"17"}
Cab Height

100 in 2541 mm
{"Name":"Cab Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100","MetricUnit":"mm","MetricValue":"2541","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"18"}
Swing Bearing - Height

30 in 756 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30","MetricUnit":"mm","MetricValue":"756","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"19"}
O/A Undercarriage Length

113 in 2880 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"113","MetricUnit":"mm","MetricValue":"2880","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"20"}
Overall Shipping Length - with Counterweight

5800 mm (228 in)***
{"Name":"Overall Shipping Length - with Counterweight","SpecificationId":null,"TextValue":"5800 mm (228 in)***","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"21"}
Overall Shipping Length - without Counterweight

5665 mm (223 in)***
{"Name":"Overall Shipping Length - without Counterweight","SpecificationId":null,"TextValue":"5665 mm (223 in)***","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"22"}
Track Belt/Shoe Width

18 in 450 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"18","MetricUnit":"mm","MetricValue":"450","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"24"}
O/A Track Width

91 in 2300 mm
{"Name":"O/A Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"91","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"25"}
Ground Clearance

14 in 350 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14","MetricUnit":"mm","MetricValue":"350","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"26"}
Stick Length

87 in 2208 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"87","MetricUnit":"mm","MetricValue":"2208","Type":"measurement","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"27"}
Note

*Boom Height when stick is pinned in transport position with no attachments.
{"Name":"Note","SpecificationId":null,"TextValue":"*Boom Height when stick is pinned in transport position with no attachments.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"28"}
Note (1)

**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"**Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"29"}
Note (2)

***With blade positioned at the rear of the machine.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"***With blade positioned at the rear of the machine.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Long Stick","SortOrder":"30"}

Dimensions - Standard Stick

Dig Depth

163 in 4145 mm
{"Name":"Dig Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"163","MetricUnit":"mm","MetricValue":"4145","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"4"}
Vertical Wall

142 in 3600 mm
{"Name":"Vertical Wall","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"142","MetricUnit":"mm","MetricValue":"3600","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"5"}
Maximum Reach - Ground Level

246 in 6246 mm
{"Name":"Maximum Reach - Ground Level","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"246","MetricUnit":"mm","MetricValue":"6246","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"6"}
Maximum Reach

252 in 6391 mm
{"Name":"Maximum Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"252","MetricUnit":"mm","MetricValue":"6391","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"7"}
Maximum Dig Height

291 in 7392 mm
{"Name":"Maximum Dig Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"291","MetricUnit":"mm","MetricValue":"7392","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"8"}
Maximum Dump Clearance

207 in 5255 mm
{"Name":"Maximum Dump Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"207","MetricUnit":"mm","MetricValue":"5255","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"9"}
Boom In Reach

66 in 1681 mm
{"Name":"Boom In Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"66","MetricUnit":"mm","MetricValue":"1681","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"10"}
Tail Swing with Counterweight

56 in 1425 mm
{"Name":"Tail Swing with Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"56","MetricUnit":"mm","MetricValue":"1425","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"11"}
Tail Swing without Counterweight

51 in 1290 mm
{"Name":"Tail Swing without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"51","MetricUnit":"mm","MetricValue":"1290","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"13"}
Maximum Blade Height

14.6 in 370 mm
{"Name":"Maximum Blade Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14.6","MetricUnit":"mm","MetricValue":"370","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"14"}
Maximum Blade Depth

16 in 407 mm
{"Name":"Maximum Blade Depth","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"16","MetricUnit":"mm","MetricValue":"407","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"15"}
Height - Boom Transport - No Tools*

97 in 2466 mm
{"Name":"Height - Boom Transport - No Tools*","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"97","MetricUnit":"mm","MetricValue":"2466","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"16"}
Height - Boom Working - With Tools**

105 in 2671 mm
{"Name":"Height - Boom Working - With Tools**","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"105","MetricUnit":"mm","MetricValue":"2671","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"17"}
Cab Height

100 in 2541 mm
{"Name":"Cab Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"100","MetricUnit":"mm","MetricValue":"2541","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"18"}
Swing Bearing - Height

30 in 756 mm
{"Name":"Swing Bearing - Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"30","MetricUnit":"mm","MetricValue":"756","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"19"}
O/A Undercarriage Length

113 in 2880 mm
{"Name":"O/A Undercarriage Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"113","MetricUnit":"mm","MetricValue":"2880","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"20"}
Overall Shipping Length - with Counterweight

228 in 5780 mm
{"Name":"Overall Shipping Length - with Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"228","MetricUnit":"mm","MetricValue":"5780","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"21"}
Overall Shipping Length - without Counterweight

222 in 5645 mm
{"Name":"Overall Shipping Length - without Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"222","MetricUnit":"mm","MetricValue":"5645","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"22"}
Track Belt/Shoe Width

18 in 450 mm
{"Name":"Track Belt/Shoe Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"18","MetricUnit":"mm","MetricValue":"450","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"24"}
O/A Track Width

91 in 2300 mm
{"Name":"O/A Track Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"91","MetricUnit":"mm","MetricValue":"2300","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"25"}
Ground Clearance

14 in 350 mm
{"Name":"Ground Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"14","MetricUnit":"mm","MetricValue":"350","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"26"}
Stick Length

66 in 1665 mm
{"Name":"Stick Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"66","MetricUnit":"mm","MetricValue":"1665","Type":"measurement","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"27"}
Note

*Boom Height when stick is pinned in transport position with no attachments.
{"Name":"Note","SpecificationId":null,"TextValue":"*Boom Height when stick is pinned in transport position with no attachments.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"28"}
Note (1)

**Boom Height when stick is pinned in working position with attachments Standard Stick offers only one pin position.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"**Boom Height when stick is pinned in working position with attachments Standard Stick offers only one pin position.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"29"}
Note (2)

***With blade positioned at the rear of the machine.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"***With blade positioned at the rear of the machine.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Dimensions - Standard Stick","SortOrder":"30"}

Engine

Net Power

69 hp 51.2 kW
{"Name":"Net Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"69","MetricUnit":"kW","MetricValue":"51.2","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Engine Model

Cat® C2.8 Turbo
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C2.8 Turbo","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"5"}
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC

69 hp 51.2 kW
{"Name":"Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"69","MetricUnit":"kW","MetricValue":"51.2","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Gross Power - ISO 14396

74.3 hp 55.4 kW
{"Name":"Gross Power - ISO 14396","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"74.3","MetricUnit":"kW","MetricValue":"55.4","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"7"}
Bore

3.5 in 90 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"3.5","MetricUnit":"mm","MetricValue":"90","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"8"}
Stroke

4.3 in 110 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"4.3","MetricUnit":"mm","MetricValue":"110","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Displacement

171 in³ 2.8 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³","EnglishValue":"171","MetricUnit":"l","MetricValue":"2.8","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"10"}
Note

Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.
{"Name":"Note","SpecificationId":null,"TextValue":"Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Note (1)

Advertised power is tested per the specified standard in effect at the time of manufacture.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Advertised power is tested per the specified standard in effect at the time of manufacture.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"12"}
Note (2)

Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"13"}

Hydraulic System

Type

Load Sensing Hydraulics with Variable Displacement Piston Pump
{"Name":"Type","SpecificationId":null,"TextValue":"Load Sensing Hydraulics with Variable Displacement Piston Pump","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"5"}
Pump Flow at 2,400 rpm

44 gpm 167 L/min
{"Name":"Pump Flow at 2,400 rpm","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"44","MetricUnit":"L/min","MetricValue":"167","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"6"}
Operating Pressure - Equipment

4134 psi 285 bar
{"Name":"Operating Pressure - Equipment","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"7"}
Operating Pressure - Travel

4134 psi 285 bar
{"Name":"Operating Pressure - Travel","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"8"}
Operating Pressure - Swing

3626 psi 250 bar
{"Name":"Operating Pressure - Swing","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"3626","MetricUnit":"bar","MetricValue":"250","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"9"}
Maximum Auxiliary Circuit - Primary - Flow at Pump

35 gpm 131 L/min
{"Name":"Maximum Auxiliary Circuit - Primary - Flow at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"35","MetricUnit":"L/min","MetricValue":"131","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"10"}
Maximum Auxiliary Circuit - Primary - Pressure at Pump

4134 psi 285 bar
{"Name":"Maximum Auxiliary Circuit - Primary - Pressure at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"11"}
Maximum Auxiliary Circuit - Secondary - Flow at Pump

9 gpm 33 L/min
{"Name":"Maximum Auxiliary Circuit - Secondary - Flow at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"9","MetricUnit":"L/min","MetricValue":"33","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"12"}
Maximum Auxiliary Circuit - Secondary - Pressure at Pump

4134 psi 285 bar
{"Name":"Maximum Auxiliary Circuit - Secondary - Pressure at Pump","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4134","MetricUnit":"bar","MetricValue":"285","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"13"}
Digging Force - Stick - Standard

9285 lb 41.3 kN
{"Name":"Digging Force - Stick - Standard","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"9285","MetricUnit":"kN","MetricValue":"41.3","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"14"}
Digging Force - Stick - Long

8250 lb 36.7 kN
{"Name":"Digging Force - Stick - Long","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"8250","MetricUnit":"kN","MetricValue":"36.7","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"15"}
Digging Force - Bucket

13241 lb 58.9 kN
{"Name":"Digging Force - Bucket","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"13241","MetricUnit":"kN","MetricValue":"58.9","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"16"}
Note

Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
{"Name":"Note","SpecificationId":null,"TextValue":"Flow and pressure are not combinable. Under load, as flow rises pressure goes down.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System","SortOrder":"17"}

Service Refill Capacities

Cooling System

2.6 gal (US) 10 l
{"Name":"Cooling System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.6","MetricUnit":"l","MetricValue":"10","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"5"}
Engine Oil

2.3 gal (US) 8.8 l
{"Name":"Engine Oil","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"2.3","MetricUnit":"l","MetricValue":"8.8","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"6"}
Fuel Tank

38 gal (US) 145 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"38","MetricUnit":"l","MetricValue":"145","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"7"}
Hydraulic Tank

14 gal (US) 53 l
{"Name":"Hydraulic Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"14","MetricUnit":"l","MetricValue":"53","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"8"}
Hydraulic System

29 gal (US) 110 l
{"Name":"Hydraulic System","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"29","MetricUnit":"l","MetricValue":"110","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"9"}

Sound

Operator Sound Pressure (ISO 6396:2008)

72 dB(A) 72 dB(A)
{"Name":"Operator Sound Pressure (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"5"}
Average Exterior Sound Pressure (ISO 6395:2008)

99 dB(A) 99 dB(A)
{"Name":"Average Exterior Sound Pressure (ISO 6395:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"99","MetricUnit":"dB(A)","MetricValue":"99","Type":"measurement","SpecificationGroup":"Sound","SortOrder":"6"}
Note

European Union Directive "2000/14/EC"
{"Name":"Note","SpecificationId":null,"TextValue":"European Union Directive \"2000/14/EC\"","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sound","SortOrder":"7"}

Sustainability

Recyclability

96%
{"Name":"Recyclability","SpecificationId":null,"TextValue":"96%","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Sustainability","SortOrder":"5"}

Swing System

Machine Swing Speed

10 r/min 10 r/min
{"Name":"Machine Swing Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"r/min","EnglishValue":"10","MetricUnit":"r/min","MetricValue":"10","Type":"measurement","SpecificationGroup":"Swing System","SortOrder":"5"}

Travel System

Travel Speed - High

3 mile/h 4.9 km/h
{"Name":"Travel Speed - High","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"3","MetricUnit":"km/h","MetricValue":"4.9","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"5"}
Travel Speed - Low

1.8 mile/h 3 km/h
{"Name":"Travel Speed - Low","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"1.8","MetricUnit":"km/h","MetricValue":"3","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"6"}
Maximum Traction Force - High Speed

6587 lb 29.3 kN
{"Name":"Maximum Traction Force - High Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"6587","MetricUnit":"kN","MetricValue":"29.3","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"7"}
Maximum Traction Force - Low Speed

15962 lb 71 kN
{"Name":"Maximum Traction Force - Low Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"15962","MetricUnit":"kN","MetricValue":"71","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"8"}
Ground Pressure - Minimum Weight

4.8 psi 33.2 kPa
{"Name":"Ground Pressure - Minimum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4.8","MetricUnit":"kPa","MetricValue":"33.2","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"9"}
Ground Pressure - Maximum Weight

5.4 psi 37.9 kPa
{"Name":"Ground Pressure - Maximum Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"5.4","MetricUnit":"kPa","MetricValue":"37.9","Type":"measurement","SpecificationGroup":"Travel System","SortOrder":"10"}
Gradeability - Maximum

30 degrees
{"Name":"Gradeability - Maximum","SpecificationId":null,"TextValue":"30 degrees","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Travel System","SortOrder":"11"}

Weight Increase from Minimum Configuration

Counterweight

551 lb 250 kg
{"Name":"Counterweight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"551","MetricUnit":"kg","MetricValue":"250","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"5"}
Long Stick

187 lb 85 kg
{"Name":"Long Stick","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"187","MetricUnit":"kg","MetricValue":"85","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"6"}
Steel Tracks with Pads

662 lb 300 kg
{"Name":"Steel Tracks with Pads","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"662","MetricUnit":"kg","MetricValue":"300","Type":"measurement","SpecificationGroup":"Weight Increase from Minimum Configuration","SortOrder":"7"}

Weights

Operating Weight

18659 lb 8462 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"18659","MetricUnit":"kg","MetricValue":"8462","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"2"}
Minimum Operating Weight with Cab*

16707 lb 7577 kg
{"Name":"Minimum Operating Weight with Cab*","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"16707","MetricUnit":"kg","MetricValue":"7577","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"5"}
Maximum Operating Weight with Cab**

18659 lb 8462 kg
{"Name":"Maximum Operating Weight with Cab**","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"18659","MetricUnit":"kg","MetricValue":"8462","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"6"}
Note (1)

*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"*Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"7"}
Note (2)

**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Weights","SortOrder":"8"}

Benefits

ALL DAY COMFORT

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Product Brochures

Product Brochure #1

Product Brochure #2

Product Brochure #3

Product Brochure #4

Product Brochure #5

Product Brochure #6

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

308 CR (Fixed Boom)

308 CR (Fixed Boom)

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A MINI DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

UNMATCHED DEALER SUPPORT

SUSTAINABILITY

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
