962
962

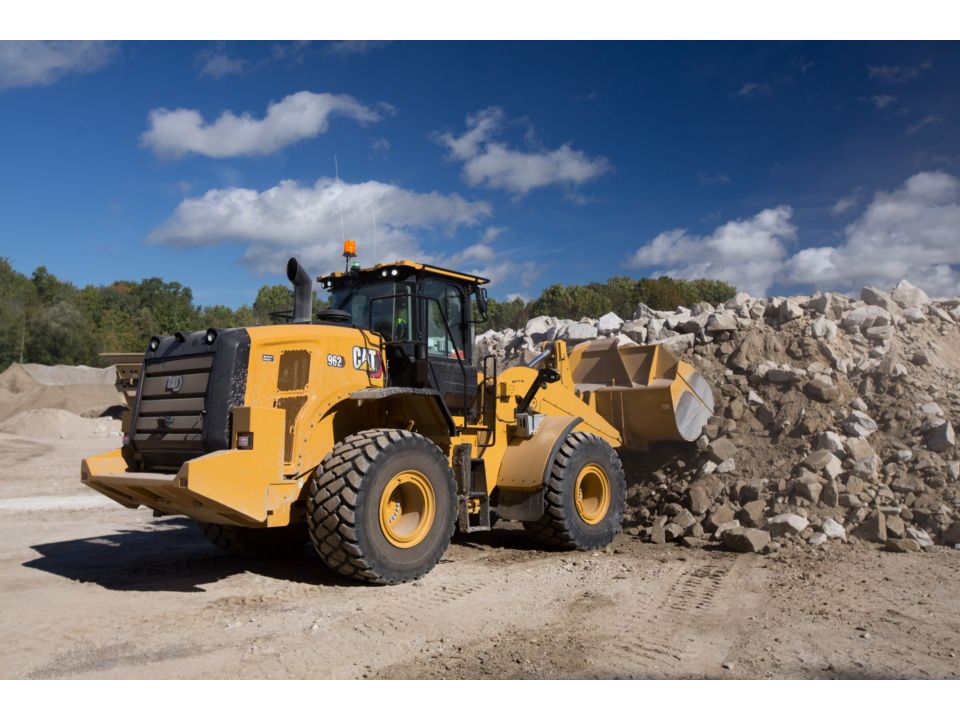

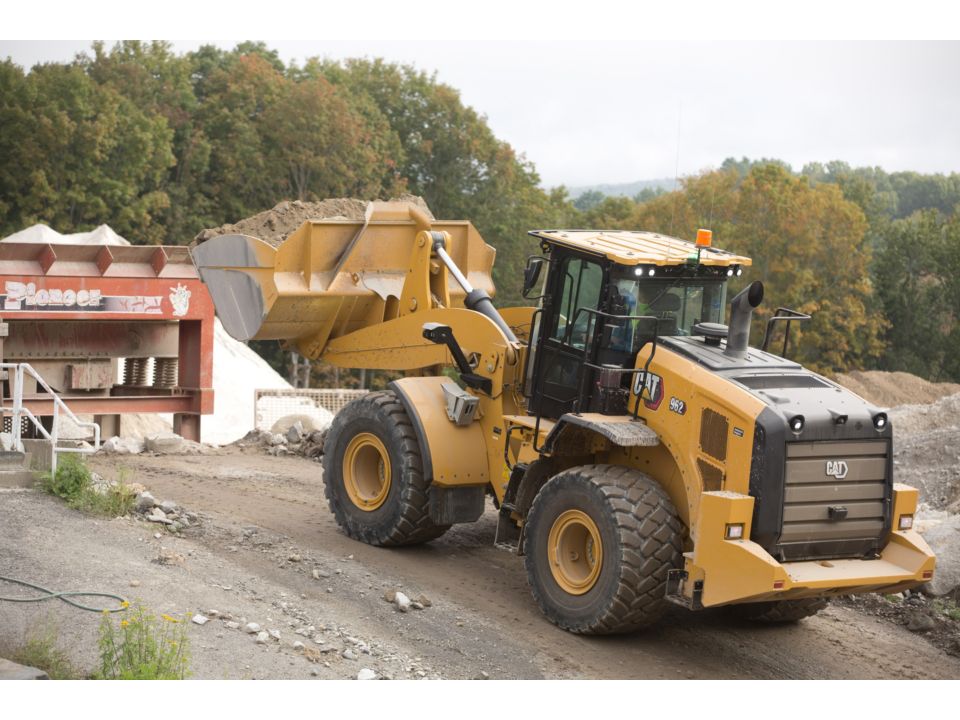

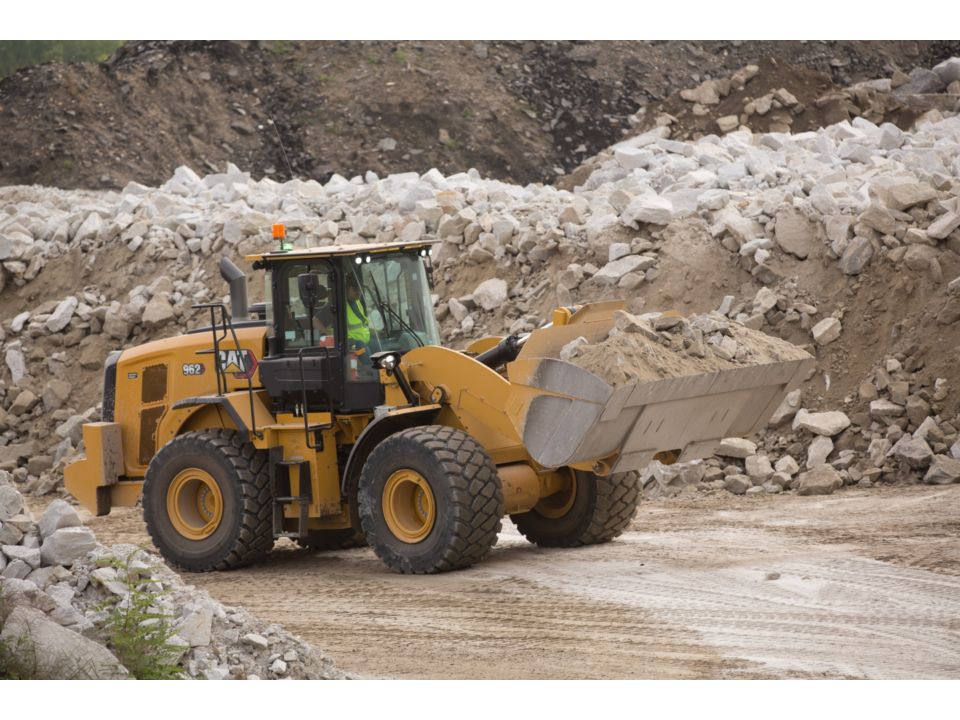

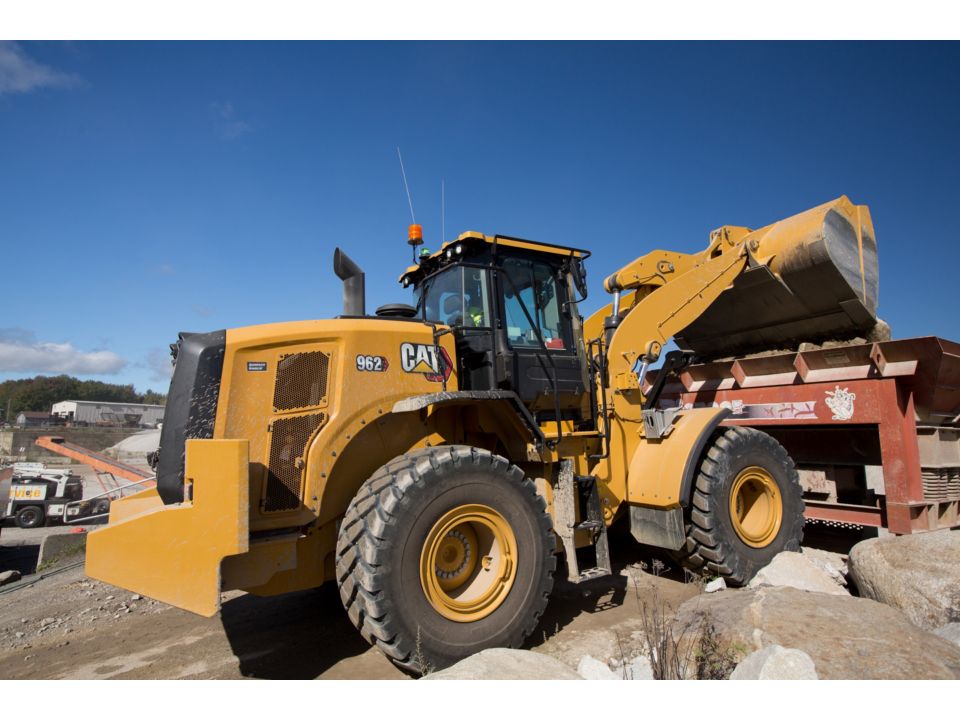

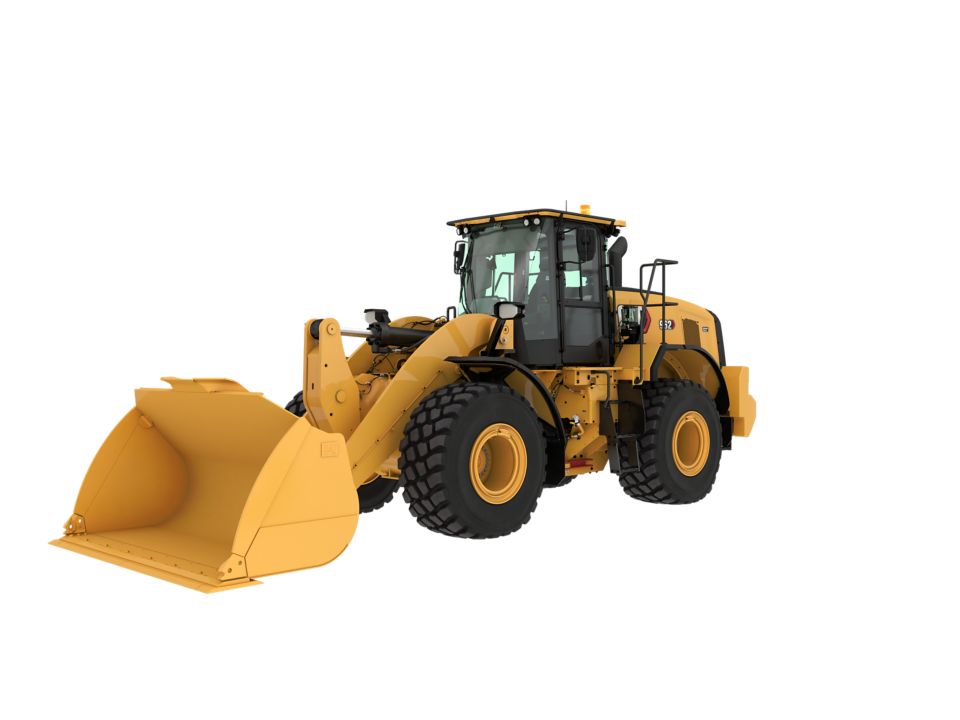

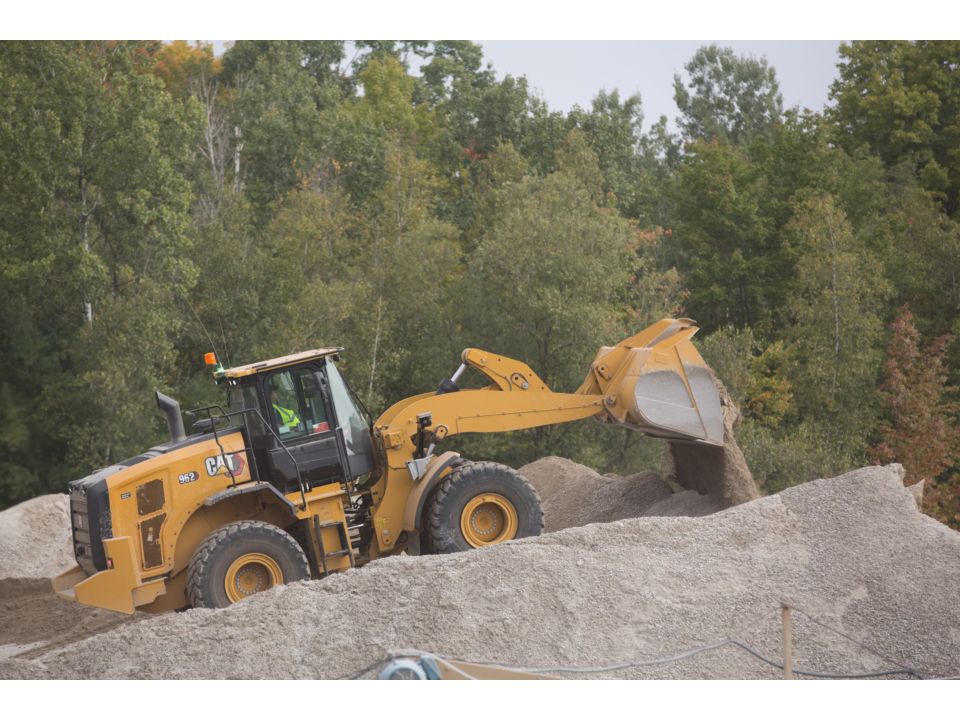

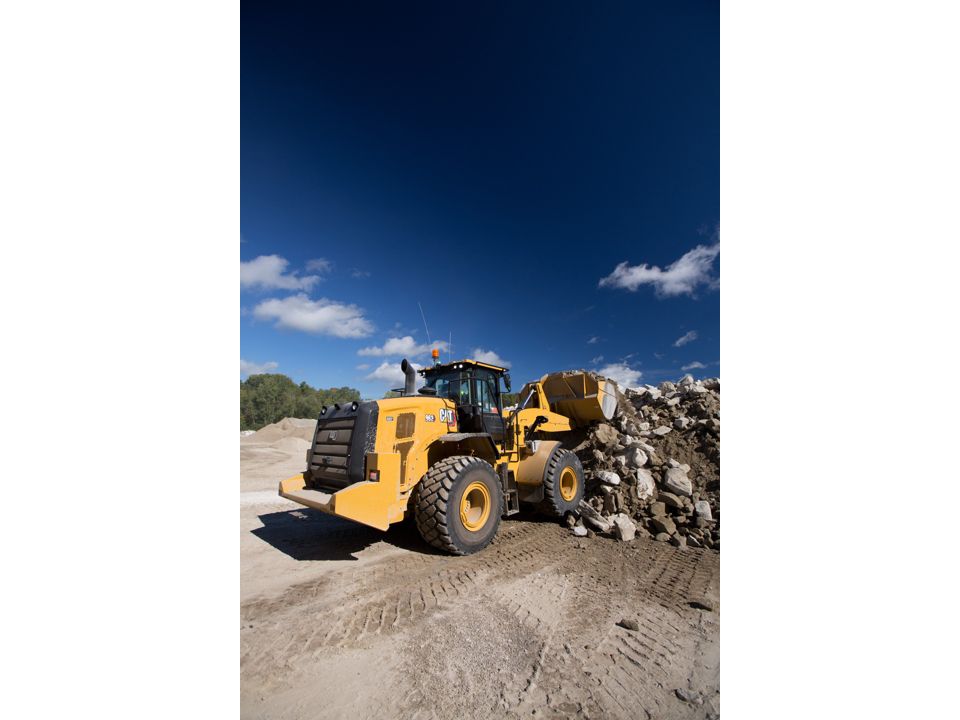

Cat® medium wheel loaders are an essential tool for any construction, quarry, aggregate, industrial or waste jobsite. For more than 60 years, they've been built to withstand tough conditions and tasks like bank loading, material handling, truck loading, hopper feeding, and stockpiling. Medium wheel loaders are compatible with Caterpillar work tools like the Cat Performance Series Buckets. Together these can improve material retention, reduce dig times, and enhance fill factors. Additionally, advanced technologies such as Cat Payload, Cat Detect, and Cat Command drive to improve site safety, manage payload, and operate machines remotely in hazardous environments.
Book a Demo
Explore my deals
Specifications
Air Conditioning System
-
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons). - If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons).
Dimensions - High Lift
-
Height - Top of Hood8.75 ft 2692 mm
-
Height - Top of ROPS11.25 ft 3453 mm
-
Ground Clearance1.08 ft 351 mm
-
Wheel Base10.92 ft 3350 mm
-
Overall Length - Without Bucket25.17 ft 7657 mm
-
Hinge Pin Height at Carry Height2.5 ft 776 mm
-
Hinge Pin Height at Maximum Lift14.75 ft 4511 mm
-
Lift Arm Clearance at Maximum Lift11.83 ft 3612 mm
-
Rack Back - Maximum Lift56 ° 56 °
-
Rack Back - Carry Height48 ° 48 °
-
Width over Tires (Loaded)9.33 ft 2825 mm
-
Tread Width7 ft 2140 mm
-
NoteAll dimensions are approximate and based on machine equipped with 3.3 m³ (4.3 yd³) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
Dimensions - Standard Lift
-
Height - Top of Hood8.75 ft 2692 mm
-
Height - Top of ROPS11.25 ft 3453 mm
-
Ground Clearance1.08 ft 351 mm
-
Wheel Base10.92 ft 3350 mm
-
Overall Length - Without Bucket23.83 ft 7263 mm
-
Hinge Pin Height at Carry Height2.17 ft 674 mm
-
Hinge Pin Height at Maximum Lift13.83 ft 4223 mm
-
Lift Arm Clearance at Maximum Lift11.33 ft 3459 mm
-
Rack Back - Maximum Lift55 ° 55 °
-
Rack Back - Carry Height51 ° 51 °
-
Width over Tires (Loaded)9.33 ft 2825 mm
-
Tread Width7 ft 2140 mm
-
NoteAll dimensions are approximate and based on machine equipped with 3.3 m³ (4.3 yd³) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
Engine
-
Engine Power - 2,100 rpm ISO 14396:2002269 hp 201 kW
-
Engine Power - 2,100 rpm ISO 14396:2002273 hp (metric)
-
Engine ModelCat® C7.1
-
Gross Power - 2,100 rpm SAE J1995:2014273 kW 203 hp
-
Gross Power - 2,100 rpm SAE J1995:2014277 hp (metric)
-
Net Power - 2,100 rpm ISO 9249:2007, SAE J1349:2011255 hp (metric)
-
Engine Torque - 1,400 rpm ISO 14396:2002918 lbf·ft 1245 N·m
-
Gross Torque - 1,400 rpm SAE J1995:2014926 lbf·ft 1256 hp
-
Net Torque - 1,400 rpm ISO 9249:2007, SAE J1349:2011867 lbf·ft 1176 N·m
-
Displacement427 in³ 7.01 l
-
EmissionsMeets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
-
Biodiesel CapabilityUp to B20¹
-
Note (1)The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
-
Note (2)¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels**up to: 20% biodiesel FAME (fatty acid methyl ester) ***100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Hydraulic System
-
Implement System - Maximum Pump Output at 2,340 rpm85 gpm 322 L/min
-
Implement System - Maximum Operating Pressure4250 psi 29300 kPa
-
Hydraulic Cycle Time - Total9.4 s 9.4 s
Operating Specifications
-
Static Tipping Load - Full 40° Turn - With Tire Deflection25869 lb 11734 kg
-
Static Tipping Load - Full 40° Turn - No Tire Deflection27529 lb 12487 kg
-
Breakout Force42489 lbf 189 kN
-
Note (1)For a machine configuration as defined under “Weight.”
-
Note (2)Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Service Refill Capacities
-
Fuel Tank68.6 gal (US) 259.5 l
-
DEF Tank4 gal (US) 15 l
-
Cooling System14.3 gal (US) 54 l
-
Crankcase5.5 gal (US) 21 l
-
Transmission11.4 gal (US) 43 l
-
Differential - Final Drives - Front11.4 gal (US) 43 l
-
Differential - Final Drives - Rear11.4 gal (US) 43 l
-
Hydraulic Tank25.6 gal (US) 97 l
Sound
-
Operator Sound Pressure Level - ISO 6396:200870 dB(A) 70 dB(A)
-
Exterior Sound Power Level - ISO 6395:2008107 dB(A) 107 dB(A)
-
Operator Sound Pressure Level - ISO 6396:2008 ¹69 dB(A) 69 dB(A)
-
Exterior Sound Power Level - ISO 6395:2008²104 dB(A) 104 dB(A)
-
Note (1)¹Including countries that adopt the EU and UK Directives.
-
Note (2)²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
Transmission
-
Forward - 14.3 mile/h 6.9 km/h
-
Forward - 27.5 mile/h 12 km/h
-
Forward - 312 mile/h 19.3 km/h
-
Forward - 416 mile/h 25.7 km/h
-
Forward - 524.5 mile/h 39.5 km/h
-
Reverse - 14.3 mile/h 6.9 km/h
-
Reverse - 27.5 mile/h 12 km/h
-
Reverse - 316 mile/h 25.7 km/h
-
NoteMaximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Weights
-
Operating Weight44469 lb 20171 kg
-
NoteWeight based on a machine configuration with parallel lift Z-bar linkage, Bridgestone 23.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 3.3 m³ (4.3 yd³) general purpose bucket with BOCE.
Benefits
Latest Features
- Cat Detect vision systems scale your jobsite needs to provide increased visibility and help you manage ever-changing conditions that pose unexpected risks potentially leading to injury or repair costs.
- Rear vision camera enhances visibility behind the machine, helping you work safely and confidently.
- Surround vision provides 360 degree visibility around the machine, including the articulation hitch area, enhancing an operator’s situational awareness.
- Collision mitigation system utilizes an integrated and intelligent sensor array to provide reverse collision warning, people detection, motion inhibit and automatic emergency braking. Additionally, visibility into event data and safety trends is available through Visionlink™.
- Collision Warning: Radar specifically targets collision potentials that emerge behind the machine within three detection zones – awareness, caution, and critical alarm zone.
- People Detection: Smart rear camera highlights people on the in-cab monitor to alert the operator when a person is detected behind the machine.
- Motion Inhibit: When the machine remains stationary for a period of time and the rear detection system identifies a potential collision, this feature will prevent the machine from reversing. Additionally, it applies the brakes to avoid unintended coasting, ensuring the machine stays securely in place.
- Automatic Emergency Braking: If the machine is reversing and a collision potential is detected in the machine path, the brakes will automatically engage if the operator does not take action.
- Cat Advanced Payload now gives you greater control and efficiency—recipe mode ensures accurate material blends, while expanded split mode simplifies load tracking to boost productivity and reduce errors.
- Single Life Cutting Edge GET delivers reliable performance and reduces downtime, helping you maximize productivity with fewer replacements and lower maintenance costs.
- The Auto Set Tires feature has been refined, continuing to simplify setup and ensure optimal performance, helping you save time and reduce wear for smoother, more efficient operation.
- Operators can instantly access training videos and feature guides using the on-board QR code*.
Reliability You Can Count On
- Cat C7.1 engine offers high power density with a combination of proven electronics, fuel, and air systems.
- Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
- Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.
- .
Built For Long-Term Production
- Heavy-duty transmission and axles designed to handle extreme applications.
- Automatic countershaft powershift (5F/3R) transmission with lock-up clutch torque converter as standard features durable, long-lasting components.
- Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.
- Implement pump increases flow at lower engine speeds and improves hydraulic response.
Work in Comfort
- Easily adjustable seat and suspension for outstanding operator comfort. It comes in three trim levels and can be equipped with a 4-point harness (kit).
- Spacious cab with significant leg room and adjustable seat controls for added comfort and efficiency.
- Left footrest allows for added operator comfort, safety and machine stability when working in uneven, bumpy operations.
- Automatic air conditioning system keeps the cab temperature as desired.
- In-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
- Instantly access training videos and feature guides using the on-board QR code*.
- Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
- The HMU steering wheel provides precision control, resulting in excellent comfort and accuracy. Standard in all regions except North America. Limited optional availability for North America, consult your Cat dealer.
- The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy. Standard in North America and optional in all other regions.
- Ride control works as a shock absorber, improving ride quality over rough terrain.
Integrated Technology Solutions for Efficient Operation
- Cat Detect vision systems scale your jobsite needs to provide increased visibility and help you manage ever-changing conditions that pose unexpected risks potentially leading to injury or repair costs.
- Rear vision camera enhances visibility behind the machine, helping you work safely and confidently.
- Surround vision provides 360 degree visibility around the machine, including the articulation hitch area, enhancing an operator’s situational awareness.
- Collision mitigation system utilizes an integrated and intelligent sensor array to provide reverse collision warning, people detection, motion inhibit and automatic emergency braking. Additionally, visibility into event data and safety trends is available through Visionlink™.
- Collision Warning: Radar specifically targets collision potentials that emerge behind the machine within three detection zones – awareness, caution, and critical alarm zone.
- People Detection: Smart rear camera highlights people on the in-cab monitor to alert the operator when a person is detected behind the machine.
- Motion Inhibit: When the machine remains stationary for a period of time and the rear detection system identifies a potential collision, this feature will prevent the machine from reversing. Additionally, it applies the brakes to avoid unintended coasting, ensuring the machine stays securely in place.
- Automatic Emergency Braking: If the machine is reversing and a collision potential is detected in the machine path, the brakes will automatically engage if the operator does not take action.
- Standard Cat technologies to monitor, manage, and enhance your jobsite operations.
- Cat Payload* provides accurate weighing of the bucket payloads. Data is displayed in real time to improve productivity and loading accuracy with manual tip-off.
- Visionlink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.** Customizable dashboards provide information such as hours, miles, location with mapping, idle time, asset status, asset operation, and fuel utilization. Make informed decisions that help to lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
- Auto Set Tires feature has been refined, continuing to simplify setup and ensure optimal performance, helping you save time and reduce wear for smoother, more efficient operation.
- Cat Advanced Payload now gives you greater control and efficiency—recipe mode ensures accurate material blends, while expanded split mode simplifies load tracking to boost productivity and reduce errors. Additional features include:
- Tip Off Assist automatizes load adjustment of the final bucket to match hauling unit target.
- Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
- e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
- Optional productivity features within VisionLink™ gathers and summarizes machine telematics and jobsite data from all your equipment. Improve machine efficiency, productivity, utilization and reduce per-unit costs.
- The Cat Payload for Trade*** option for Cat Advanced Payload allows you to integrate the scale data directly into your business processes. It is type approved by the International Organization of Legal Metrology, while retaining all the features of the standard version of Cat Advanced Payload.
** Data field availability can vary by equipment manufacturer.
*** Available in Europe and Australia. Country certifications vary. Contact your Cat dealer for more information.
Achieve Great Performance
- Autodig with Auto Set Tires for consistent high bucket fill factors delivers excellent productivity.
- Auto Set Tires has been refined, continuing to simplify setup and ensure optimal performance, helping you save time and reduce wear for smoother, more efficient operation.
- Single Life Cutting Edge GET delivers reliable performance and reduces downtime, helping you maximize productivity with fewer replacements and lower maintenance costs.
- 5-speed transmission and lock-up clutch torque converter, powertrains deliver smooth shifting, fast acceleration, and speed on grade for greater performance and fuel efficiency.
- Single clutch lock-to-lock shifting for faster acceleration and speed on grades.
- Z bar* linkage provides high breakout force at ground level.
- Optimized Z bar* linkage offers parallel lift capability for precise work tool control.
- Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
- Application Profiles optimize machine settings for different applications at one push of a button.
- Job Aids help operators improve and optimize their operating skills.
- Automatic engine idle shutdown system significantly helps to reduce idle time, overall operating hours, and fuel consumption.
- Deeply integrated engine, powertrain, and hydraulic systems deliver unmatched productivity and fuel efficiency.
- Standard auto front differential lock with joystick steering. Standard open/open or manual front differential lock* on HMU steering machines, with optional auto front differential lock. Optional auto front and rear differential locks.
- Traction aids help the operator to improve traction, resulting in increased productivity while reducing tire scuffing.
- Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.
Reduce Your Maintenance Time and Costs
- Long fluid and filter change intervals help to reduce downtime.
- Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
- Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display helping to improve machine performance, operator ride and operating costs.
- Convenient access to hydraulic and electrical service centers for easy ground-level servicing.
- Remote Troubleshoot allows you to perform diagnostic and calibration testing on your connected machine remotely.
- Remote Flash updates onboard software without a technician being present, potentially reducing update time by as much as 50%.
- VisionLink helps you manage fleet location, hours, and maintenance schedules. It also alerts you for required maintenance and allows you to request service from your local Cat dealer.
- One-piece tilting hood makes engine compartment access fast and easy.
- Optional Integrated Autolube extends component and service life.
Safety Features
- Rear-vision camera enhances visibility behind the machine, helping you work more safely.
- Cab access with wide door, optional remote door opening, and inclined steps add solid stability.
- 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
- Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
- Computerized monitoring system includes several warning indicators.
- Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
- Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.
- Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
- Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.
Purpose-Built Specialty Configurations
- Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:
Industrial and waste models feature guarding and reinforcement necessary for work in transfer stations, recycling depots, scrap yards, and demolition sites.
Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.- Corrosion Resistant package adds value in protecting your machine investment. An industry-unique factory treatment provides more protection for machine components that can be affected by corrosive materials.
Equipment Info
NOTE
Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
Cab, pressurized, sound suppression
POWERTRAIN
Cat® C7.1 engine
ELECTRICAL
Starting and charging system, 24V
HYDRAULICS
Implement system, load sensing with variable displacement piston pump
LINKAGE
Parallel lift, Z-bar
MONITORING SYSTEM
Front dash with analog gauges, LCD display, and warning lights
ONBOARD TECHNOLOGIES
Autodig with auto set tires
SAFETY
Seat belt reminder
Product Brochures
The Toromont Cat advantage
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor sit amet, consectetur adipiscing elit
Lorem ipsum dolor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.
Contact an equipment specialist
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.
Insert form
