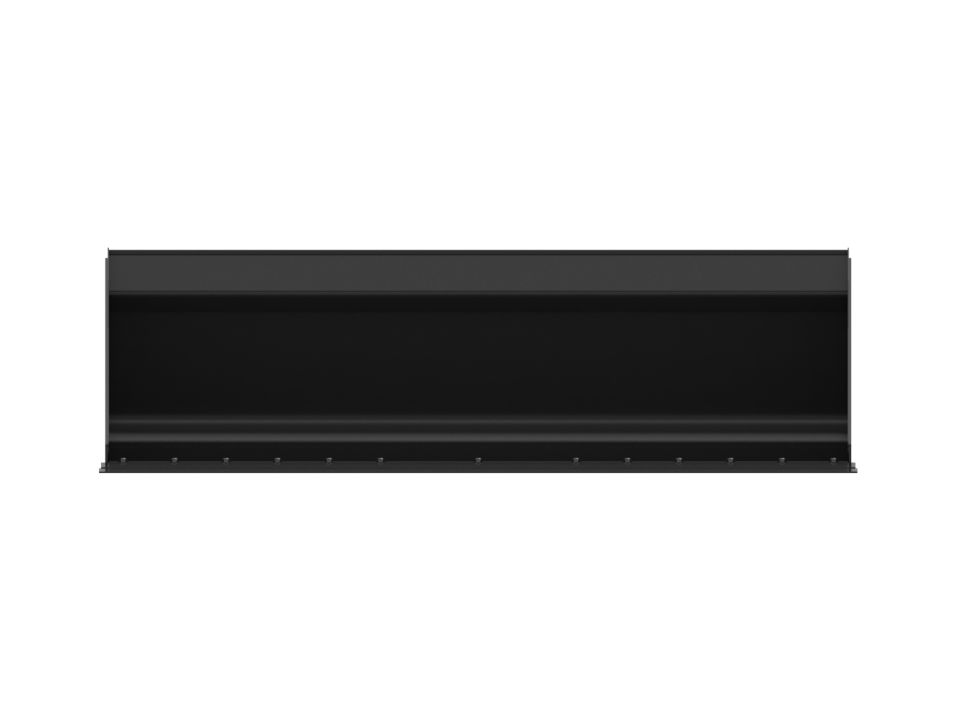

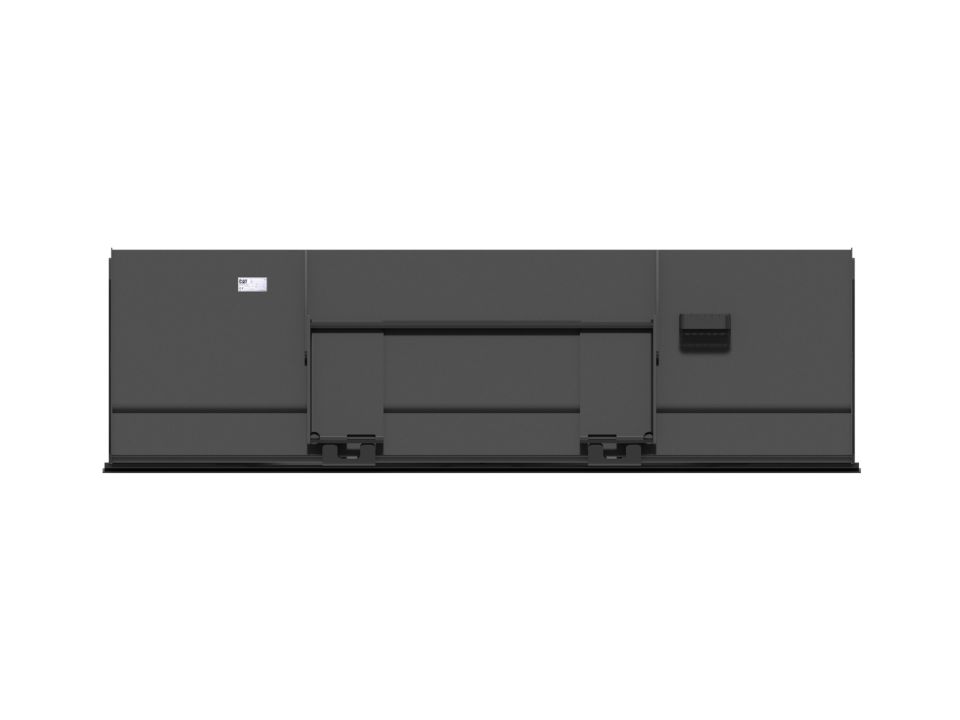

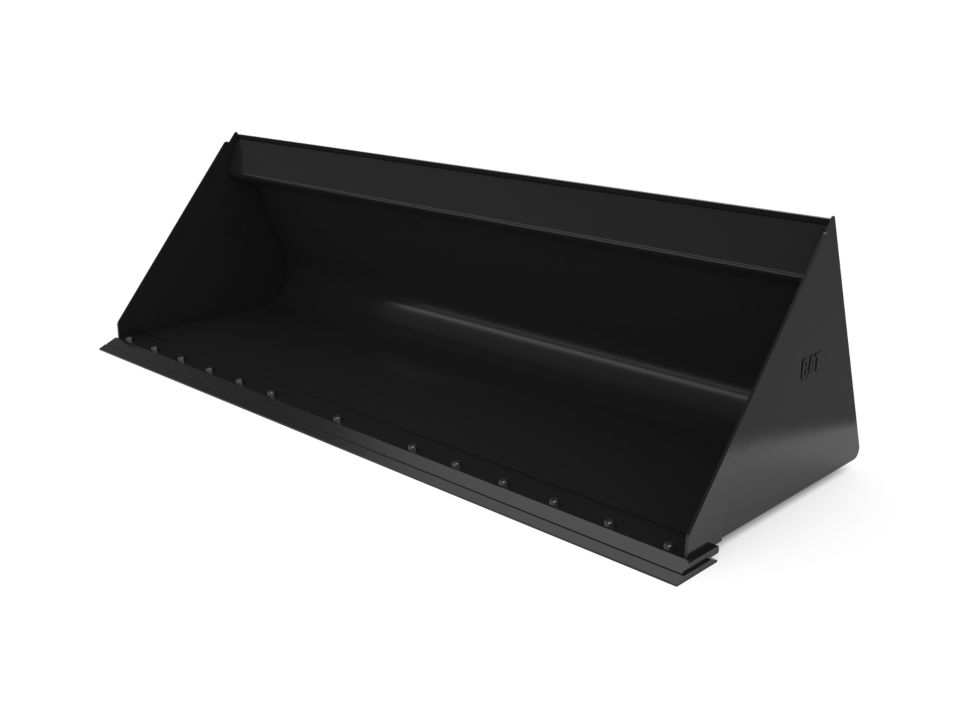

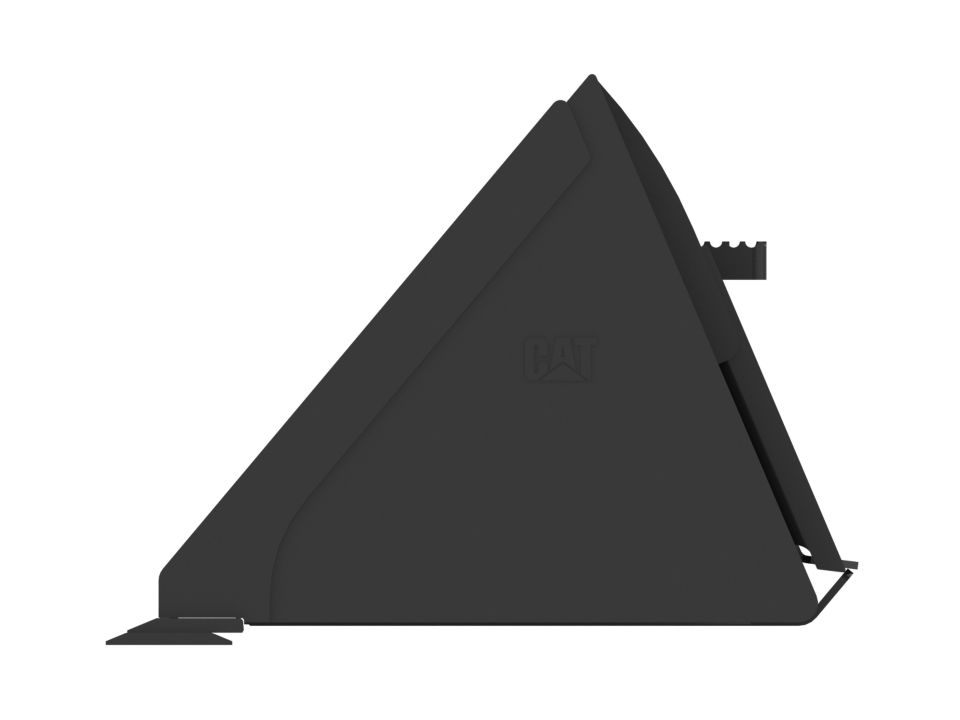

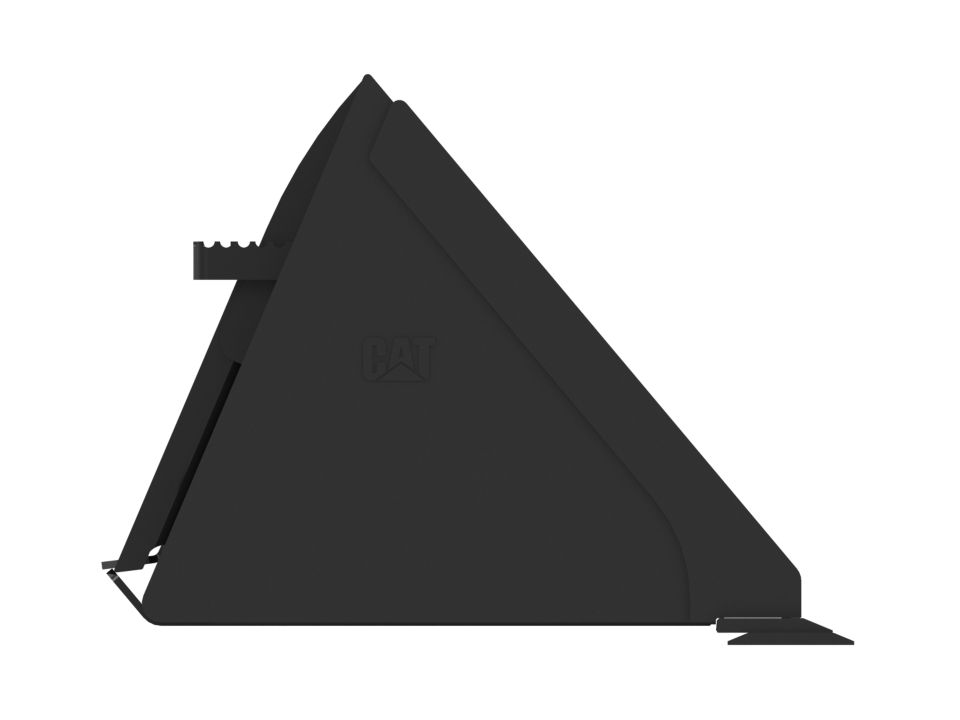

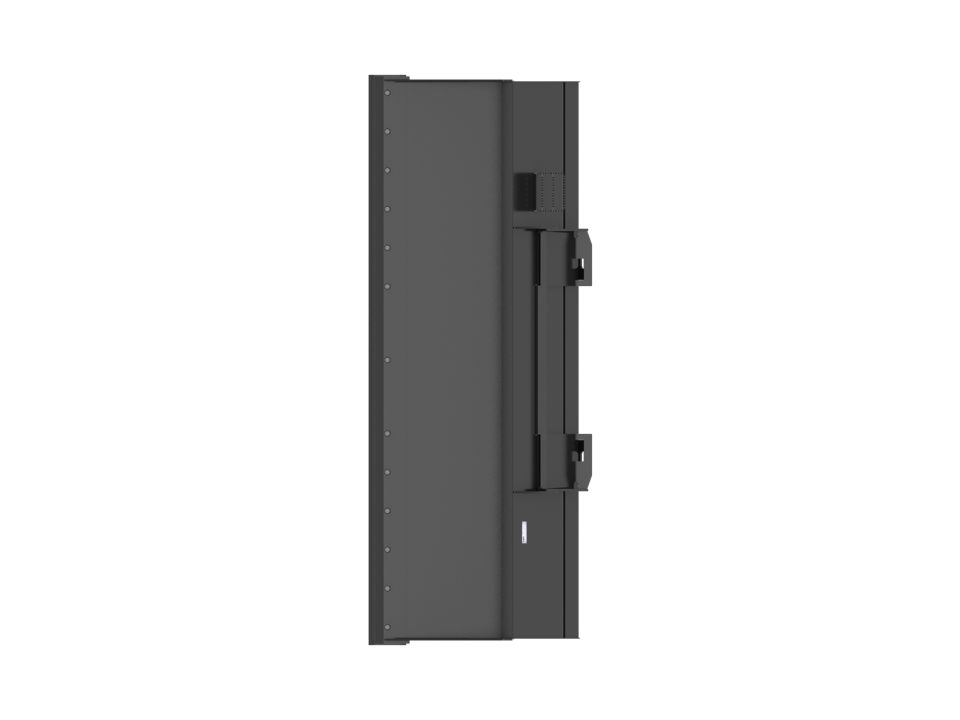

2490 mm (98 in), Bolt-On Cutting Edge

Get in touch

Cat® Light Material Buckets for Cat Skid Steer Loaders and Compact Track Loaders feature a larger capacity than General Purpose Buckets. They are designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed, and snow.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

98 in 2490 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"98","MetricUnit":"mm","MetricValue":"2490","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Capacity

1.22 yd³ 0.93 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"1.22","MetricUnit":"m³","MetricValue":"0.93","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

822 lb 373 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"822","MetricUnit":"kg","MetricValue":"373","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Height

29.3 in 744 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"29.3","MetricUnit":"mm","MetricValue":"744","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Length

38.6 in 981 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"38.6","MetricUnit":"mm","MetricValue":"981","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Edge Thickness

0.7 in 19 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.7","MetricUnit":"mm","MetricValue":"19","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Cutting Edge Thickness

0.6 in 16 mm
{"Name":"Cutting Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.6","MetricUnit":"mm","MetricValue":"16","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}

Benefits

High Capacity for Low Density Materials

Large capacity buckets offered for Cat® Skid Steer Loaders and Compact Track Loaders. They are designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed and snow.

Superior Loadability

Long floor length and tall back height provide excellent material retention and a large payload capacity.

Maximum Productivity

Formed back wrapper design with optimum angle provides enhanced loading and superior bucket fill. Rounded corners help reduce material packing for maximum productivity.

Hardened Edges

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
