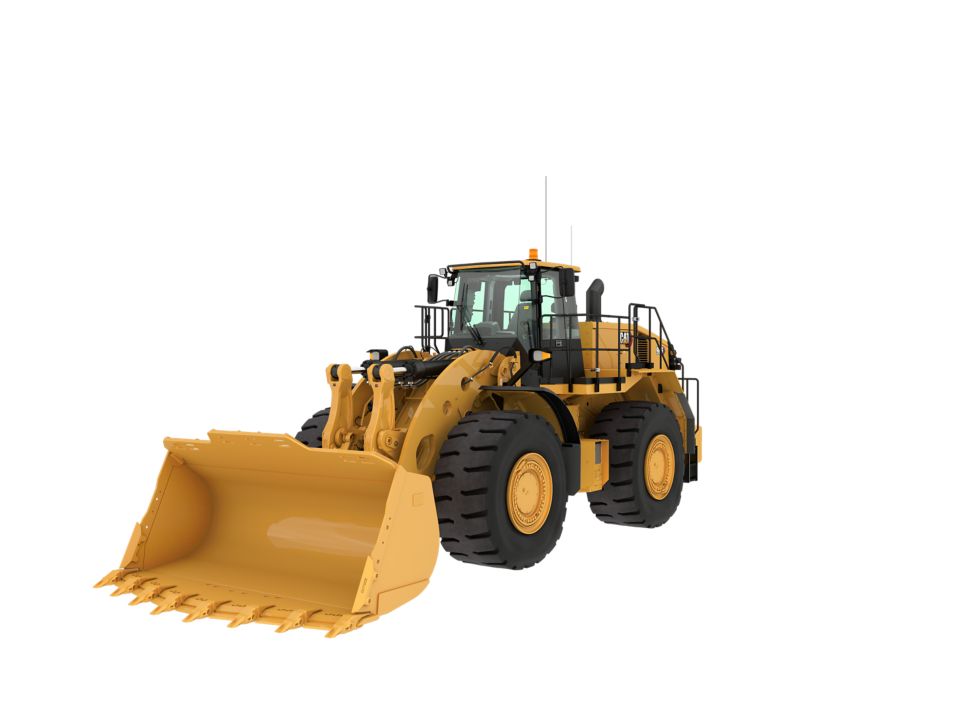

Cat Wheel Loaders 986 | Mining

Get in touch

Cat® Large Wheel Loaders set the standard for optimized productivity, minimizing downtime, enhancing operator comfort, and protecting people on your jobsite through key safety features.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).
{"Name":"Air Conditioning","SpecificationId":null,"TextValue":"The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Air Conditioning System","SortOrder":"70"}

Axles

Front

Fixed
{"Name":"Front","SpecificationId":null,"TextValue":"Fixed","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"80"}
Rear

Trunnion
{"Name":"Rear","SpecificationId":null,"TextValue":"Trunnion","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"81"}
Oscillation Angle

±12.5°
{"Name":"Oscillation Angle","SpecificationId":null,"TextValue":"±12.5°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"82"}
Oscillation Angle - Chain Arrangement

±8.5°
{"Name":"Oscillation Angle - Chain Arrangement","SpecificationId":null,"TextValue":"±8.5°","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Axles","SortOrder":"83"}

Brakes

Brakes

ISO 3450:2011
{"Name":"Brakes","SpecificationId":null,"TextValue":"ISO 3450:2011","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Brakes","SortOrder":"90"}

Dimensions (Approximate) - High Lift Linkage

Ground to Top of ROPS

13.5 ft 4100 mm
{"Name":"Ground to Top of ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.5","MetricUnit":"mm","MetricValue":"4100","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"150"}
Ground to Top of Exhaust Stacks

13.3 ft 4060 mm
{"Name":"Ground to Top of Exhaust Stacks","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specs are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"151"}
Ground to Top of Hood

10.7 ft 3270 mm
{"Name":"Ground to Top of Hood","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.7","MetricUnit":"mm","MetricValue":"3270","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"152"}
Ground to Center of Front Axle

3.2 ft 978 mm
{"Name":"Ground to Center of Front Axle","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specs are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"3.2","MetricUnit":"mm","MetricValue":"978","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"153"}
Ground to Fuel Tank Clearance

2.3 ft 691 mm
{"Name":"Ground to Fuel Tank Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"mm","MetricValue":"691","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"154"}
Ground to Lower Hitch Clearance

1.5 ft 459 mm
{"Name":"Ground to Lower Hitch Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.5","MetricUnit":"mm","MetricValue":"459","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"155"}
Reach - Maximum Lift

7.4 ft 2248 mm
{"Name":"Reach - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"7.4","MetricUnit":"mm","MetricValue":"2248","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"156"}
Clearance at Maximum Lift

11.6 ft 3538 mm
{"Name":"Clearance at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"11.6","MetricUnit":"mm","MetricValue":"3538","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"157"}
B-Pin Height - Maximum Lift

17.6 ft 5371 mm
{"Name":"B-Pin Height - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"17.6","MetricUnit":"mm","MetricValue":"5371","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"158"}
Maximum Overall Height - Bucket Raised

23.9 ft 7276 mm
{"Name":"Maximum Overall Height - Bucket Raised","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"23.9","MetricUnit":"mm","MetricValue":"7276","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"159"}
Rear Axle - Centerline to Bumper

10.3 ft 3132 mm
{"Name":"Rear Axle - Centerline to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.3","MetricUnit":"mm","MetricValue":"3132","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"160"}
Wheel Base

12.5 ft 3810 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"161"}
Maximum Overall Length

38 ft 11591 mm
{"Name":"Maximum Overall Length","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"38","MetricUnit":"mm","MetricValue":"11591","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"162"}
Front Axle Centerline to Bucket Tip

15.3 ft 4649 mm
{"Name":"Front Axle Centerline to Bucket Tip","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15.3","MetricUnit":"mm","MetricValue":"4649","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"163"}
Note

<ul><li>All dimensions are approximate.</li><li>Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>
{"Name":"Note","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"text","SpecificationGroup":"Dimensions (Approximate) - High Lift Linkage","SortOrder":"164"}

Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket

Ground to Top of ROPS

13.5 ft 4100 mm
{"Name":"Ground to Top of ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.5","MetricUnit":"mm","MetricValue":"4100","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"160"}
Ground to Top of Exhaust Stacks

13.3 ft 4060 mm
{"Name":"Ground to Top of Exhaust Stacks","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"161"}
Ground to Top of Hood

10.7 ft 3270 mm
{"Name":"Ground to Top of Hood","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.7","MetricUnit":"mm","MetricValue":"3270","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"162"}
Ground to Center of Rear Axle

3.2 ft 978 mm
{"Name":"Ground to Center of Rear Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.2","MetricUnit":"mm","MetricValue":"978","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"163"}
Ground to Fuel Tank Clearance

2.3 ft 691 mm
{"Name":"Ground to Fuel Tank Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"mm","MetricValue":"691","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"164"}
Ground to Lower Hitch Clearance

1.5 ft 459 mm
{"Name":"Ground to Lower Hitch Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.5","MetricUnit":"mm","MetricValue":"459","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"165"}
Reach at Maximum Lift

8 ft 2437 mm
{"Name":"Reach at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"8","MetricUnit":"mm","MetricValue":"2437","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"166"}
Clearance at Maximum Lift

10.7 ft 3259 mm
{"Name":"Clearance at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.7","MetricUnit":"mm","MetricValue":"3259","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"167"}
B-Pin Height at Maximum Lift

15 ft 4566 mm
{"Name":"B-Pin Height at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15","MetricUnit":"mm","MetricValue":"4566","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"168"}
Maximum Overall Height, Bucket Raised

20.9 ft 6359 mm
{"Name":"Maximum Overall Height, Bucket Raised","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"20.9","MetricUnit":"mm","MetricValue":"6359","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"169"}
Rear Axle Center Line to Bumper

10.3 ft 3132 mm
{"Name":"Rear Axle Center Line to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.3","MetricUnit":"mm","MetricValue":"3132","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"170"}
Wheel Base

12.5 ft 3810 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"171"}
Maximum Overall Length

35 ft 10671 mm
{"Name":"Maximum Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"35","MetricUnit":"mm","MetricValue":"10671","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"172"}
Front Axle Centerline to Bucket Tip

12.2 ft 3729 mm
{"Name":"Front Axle Centerline to Bucket Tip","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.2","MetricUnit":"mm","MetricValue":"3729","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket","SortOrder":"173"}

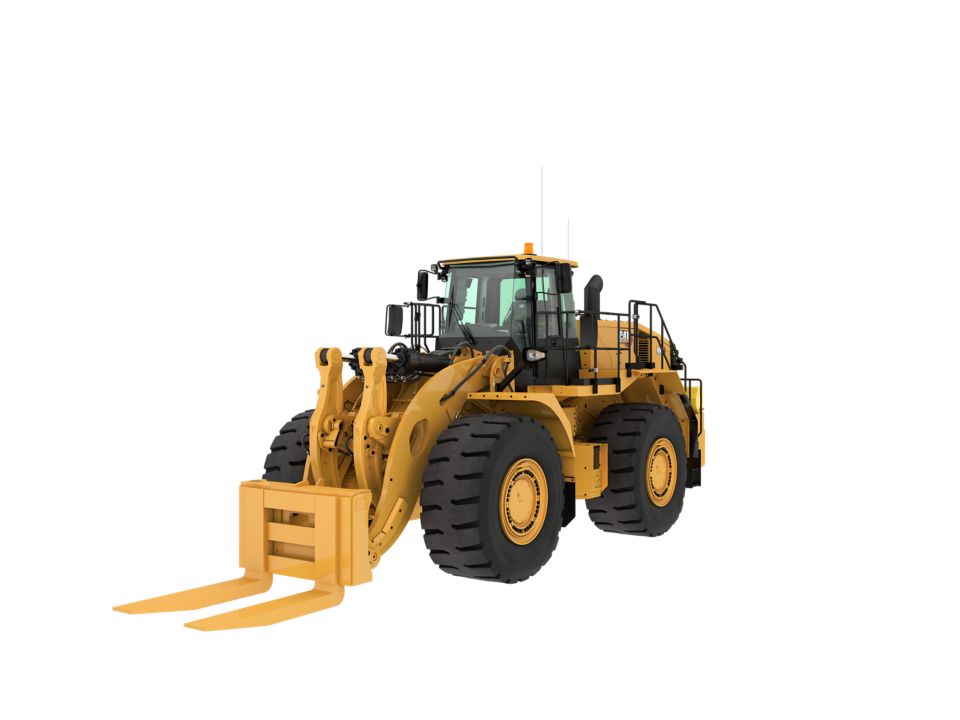

Dimensions (Approximate) - Quick Coupler and Fork

Ground to Top of ROPS

13.5 ft 4100 mm
{"Name":"Ground to Top of ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.5","MetricUnit":"mm","MetricValue":"4100","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"170"}
Ground to Top of Exhaust Stacks

13.3 ft 4060 mm
{"Name":"Ground to Top of Exhaust Stacks","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"171"}
Ground to Top of Hood

10.7 ft 3270 mm
{"Name":"Ground to Top of Hood","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.7","MetricUnit":"mm","MetricValue":"3270","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"172"}
Ground to Center of Rear Axle

3.2 ft 978 mm
{"Name":"Ground to Center of Rear Axle","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"3.2","MetricUnit":"mm","MetricValue":"978","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"173"}
Ground to Fuel Tank Clearance

2.3 ft 691 mm
{"Name":"Ground to Fuel Tank Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"mm","MetricValue":"691","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"174"}
Ground to Lower Hitch Clearance

1.5 ft 459 mm
{"Name":"Ground to Lower Hitch Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.5","MetricUnit":"mm","MetricValue":"459","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"175"}
B-Pin Height at Maximum Lift

15 ft 4566 mm
{"Name":"B-Pin Height at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"15","MetricUnit":"mm","MetricValue":"4566","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"176"}
Rear Axle Center Line to Bumper

10.3 ft 3132 mm
{"Name":"Rear Axle Center Line to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.3","MetricUnit":"mm","MetricValue":"3132","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"177"}
Wheel Base

12.5 ft 3810 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"178"}
Maximum Overall Length

35.4 ft 10776 mm
{"Name":"Maximum Overall Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"35.4","MetricUnit":"mm","MetricValue":"10776","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"179"}
Front Axle Centerline to Bucket Tip

12.6 ft 3834 mm
{"Name":"Front Axle Centerline to Bucket Tip","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.6","MetricUnit":"mm","MetricValue":"3834","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Quick Coupler and Fork","SortOrder":"180"}

Dimensions (Approximate) - Standard Lift Linkage

Ground to Top of ROPS

13.5 ft 4100 mm
{"Name":"Ground to Top of ROPS","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.5","MetricUnit":"mm","MetricValue":"4100","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"140"}
Ground to Top of Exhaust Stacks

13.3 ft 4060 mm
{"Name":"Ground to Top of Exhaust Stacks","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specs are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"141"}
Ground to Top of Hood

10.7 ft 3270 mm
{"Name":"Ground to Top of Hood","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.7","MetricUnit":"mm","MetricValue":"3270","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"142"}
Ground to Center of Front Axle

3.2 ft 978 mm
{"Name":"Ground to Center of Front Axle","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specs are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"3.2","MetricUnit":"mm","MetricValue":"978","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"143"}
Ground to Fuel Tank Clearance

2.3 ft 691 mm
{"Name":"Ground to Fuel Tank Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"2.3","MetricUnit":"mm","MetricValue":"691","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"144"}
Ground to Lower Hitch Clearance

1.5 ft 459 mm
{"Name":"Ground to Lower Hitch Clearance","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"1.5","MetricUnit":"mm","MetricValue":"459","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"145"}
Reach - Maximum Lift

7.1 ft 2175 mm
{"Name":"Reach - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"7.1","MetricUnit":"mm","MetricValue":"2175","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"146"}
Clearance at Maximum Lift

10.1 ft 3079 mm
{"Name":"Clearance at Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.1","MetricUnit":"mm","MetricValue":"3079","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"147"}
B-Pin Height - Maximum Lift

16.1 ft 4912 mm
{"Name":"B-Pin Height - Maximum Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"16.1","MetricUnit":"mm","MetricValue":"4912","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"148"}
Maximum Overall Height - Bucket Raised

22.4 ft 6817 mm
{"Name":"Maximum Overall Height - Bucket Raised","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"22.4","MetricUnit":"mm","MetricValue":"6817","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"149"}
Rear Axle - Centerline to Bumper

10.3 ft 3132 mm
{"Name":"Rear Axle - Centerline to Bumper","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"10.3","MetricUnit":"mm","MetricValue":"3132","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"150"}
Wheel Base

12.5 ft 3810 mm
{"Name":"Wheel Base","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"12.5","MetricUnit":"mm","MetricValue":"3810","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"151"}
Maximum Overall Length

36.6 ft 11143 mm
{"Name":"Maximum Overall Length","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"36.6","MetricUnit":"mm","MetricValue":"11143","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"152"}
Front Axle Centerline to Bucket Tip

13.8 ft 4201 mm
{"Name":"Front Axle Centerline to Bucket Tip","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"13.8","MetricUnit":"mm","MetricValue":"4201","Type":"measurement","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"153"}
Note

<ul><li>All dimensions are approximate.</li><li>Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>
{"Name":"Note","SpecificationId":null,"TextValue":"<ul><li>All dimensions are approximate.</li><li>Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul>","EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"text","SpecificationGroup":"Dimensions (Approximate) - Standard Lift Linkage","SortOrder":"154"}

Engine

Engine Power - ISO 14396:2002

449 hp 335 kW
{"Name":"Engine Power - ISO 14396:2002","SpecificationId":null,"TextValue":"C15 Cat®","EnglishUnit":"hp","EnglishValue":"449","MetricUnit":"kW","MetricValue":"335","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"1"}
Engine Model

Cat® C15
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C15","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"4"}
Peak Power Speed

1600
{"Name":"Peak Power Speed","SpecificationId":null,"TextValue":"1600","EnglishUnit":"hp","EnglishValue":"456","MetricUnit":"kW","MetricValue":"340","Type":"text","SpecificationGroup":"Engine","SortOrder":"5"}
Gross Power - SAE J1995:2014

456 hp 340 kW
{"Name":"Gross Power - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"456","MetricUnit":"kW","MetricValue":"340","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"6"}
Net Power - SAE J1349:2011

373 hp 278 kW
{"Name":"Net Power - SAE J1349:2011","SpecificationId":null,"TextValue":"2000","EnglishUnit":"hp","EnglishValue":"373","MetricUnit":"kW","MetricValue":"278","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"9"}
Rated Speed

2000
{"Name":"Rated Speed","SpecificationId":null,"TextValue":"2000","EnglishUnit":"hp","EnglishValue":"373","MetricUnit":"kW","MetricValue":"278","Type":"text","SpecificationGroup":"Engine","SortOrder":"11"}
Rated Speed - 2,000 rpm - EEC 80/1269

373 hp 278 kW
{"Name":"Rated Speed - 2,000 rpm - EEC 80/1269","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"373","MetricUnit":"kW","MetricValue":"278","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"12"}
Rated Speed - 2,000 rpm - ISO 9249

373 hp 278 kW
{"Name":"Rated Speed - 2,000 rpm - ISO 9249","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"373","MetricUnit":"kW","MetricValue":"278","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"14"}
Bore

5.4 in 137 mm
{"Name":"Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"5.4","MetricUnit":"mm","MetricValue":"137","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"16"}
Stroke

6.75 in 171.5 mm
{"Name":"Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.75","MetricUnit":"mm","MetricValue":"171.5","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"17"}
Displacement

927 in² 15.2 l
{"Name":"Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in²","EnglishValue":"927","MetricUnit":"l","MetricValue":"15.2","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"18"}
Peak Torque (1,200 rpm) - SAE J1995:2014

1778 lb/ft 2411 N·m
{"Name":"Peak Torque (1,200 rpm) - SAE J1995:2014","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb/ft","EnglishValue":"1778","MetricUnit":"N·m","MetricValue":"2411","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"19"}
Torque Rise

16%
{"Name":"Torque Rise","SpecificationId":null,"TextValue":"16%","EnglishUnit":"in²","EnglishValue":"927","MetricUnit":"l","MetricValue":"15.2","Type":"text","SpecificationGroup":"Engine","SortOrder":"20"}
Note (1)

Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
{"Name":"Note (1)","SpecificationId":null,"TextValue":"Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.","EnglishUnit":"lb/ft","EnglishValue":"1778","MetricUnit":"N·m","MetricValue":"2411","Type":"text","SpecificationGroup":"Engine","SortOrder":"21"}
Note (2)

Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.","EnglishUnit":"lb","EnglishValue":"97785","MetricUnit":"kg","MetricValue":"44355","Type":"text","SpecificationGroup":"Engine","SortOrder":"22"}

Hydraulic Cycle Times

Rack Back

4.5 s 4.5 s
{"Name":"Rack Back","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"4.5","MetricUnit":"s","MetricValue":"4.5","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"50"}
Raise

9 s 9 s
{"Name":"Raise","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"9","MetricUnit":"s","MetricValue":"9","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"51"}
Dump

3.5 s 3.5 s
{"Name":"Dump","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"3.5","MetricUnit":"s","MetricValue":"3.5","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"52"}
Lower

5.2 s 5.2 s
{"Name":"Lower","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"5.2","MetricUnit":"s","MetricValue":"5.2","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"53"}
Lower Float Down

4.3 s 4.3 s
{"Name":"Lower Float Down","SpecificationId":null,"TextValue":null,"EnglishUnit":"s","EnglishValue":"4.3","MetricUnit":"s","MetricValue":"4.3","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"54"}
Total Hydraulic Cycle Time

21.3 s 21.3 s
{"Name":"Total Hydraulic Cycle Time","SpecificationId":null,"TextValue":"Load Sense","EnglishUnit":"s","EnglishValue":"21.3","MetricUnit":"s","MetricValue":"21.3","Type":"measurement","SpecificationGroup":"Hydraulic Cycle Times","SortOrder":"55"}

Hydraulic System - Lift/Tilt

Lift/Tilt System - Circuit

Load Sense
{"Name":"Lift/Tilt System - Circuit","SpecificationId":null,"TextValue":"Load Sense","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"40"}
Lift/Tilt System - Pump

2 × 110 cc variable displacement
{"Name":"Lift/Tilt System - Pump","SpecificationId":null,"TextValue":"2 × 110 cc variable displacement","EnglishUnit":"gal/min","EnglishValue":"123","MetricUnit":"l/min","MetricValue":"470","Type":"text","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"41"}
Maximum Flow at 2,165 rpm

123 gpm 470 L/min
{"Name":"Maximum Flow at 2,165 rpm","SpecificationId":null,"TextValue":"2 × 110 cc variable displacement","EnglishUnit":"gpm","EnglishValue":"123","MetricUnit":"L/min","MetricValue":"470","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"42"}
Relief Valve Setting - Lift/Tilt

4050 psi 27900 kPa
{"Name":"Relief Valve Setting - Lift/Tilt","SpecificationId":null,"TextValue":null,"EnglishUnit":"psi","EnglishValue":"4050","MetricUnit":"kPa","MetricValue":"27900","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"43"}
Lift Cylinder - Bore

7.5 in 190 mm
{"Name":"Lift Cylinder - Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"7.5","MetricUnit":"mm","MetricValue":"190","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"44"}
Lift Cylinder - Stroke

45 in 1138 mm
{"Name":"Lift Cylinder - Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"45","MetricUnit":"mm","MetricValue":"1138","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"45"}
Tilt Cylinder - Bore

6.7 in 170 mm
{"Name":"Tilt Cylinder - Bore","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"6.7","MetricUnit":"mm","MetricValue":"170","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"46"}
Tilt Cylinder - Stroke

28.4 in 722 mm
{"Name":"Tilt Cylinder - Stroke","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"28.4","MetricUnit":"mm","MetricValue":"722","Type":"measurement","SpecificationGroup":"Hydraulic System - Lift/Tilt","SortOrder":"47"}

Hydraulic System - Steering

Steering System - Circuit

Load Sense
{"Name":"Steering System - Circuit","SpecificationId":null,"TextValue":"Load Sense","EnglishUnit":"s","EnglishValue":"21.3","MetricUnit":"s","MetricValue":"21.3","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"60"}
Steering System - Pump

Piston, variable displacement
{"Name":"Steering System - Pump","SpecificationId":null,"TextValue":"Piston, variable displacement","EnglishUnit":"gal/min","EnglishValue":"52","MetricUnit":"l/min","MetricValue":"200","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"61"}
Maximum Flow at 1,400 rpm

52 gpm 200 L/min
{"Name":"Maximum Flow at 1,400 rpm","SpecificationId":null,"TextValue":"Piston, variable displacement","EnglishUnit":"gpm","EnglishValue":"52","MetricUnit":"L/min","MetricValue":"200","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"62"}
Steering Cut Off Pressure

4000 psi 27600 kPa
{"Name":"Steering Cut Off Pressure","SpecificationId":null,"TextValue":"70°","EnglishUnit":"psi","EnglishValue":"4000","MetricUnit":"kPa","MetricValue":"27600","Type":"measurement","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"63"}
Total Steering Angle

70°
{"Name":"Total Steering Angle","SpecificationId":null,"TextValue":"70°","EnglishUnit":"psi","EnglishValue":"4000","MetricUnit":"kPa","MetricValue":"27600","Type":"text","SpecificationGroup":"Hydraulic System - Steering","SortOrder":"64"}

Operating Specifications

Operating Weight - Standard

97785 lb 44355 kg
{"Name":"Operating Weight - Standard","SpecificationId":null,"TextValue":"5.0-10.3 m³ (6.5-13.5 yd³)","EnglishUnit":"lb","EnglishValue":"97785","MetricUnit":"kg","MetricValue":"44355","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"2"}
Bucket Capacity Range

5.0-10.3 m³ (6.5-13.5 yd³)
{"Name":"Bucket Capacity Range","SpecificationId":null,"TextValue":"5.0-10.3 m³ (6.5-13.5 yd³)","EnglishUnit":"lb","EnglishValue":"104005","MetricUnit":"kg","MetricValue":"47175","Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"3"}
Operating Weight - High Lift

104005 lb 47175 kg
{"Name":"Operating Weight - High Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"104005","MetricUnit":"kg","MetricValue":"47175","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"20"}
Rated Payload - Standard (Quarry Face)

11 ton (US) 10 t
{"Name":"Rated Payload - Standard (Quarry Face)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"11","MetricUnit":"t","MetricValue":"10","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"21"}
Rated Payload - Loose Material (Standard)

14 ton (US) 12.7 t
{"Name":"Rated Payload - Loose Material (Standard)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"14","MetricUnit":"t","MetricValue":"12.7","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"22"}
Rated Payload - High Lift (Quarry Face)

11 ton (US) 10 t
{"Name":"Rated Payload - High Lift (Quarry Face)","SpecificationId":null,"TextValue":null,"EnglishUnit":"ton (US)","EnglishValue":"11","MetricUnit":"t","MetricValue":"10","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"23"}
Rated Payload - Loose Material (High Lift)

12.1 ton (US) 11 t
{"Name":"Rated Payload - Loose Material (High Lift)","SpecificationId":null,"TextValue":"770/735/740/745","EnglishUnit":"ton (US)","EnglishValue":"12.1","MetricUnit":"t","MetricValue":"11","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"24"}
Cat Truck Match - Standard

770/735/740/745
{"Name":"Cat Truck Match - Standard","SpecificationId":null,"TextValue":"770/735/740/745","EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"7.6","Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"25"}
Cat Truck Match - High Lift

772/773
{"Name":"Cat Truck Match - High Lift","SpecificationId":null,"TextValue":"772/773","EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13.6","Type":"text","SpecificationGroup":"Operating Specifications","SortOrder":"26"}

Operator's Cab

ROPS/FOPS

ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS)
{"Name":"ROPS/FOPS","SpecificationId":null,"TextValue":"ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS)","EnglishUnit":"gal (US)","EnglishValue":"141","MetricUnit":"l","MetricValue":"535","Type":"text","SpecificationGroup":"Operator's Cab","SortOrder":"100"}

Service Refill Capacities

Fuel Tank

141 gal (US) 535 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":"ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS)","EnglishUnit":"gal (US)","EnglishValue":"141","MetricUnit":"l","MetricValue":"535","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"110"}
Fuel Tank - Short Lift

127 gal (US) 481 l
{"Name":"Fuel Tank - Short Lift","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"127","MetricUnit":"l","MetricValue":"481","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"111"}
Cooling Systems

26 gal (US) 100 l
{"Name":"Cooling Systems","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"26","MetricUnit":"l","MetricValue":"100","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"112"}
Crankcase

9 gal (US) 34 l
{"Name":"Crankcase","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"9","MetricUnit":"l","MetricValue":"34","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"113"}
Diesel Exhaust Fluid Tank

6 gal (US) 23 l
{"Name":"Diesel Exhaust Fluid Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"6","MetricUnit":"l","MetricValue":"23","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"114"}
Transmission

20 gal (US) 75 l
{"Name":"Transmission","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"20","MetricUnit":"l","MetricValue":"75","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"115"}
Axle Oil - Differentials and Final Drives - Front

49 gal (US) 186 l
{"Name":"Axle Oil - Differentials and Final Drives - Front","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"49","MetricUnit":"l","MetricValue":"186","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"116"}
Axle Oil - Differentials and Final Drives - Rear

45 gal (US) 170 l
{"Name":"Axle Oil - Differentials and Final Drives - Rear","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"45","MetricUnit":"l","MetricValue":"170","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"117"}
Hydraulic System Factory Fill

87 gal (US) 330 l
{"Name":"Hydraulic System Factory Fill","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"87","MetricUnit":"l","MetricValue":"330","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"118"}
Hydraulic System - Tank Only

34 gal (US) 130 l
{"Name":"Hydraulic System - Tank Only","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"34","MetricUnit":"l","MetricValue":"130","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"119"}

Sound Performance - Tier 3 / Stage IIIA

Operator Sound Pressure Level (ISO 6396:2008)

74 dB(A) 74 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"74","MetricUnit":"dB(A)","MetricValue":"74","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"130"}
Machine Sound Power Level (ISO 6395:2008)

113 dB(A) 113 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"113","MetricUnit":"dB(A)","MetricValue":"113","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"131"}
Operator Sound Pressure Level (ISO 6396:2008)*

73 dB(A) 73 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)*","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":"dB(A)","EnglishValue":"73","MetricUnit":"dB(A)","MetricValue":"73","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"132"}
Machine Sound Power Level (ISO 6395:2008)**

110 dB(A) 110 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)**","SpecificationId":null,"TextValue":"** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"133"}
Note (1)

* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
{"Name":"Note (1)","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":"ft","EnglishValue":"7.1","MetricUnit":"mm","MetricValue":"2175","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"134"}
Note (2)

** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.","EnglishUnit":"ft","EnglishValue":"10.1","MetricUnit":"mm","MetricValue":"3079","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"135"}
Note (3)

The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"16.1","MetricUnit":"mm","MetricValue":"4912","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"136"}
Note (4)

The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"13.5","MetricUnit":"mm","MetricValue":"4100","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"137"}
Note (5)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
{"Name":"Note (5)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"text","SpecificationGroup":"Sound Performance - Tier 3 / Stage IIIA","SortOrder":"138"}

Sound Performance - Tier 4 Final / Stage V

Operator Sound Pressure Level (ISO 6396:2008)

73 dB(A) 73 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)","SpecificationId":null,"TextValue":null,"EnglishUnit":"dB(A)","EnglishValue":"73","MetricUnit":"dB(A)","MetricValue":"73","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"120"}
Machine Sound Power Level (ISO 6395:2008)

113 dB(A) 113 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)","SpecificationId":null,"TextValue":"<ul><li>The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.</li><li>Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.</li><li>The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.</li></ul>","EnglishUnit":"dB(A)","EnglishValue":"113","MetricUnit":"dB(A)","MetricValue":"113","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"121"}
Operator Sound Pressure Level (ISO 6396:2008)*

72 dB(A) 72 dB(A)
{"Name":"Operator Sound Pressure Level (ISO 6396:2008)*","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"122"}
Machine Sound Power Level (ISO 6395:2008)**

110 dB(A) 110 dB(A)
{"Name":"Machine Sound Power Level (ISO 6395:2008)**","SpecificationId":null,"TextValue":"** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"measurement","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"123"}
Note (1)

* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
{"Name":"Note (1)","SpecificationId":null,"TextValue":"* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”","EnglishUnit":"dB(A)","EnglishValue":"72","MetricUnit":"dB(A)","MetricValue":"72","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"124"}
Note (2)

** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
{"Name":"Note (2)","SpecificationId":null,"TextValue":"** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.","EnglishUnit":"dB(A)","EnglishValue":"110","MetricUnit":"dB(A)","MetricValue":"110","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"125"}
Note (3)

The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (3)","SpecificationId":null,"TextValue":"The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":"ft","EnglishValue":"13.3","MetricUnit":"mm","MetricValue":"4060","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"126"}
Note (4)

The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
{"Name":"Note (4)","SpecificationId":null,"TextValue":"The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.","EnglishUnit":"dB(A)","EnglishValue":"74","MetricUnit":"dB(A)","MetricValue":"74","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"127"}
Note (5)

Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
{"Name":"Note (5)","SpecificationId":null,"TextValue":"Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.","EnglishUnit":"dB(A)","EnglishValue":"113","MetricUnit":"dB(A)","MetricValue":"113","Type":"text","SpecificationGroup":"Sound Performance - Tier 4 Final / Stage V","SortOrder":"128"}

Transmission

Transmission Type

Cat planetary power shift
{"Name":"Transmission Type","SpecificationId":null,"TextValue":"Cat planetary power shift","EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"7.3","Type":"text","SpecificationGroup":"Transmission","SortOrder":"30"}
Forward - 1

5 mile/h 7.3 km/h
{"Name":"Forward - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"7.3","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"31"}
Forward - 2

8 mile/h 12.2 km/h
{"Name":"Forward - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12.2","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"32"}
Direct Drive - Forward 2

8 mile/h 12.7 km/h
{"Name":"Direct Drive - Forward 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"12.7","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"33"}
Direct Drive - Forward 3

14 mile/h 22 km/h
{"Name":"Direct Drive - Forward 3","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14","MetricUnit":"km/h","MetricValue":"22","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"34"}
Direct Drive - Forward 4

24 mile/h 39 km/h
{"Name":"Direct Drive - Forward 4","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"24","MetricUnit":"km/h","MetricValue":"39","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"35"}
Reverse - 1

5 mile/h 7.6 km/h
{"Name":"Reverse - 1","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"5","MetricUnit":"km/h","MetricValue":"7.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"36"}
Reverse - 2

8 mile/h 13.6 km/h
{"Name":"Reverse - 2","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"8","MetricUnit":"km/h","MetricValue":"13.6","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"37"}
Direct Drive - Reverse 2

9 mile/h 14.1 km/h
{"Name":"Direct Drive - Reverse 2","SpecificationId":null,"TextValue":"5-10,3 m³ (6,5-13,5 yd.³)","EnglishUnit":"mile/h","EnglishValue":"9","MetricUnit":"km/h","MetricValue":"14.1","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"38"}
Direct Drive - Reverse 3

16 mile/h 25 km/h
{"Name":"Direct Drive - Reverse 3","SpecificationId":null,"TextValue":"5-10,3 m³ (6,5-13,5 yd.³)","EnglishUnit":"mile/h","EnglishValue":"16","MetricUnit":"km/h","MetricValue":"25","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"39"}
Direct Drive - Reverse 4

25.4 mile/h 40.8 km/h
{"Name":"Direct Drive - Reverse 4","SpecificationId":null,"TextValue":"Load Sense","EnglishUnit":"mile/h","EnglishValue":"25.4","MetricUnit":"km/h","MetricValue":"40.8","Type":"measurement","SpecificationGroup":"Transmission","SortOrder":"40"}

Benefits

The highly responsive Cat C15 engine is built and tested for maximum performance.
Mechanically actuated Electronic Unit Injection (MEUI™) fuel system and ADEM™ A5 electronic control module manage fuel delivery for optimum performance and quick engine response.
Available in aggregate handler configuration with 14-ton payload.
System match efficiency up to 60-ton rigid-frame trucks.

World-class transmission for long life and consistent, smooth shifting; specifically designed for mining applications.
Moves material more efficiently with improved power and control.
Durable construction withstands the toughest loading conditions and multiple life cycles.
Transmission neutralizer pedal extends service brake life and allows full power during stationary loading.
Load sense hydraulics maximize performance, lower heat and fuel consumption.
Advanced filtration system for extended performance and reliability of the hydraulic system.

Up to 10% more payload per pass, higher efficiency, and improved pass match.
Field-proven lift arms for enhanced strength, uptime, and excellent visibility.
Load-sensing hydraulic steering with 35-degree articulation for precise positioning.
Maximum responsiveness with Steering and Integrated Control (STIC™), combining directional, gear, and steering controls in a single joystick.
Most advanced payload weight measuring system available.
Performance Buckets for superior digging, higher bucket fill factors, and reduced dig times.
Cat Advansys™ ground engaging tools (GET) protect components and reduce operating costs.
Excellent visibility to the bucket edges and work area.
Convenient, responsive, electro-hydraulic controls increase operator productivity.

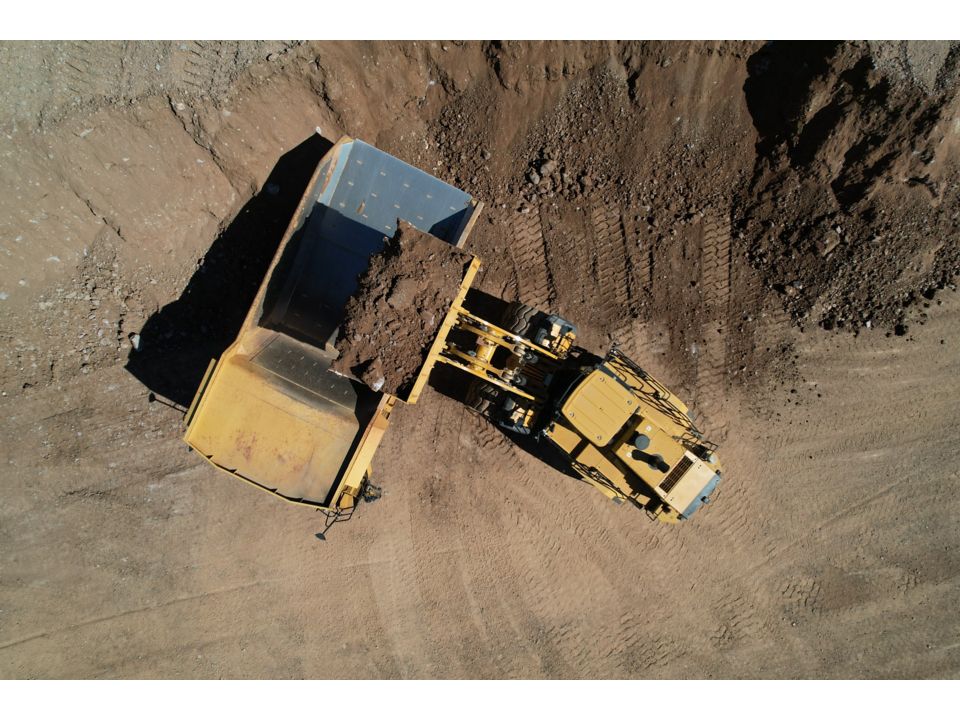

World-class efficiency while truck loading.
Torque converter with lock-up clutch improves travel speed, cycle times.
Engine Idle Shutdown saves fuel from unnecessary idling. Move up to 10% more material per gallon of fuel.
Consistent performance and efficiency with lower system heat.

Developed to monitor, manage, and enhance your jobsite operations.
Payload provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.
Detect enhances awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the jobsite.
VisionLink® wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business.
Gain valuable insight into how your machine or fleet is performing.
Optional Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.
*Not legal for trade

Standard stairway lighting.
Left- and right-hand stairs with 45-degree angle.
Rear vision camera system.
Large front and side windows.
Pressurized cabin with filtered and reduced sound levels.

Up to 10% lower maintenance costs.
Advanced filtration system for extended performance.
Extended service intervals for fluids and filters.
Ground level or platform access to transmission control valves.
Grouped service points.
Centralized, ground level grease points and remote pressure taps.
Ground electrical service center.
Reduced waste with maintenance-free or extended-maintenance batteries.
Swing-out engine compartment service doors.
Tire pressure monitoring to enhance tire life.
Longer life, rebuildability, and high resale value.
Electro-hydraulic controls.

World-class operator comfort and ergonomics.
Integrated steering and transmission controls.
Convenient, automatic, inside-the-cab implement kickouts.
Easy-to-use soft detent controls.
Comfort Series III seats with extra thick, contoured cushions.
Air suspension system.
Easy-to-reach levers and controls with six-way adjustment.
Seat-mounted implement pod with STIC steering.
Ergonomic switch placement and displays with large backlit switches and LED indicators.
Two-position rocker switch activates the electro-hydraulic parking brake.
Automatic cab temperature controls.
Precise machine control by load-sensing hydraulic steering system.
Fold-up STIC steer/armrest.

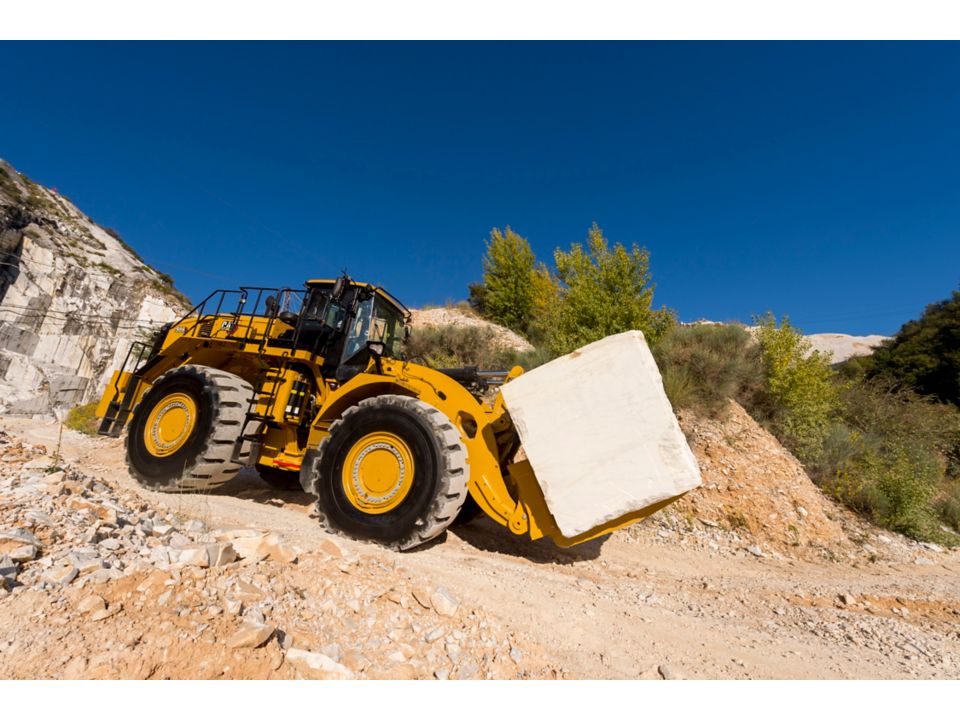

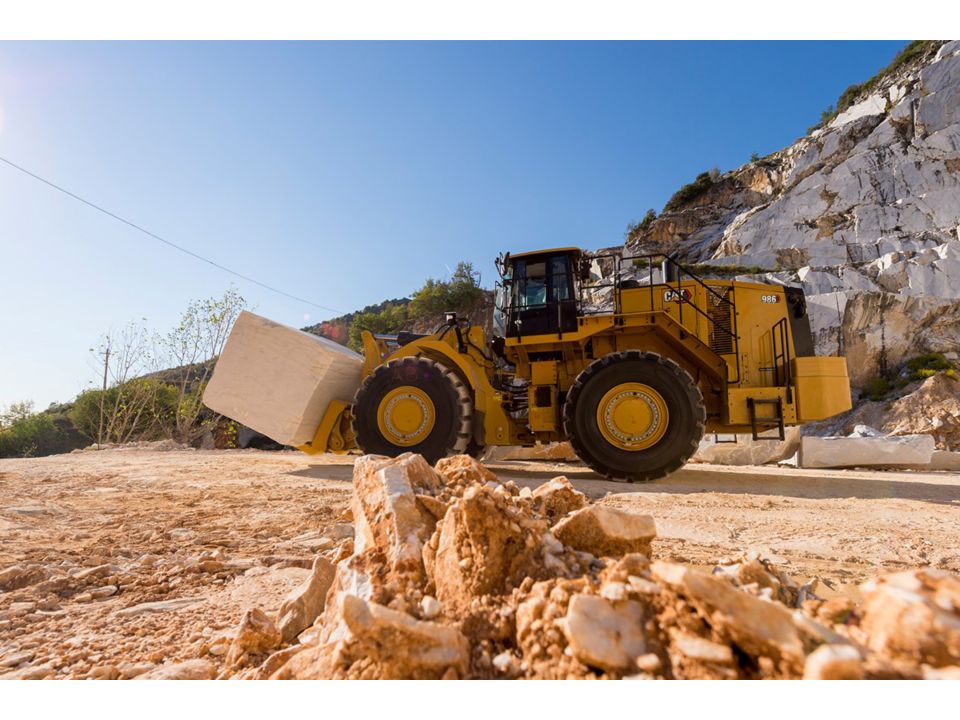

Block Handler

Delivers stability and durability with an optimized counterweight for block handling applications.
An additional hydraulic valve with the Quick Coupler allows the operator to switch work tools and immediately lock the work tool.
Larger tilt and lift cylinders on the linkage help improve load control and ensure safe and long lasting operation.
Ride control acts as a shock absorber, providing the operator with a smoother ride over rough terrain.
Linkage layout designed to maximize lift capability in block handling application.
High load stresses are absorbed by solid steel lift arms.
Enhanced strength in key pin areas through the use of one-piece castings.
Stress released lift arms increase durability and lengthen time to repair.

Equipment Info

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, back-up

OPERATOR ENVIRONMENT

Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings

POWERTRAIN

Brakes, oil-cooled, multi-disc, service/secondary

OTHER

Automatic bucket lift kickout/positioner

Product Brochures

Product Brochure #1

Product Brochure #2

The Toromont Cat advantage

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Lorem ipsum dolor sit amet, consectetur adipiscing elit

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex.

Learn more

Contact an equipment specialist

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed eros justo, volutpat sed sem vel, tincidunt dictum ex. Curabitur eget massa nec enim viverra fermentum vel eu ligula.

Insert form

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Lorem ipsum dolor

Learn more

Excavators

986

986

NOTE

ELECTRICAL

OPERATOR ENVIRONMENT

POWERTRAIN

OTHER

The Toromont Cat advantage

Lorem ipsum dolor

Contact an equipment specialist

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor

Lorem ipsum dolor
