LR116

Get in touch

Cat® Landscape Rakes are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance applications. They use the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal. Landscape rakes are designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Working Width

62 in 1576 mm
{"Name":"Working Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"62","MetricUnit":"mm","MetricValue":"1576","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Bucket Capacity - Struck

0.4 yd³ 0.31 m³
{"Name":"Bucket Capacity - Struck","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.4","MetricUnit":"m³","MetricValue":"0.31","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

1311.7 lb 595 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"1311.7","MetricUnit":"kg","MetricValue":"595","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Raking Width

54.5 in 1384 mm
{"Name":"Raking Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"54.5","MetricUnit":"mm","MetricValue":"1384","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Overall Width

66.3 in 1683 mm
{"Name":"Overall Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"66.3","MetricUnit":"mm","MetricValue":"1683","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Height

38.9 in 989 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"38.9","MetricUnit":"mm","MetricValue":"989","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Length

63.8 in 1620 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"63.8","MetricUnit":"mm","MetricValue":"1620","Type":"measurement","SpecificationGroup":null,"SortOrder":"7"}
Optimal Hydraulic Flow

42-86 L/min (11-23 gpm)
{"Name":"Optimal Hydraulic Flow","SpecificationId":null,"TextValue":"42-86 L/min (11-23 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"8"}
Optimal Hydraulic Pressure

145-235 bar (2100-3400 psi)
{"Name":"Optimal Hydraulic Pressure","SpecificationId":null,"TextValue":"145-235 bar (2100-3400 psi)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}
Motor Displacement

19.2 in³/rev 315 cm³/rev
{"Name":"Motor Displacement","SpecificationId":null,"TextValue":null,"EnglishUnit":"in³/rev","EnglishValue":"19.2","MetricUnit":"cm³/rev","MetricValue":"315","Type":"measurement","SpecificationGroup":null,"SortOrder":"10"}
Driven Shaft Speed

165 rpm @ 80 L/min (21 gpm)
{"Name":"Driven Shaft Speed","SpecificationId":null,"TextValue":"165 rpm @ 80 L/min (21 gpm)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"11"}
Number of Hard Face Tines

372
{"Name":"Number of Hard Face Tines","SpecificationId":null,"TextValue":"372","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"12"}
Rock Size Range

19-152 mm (0.75-6 in)
{"Name":"Rock Size Range","SpecificationId":null,"TextValue":"19-152 mm (0.75-6 in)","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"13"}
Drive Method

Chain Reduction
{"Name":"Drive Method","SpecificationId":null,"TextValue":"Chain Reduction","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"14"}
Drive Chain

#80H
{"Name":"Drive Chain","SpecificationId":null,"TextValue":"#80H","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"15"}
Conveyor Chain

#2060H
{"Name":"Conveyor Chain","SpecificationId":null,"TextValue":"#2060H","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"16"}
Required Hydraulics

Standard Flow
{"Name":"Required Hydraulics","SpecificationId":null,"TextValue":"Standard Flow","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"17"}

Benefits

Application

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.

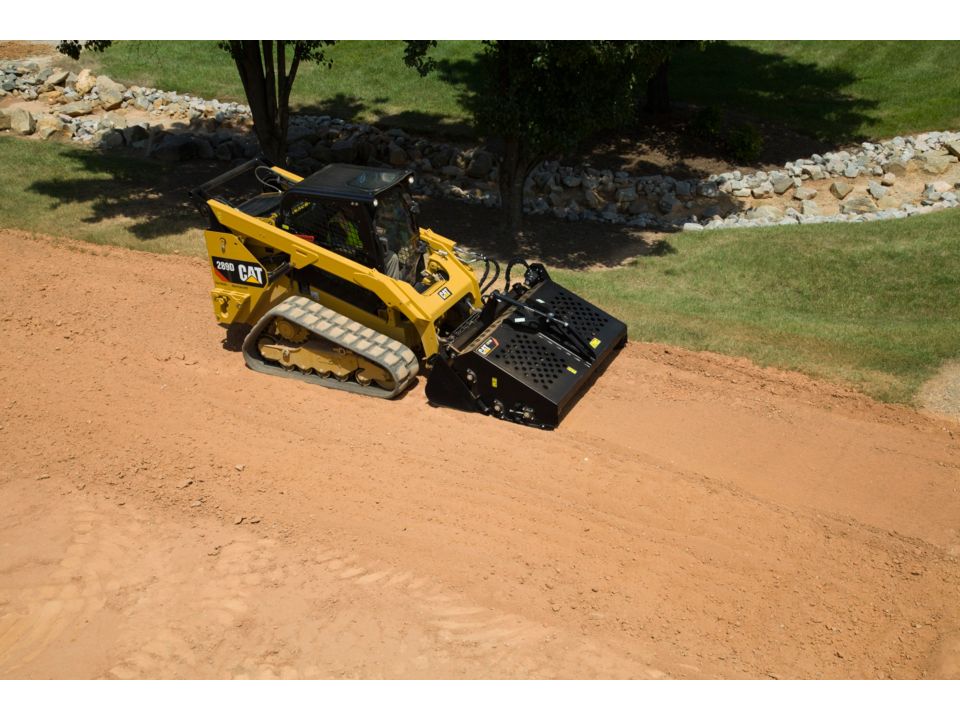

Travel Direction

Designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.

Robust Design

Chain reduction drive system and steel teeth are built for maximum strength and durability in the toughest soil conditions.

Quick Dumping

Quick dumping capability is accomplished with a poppet check valve that stops flow to the hydraulic motor and directs flow to the rake head cylinder. Once the hopper bucket is full, simply reverse flow to actuate the rake head cylinder and dump the bucket.

Conveyor Tubes

Bolt-on conveyor tubes for easy replacement and serviceability.
