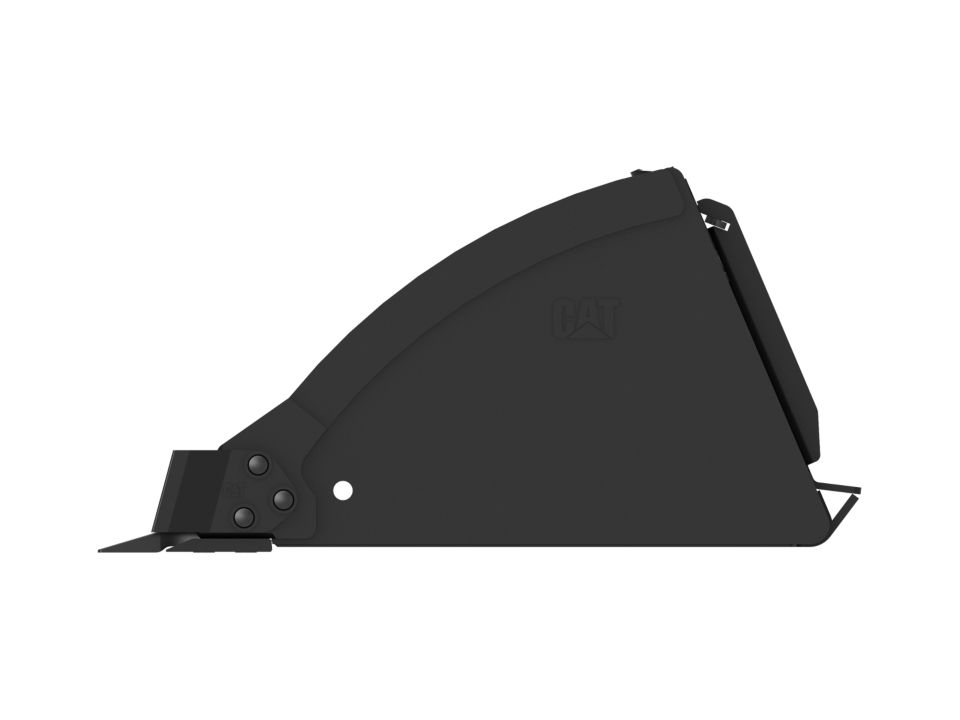

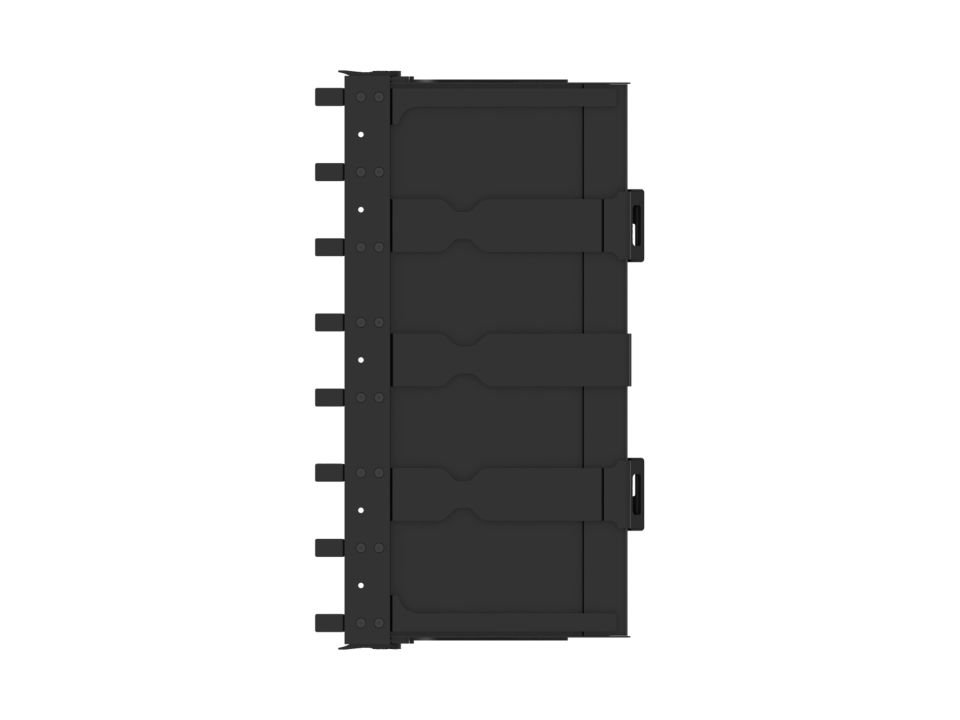

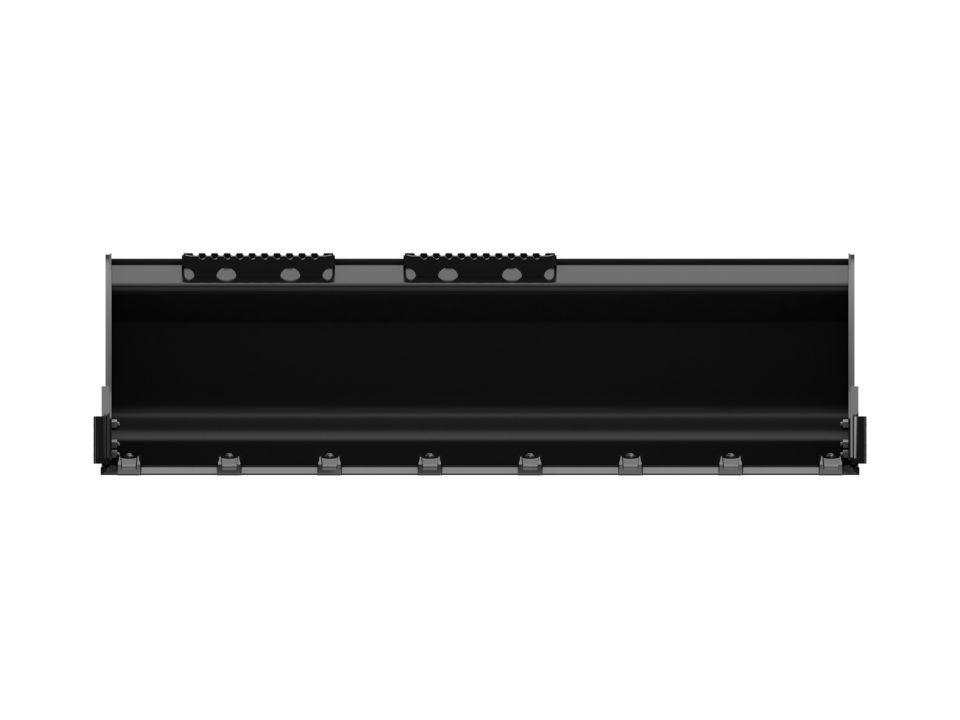

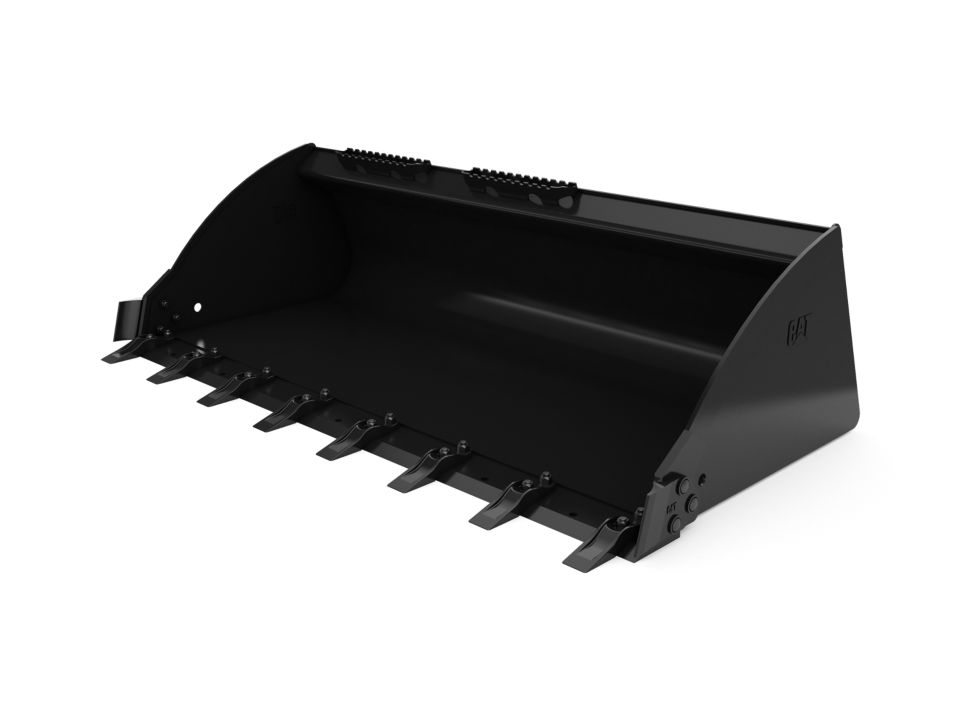

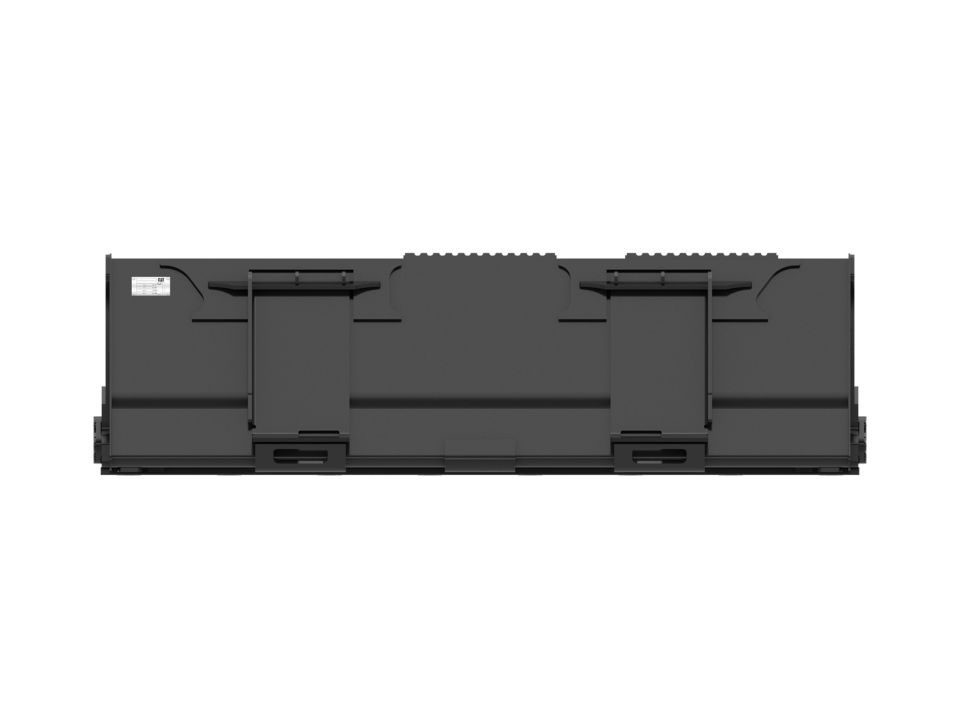

1883 mm (74 in), 0.57 m3 (0.75 yd3) Bolt-On Teeth

Get in touch

Cat® Industrial Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for loading, carrying and dumping in a variety of applications and materials. These buckets are ideal for construction and industrial applications.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

74.1 in 1883 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"74.1","MetricUnit":"mm","MetricValue":"1883","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Capacity

0.75 yd³ 0.57 m³
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"yd³","EnglishValue":"0.75","MetricUnit":"m³","MetricValue":"0.57","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

694.5 lb 315 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"694.5","MetricUnit":"kg","MetricValue":"315","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Height

21.7 in 550 mm
{"Name":"Height","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"21.7","MetricUnit":"mm","MetricValue":"550","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Length

43 in 1092 mm
{"Name":"Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"43","MetricUnit":"mm","MetricValue":"1092","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Base Edge Thickness

0.7 in 19 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.7","MetricUnit":"mm","MetricValue":"19","Type":"measurement","SpecificationGroup":null,"SortOrder":"6"}
Sidewall Thickness

0.2 in 5 mm
{"Name":"Sidewall Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.2","MetricUnit":"mm","MetricValue":"5","Type":"measurement","SpecificationGroup":null,"SortOrder":"8"}
Interface Type

Skid Steer Coupler
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Skid Steer Coupler","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"9"}

Benefits

Application

Designed for loading, carrying and dumping in a variety of applications and materials. These buckets are ideal for construction and industrial applications.

Optimum Bucket Geometry

Low back height profile and long floor length result in excellent visibility to the front cutting edge and front corners, and superior loading and dumping.

Full Length Skid Bars

Full length skid bars provide additional floor rigidity and wear resistance.

Rugged Design

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Integrated Steps

Integrated steps make it easier for the operator to enter/exit the cab.

Ground Engaging Tool Options

Base bucket also available with bolt-on cutting edge, bolt-on teeth and bolt-on tooth bar.

Product Brochures

Product Brochure #1
