1500 mm (59 in)

Get in touch

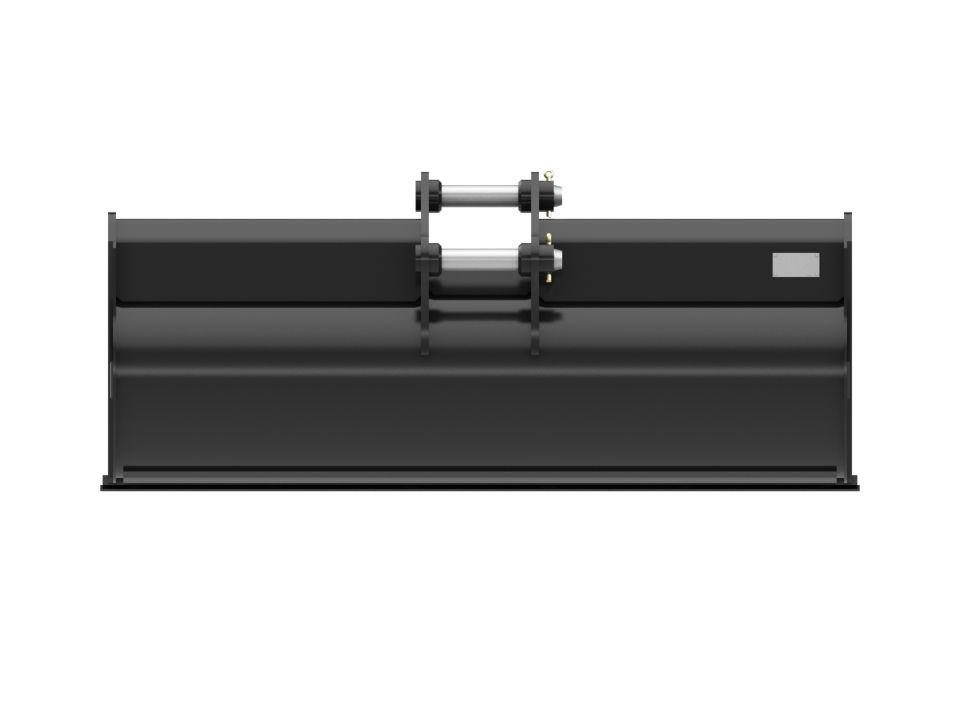

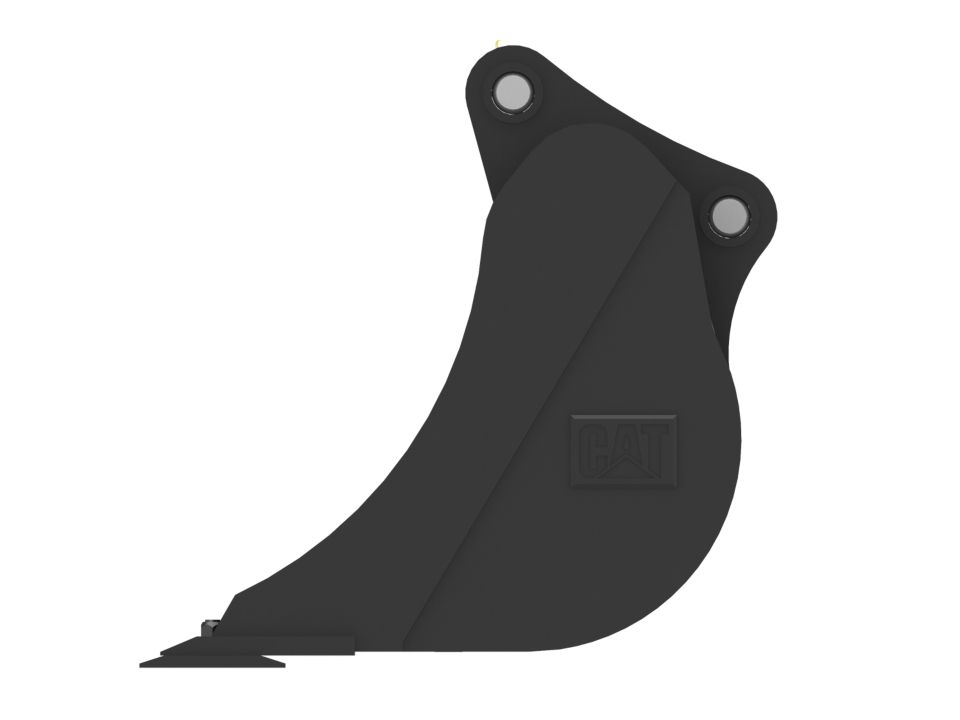

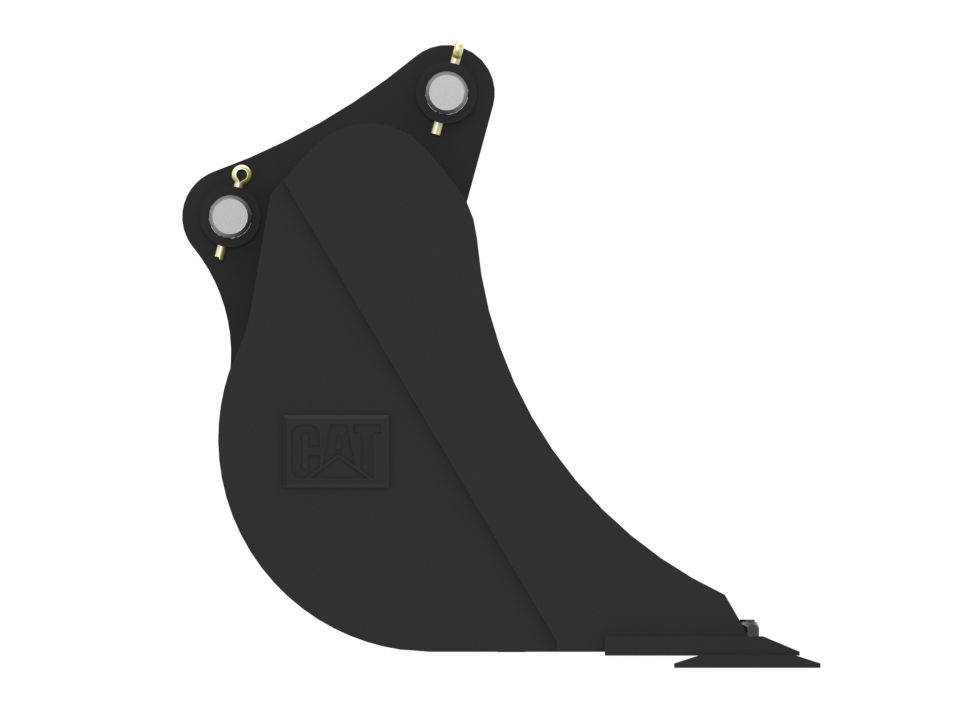

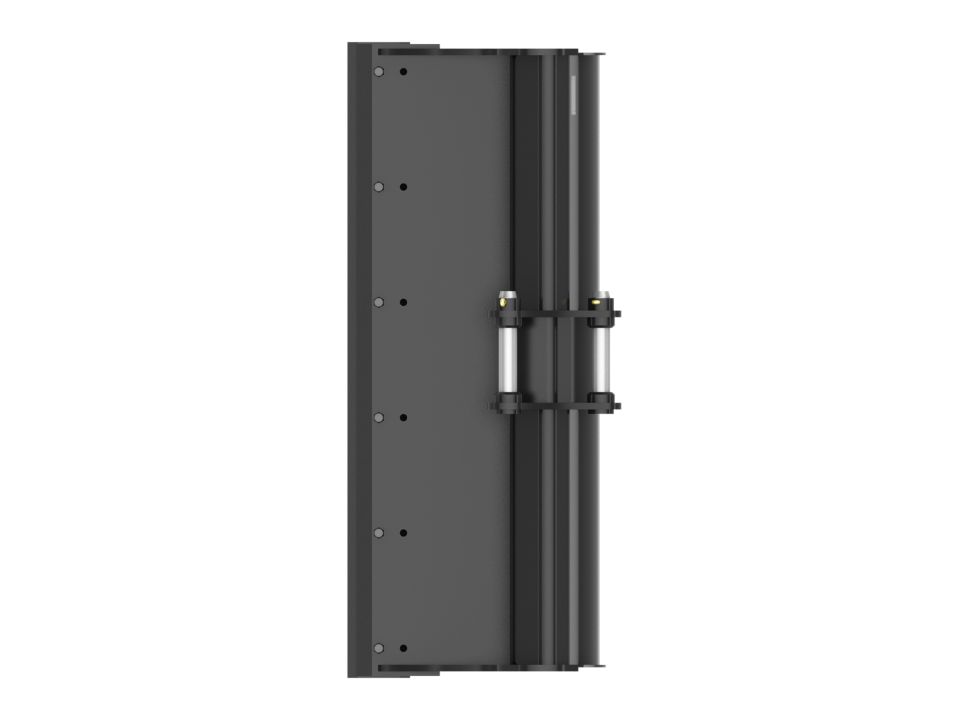

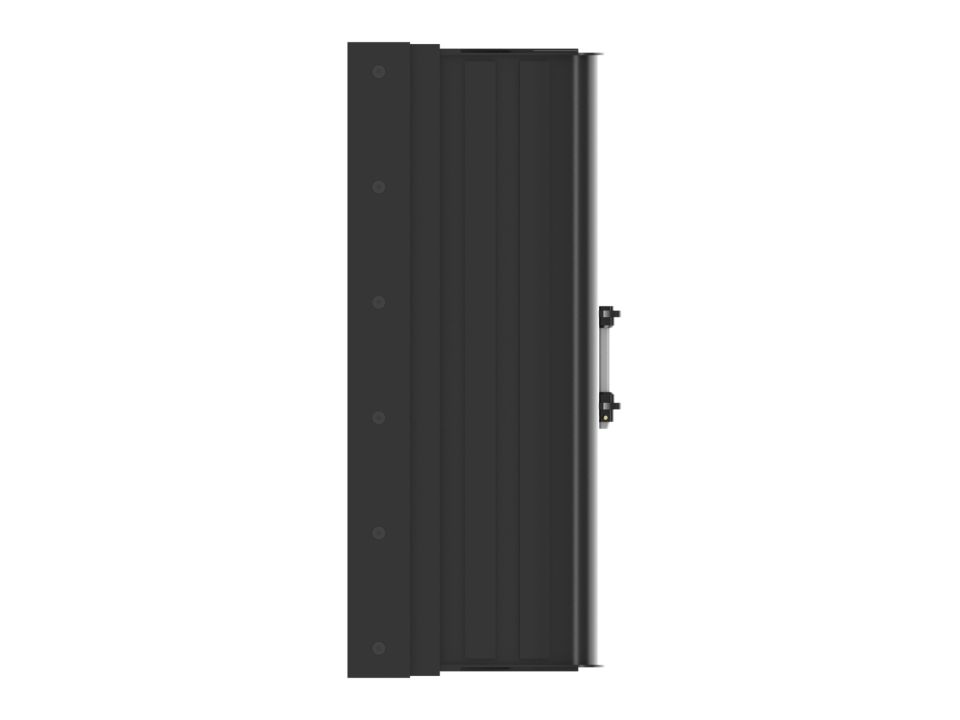

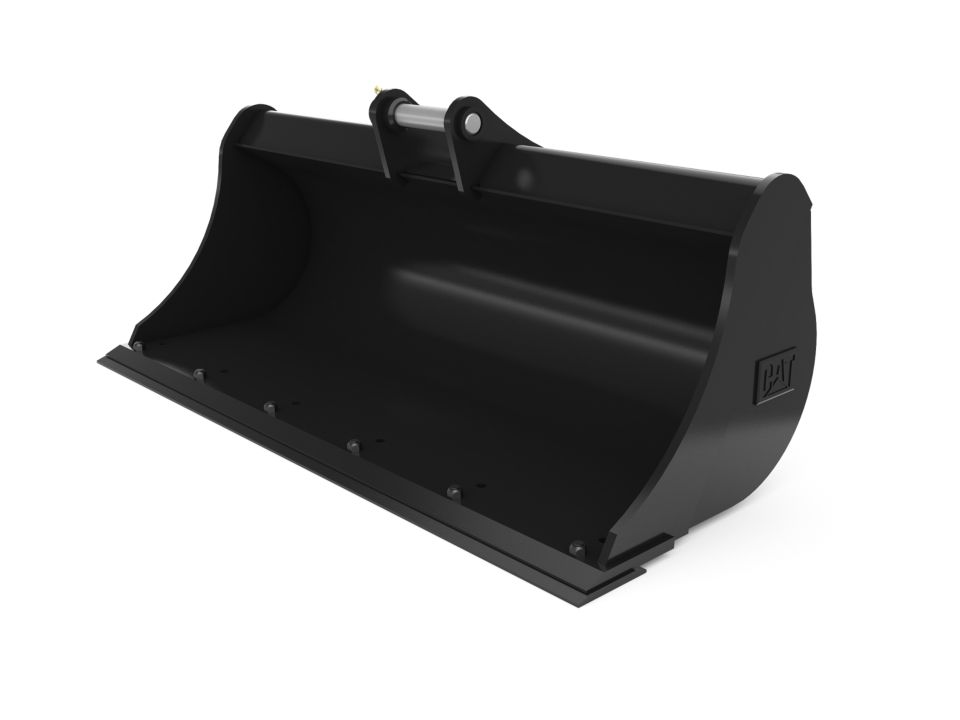

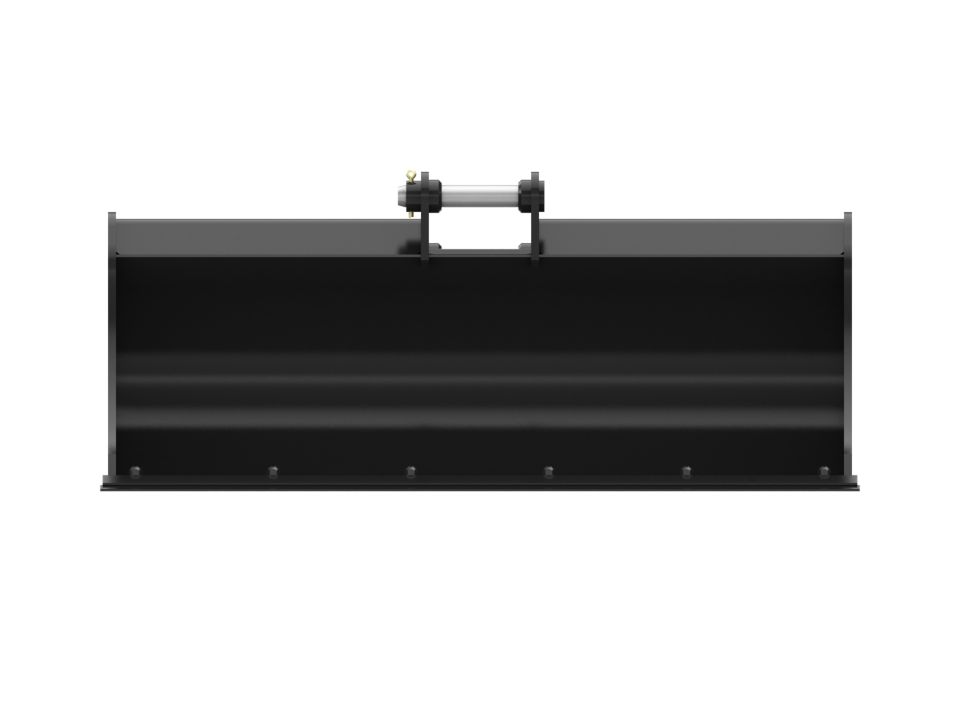

Grading Buckets for Cat® Mini Excavators are designed to provide optimum grading, trenching, slope-cutting and finishing work in addition to nesting additional buckets for ease of transportation.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Width

59.1 in 1500 mm
{"Name":"Width","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"59.1","MetricUnit":"mm","MetricValue":"1500","Type":"measurement","SpecificationGroup":null,"SortOrder":"1"}
Capacity

11.6 ft³ 329.89 l
{"Name":"Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft³","EnglishValue":"11.6","MetricUnit":"l","MetricValue":"329.89","Type":"measurement","SpecificationGroup":null,"SortOrder":"2"}
Weight

491.4 lb 222.89 kg
{"Name":"Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"491.4","MetricUnit":"kg","MetricValue":"222.89","Type":"measurement","SpecificationGroup":null,"SortOrder":"3"}
Base Edge Thickness

0.8 in 20 mm
{"Name":"Base Edge Thickness","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"0.8","MetricUnit":"mm","MetricValue":"20","Type":"measurement","SpecificationGroup":null,"SortOrder":"4"}
Tip Radius

28.1 in 714.9 mm
{"Name":"Tip Radius","SpecificationId":null,"TextValue":"Pin On","EnglishUnit":"in","EnglishValue":"28.1","MetricUnit":"mm","MetricValue":"714.9","Type":"measurement","SpecificationGroup":null,"SortOrder":"5"}
Interface Type

Pin On
{"Name":"Interface Type","SpecificationId":null,"TextValue":"Pin On","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":null,"SortOrder":"6"}

Benefits

Application

Designed for cleaning ditches, sloping, grading and other finishing work.

Bucket Nesting

Transport all buckets needed for a job within the Grading Bucket.

Bolt-On Cutting Edge

Allows for smooth finish in grading applications.

Lack of Drainage Holes

Retains material and water for waste removal and light material applications.

Included Pins

Pins come pre-installed with bucket.
