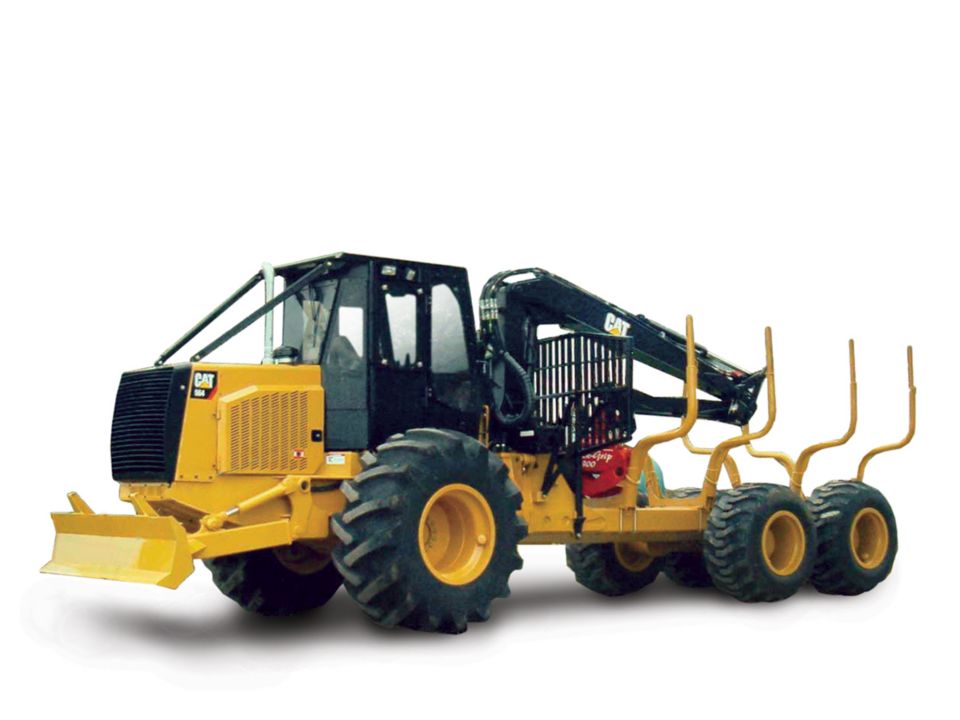

564

Get in touch

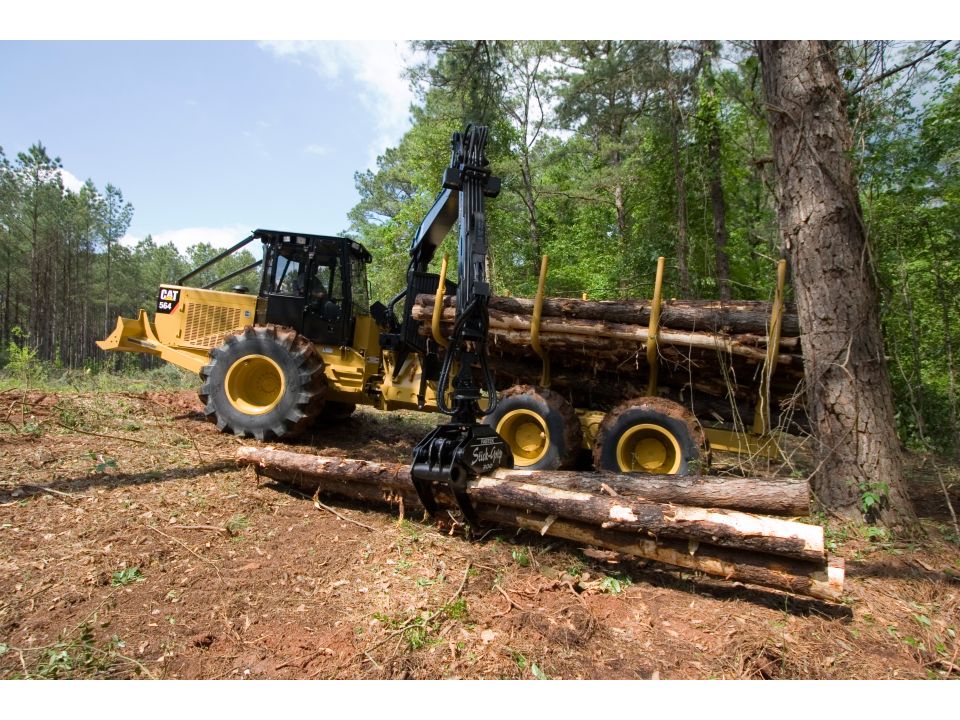

Caterpillar has a range of forwarders with rated load capacities from 10 to 20 tonnes. All forwarders use proven over-sized components including heavy-duty axles and transmissions. The Cabs are designed for maximum visibility to the work area, and cab interiors are spacious and comfortable. Varying lengths of load decks are available to meet individual applications. High strength loaders allow for quick and efficient loading and unloading.

(416) 667-5511 Request a Quote

Book a Demo

Explore my deals

Specifications

Engine

Gross Power

174 hp 130 kW
{"Name":"Gross Power","SpecificationId":null,"TextValue":null,"EnglishUnit":"hp","EnglishValue":"174","MetricUnit":"kW","MetricValue":"130","Type":"measurement","SpecificationGroup":"Engine","SortOrder":"3"}
Engine Model

Cat® C6.6 ACERT
{"Name":"Engine Model","SpecificationId":null,"TextValue":"Cat® C6.6 ACERT","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Engine","SortOrder":"5"}

Fuel Tank

Fuel Tank Capacity

47.02 gal (US) 178 l
{"Name":"Fuel Tank Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"47.02","MetricUnit":"l","MetricValue":"178","Type":"measurement","SpecificationGroup":"Fuel Tank","SortOrder":"12"}

Hydraulic System

Flow Rate

66 gpm 250 L/min
{"Name":"Flow Rate","SpecificationId":null,"TextValue":null,"EnglishUnit":"gpm","EnglishValue":"66","MetricUnit":"L/min","MetricValue":"250","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"31"}
Hydraulic Fluid Reservoir

32 gal (US) 121 l
{"Name":"Hydraulic Fluid Reservoir","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"32","MetricUnit":"l","MetricValue":"121","Type":"measurement","SpecificationGroup":"Hydraulic System","SortOrder":"33"}

Operating Specifications

Load Capacity

30000 lb 13608 kg
{"Name":"Load Capacity","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"30000","MetricUnit":"kg","MetricValue":"13608","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"1"}
Loader Reach

22.9 ft 6.9 m
{"Name":"Loader Reach","SpecificationId":null,"TextValue":null,"EnglishUnit":"ft","EnglishValue":"22.9","MetricUnit":"m","MetricValue":"6.9","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"2"}
Load Capacity - With Clam Bunk Attachment

26000 lb 11793 kg
{"Name":"Load Capacity - With Clam Bunk Attachment","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"26000","MetricUnit":"kg","MetricValue":"11793","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"4"}
Wood Bunk Length

192 in 4877 mm
{"Name":"Wood Bunk Length","SpecificationId":null,"TextValue":null,"EnglishUnit":"in","EnglishValue":"192","MetricUnit":"mm","MetricValue":"4877","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"4"}
Maximum Speed - 6WD

14.5 mile/h 23.3 km/h
{"Name":"Maximum Speed - 6WD","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14.5","MetricUnit":"km/h","MetricValue":"23.3","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"4"}
Payload

30000 lb 13607.8 kg
{"Name":"Payload","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"30000","MetricUnit":"kg","MetricValue":"13607.8","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"4"}
Maximum Travel Speed

14.48 mile/h 23.3 km/h
{"Name":"Maximum Travel Speed","SpecificationId":null,"TextValue":null,"EnglishUnit":"mile/h","EnglishValue":"14.48","MetricUnit":"km/h","MetricValue":"23.3","Type":"measurement","SpecificationGroup":"Operating Specifications","SortOrder":"4"}

Service Refill Capacities

Fuel Tank

47 gal (US) 178 l
{"Name":"Fuel Tank","SpecificationId":null,"TextValue":null,"EnglishUnit":"gal (US)","EnglishValue":"47","MetricUnit":"l","MetricValue":"178","Type":"measurement","SpecificationGroup":"Service Refill Capacities","SortOrder":"4"}

Transmission

Transmission

Electric Power Shift
{"Name":"Transmission","SpecificationId":null,"TextValue":"Electric Power Shift","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"7"}
Gears

4/4
{"Name":"Gears","SpecificationId":null,"TextValue":"4/4","EnglishUnit":null,"EnglishValue":null,"MetricUnit":null,"MetricValue":null,"Type":"text","SpecificationGroup":"Transmission","SortOrder":"8"}

Weights

Operating Weight

36000 lb 16329 kg
{"Name":"Operating Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"36000","MetricUnit":"kg","MetricValue":"16329","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"4"}
Gross (Loaded) Machine Weight

35999.24 lb 16329 kg
{"Name":"Gross (Loaded) Machine Weight","SpecificationId":null,"TextValue":null,"EnglishUnit":"lb","EnglishValue":"35999.24","MetricUnit":"kg","MetricValue":"16329","Type":"measurement","SpecificationGroup":"Weights","SortOrder":"4"}

Benefits

Power Train

Field proven CAT ACERT diesel engines
Torque converter power shift transmission
4-speed electronic shift
Wet disc axle and parking brakes

Control System

IQAN computer control system
Closed center proportional control valves
Hydraulic oil cooler with thermal bypass

Operator Station

Scratch resistant 12.7 mm (1/2 in) tinted polycarbonate windows
Side windows double as escape routes
Heater/air conditioner
Fire extinguisher
360° lighting package
Hydraulic tilt cab
Isolation mounted cab

Structures

Large engine side covers
Heavy-duty engine and radiator house
Purpose-built blade with wear resistant front cutting edge
Optional brush sweeps
Heavy frame articulation points
Full 40° articulation with frame lock
Adjustable log bunks with floating cam stakes

Loader Features

Rear mounted loader with durable rack and pinion swing system
Wrapped hoses
Full load high reach boom
250˚ rotation
European style butt-bypass grapple with high strength steel dampener

Equipment Info

Funk 1200 Front Axle

NAF Bogie (HD) Rear Axle

Front Axle Bogie lift

Cat C6.6 ACERT Engine

28 L x 26 Front Tire

700/50 x 26.5 Rear Tire

Electric Power Shift Transmission

PVG 100 cc Variable displacement load sensing piston pump

Loader with Telescopic Boom - 6.93m (22 ft, 9 in) Reach
