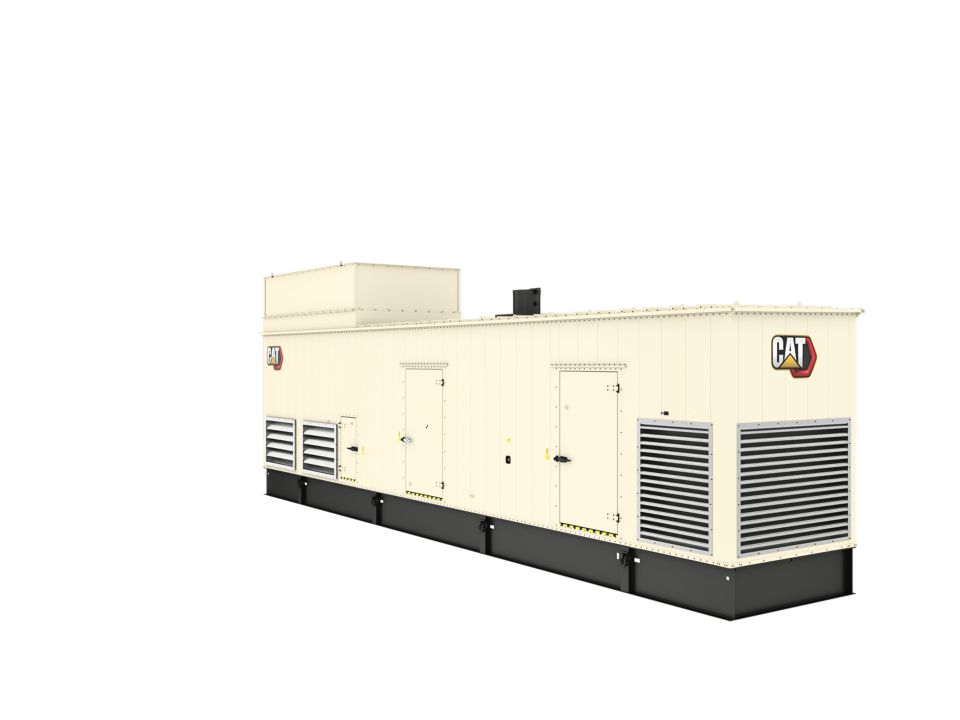

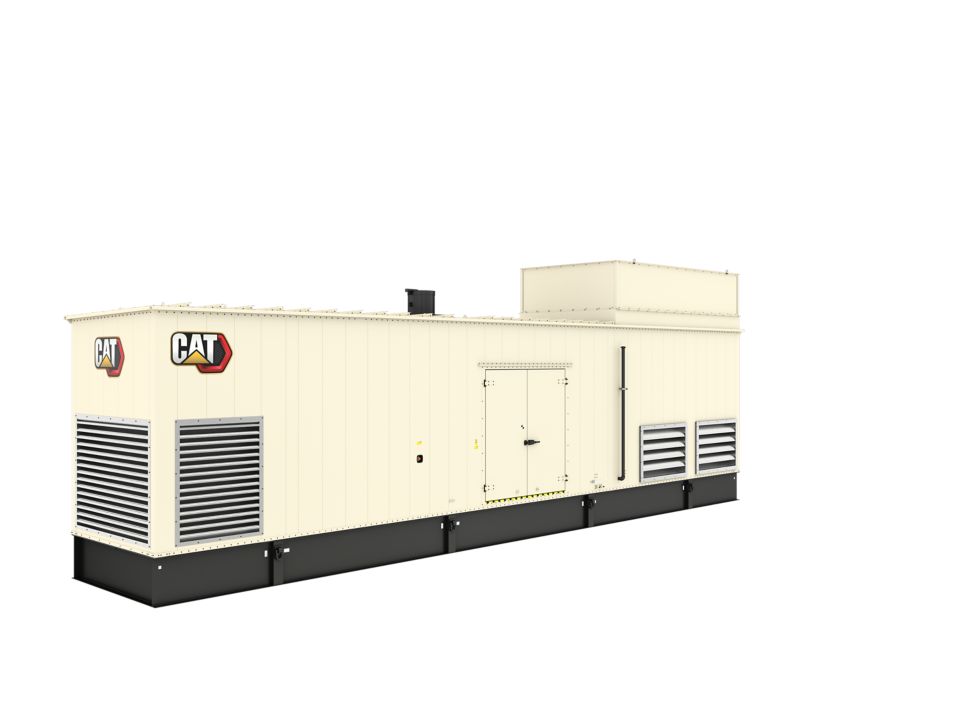

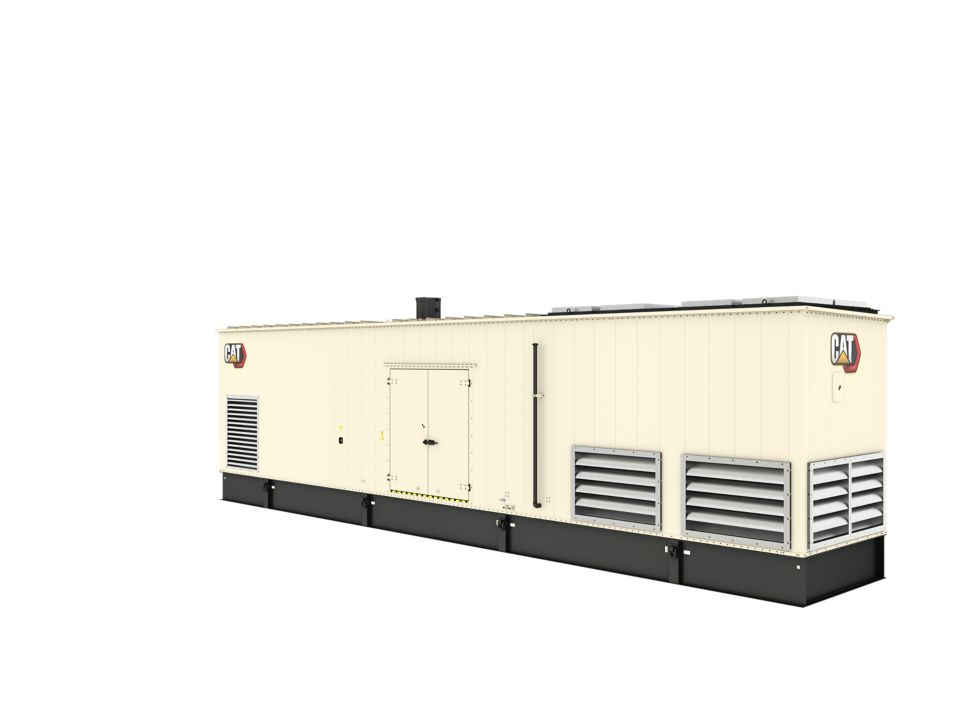

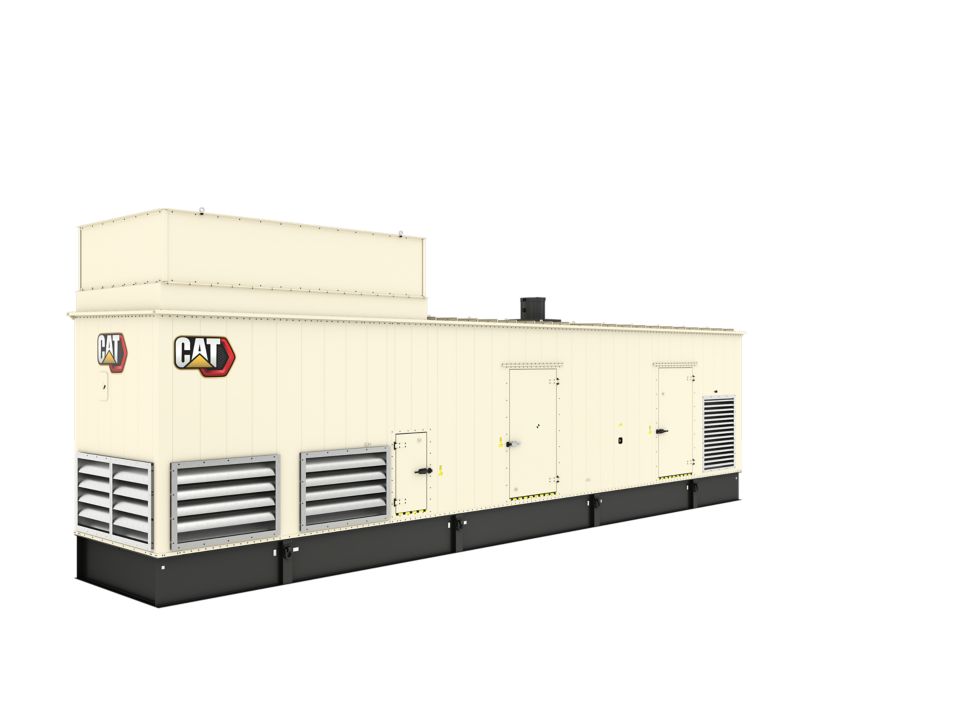

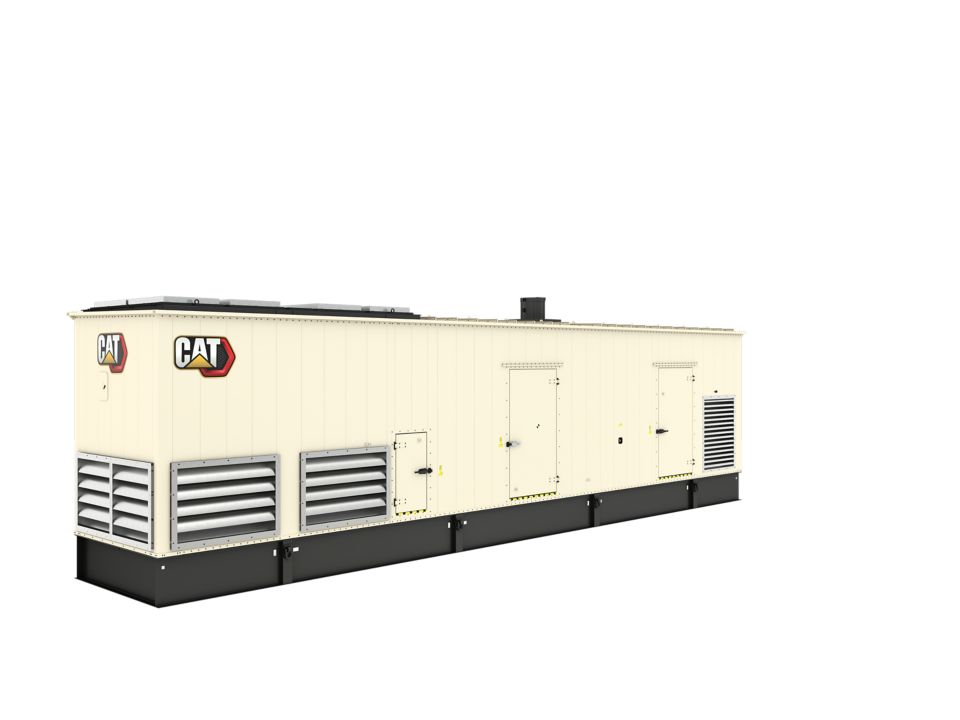

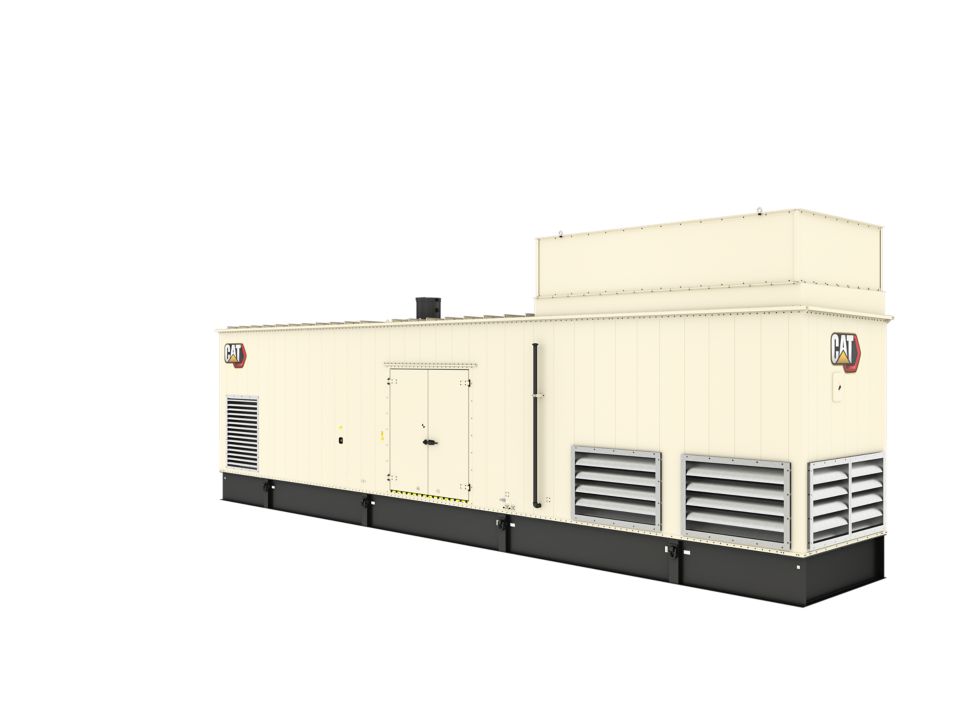

3516C 60Hz Sound Attenuated Enclosure
-
HeightLevel 1: 166.6 in Level 2: 197.1 in
-
Width105.2 in
-
Length546.0 in
Robust/Highly Corrosion Resistant Construction
- Galvanneal construction
- NEC Code Compliant
- Internally mounted muffler/ exhaust system
- Level 2: 74 dBA at 7 m
- Level 1: 79 dBA at 7m
Excellent Access
- Control interface on rear of package
- Large cable entry area for ease of installation
- Personnel doors -Double doors on right side, single door on left side
- Maintenance doors - 2 doors on left side for radiator and air intake access
- Lube oil and coolant drains piped to exterior of enclosure
Security And Safety
- Lockable access doors with standard key use
- Cooling fan and battery charging alternator fully guarded
- Oil fill and battery can only be reached via lockable access
- Externally mounted emergency stop buttons on both sides of enclosure
Options
- Level 2 (sound box)
- Skid base (no fuel tank)
- Motorized louvers
- Space heater
- Jacket water heater
